Impacts of the elbow in different positions on the displacement of median nerve and radial nerve: an X-ray evaluation

doi:10.3969/j.issn.2095-4344.2016.33.007

Abstract

Abstract:

BACKGROUND: The position of median and radial nerves corresponding to elbow is usually estimated by macroscopical measurements, but there are big data errors when the elbow is bent.
OBJECTIVE: To measure and analyze the impacts of elbows in different positions on median and radial nerves under X-ray.
METHODS: Ten fresh frozen upper limb specimens were selected. The distance of median and radial nerves to the osseous marks inside the elbow was measured when the elbow was in extension, extension-half pronation, bent at flexion 90 degrees and bent at 90 degrees with the injection of normal saline into the joint capsule, respectively.
RESULTS AND CONCLUSION: The positions of median and radial nerves were not influenced when the elbow was in extension or in extension-half pronation (P > 0.05). The distance of median and radial nerves to the osseous mark of the elbow was significantly lengthened when the elbow was moved from from extension to was bent at 90 degrees (P < 0.05). The intra-articular injection of normal saline when the elbow flexion 90 degrees significantly elongated the distance of median and radial nerves to the osseous mark of elbow (P < 0.05). These results suggest that the elbow in different positions can induce the displacement of median and radial nerves. In addition, the distance between median, radial nerves and the osseous marks of the elbow is obviously lengthened when the elbow is in flexion with intra-articular injection of normal saline.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Elbow Joint, Median Nerve, Radial Nerve, Tissue Engineering

CLC Number:

R318

Lu Wei, Li Jian-ping, Qin Yi, Jiang Zhen-dong, Yang Lin. Impacts of the elbow in different positions on the displacement of median nerve and radial nerve: an X-ray evaluation[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(33): 4913-4918.

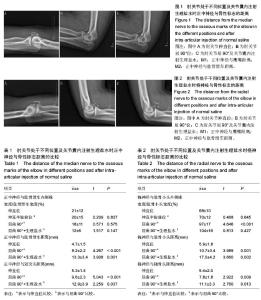

Figures/Tables 1

2.1 肘关节处于不同位置及关节囊内注射生理盐水对正中神经位置的影响正中神经与肱骨滑车内侧缘宽度/肱骨滑车宽度的百分比在伸直位(21±12)%和90°屈曲位(18±11)%差异无显著性意义(P=0.575)；前臂伸直位与伸直半旋前位正中神经与肱骨滑车内侧缘宽度/肱骨滑车宽度的百分比差异无显著性意义(P > 0.05)；肘关节屈90°及关节囊内注射生理盐水时增加正中神经与冠突尖及桡神经与桡骨头的距离。正中神经与肱骨滑车前缘的距离伸直位为(4.7± 1.5) mm，在屈90°位为(8.2±2.2) mm，两者相互比较差异有显著性意义(P < 0.001)，而在屈90°位关节囊注射生理盐水增加到(13.4±3.6) mm，与注射生理盐水前比较差异有显著性意义(P=0.001)；正中神经与尺骨冠突尖的距离伸直位为(5.3±1.4) mm，关节屈90°为(9.6± 2.3) mm，两者差异有显著性意义(P < 0.001)，在关节囊内注射生理盐水后增加到(12.9±3.9) mm，与注射生理盐水前比较，两者差异有显著性意义(P=0.037)，见图1，表1。 2.2 肘关节处于不同位置及关节囊内注射生理盐水对桡神经位置的影响肱骨小头外侧缘的距离/肱骨小头宽度的百分比在肘关节伸直位与伸直半旋前位以及屈90°与屈90°注射生理盐时相互比较，差异无显著性意义(P > 0.05)；当肘关节屈曲时会引起桡神经向内侧移位，肘关节伸直位桡神经与肱骨小头外侧缘的距离/肱骨小头宽度的百分比(68±10)%与屈曲位(97±17)%相互比较，差异有显著性意义(P < 0.01)；桡神经与桡骨头前缘的距离伸直位为(5.9±1.8) mm而屈90°为(10.7± 3.4) mm，两组相互比较差异有显著性意义(P=0.001)；屈90°注射生理盐水后增加至(17.0±4.2) mm与注射前比较，差异有显著性意义(P=0.002)。肘关节90°屈曲桡神经到桡骨头前缘的距离(7.8±1.8) mm与伸直位比较(5.4±2.0) mm，差异无显著性意义(P=0.009)；在屈90°位关节内注射生理盐水后增加到(11.9±3) mm，与屈90°位比较差异有显著性意义(P=0.013)，见图2，表2。"
