Liu Jian-bin, Studying for master’s degree, First Clinical Medical College, Shanxi Medical University, Taiyuan 030001, Shanxi Province, China

doi:10.3969/j.issn.2095-4344.2015.26.027

Abstract

Abstract:

BACKGROUND: Intertrochanteric fracture is one of the common fracture, and accompanied by osteoporosis and high energy injury. The fracture line often descended, and induced A3 intertrochanteric fracture. This type of fracture is difficult to treat. Common intramedullary fixation includes proximal femoral nail anti-rotation and InterTan, which have high stability, are minimally invasive, and have been extensively used.
OBJECTIVE: To compare the biomechanical stability of A3 intertrochanteric fracture fixed with proximal femoral nail anti-rotation and InterTan by finite element analysis.

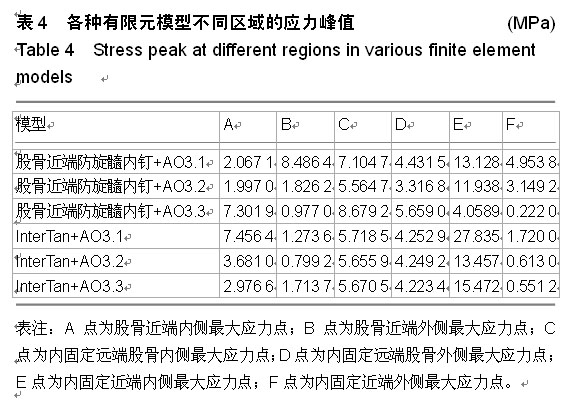

METHODS: Three three-dimensional finite element models of the AO3.1, AO3.2 and AO3.3 intertrochanteric fracture fixed with proximal femoral nail anti-rotation and InterTan were established. Fixation was completed according to the requirement of Department of Orthopedics. Stress distribution of femur and fixator of different models was observed. Stress peak at different areas was compared in femur and fixation models. Biomechanical stability was analyzed.

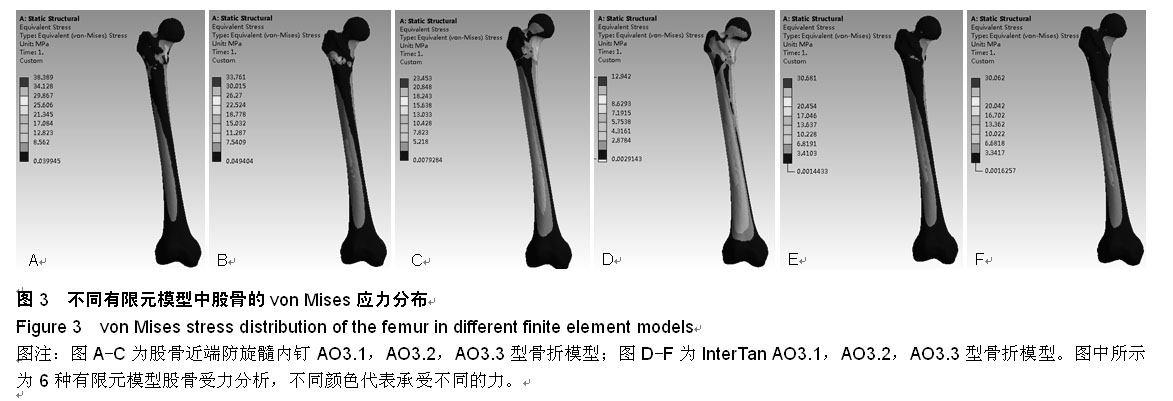

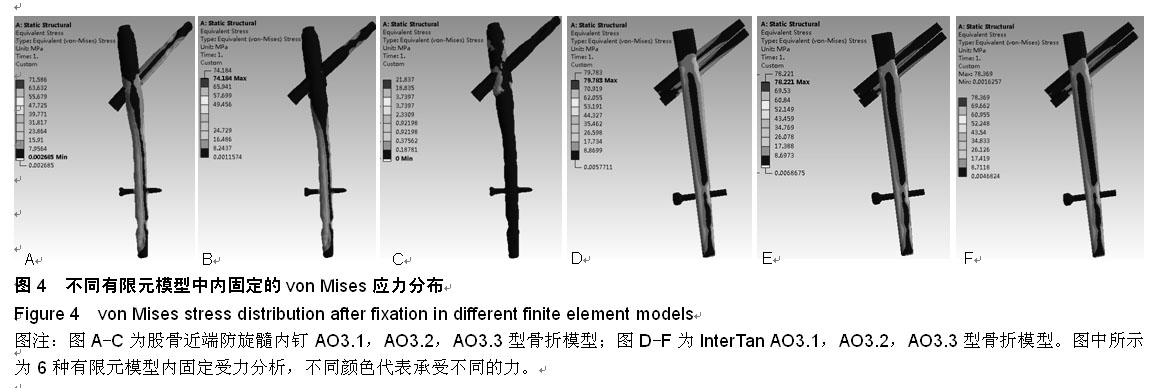

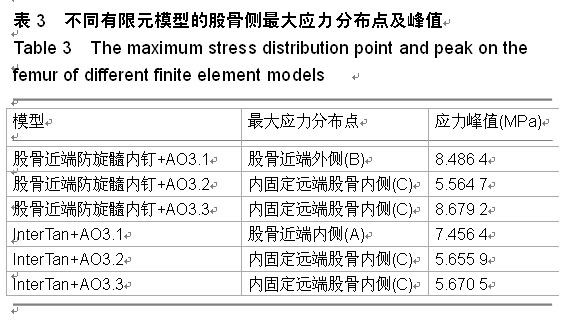

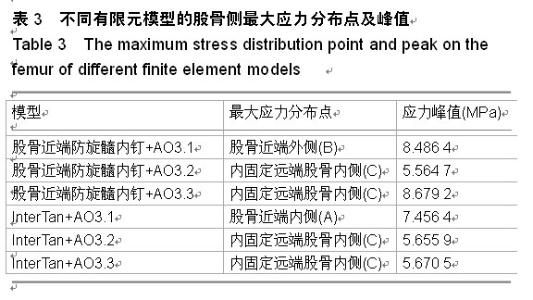

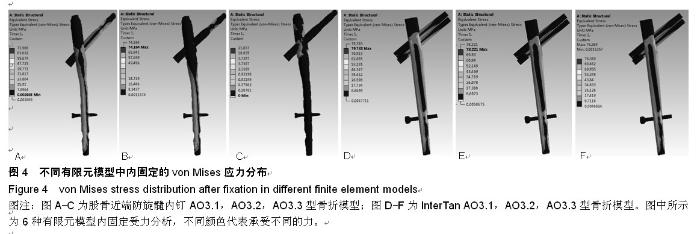

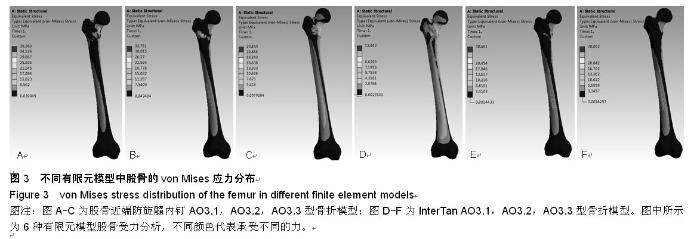

RESULTS AND CONCLUSION: The maximum pressure concentration area in AO3.1 intertrochanteric fracture with proximal femoral nail anti-rotation was located in the lateral proximal femur, and with Intertan was located in the medial proximal femur. The AO3.2 had little differences between two types of nails. The AO3.3 intertrochanteric fracture with proximal femoral nail anti-rotation was located in the medial proximal femur and the medial distal implant. There was no significant pressure concentration with InterTan. The von Mises pressure of six models was concentrated in the medial distal implant, and higher maximum von Mises pressure was found in the proximal femoral nail anti-rotation. There was significant difference of von Mises distribution between the lateral and medial implant with proximal femoral nail anti-rotation. Except the AO3.3 intertrochanteric fracture with proximal femoral nail anti-rotation, the maximum pressures of remaining models were located in the main nail and interlocking nail infall. These results concluded that the fracture fixed with InterTan exhibited fine fixation stability in the AO3.1 and AO3.3 intertrochanteric fracture. There was no significant difference of fixation stability between proximal femoral nail anti-rotation and InterTan in AO3.2. The von Mises distribution of InterTan for intertrochanteric fracture is more reasonable.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Femoral Fractures, Fracture Fixation, Intramedullary, Finite Element Analysis

CLC Number:

R318

Liu Jian-bin, Liu Min, Ma Lin, Cui Zhong-ning, Liu Ming, Guo Hui-kang. Liu Jian-bin, Studying for master’s degree, First Clinical Medical College, Shanxi Medical University, Taiyuan 030001, Shanxi Province, China[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(26): 4242-4246.

Figures/Tables 4

References

[1] Leslie WD,O Donnell S,Jean S,et al. Trends in hip fracture rate in Canada. JAMA. 2009;8:883-889.
[2] Bentler SE,Liu L,Obrizan M,et al.The aftermath of hip fracture:discharge placement,functional status change,and mortality. Am J Epidemiol. 2009;10:1290-1299.
[3] Parker MJ, Handoll HH. Gamma and other cephalocondylic intramedullary nails versus extramedullary implants for extracapsular hip fractures in adults. Cochrane Database Syst Rev. 2008;16(3):CD000093.
[4] Saudan M, Lübbeke A, Sadowski C, et al. Pertrochanteric fractures:is there an advantage to an intramedullary nail? A randomized,prospective study of 206 patients comparing the dynamic hip screw and proximal femoral nail. J Orthop Trauma. 2002;16(6):386-393.
[5] Audige L,Hanson B,Swiontkowski MF. Implant- relatedcomplications in the treatment of unstable interochanteric fractures:screw-intramedyllary nail devices. Int Orthop. 2003;4:197-203.
[6] 冯卫,郝廷,郝增涛,等.三种股骨近端髓内钉固定股骨转子间骨折的有限元分析[J].中国矫形外科杂志,2012,20(8):730-733.
[7] Sitthiseripratip K,Van Oosterwyck H, Vander Sloten J,et al.Finite element study of trochanteric gamma nail for trochanteric fracture. Med Eng Phys. 2003;2:99-106．
[8] Pioletti DP,Rakotomanana LR. Can the increase of bone mineral density following bisphosphonates treatments be explained by biome-chanical considerations. Clin Biomech (Bristol, Avon). 2004;2:170-174.
[9] Kobayashi E,Wang TJ,Doi H,et al. Mechanical properties and cor-rosion resistance of Ti-6Al-7Nb alloy dental castings. J Mater Sci Mater Med. 1998;10:567-574．
[10] Laheurte P,Prima F,Eberhardt A,et al. Mechanical properties of low modulus beta titanium alloys designed from the electronic ap-proach. J Mech Behav Biomed Mater. 2010;8: 565-573．
[11] 毛晓岗,赵均海,张国清,等.股骨上段应力状态分析[J].中国临床解剖学杂志,1996,14(3):234-236．
[12] Mereddy P,Kamath S,Ramakrishnan M,et al. The AO/ASIF proximal femoral nail antirotation(PFNA):a new design for the treatment if unstable proximal femoral fractures. Orthop Trauma. 2008;10:731-736.
[13] Ruecker AH,Rupprecht M,Gruber M,et al.The treatment of intertrochanteric fractures: results using an intramedullary nail with integrated cephalocervical screws and linear compression. J Orthop Trauma. 2009;1: 22-30．
[14] Huang YF,Zhang CL,Luo Y. A comparative biomechanical study of proximal femoral nail(InterTAN) and proximal femoral nail antirotation for intertrochanteric fractures.Int Orthop. 2013;37:2465-2473．
[15] 张军,武永刚,陈炜,等.InterTan和PFNA 内固定治疗股骨粗隆间骨折的疗效分析[J].中国股与关节损伤杂志,2014,29(8): 817-818．
