Comparison of the biocompatibility of three kinds of antigen-extracted xenogeneic cancellous bone matrices

doi:10.3969/j.issn.2095-4344.2013.29.003

Abstract

Abstract:

BACKGROUND: The form and structure of antigen-extracted xenogeneic cancellous bone through series of physical and chemical treatment are similar to human tissue.
OBJECTIVE: To detect the biocompatibility of antigen-extracted xenogeneic cancellous bone matrix prepared by three different ways.

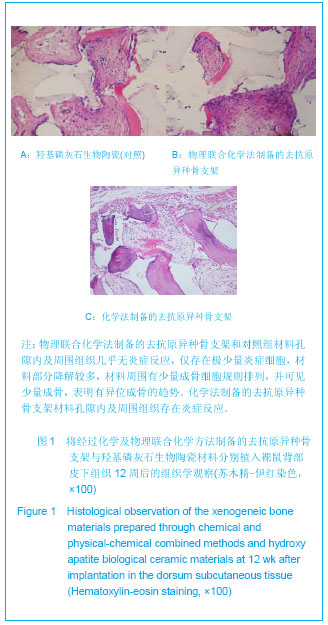

METHODS: The antigen-extracted xenogeneic cancellous bone scaffold materials which were prepared through physical, chemical and physical-chemical combined methods and hydroxy apatite biological ceramic materials were implanted into the dorsum subcutaneous tissue. Histological observation was done at 4, 8 and 12 weeks after surgery. The antigen-extracted xenogeneic cancellous bone scaffold materials which were prepared through physical, chemical and physical-chemical combined methods respectively was used to culture sheep bone marrow mesenchymal stem cells for 7 days. Cell adhesion, growth, proliferation and stroma secretion were observed.
RESULTS AND CONCLUSION: At 4 weeks after surgery, a strong inflammatory reaction was detected around materials in four groups. At 12 weeks, the xenogeneic bone materials prepared through physical and physical-chemical combined methods and hydroxy apatite biological ceramic materials internal pore and surrounding tissue inflammation disappeared basically, with the presence of thimbleful inflammation cells. The material degradation was more than at 8 weeks. The xenogeneic bone materials prepared through chemical methods material internal pore and surrounding tissue inflammation still existed, suggesting that the xenogeneic bone materials prepared through physical and physical-chemical combined methods exhibited good histocompatibility. A small amount of orderly osteoblasts existed around hydroxy apatite biological ceramic materials and physical-chemical prepared materials, with a small amount of bone. These suggested that there was a tendency for ectopic bone formation. The xenogeneic cancellous bone materials prepared through physical or physical-chemical combined methods have better cytocompatibility. However, scaffold materials prepared through chemical method have poor cytocompatibility and they are not qualified for the safety standards of biological materials.

Key words: biomaterials, tissue-engineered bone materials, xenogenic bone scaffold materials, hydroxyapatite biological ceramic, biocompatibility, subcutaneous implantation, cytotoxicity, bone marrow mesenchymal stem cells, National Natural Science Foundation of China

CLC Number:

R318

Yin Xiao-peng, Xu Hui-fen, He Hui-yu. Comparison of the biocompatibility of three kinds of antigen-extracted xenogeneic cancellous bone matrices[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(29): 5275-5281.

Figures/Tables 6

References

[1] Athanasiou VT,Papachristou DJ,Panagopoulos A,et al. Histological comparison of autograft,allograft-DBM, xenograft,and synthetic grafts in a trabecular bone defect:an experimental study in rabbits.Med Sci Monit.2010;16(1): 24-31.

[2] Develioglu H,Unver Saraydin S,Kartal U.The bone-healing effect of a xenograft in a rat calvarial defect model.Dent Mater J.2009;28(4):396-400.

[3] Batista BL,Rodrigues JL,Souza VC,et al.A fast ultrasoundassisted extraction procedure for trace elements determination in hair samples by ICP-MS for forensic analysis. Forensic Sci Int.2009;192(1-3):88-93.

[4] Liu CT,Wu CY,Weng YM,et al.Ultrasound-assisted extraction methodology as a tool to improve the antioxidant properties of herbal drug Xiao-chia-hu-tang.J Ethnoph Armacol.2005;99(2): 293-300.

[5] Zhang L,Wang X.Hydrophobic ionic liquid-based ultrasound-assisted extraction of magnolol and honokiol from cortex Magnoliae officinalis.J Sep Sci.2010;33(13): 2035-2038.

[6] 肖飞,郑治,王剑龙.新型支架材料磷酸钙骨水泥-聚乳酸聚羟基乙酸二聚体复合物生物相容性的研究[J].中华实验外科杂志,2006, 23(10):1254-1256.

[7] 王明海,冯庆玲,董有海,等.可注射性纳米组织工程骨的生物相容性[J].中华实验外科杂志,2009,26(3):346-348.

[8] 中华人民共和国国家质量监督检验检疫总局.GB/T 16886.5- 2003.医疗器械生物学评价第5部分:体外细胞毒性试验[S].北京:中国标准出版社, 2003:80-88.

[9] 苏保,蒋电明,严永刚,等.氨基酸聚合物/硫酸钙生物工程骨的生物相容性研究[J].第三军医大学学报,2011,33(1):40-44.

[10] 李国华,陈吉华.牙科全瓷材料3Y-TZP生物相容性初步评价[J].口腔医学研究,2007,23(1):4-6.

[11] Bigham AS,Dehghani SN,Shafiei Z,et al.Xenogenic demineralized bone matrix and fresh autogenous cortical bone effects on experimental bone healing:radiological, histopathological and biomechanical evaluation.J Orthop Traumatol.2008;9(2):73-80.

[12] Develioglu H,Sarayd?n S,Kartal U,et al.Evaluation of the Long-Term Results of Rat Cranial Bone Repair Using a Particular Xenograft. J Oral Implantol.2010;36(3):167-173.

[13] 兰小勇,周初松,田京,等.海藻酸钙纳米羟基磷灰石胶原复合材料与兔骨髓基质干细胞的体外细胞相容性[J].中国组织工程研究与临床康复,2008,12(36):7022-7026.

[14] Wingerter S,Tucci M,Bumgardner J,et al.Evaluation of short-term healing following sustained delivery of osteoinductive agents in a rat femur drill defect model.Biomed Sci Instrum.2007;43:188-193.

[15] Cool SM,Kenny B,Wu A,et al.Poly(3-hydroxybutyrate-co- 3-hydroxyvalerate) composite biomaterials for bone tissue regeneration: in vitro performance assessed by osteoblast proliferation,osteoclast adhesion and resorption,and macrophage proinflammatory response.J Biomed Mater Res A.2007;82(3):599-610.

[16] Leivo J,Meretoja V,Vippola M,et al.Sol-gel derived aluminosilicate coatings on alumina as substrate for osteoblasts.Acta Biomater.2006;2(6):659-668.

[17] Naganawa T,Ishihara Y,Iwata T,et al.In vitro biocompatibility of a new titanium-29niobium-13tantalum-4.6zirconium alloy with osteoblast-like MG63 cells. J Periodontol.2004;75:1701-1707.

[18] Liao S,Wang W,Uo M,et al.A three-layerednano-carbonated hydroxyapatite/Co-llagen/PLGA composite membranefor guided tissue regeneration. Biomaterials. 2005;26(36): 7564-7571.

[19] Herath HM,Di Silvio L,Evans JR. Biological evaluation of solid freeformed, hard tissue scaffolds for orthopedic applications.J Appl Biomater Biomech.2010;8(2):89-96.
