Arthroscopic assisted percutaneous bone grafting and screw fixation for the treatment of lateral tibial plateau fractures: A 4-year follow-up

doi:10.3969/j.issn.2095-4344.2013.26.009

Abstract

Abstract:

BACKGROUND: Studies have shown the knee secondary osteoarthritis may occur after the treatment of tibial plateau fractures with open reduction and internal fixation, but the researches on the middle- and long-term effect of arthroscopic assisted tibial plateau fracture fixation are still rare.
OBJECTIVE: To evaluate the outcomes of lateral tibial plateau fractures after treated with arthroscopic assisted percutaneous bone grafting and screw fixation for 1 and 4 years through clinical and radiological assessment.
METHODS: Between March 2007 and March 2009, with the information of the patients with lateral tibial plateau fractures undergoing arthroscopic assisted percutaneous bone grafting and screw fixation were enrolled. The data of the type of fractures in the Schatzker classification, the accompanying lesions of the cartilage defect on the lateral tibial plateau, the cartilage damage on the femoral condyle, intra-articular soft tissue lesions and insufficient reduction of the fracture, as well as postoperative subsidence in the lateral tibial plateau were collected. The Lysholm score, Ahlback osteoarthritis classification, Rasmussen function score and radiological score were assessed at 1 and 4 years after treated with percutaneous bone grafting and screw fixation.

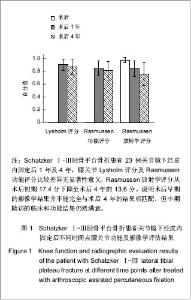

RESULTS AND CONCLUSION: Twenty-three patients finished the follow-up. At 1 and 4 years after percutaneous bone grafting and screw fixation, the mean Lysholm score was 90 and 87 points respectively (P=0.23), and the mean Rasmussen function score was 26 and 24 points respectively (P=0.30). At 4 years after surgery, 11 cases (47.8%) presented osteoarthritis and the Rasmussen radiological score was decreased from early postoperative 17.4 points to 4-year postoperatively 13.6 points (P=0.01). No correlation could be observed between the various types of fractures and their prognosis. The elder cases, cartilage damage and/or defect, intra-articular soft tissue lesions and postoperative subsidence in the lateral tibial plateau were correlated with function and radiological middle outcomes after surgery. However, the cartilage defects on tibial plateau had minor effect on knee osteoarthritis when compared with cartilage damage on the femoral condyle. Early radiological outcomes do not completely consistent with that of the 4 years after surgery, but the medium-term clinical and functional follow-up outcomes are still satisfied. Age, cartilage damage or defect, intra-articular soft tissue lesions and postoperative subsidence in lateral tibial plateau appears as prognostic factors for osteoarthritis after treatment. The prognostic effect of cartilage defects on tibial plateau for osteoarthritis is lower than that of cartilage damage on the femoral condyle which may be attributed to integrated function of lateral meniscus.

Key words: bone and joint implants, orthopedic implants, clinical experiment of bone and joint, lateral tibial plateau, fracture, arthroscopy, percutaneous fixation, Lysholm score, Ahlback osteoarthritis classification, Rasmussen score

CLC Number:

R318

Zeng Run-ming, Wu Sheng-rong, Lin Shao-bin. Arthroscopic assisted percutaneous bone grafting and screw fixation for the treatment of lateral tibial plateau fractures: A 4-year follow-up[J]. Chinese Journal of Tissue Engineering Research, doi: 10.3969/j.issn.2095-4344.2013.26.009.

Figures/Tables 4

References

[1] Caspari RB, Hutton PM, Whipple TL, et al. The role of arthroscopy in the management of tibial plateau fractures. Arthroscopy.1985;1(3):76-82.

[2] Jennings JE. Arthroscopic management of tibial plateau fractures. Arthroscopy 1985, 1 (3):160-168.

[3] Lubowitz JH, Elson WS, Guttmann D.Part I: Arthroscopic management of tibial plateau fractures.Arthroscopy. 2004; 20(10):1063-1070.

[4] Dall'oca C, Maluta T, Lavini F, et al. Tibial plateau fractures: compared outcomes between ARIF and ORIF. Strategies Trauma Limb Reconstr. 2012; 7(3):163-175.

[5] Zeman P, Zeman J, Matejka J,et al.Long-term results of calcaneal fracture treatment by open reduction and internal fixation using a calcaneal locking compression plate from an extended lateral approach.Acta Chir Orthop Traumatol Cech. 2008;75(6):457-464.

[6] Hannouche D, Duparc F, Beaufils P.The arterial vascularization of the lateral tibial condyle: anatomy and surgical applications.Surg Radiol Anat. 2006;28(1):38-45.

[7] Hamel A, Ploteau S, Lancien M,et al.Arterial supply to the tibial tuberosity: involvement in patellar ligament transfer in children.Surg Radiol Anat. 2012;34(4):311-316.

[8] Pang J, Shen S, Pan WR,et al.The arterial supply of the patellar tendon: anatomical study with clinical implications for knee surgery.Clin Anat. 2009;22(3):371-376.

[9] Chan YS, Chiu CH, Lo YP, et al. Arthroscopy-assisted surgery for tibial plateau fractures: 2- to 10-year follow-up results. Arthroscopy.2008;24(7):760-768.

[10] Chan YS, Yuan LJ, Hung SS,et al.Arthroscopic-assisted reduction with bilateral buttress plate fixation of complex tibial plateau fractures.Arthroscopy. 2003;19(9):974-984.

[11] Asik M, Cetik O, Talu U, et al. Arthroscopy-assisted operative management of tibial plateau fractures. Knee Surg Sports Traumatol Arthrosc.2002;10(6):364-370.

[12] Chan YS.Arthroscopy- assisted surgery for tibial plateau fractures.Chang Gung Med J. 2011;34(3):239-247.

[13] Honkonen SE.Degenerative arthritis after tibial plateau fractures.J Orthop Trauma. 1995;9(4):273-277.

[14] Abdel-Hamid MZ, Chang CH, Chan YS,et al.Arthroscopic evaluation of soft tissue injuries in tibial plateau fractures: retrospective analysis of 98 cases.Arthroscopy. 2006; 22(6): 669-675.

[15] Mehin R, O'Brien P, Broekhuyse H, et al. Endstage arthritis following tibia plateau fractures: average 10-year follow-up. Can J Surg.2012;55(2):87-94.

[16] Wang BJ,Gao H,Li YD.Zhonghua Guke Zazhi. 2009;8(29): 754-759.王宝军,高化,李亚东.胫骨平台骨折手术治疗的中远期疗效分析[J].中华骨科杂志, 2009, 8(29): 754-759.

[17] Gao H.Shoudu Yike Daxue.2007.高化.43例胫骨平台骨折手术治疗的中远期效果分析[D].首都医科大学.2007.

[18] Schatzker J, McBroom R, Bruce D. The tibial plateau fracture: the Toronto experience 1968-1975. Clin Orthop Relat Res 1979;(138):94-104.

[19] Cassard X, Beaufils P, Blin JL,et al.Osteosynthesis under arthroscopic control of separated tibial plateau fractures. 26 case reports.Rev Chir Orthop Reparatrice Appar Mot. 1999; 85(3):257-266.

[20] Zhou Z.Arthroscopic percutaneous osteosynthesis of low-energy tibial plateau fractures.Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2009;23(11):1316-1318.

[21] Hutson JJ Jr, Zych GA.Treatment of comminuted intraarticular distal femur fractures with limited internal and external tensioned wire fixation.J Orthop Trauma. 2000;14(6):405-413.

[22] Siegler J, Galissier B, Marcheix PS, et al. Percutaneous fixation of tibial plateau fractures under arthroscopy: a medium term perspective. Orthop Traumatol Surg Res. 2011; 97(1):44-50.

[23] Lysholm J, Gillquist J. Evaluation of knee ligament surgery results with special emphasis on use of a scoring scale. Am J Sports Med, 1982, 10(3):150-154.

[24] Rasmussen PS. Tibial condylar fractures. Impairment of knee joint stability as an indication for surgical treatment. J Bone Joint Surg Am.1973;55(7):1331-1350.

[25] Ahlbäck S.Osteoarthrosis of the knee. A radiographic investigation.Acta Radiol Diagn (Stockh). 1968:Suppl 277: 7-72.

[26] Weinlein J, Schmidt A. Acute compartment syndrome in tibial plateau fractures--beware! J Knee Surg. 2010;23(1):9-16.

[27] Hak DJ, Lee M, Gotham DR.Influence of prior fasciotomy on infection after open reduction and internal fixation of tibial plateau fractures.J Trauma. 2010;69(4):886-888.

[28] Crist BD, Della Rocca GJ, Stannard JP.Compartment syndrome surgical management techniques associated with tibial plateau fractures.J Knee Surg. 2010;23(1):3-7.

[29] Ong JC, Kennedy MT, Mitra A, et al. Fixation of tibial plateau fractures with synthetic bone graft versus natural bone graft: a comparison study. Ir J Med Sci.2012; 181(2):247-252.

[30] Welch RD, Zhang H, Bronson DG.Experimental tibial plateau fractures augmented with calcium phosphate cement or autologous bone graft.J Bone Joint Surg Am. 2003;85-A(2): 222-231.

[31] Russell TA, Leighton RK; Alpha-BSM Tibial Plateau Fracture Study Group.Comparison of autogenous bone graft and endothermic calcium phosphate cement for defect augmentation in tibial plateau fractures. A multicenter, prospective, randomized study.J Bone Joint Surg Am. 2008; 90(10):2057-2061.

[32] Wieser K, Betz M, Farshad M, et al. Experimental loss of menisci, cartilage and subchondral bone gradually increases anteroposterior knee laxity. Knee Surg Sports Traumatol Arthrosc. 2012; 20(10):2104-2108.
