Effect of concentrated growth factors on proliferation and differentiation of human gingival fibroblasts

doi:10.3969/j.issn.2095-4344.1768

Abstract

Abstract:

BACKGROUND: In the blood, there are a large number of growth factors and platelet components with regeneration and repair functions, which can promote the regeneration of soft and hard tissues.
OBJECTIVE: To study the effect of concentrated growth factor extract on the proliferation and osteogenic differentiation of human gingival fibroblasts and to explore the clinical application of concentrated growth factors in oral implantology.
METHODS: Patients admitted at the Department of Stomatology, People’s Hospital of Longhua, Shenzhen were selected. (1) In vitro experiment: Concentrated growth factors were extracted by centrifugation, and human gingival fibroblasts were isolated and cultured. The cells were divided into four groups and cultured in complete culture media containing 0 (control), 25%, 50% and 100% concentrated growth factor extract). (2) In vivo experiment: The affected teeth were extracted followed by dental implantation. Concentrated growth factor was placed to induce the rapid healing of soft and hard tissues. Six months later, two-stage implantation was performed. The modified envelope flap was used to increase the thickness of the labial gingiva and the amount of soft tissue in the proximal and distal areas for 3 months to obtain soft tissue contours in coordination with the adjacent teeth.
RESULTS AND CONCLUSION: (1) In vitro experiment results: Compared with the control group, the proliferation of human gingival fibroblasts was significantly increased by 50% and 100% concentrated growth factor extract on the 3^rd day of culture. On the 14^th day of culture, compared with the control group, the activity of alkaline phosphatase, the molecular weight of mineralization and the expression of osteoblast-associated genes RUNX2 and osteocalcin were significantly increased in the 100% concentrated growth factor extract group. (2) In vivo experiment results: Concentrated growth factor extract could promote bone regeneration around oral implants. There was no obvious retraction at the gingival margin, and the gingival papilla filled the space of the teeth. The bone mass around the implant increased significantly at 14 months in relative to 3 months after implantation. To conclude, concentrated growth factor extract can promote the proliferation and osteogenic differentiation of human gingival fibroblasts and the peri-implant regeneration of soft and hard tissue.

Key words: concentrated growth factor, concentrated growth factor extract, platelets, human gingival fibroblasts, proliferation, differentiation, oral implantation, tissue construction, soft tissue regeneration, bone tissue regeneration

CLC Number:

R452
R783

Li Xiaoju, Song Guangbao, Yang Jianzhen, Wei Bo, Wu Bin. Effect of concentrated growth factors on proliferation and differentiation of human gingival fibroblasts[J]. Chinese Journal of Tissue Engineering Research, 2019, 23(21): 3342-3348.

Figures/Tables 2

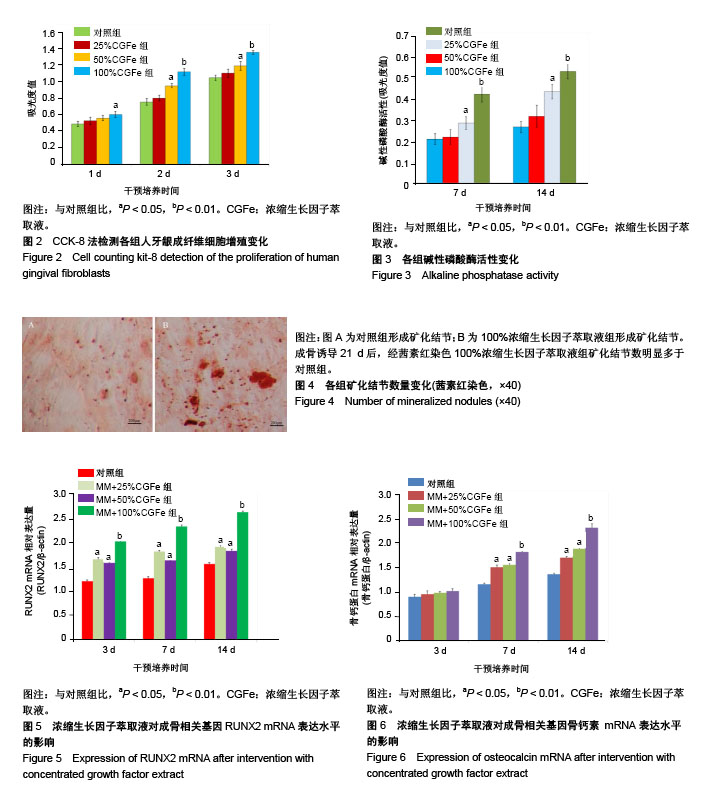

2.1 受试者数量分析参与试验的患者均进入结果分析，中途无退出者。 2.2 各组CCK-8法检测人牙龈成纤维细胞增殖变化实验第1天，100%浓缩生长因子萃取液组与对照组相比，人牙龈成纤维细胞增殖的效果显著(P < 0.05)。在实验第2，3天，与对照组相比，50%浓缩生长因子萃取液组增殖的效果显著(P < 0.05)，100%浓缩生长因子萃取液组数值显著增加(P < 0.01)；而25%浓缩生长因子萃取液组与对照组相比，人牙龈成纤维细胞增殖的促进效果不显著(P > 0.05)，见图2。 2.3 各组碱性磷酸酶活性变化经过7，14天的培养，与对照组相比，100%浓缩生长因子萃取液组碱性磷酸酶活性显著升高(P < 0.01)，同时50%浓缩生长因子萃取液组在这2个时间点与对照组相比碱性磷酸酶活性均升高(P < 0.05)，见图3。 2.4 成骨诱导培养基培养在干预培养21 d后，两组细胞在显微镜下均可见无定形物质(显微镜：IX73，Olympus Corporation，Tokyo，Japan)。并且经过茜素红染色后，这些无定形物质均呈深红色结节状，形态多种多样，并且100%浓缩生长因子萃取液组比对照组形成更多的钙结节，见图4，这进一步说明浓缩生长因子萃取液能够促进人牙龈成纤维细胞的成骨分化。 2.5 各组成骨相关基因表达在干预培养第3，7，14天，对成骨相关基因RUNX2和骨钙素的表达进行RT-PCR检测，结果见图5，6。在干预培养第3，7，14天，与对照组相比，25%与50%浓缩生长因子萃取液组中RUNX2表达量升高(P < 0.05)；100%浓缩生长因子萃取液组中RUNX2表达量显著增高(P < 0.01)。在干预培养第7，14天，与对照组相比，25%，50%浓缩生长因子萃取液组中骨钙素表达量增加(P < 0.05)，100%浓缩生长因子萃取液组中骨钙素表达量有显著增高(P < 0.01)。实验结果表明浓缩生长因子萃取液能够显著上调成骨相关基因RUNX2和骨钙素的表达。 2.6 口腔种植形态上颌左侧中切牙即刻种植并同期置入浓缩生长因子膜后，软组织愈合良好，通过暂冠塑形获得比较满意的穿龈轮廓，戴入永久冠后牙龈轮廓和形态得到较好的维持，龈缘无明显退缩，龈乳头获得较好的充盈。X射线影像片检查显示种植体形成了良好的骨整合，术后14个月与术后3个月对比，种植体周围骨量增加，见图7。"

References

[1] Qiao J, Duan J, Zhang Y, et al. The effect of concentrated growth factors in the treatment of periodontal intrabony defects. Future Sci OA. 2016;2(4):136-142.

[2] Villar CC, Cochran DL. Regeneration of periodontal tissues: guided tissue regeneration. Dent Clin North Am. 2010;54(1): 73-92.

[3] Reynolds MA, Aichelmann-Reidy ME, Branch-Mays GL. Regeneration of periodontal tissue: bone replacement grafts. Dent Clin North Am. 2010;54(1):55-71.

[4] Pirpir C, Yilmaz O, Candirli C, et al. Evaluation of effectiveness of concentrated growth factor on osseointegration. Int J Implant Dent. 2017;3(1):7-12.

[5] Kim TH, Kim SH, Sándor GK, et al. Comparison of platelet-rich plasma (PRP), platelet-rich fibrin (PRF), and concentrated growth factor (CGF) in rabbit-skull defect healing. Arch Oral Biol. 2014;59(3):550-558.

[6] Park HC, Kim SG, Oh JS, et al. Early bone formation at a femur defect using CGF and PRF grafts in adult dogs: a comparative study. Implant Dent. 2016;25(3):387-393.

[7] Castro AB, Meschi N, Temmerman A, et al. Regenerative potential of leucocyte and platelet-rich fibrin. Part A: intra-bony defects, furcation defects and periodontal plastic surgery. A systematic review and meta-analysis. Clin Periodontol. 2017;44(1):67-82.

[8] Castro AB, Meschi N, Temmerman A, et al. Regenerative potential of leucocyte and platelet-rich fibrin. Part B: sinus floor elevation, alveolar ridge preservation and implant therapy. A systematic review. J Clin Periodontol. 2017;44(2):225-234.

[9] Li XJ, Yang HX, Zhang ZJ, et al.: Platelet?rich fibrin exudate promotes the proliferation and osteogenic differentiation of human periodontal ligament cells in vitro. Mol Med Rep. 2018;18:4477-4485.

[10] Chen,F, Pan SX, Feng HL. Distribution and content of transforming growth factor-betal and vascular endothelial growth factor in each layer of concentrated growth factors. J Peking Univ. 2016;48(5):860-865.

[11] Qin J, Wang L, Sun Y, et al. Concentrated growth factor increases Schwann cell proliferation and neurotrophic factor secretion and promotes functional nerve recovery in vivo. Int J Mol Med. 2016;37(2):493-500.

[12] Sohn DS, Heo JU, Kwak DH, et al. Bone regeneration in the maxillary sinus using an autologous fibrin-rich block with concentrated growth factors alone. Implant Dent. 2011;20(5): 389-395.

[13] Dogan SB, Dede FÖ, Ball? U, et al. Concentrated growth factor in the treatment of adjacent multiple gingival recessions: a split-mouth randomized clinical trial. J Clin Periodontol. 2015;42(9):868-875.

[14] Yu B, Wang Z. Effect of concentrated growth factors on beagle periodontal ligament stem cells in vitro. Mol Med Rep. 2014;9(1):235-242.

[15] Honda H, Tamai N, Naka N, et al. Bone tissue engineering with bone marrow-derived stromal cells integrated with concentrated growth factor in Rattus norvegicuscalvaria defect model. J Artif Organs. 2013;16(3):305-315.

[16] Corigliano M, Re M, Donjeta D, et al. Implantoprosthesis treatment in subject suffering from osteogenesis imperfecta with new multifactorial rehabilitation protocol. J Craniofac Surg. 2015;26(3):996-997.

[17] Loi F, Cordova LA, Pajarinen J, et al. Inflammation, fracture and bone repair. Bone. 2016;88(2):119-130.

[18] Tadi A, Puskar T, Petronijevi B, et al. Application of fibrin rich blocks with concentrated growth factors in pre-implant augmentation procedures. Med Pregl. 2014;67(5):177-180.

[19] Alves R, Grimalt R. A review of platelet-rich plasma:history,biology, mechanism of action, and classification. Skin Appendage Disord. 2018;4(1):18-24.

[20] Lai F, Kakudo N, Morimoto N, et al. Platelet-rich plasma enhances the proliferation of human adipose stem cells through multiple signaling pathways. Stem Cell Res Ther. 2018;9(1):107-113.

[21] Min Nam S, Base Kim Y. The effects of platelet-rich plasma on hypertrophic scars fibroblasts. Int Woud J. 2018;15(4): 547-554.

[22] Zhang XL, Shi KQ, Jia PT, et al. Effects of platelet-rich plasma on angiogenesis and osteogenesis-associated factors in rabbits with avascular necrosis of the femoral head. Eur Rev Med Pharmacol Sci. 2018;22(7):2143-2152.

[23] Edderkaoui B. Potential role of chemokines in fracture repair. Front Endocrinol (Lausanne). 2017;8(39):212-218.

[24] Rodella LF, Favero G, Boninsegna R, et al. Growth factors, CD34 positive cells, and fibrin network analysis in concentrated growth factors fraction. Microsc Res Tech. 2011;74(8):772-777.

[25] Mirkovic S, Djurdjevic-Mirkovic T, Pugkar T. Application of concentrated growth factors in reconstruction of bone defects after removal of large jaw cysts-the two cases report. Vojnosanit Pregl. 2015;72(4):368-371.

[26] Dogan SB, Dede FO, Balli U, et al. Concentrated growth factor in the treatment of adjacent multiple gingival recession: a split-mouth randomized clinical trial. J Clin Periodontol. 2015;42(9):868-875.

[27] Durmuslar MC, Balli U, Dede FÖ, et al. Histological evaluation of the effect of concentrated growth factor on bone healing. J Craniofac Surg. 2016;27(6):1494-1497.

[28] Li XJ, Yang HX, Zhang ZJ, et al. Concentrated growth factor exudate enhances the proliferation of human periodontal ligament cells in the presence of TNF-α. Mol Med Rep. 2019; 19(2):943-950.

[29] Qin J, Wang L, Sun Y, et al. Concentrated growth factor increases Schwann cell proliferation and neurotrophic factor secretion and promotes functional nerve recovery in vivo. Int J Mol Med. 2016;37(2):493-500.

[30] Kim JM, Sohn DS, Bae MS, et al. Flapless transcrestal sinus augmentation using hydrodynamic piezoelectric internal sinus elevation with autologous concentrated growth factors alone. Implant Dent. 2014;23(2):168-174.

[31] Shyu SS, Fu E, Shen EC. Clinical and microcomputed topography evaluation of the concentrated growth factors as a sole material in a cystic bony defect in alveolar bone followed by dental implantation: a case report. Implant Dent. 2016; 25(5):707-714.

[32] Topkara A, Ozkan A, Ozcan RH, et al. Effect of concentrated growth factor on survival of diced cartilage graft. Aesthet Surg. 2016;36(10):1176-1187.
