Compressive strength of the newly formed tibia after repair with human tooth bone graft

doi:10.3969/j.issn.2095-4344.0873

Abstract

Abstract:

BACKGROUND: Human tooth bone graft has been used for bone deficiency in dental implantation, but the strength and quality of newly formed bones with human tooth bone graft are in need of sound investigation.

OBJECTIVE: To investigate the compressive strength of newly formed rabbit tibia after repair with human tooth bone graft.

METHODS: Orthodontic teeth, loose molars, bicuspid premolars extracted from patients were taken to prepare human tooth bone grafts. Human tooth bone graft and bovine bone graft were independently placed into the rabbit tibia defects of 5 mm in diameter. Non-injured site served as control group.

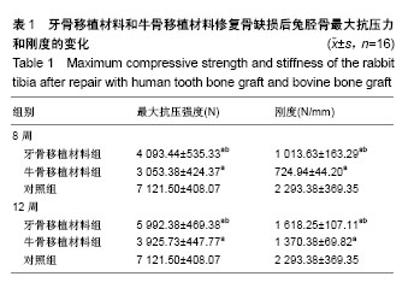

RESULTS AND CONCLUSION: The newly formed rabbit tibia after repair with human tooth bone graft had more intact microstructure and higher maximum compressive strength and stiffness relative to that after repair with bovine bone graft. These findings indicate human tooth bone graft is superior to bovine bone graft in the repair of tibia defects in rabbits.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Dental Implantation, Tibia, Tissue Engineering

CLC Number:

R318

Fang Ming, Wang Zhi-ying, Cai Lu. Compressive strength of the newly formed tibia after repair with human tooth bone graft[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(18): 2831-2835.

Figures/Tables 3

References

[1] Maridati P, Dellavia C, Pellegrini G, et al. Histologic and Radiographic Comparison of Bone Scraper and Trephine Bur for Autologous Bone Harvesting in Maxillary Sinus Augmentation. Int J Oral Maxillofac Implants. 2015;30(5): 1128-1136.

[2] Sakkas A, Wilde F, Heufelder M, et al. Autogenous bone grafts in oral implantology-is it still a "gold standard"? A consecutive review of 279 patients with 456 clinical procedures. Int J Implant Dent. 2017;3(1):23.

[3] Demetter RS, Calahan BG, Mealey BL. Histologic Evaluation of Wound Healing After Ridge Preservation With Cortical, Cancellous, and Combined Cortico-Cancellous Freeze-Dried Bone Allograft: A Randomized Controlled Clinical Trial. J Periodontol. 2017;88(9):860-868.

[4] Baldan RCF, Coracin FL, Lins L, et al. Atrophic Maxilla Reconstruction With Fresh Frozen Allograft Bone, Titanium Mesh, and Platelet-Rich Fibrin: Case Report. Transplant Proc. 2017;49(4):893-897.

[5] Susin C, Fiorini T, Lee J, et al. Sinus augmentation using a mini-pig model: Effect of ceramic and allogeneic bone biomaterials. J Clin Periodontol. 2017;44(10):1059-1066.

[6] Daga D, Mehrotra D, Mohammad S, et al. Tentpole technique for bone regeneration in vertically deficient alveolar ridges: A prospective study. J Oral Biol Craniofac Res. 2018; 8(1): 20-24.

[7] Draenert FG, Gebhart F, Mitov G, et al. Biomaterial shell bending with 3D-printed templates in vertical and alveolar ridge augmentation: a technical note. Oral Surg Oral Med Oral Pathol Oral Radiol. 2017;123(6):651-660.

[8] Nery JC, Pereira LAVD, Guimarães GF, et al. β-TCP/HA with or without enamel matrix proteins for maxillary sinus floor augmentation: a histomorphometric analysis of human biopsies. Int J Implant Dent. 2017;3(1):18.

[9] Silva LD, de Lima VN, Faverani LP, et al. Maxillary sinus lift surgery-with or without graft material? A systematic review. Int J Oral Maxillofac Surg. 2016;45(12):1570-1576.

[10] Dos Santos PL, de Molon RS, Queiroz TP, et al. Evaluation of bone substitutes for treatment of peri-implant bone defects: biomechanical, histological, and immunohistochemical analyses in the rabbit tibia. J Periodontal Implant Sci. 2016; 46(3):176-196.

[11] Oshida Y, Tuna EB, Aktören O, et al. Dental implant systems. Int J Mol Sci. 2010;11(4):1580-1678.

[12] Masoudi Rad M, Nouri Khorasani S, Ghasemi-Mobarakeh L, et al. Fabrication and characterization of two-layered nanofibrous membrane for guided bone and tissue regeneration application. Mater Sci Eng C Mater Biol Appl. 2017;80:75-87.

[13] Santana RB, Santana CM, Dibart S. Platelet-Derived Growth Factor-Mediated Guided Bone Regeneration in Immediate Implant Placement in Molar Sites with Buccal Bone Defects. Int J Periodontics Restorative Dent. 2015;35(6):825-833.

[14] Koh KS, Choi JW, Park EJ, et al. Bone Regeneration using Silk Hydroxyapatite Hybrid Composite in a Rat Alveolar Defect Model. Int J Med Sci. 2018;15(1):59-68.

[15] Lee SH, Moon JH, Jeong CM, et al. The Mechanical Properties and Biometrical Effect of 3D Preformed Titanium Membrane for Guided Bone Regeneration on Alveolar Bone Defect. Biomed Res Int. 2017;2017:7102123.

[16] Kim DM, Hong H, Lin JC, et al. Evaluation of the Bone-Regenerating Effects of Two Anorganic Bovine Bone Grafts in a Critical-Sized Alveolar Ridge Defect Model. Int J Periodontics Restorative Dent. 2017;37(4):e234-e244.

[17] Wang M, Li H, Si J, et al. Amniotic fluid-derived stem cells mixed with platelet rich plasma for restoration of rat alveolar bone defect. Acta Biochim Biophys Sin (Shanghai). 2017; 49(3):197-207.

[18] Srivastava R, Verma PK, Tripathi V, et al. Management of Oehlers Type II Dens in Dente with Open Apex and Alveolar Bone Defect. J Clin Diagn Res. 2016;10(11):ZJ05-ZJ06.

[19] Du F, Li B, Yin N, et al. Volumetric Analysis of Alveolar Bone Defect Using Three-Dimensional-Printed Models Versus Computer-Aided Engineering. J Craniofac Surg. 2017;28(2): 383-386.

[20] Choi YJ, Huh JK, Chung CJ, et al. Rescue therapy with orthodontic traction to manage severely impacted mandibular second molars and to restore an alveolar bone defect. Am J Orthod Dentofacial Orthop. 2016;150(2):352-363.

[21] Shyu SS, Fu E, Shen EC. Clinical and Microcomputed Topography Evaluation of the Concentrated Growth Factors as a Sole Material in a Cystic Bony Defect in Alveolar Bone Followed by Dental Implantation: A Case Report. Implant Dent. 2016;25(5):707-714.

[22] Liang Y, Wen L, Shang F, et al. Endothelial progenitors enhanced the osteogenic capacities of mesenchymal stem cells in vitro and in a rat alveolar bone defect model. Arch Oral Biol. 2016;68:123-130.

[23] Wang T, Wu D, Li Y, et al. Substance P incorporation in calcium phosphate cement for dental alveolar bone defect restoration. Mater Sci Eng C Mater Biol Appl. 2016;69: 546-553.

[24] 王媛,王稚英,王明.同种异体牙源性骨移植材料修复兔颅骨缺损的实验研究[J].中国医科大学学报,2016,45(12):1082-1085.

[25] 樊仕才,朱青安,王柏川,等.椎骨密度与抗压强度的关系及临床意义[J].中国解剖学杂志,2001,19(1):74-76.

[26] 中华人民共和国科学技术部.关于善待实验动物的指导性意见. 2006-09-30.

[27] 杜尧,柯珍勇.不同比例脱钙骨基质颗粒和骨水泥复合物修复兔股骨骨缺损[J].中国组织工程研究与临床康复杂志, 2009, 13(21):4064-4068.

[28] 胡庆柳.仿松质骨的胶原/纳米羟基磷灰石人工骨治疗免股骨头坏死的动物实验[J].中国组织工程研究与临床康复杂志, 2009, 13(21):4093-4097.

[29] 张志愿.口腔颌面外科学[M].7版.北京:人民卫生出版社,2012.

[30] 于世凤.口腔组织病理学[M].7版.北京:人民卫生出版社,2014.
