Corrosion resistance of titanium implant abutments and implant suprastructure dental alloys

doi:10.3969/j.issn.2095-4344.2014.47.004

Abstract

Abstract:

BACKGROUND: Domestic scholars use the potentiodynamic polarization technique to determine the corrosion potential of the dental alloys, which is used to evaluate the corrosion performance of the lownoble metal. They have discovered that the main reason affecting corrosion resistance is the content of noble metal.
OBJECTIVE: To evaluate the corrosion resistance of Ti, Au alloy, Co-Cr alloy, Ti alloy, and Ni-Cr alloy.
METHODS: Five alloys were immersed in synthetic saliva solution. The corrosion potential and corrosion current density of the alloys were determined with potentiadynamic polarization technique.

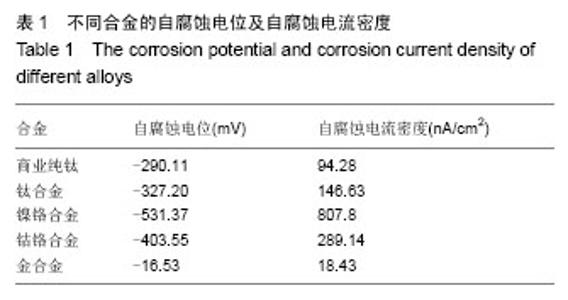

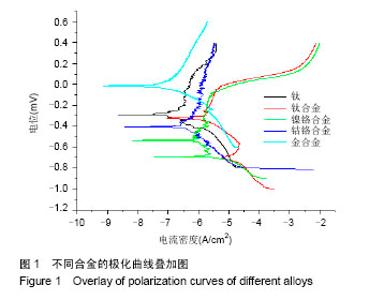

RESULTS AND CONCLUSION: The galvanic series of five kinds of alloys were ranged as follows: Au alloy > pure Ti > Ti alloy > Co-Cr alloy > Ni-Cr alloy. Au alloy and pure Ti had more positive potential that were not easy to produce corrosion; Ti alloy and Co-Cr alloy could form stable oxidation film with a strong ability of anti-pitting and crevice corrosion; Ni-Cr alloy potential was more negative and easy to be dissolved. The corrosion current density of five kinds of alloys was ranged as follows: Au alloy < pure Ti < Ti alloy < Co-Cr alloy < Ni-Cr alloy. Au alloy and pure Ti had lowest current density which was 10^-8, indicating that the corrosion rate of Au alloy and pure Ti was lower; in contrast, Ni-Cr alloy possessed the maximum corrosion rate. These findings indicate that Au alloy and pure Ti exhibit a very high corrosion resistance. The corrosion rate of Ni-Cr alloy is the highest; therefore, Ni-Cr alloy is the least acceptable material for implant suprastucture.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: titanium, gold alloys, chromium alloys

CLC Number:

R318

Tang Ya, Chen Bi-xin. Corrosion resistance of titanium implant abutments and implant suprastructure dental alloys[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(47): 7561-7565.

Figures/Tables 2

References

[1] Turpin YL,Tardivel RD,Tallec A,et al.Corrosion susceptibility of titanium covered by dental cements.Dent Mater. 2000;16(1): 57-61.
[2] Horasawa N,Takahashi A,Marek M.Galvanic interaction between titanium and gallium alloy or dental amalgam.Dent Mater.1999;15(5):318-322.
[3] Wu Z,Xu S,Li W,Teng J,et al.Study on corrosion resistance of three non-noble porcelain alloys.2011;29(5):485-487,493.
[4] Aberer W,Holub H,Strohal R,et al.Palladium in dental alloys--the dermatologists’ responsibility to warn.Contact Dermaiitis.1993;28(3):163-165．
[5] Hsu RWW,Yang CC,Huang CA,et al.Electrochemical corrosion properties of Ti-6Al-4V implant alloy in the biological environment.Mater Sci Eng A.2004;380(1-2):100-109.
[6] Ristic L, Vucevic D,Radovic L,et al. Corrosive and cytotoxic properties of compact specimens and microparticles of Ni-Cr dental alloy. J Prosthodont.2014;23(3):221-226.
[7] Reclaru L,Unger RE,Kirkpatrick CJ,et al.Ni-Cr based dental alloys; Ni release, corrosion and biological evaluation. Mater Sci Eng C Mater Biol Appl.2012;32(6):1452-60.
[8] Yu J,Zhao F,Wen X,et al. Apoptosis mechanism of gingival fibroblasts induced by nickel ion contained in dental cast alloys.Biomed Mater Eng.2012;22(1-3):151-157.
[9] Robert GC.John MP.Restorative dental materials.11th edtion.Missouri.A Harcout Health Sciences Company. 2002:56-57.
[10] Grosgogeat B,Reclaru L,Lissac M,et al.Measurement and evaluation of galvanic corrosion between titanium/Ti6Al4V implants and dental alloys by electrochemical techniques and auger spectrometry.Biomaterials.1999; 20(10): 933-941.
[11] 刘肃,周延民,王晓容,等.镍铬合金、钛合金及金铂合金在人工唾液中的耐腐蚀性能[J].吉林大学学报:医学版,2005,31(5): 774-777.
[12] 孙平,陆瑛,陈松.钴铬、镍铬、含钛镍铬烤瓷合金在人工唾液中耐腐蚀性能的比较[J].上海口腔医学,2007,16(6):652-656.
[13] Manaranche C,Homberger H.A proposal for the classification of dental alloys according to their resistance to corrosion.Dent Mater.2007;23(11):1428-1437.
[14] Hodgson AW,Kurz S,Virtanen S,et al.Passive and transpassive behaviour of CoCrMo in simulated biological solutions.Electrochim Acta.2004; 49(13):2167-2178.
[15] Ozcelik TB,Yilmaz B.Galvanic gold plating for fixed dental prosthesis. Eur J Dent.2013;7(3):373-376.
[16] Jones SB,Taylor RL,Colligon JS,et al.Effect of element concentration on nickel release from dental alloys using a novel ion beam method.Dent Mater.2010;26(3):249-256.
[17] Williamson RS,Disegi J,Griggs JA,et al.Nanopore formation on the surface oxide of commercially pure titanium grade 4 using a pulsed anodization method in sulfuric acid.J Mater Sci Mater Med.2013;24(10):2327-2335.
[18] 刘秀晨,安成强.金属腐蚀学[M].北京:国防工业出版社, 2002: 86-141.
[19] Ozkomur A,Erbil M,Akova T.Diamondlike carbon coating as a galvanic corrosion barrier between dental implant abutments and nickel-chromium superstructures. 2013; 28(4):1037-1047.
[20] 魏宝明.金属腐蚀理论及应用[M].北京:化学工业出版社, 1984: 145-146.
[21] Barão VA,Mathew MT,Assunção WG,et al.Stability of cp-Ti and Ti-6Al-4V alloy for dental implants as a function of saliva pH - an electrochemical study.Clin Oral Implants Res.2012; 23(9):1055-1062.
[22] Geckili O,Bilhan H,Bilgin T,et al.The effect of urea on the corrosion behavior of different dental alloys.Indian J Dent Res.2012;23(1):75-79.
