Chen Lin, Xu Xiaomei, Zhang Li, Xu Pengfei, Zheng Qian. Finite element study on the effect of canine distal movement on anterior tooth intrusion by clear aligners[J]. Chinese Journal of Tissue Engineering Research, 2022, 26(35): 5669-5675.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

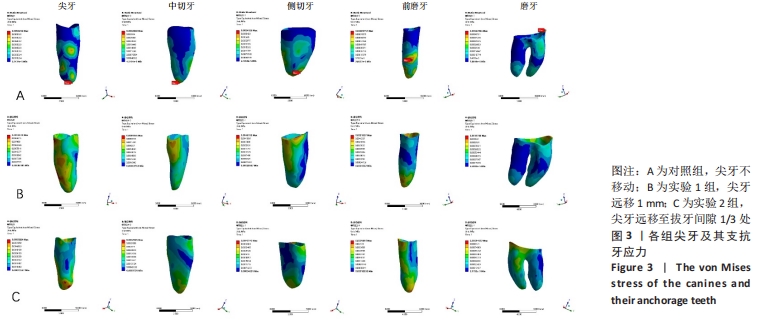

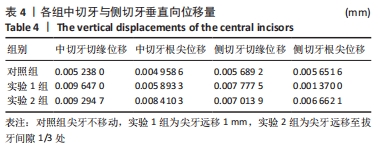

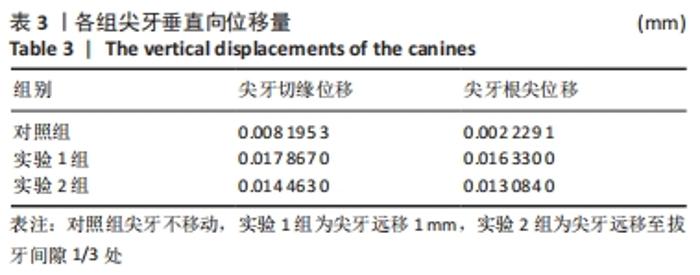

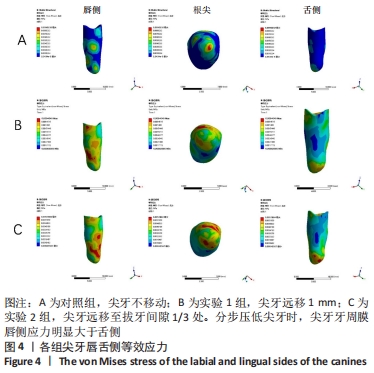

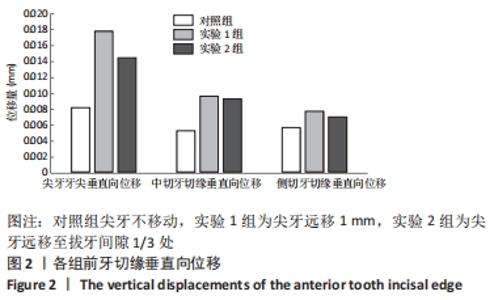

对照组尖牙最大等效应力为0.009 023 2 MPa,支抗牙中切牙最大等效应力为0.003 283 8 MPa,侧切牙最大等效应力为0.003 419 6 MPa,均大于前磨牙的最大等效应力0.000 857 5 MPa;磨牙的最大等效应力为0.000 478 2 MPa,为最小值。实验1组尖牙最大等效应力为0.009 404 9 MPa,中切牙最大等效应力为0.008 994 6 MPa,大于侧切牙最大等效应力0.004 676 3 MPa及前磨牙最大等效应力0.005 163 7 MPa;磨牙最大等效应力为0.001 173 9 MPa,为最小值。实验2组尖牙最大等效应力为0.005 788 4 MPa,支抗中切牙最大等效应力为0.003 250 5 MPa,侧切牙最大等效应力为0.004 074 2 MPa,均大于前磨牙最大等效应力0.002 989 1 MPa;磨牙最大等效应力最小,为0.000 945 3 MPa。各组尖牙及其支抗牙应力见图3。 "

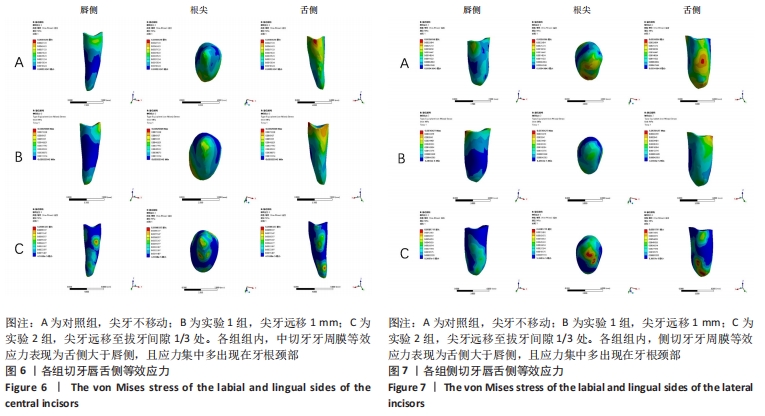

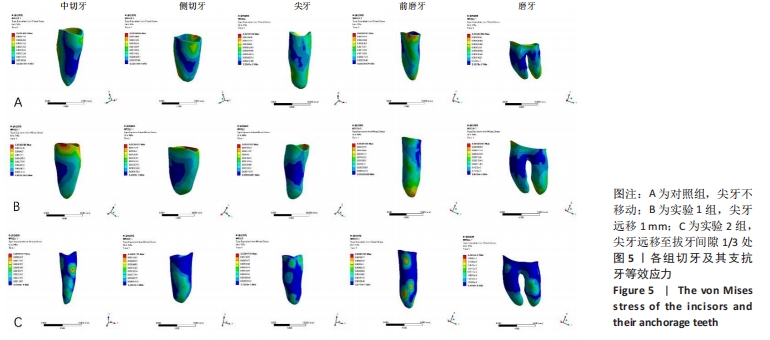

对照组中切牙最大等效应力为0.005 302 3 MPa,侧切牙最大等效应力为0.002 609 6 MPa,为3组中最小值;支抗磨牙最大等效应力为0.000 564 MPa,为同组支抗牙中受力最小值;支抗尖牙最大等效应力为0.001 617 8 MPa,支抗前磨牙最大等效应力为0.002 878 7 MPa。实验1组中切牙、侧切牙最大等效应力分别为0.008 208 8,0.003 642 7 MPa;支抗磨牙最大等效应力为0.000 346 4 MPa,为同组支抗牙中最小值;支抗尖牙等效应力最大,为0.005 250 1 MPa;支抗前磨牙最大等效应力为0.002 570 6 MPa。实验2组中切牙最大等效应力为0.009 932 7 MPa,侧切牙最大等效应力为0.008 171 1 MPa,为3组中等效应力最大值;支抗磨牙最大等效应力为0.000 022 3 MPa,为同组支抗牙中最小值;支抗前磨牙最大等效应力为0.008 779 6 MPa,略大于支抗尖牙最大等效应力0.008 413 4 MPa。各组切牙及其支抗牙等效应力见图5。 "
