Uroflowmeter calibration device: standard water flow and its stability

doi:10.3969/j.issn.2095-4344.0892

Abstract

Abstract:

BACKGROUND: As the gear pump’s leakage and pulsation are not taken into account to the design of the uroflowmeter calibration device composed of digital signal processor (DSP) and gear pump, a wrong result will be produced if we just calibrate the urinary flow meter with the theory flow data that work out by the recorded data of the gear pump’s rotate speed.

OBJECTIVE: Based on the designed uroflowmeter calibration device, using DSP timer to control the operation time of the gear pump to obtain a standard water flow with fixed rate and quantity, to measure the quantities of each standard water flow and to analyze the measurement results in order to test if the standard water flows produced by the uroflowmeter calibration device are suitable to calibrate urine flow rate in clinic.

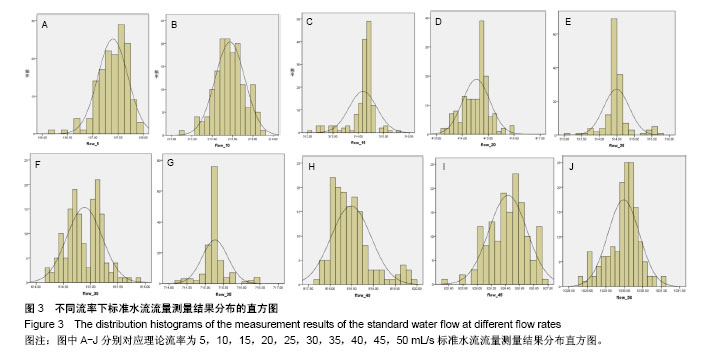

METHODS: The quantity of each standard water flow was measured by B2000S scales in different time by different experimenters. SPSS 20.0 software was then used to draw the distribution histogram of each standard water flow measurement results. We also analyzed the factors affecting the uncertainty of the measurement results, and calculated the uncertainty of the results by systematic analysis.

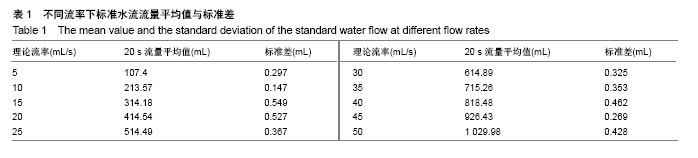

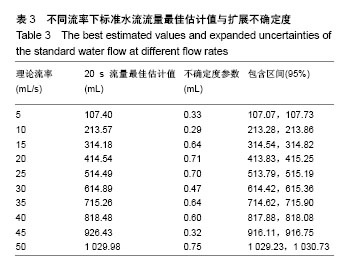

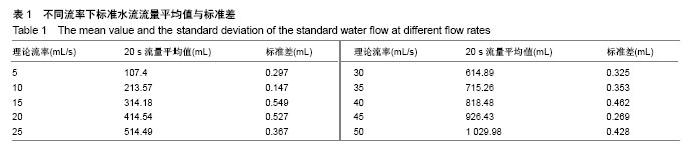

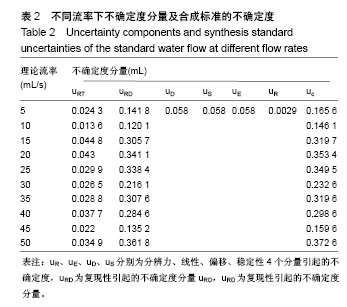

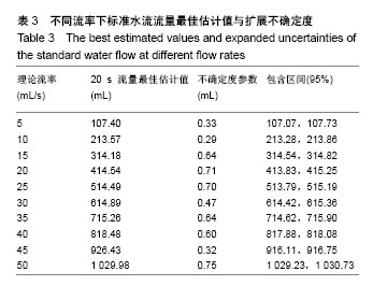

RESULTS AND CONCLUSION: (1) The quantities of each standard water flow measured by different experimenters in different time were consistent with normal distribution. The maximum stand deviation was 0.549 mL at the flow rate of 15 mL/s, and the minimum stand deviation was 0.147 mL at the flow rate of 10 mL/s. This indicates that the standard water flow produced by the uroflowmeter calibration device has a very high stability, both in flow rate and in flow volume. Therefore, the mean value of the multiple measurement results can be used as the best estimated value of the standard water flow. (2) The uncertainty of the measurement results were calculated by systematic analysis. The uncertainty was 0.75 mL in maximum at the rate of 50 mL/s, and 0.29 mL in minimum at the rate of 10 mL/s, which meets the requirement that the maximum rate between the uncertainties of a standard device and a calibrated device is less than 1:3. Therefore, the uroflowmeter calibration device can be used to calibrate urine flow rate in clinical practice.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Urodynamics, Calibration, Tissue Engineering

CLC Number:

R318

Wang Li-xin, Ji Jun, Gao Jia-shuo, Xiao Hong. Uroflowmeter calibration device: standard water flow and its stability[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(22): 3569-3574.

Figures/Tables 4

References

[1] Shei S.Tzu Chi nomograms for uroflowmetry, postvoid residual urine, and lower urinary tract function.Tzu Chi Med J. 2014;26(1):10-14.

[2] Maclachlan LS,Rovner ES.Good Urodynamic Practice : Keys to Performing A Quality UDS Study.Urol Clin North Am. 2014; 41(3):363-373.

[3] 廖利民.尿动力学技术规范(GUP)[J].中华腔镜泌尿外科杂志, 2008,2(4):373.

[4] 廖利民.尿动力学技术规范-介绍国际尿控协会标准化报告[J].中国康复理论与实践,2005,11(11):875-878.

[5] 中华医学会泌尿外科学分会.尿动力学检查操作指南(2010版) [S].

[6] 张鹏,刘成山.Dantec尿动力仪的日常维护与保养[J].医疗卫生装备,2003,24(9):57-57.

[7] 李咏雪,杨东,孙志辉,等.尿动力仪计量检定规程及质量控制的研究[J].中国医学设备,2014,29(6):16-17,49.

[8] 郭兰兰.影响水流量标准装置性能的关键问题研究[D].济南:山东大学,2014.

[9] 李铮.水流量标准装置不确定度和流量稳定性研究[D].天津:天津大学2009.

[10] 袁青.基于DSP和齿轮泵的尿流率计校准装置研究[D].广州:南方医科大学,2016.

[11] 袁青, 姬军,高佳硕,等.基于数字信号处理器和齿轮泵的称重式尿流率计校准装置设计及临床应用分析[J].中国医学装备, 2016, 13(10):8-12.

[12] 姬军,尹琳琳,王莉新,等.一种基于数字信号处理器和齿轮泵的尿流率计校准装置[J].中国医疗设备,2017,32(1):32-37,45.

[13] 陈天夫.变转速齿轮泵输出压力与流量软测量方法研究[D].西安:西安建筑科技大学,2015.

[14] 贾永峰,谷立臣.伺服驱动定量泵的流量压力软测量方法[J].机械设计,2014,31(4):18-23.

[15] 贾永峰.永磁伺服电机驱动的液压动力系统性能及测控技术研究[D].西安:西安建筑科技大学,2013.

[16] Cinar R,Ucar M,Celik HK,et al.Pressure Determination Approach in Specific Pressure Regions and FEM-Based Stress Analysis of the Housing of an External Gear Pump.Exp Tech.2016;40(2):489-499.

[17] 许燕.齿轮泵动静态性能分析及结构优化[D].天津:天津理工大学, 2013.

[18] 姬军,王莉新,高佳硕,等.齿轮泵管路长度对构建尿流率计标准装置标准水流流量的影响[J].中国医学装备,2017,14(10):33-36.

[19] 张振,王慧斌,严锡君,等.时空图像测速法的敏感性分析及不确定度评估[J].仪器仪表学报,2017, 38(7):1763-1771.

[20] 罗哉,刘晖,田焜,等.关节臂式坐标测量机测量力误差分析及补偿[J].仪器仪表学报,2017, 38(5):1159-1167.

[21] 程银宝,陈晓怀,王汉斌,等.基于精度理论的测量不确定度评定与分析[J].电子测量与仪器学报,2016, 30(8):1175-1182.

[22] 崔明涛,田芳,李玉全,等.差压补偿液位测量的不确定度评定方法研究[J].仪器仪表学报,2016,37(7):1524-1531.

[23] 王德东,陶俊勇,蒋瑜,等.基于DSP的定时器在模数和数模转换中的应用[J].计算机测量与控制,2008,16(6):819-820.

[24] 苏宏志.一种基于DSP定时器的加减速控制算法的研究[J].机床与液压,2009,37(11):163-165.

[25] 于镭,朱正.基于DSP定时器在伺服位置控制中的应用[J].微计算机信息,2010,26(8):20-21.

[26] 张健,李跃鹏,刘威鹏,等.DSP多任务实时操作系统内核设计[J].电脑知识与技术,2016,12(2):77-79.

[27] 沙海珍,魏利卓. KeyStone架构的多核DSP中断路由机制及其实现方法[J].单片机与嵌入式系统应用, 2017, 17(1):19-23.

[28] 杨旸,刘杰.齿轮泵磨损加速寿命试验方法的研究[J].机床与液压, 2014,42(23):204-206.

[29] 袁子荣,孙春耕,张自华.纯水外啮合齿轮泵磨损机理研究[J].液压与气动,2007,31(12):58-60.

[30] 王晓红,闫玉洁,李秋茜.基于Omega理论的外啮合齿轮泵磨损寿命分析[J].机床与液压, 2014,2(7):155-158.

[31] 范智广.数控加工精度分布规律的研究[D].沈阳:东北大学,2013.

[32] 柯年日,张超谟,王英伟.正态分布法测井曲线标准化在M油田的应用[J].长江大学学报(自科版),2010, 7(4):76-78.

[33] Hajilouy-Benisi A,Rad M,Shahhosseini MR.Empirical Assessment of the Performance Characteristics in Turbocharger Turbine and Compressor.Exp Tech. 2010;34(3):54-67.

[34] 林洪桦.测量不确定度评定应基于误差理论[J].自动化与信息工程,2011,32(4):1-4.

[35] 赵化甜,荆学东,姜健.传感器测量不确定度评估方法的分析[J].煤炭技术,2015,34(6):219-221.

[36] 徐磊,陈晓怀,程银宝,等.坐标测量机孔径测量的不确定度评定模型研究[J].中国测试,2016,42(1):26-30.

[37] 王鹏,王明泉,韩婧.导爆索内径尺寸测量不确定度的评定及数据处理模型[J].中国测试,2014,40(2):31-35.

[38] 叶德培.《测量不确定度评定与表示》系列讲座第二讲测量不确定度评定中的一些基本术语及概念(一)[J].中国计量,2013,18(8): 48-51.

[39] 叶德培.《测量不确定度评定与表示》系列讲座第三讲测量不确定度评定中的一些基本术语及概念(一)[J].中国计量,2013,18(9): 46-50.

[40] 叶德培.《测量不确定度评定与表示》系列讲座第四讲GUM法评定测量不确定度(一)[J].中国计量, 2013,18(10):43-47.

[41] 叶德培.《测量不确定度评定与表示》系列讲座第五讲GUM法评定测量不确定度(二)[J].中国计量, 2013,18(11):49-64.

[42] 李咏雪,孙志辉.医学计量标准建立指南[M].北京:人民军医出版社,2012:18-22.
