Vertebral fixation with minimally invasive HXN pedicle screw system for thoracolumbar fractures

doi:10.3969/j.issn.2095-4344.2017.35.007

Abstract

Abstract:

BACKGROUND: Open reduction and internal fixation have been used to treat thoracolumbar fractures, which possesses good efficacy, but causes large trauma and many complications. Minimally invasive treatment like Wiltse operative approach and Sextant, Zina system also has many defects such as large incision, insufficient fixed strength, limited orthopedic forces.

OBJECTIVE: To access the effect of vertebral fixation with HXN pedicle screw system in the treatment of thoracolumbar fractures.

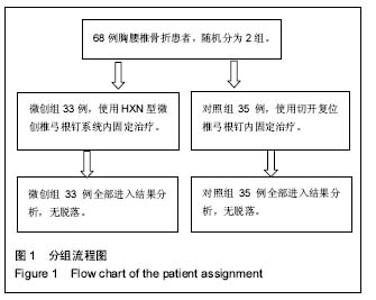

METHODS: Totally 68 cases of thoracolumbar fractures admitted in the Department of Orthopedics, the First Affiliated Hospital of Xinxiang Medical University from October 2014 to December 2016 were randomly divided into two groups: the patients in group A received minimally invasive pedicle screw fixation with HXN system and those in group B were subjected to open reduction and internal fixation. The perioperative indexes (blood loss), Visual Analogue Scale scores, Oswestry Disability Index, anterior vertebral height, and Cobb angle were detected to compare the curative efficacy between two groups.

RESULTS AND CONCLUSION: (1) All patients were followed up for 3-24 months. (2) There were no significant differences in the operation time, intraoperative fluoroscopy times between two groups (P > 0.05), and the blood loss in the group B was significantly more than that in the group A (P < 0.05). (3) The preoperative Visual Analogue Scale and Oswestry Disability Index scores showed no significant differences between two groups (P > 0.05), and the postoperative and last follow-up scores were significantly decreased (P < 0.05), but the group A had lower scores than those in the group B (P < 0.05). (4) The anterior vertebral height and Cobb angle were significantly improved postoperatively (P < 0.05); at the last follow-up, both indexes had no obvious loss and showed no significant difference between two groups (P > 0.05). (5) The incision healed well in the group A, while there were two cases of incision infection in the group B. No screw loosening, displacement or rupture occurred during follow-up. (6) These results suggest that the minimally invasive HXN pedicle screw system for thoracolumbar fracture not only has the advantages of fewer traumas, less blood loss, low incidence of incision infection, pain relief, but also is safe and easy to operate, which obtains good fixation stability and can achieve the same curative effect with the open surgery.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words:

Surgical, Minimally Invasive, Thoracic Vertebrae, Lumbar Vertebrae, Fractures, Bone, Internal Fixators, Tissue Engineering

CLC Number:

R318

Wang Jing-yu, Dong Yu-zhen, An Yong-bo, Cui Ming-xing, Li Qing-jiang. Vertebral fixation with minimally invasive HXN pedicle screw system for thoracolumbar fractures[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(35): 5616-5621.

Figures/Tables 2

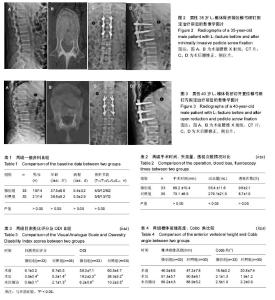

2.2 两组患者一般资料比较微创组与对照组患者治疗前在年龄、性别、病程、骨折节段方面差异无显著性意义(P > 0.05)，具有可比性，见表1。 2.3 手术时间、透视次数、术中失血量等情况比较 2组患者手术均顺利完成，其中2组手术时间、透视次数相比，经检验差异无显著性意义(P > 0.05)；术中平均失血量微创组显著小于对照组(P < 0.05)，见表2。 2.4 两组目测类比评分及ODI比较 2组术前目测类比评分差异无显著性意义(P > 0.05)，术后及末次随访时目测类比评分均较术前明显降低(P < 0.05)，但微创组低于对照组(P < 0.05)；2组术前ODI差异无显著性意义(P > 0.05)，术后及末次随访时ODI均较术前明显改善(P < 0.05)，但微创组低于对照组(P < 0.05)，见表3。均说明微创组术后腰椎残余痛轻。 2.5 两组伤椎前缘高度、Cobb 角比较 2组术前、术后、末次随访时伤椎前缘高度、Cobb 角差异均无显著性意义(P > 0.05)；末次随访与术后相比2组伤椎前缘高度、Cobb 角无明显丢失(P > 0.05)，见表4。说明微创组与对照组在矫形方面疗效相当。 2.6 不良事件微创组术后切口均愈合良好；对照组出现2例切口感染迹象，考虑可能与创口大、暴露时间长、脂肪液化有关，经积极抗感染治疗及加强换药后愈合。随访期间2组均未见内固定松动、移位及断裂的情况发生。说明微创组创伤小、切开感染率低，但两者术后内固定稳定性均较好。 2.7 典型病例典型病例1：患者男，35岁，“高处坠落致腰背部疼痛2 h”为主诉入院，入院后行胸腰椎X射线片示L1椎体骨折，CT示椎体后缘骨块突入椎管1/3，双侧椎弓根完整，全麻下行微创椎弓根钉固定手术，术后6个月复查胸腰椎正侧位片示伤椎高度维持良好，内植物无松动、断裂。相关图片见图2。典型病例2：患者男，40岁，以“外伤致腰背部疼痛半天余”主诉入院，入院后胸腰椎X射线片显示L1椎体骨折，CT示椎体后缘骨块突入椎管1/4，双侧椎弓根无损伤，全麻下行切开复位椎弓根钉内固定术，术后12个月复查胸腰椎正侧位片示伤椎高度满意，内固定位置良好。相关图片见图3。"

References

[1] Liao JC, Fan KF, Keorochana G,et al. Transpedicular grafting after short-segment pedicle instrumentation for thoracolumbar burst fracture :calcium sulfate cement versus autogenous iliac bone graft.Spine(Phila Pa 1976). 2010 ;35(15):1482-1488.

[2] 孔祥清,孟纯阳,张卫红,等.微创经皮椎弓根螺钉内固定术治疗胸腰椎骨折的临床疗效观察[J].中国矫形外科杂志, 2015,8(23): 692-695.

[3] Court C ,Vincent C. Percutaneous fixation of thoracolumbar fractures : current concepts. Orthop Traumatol Surg Res. 2012;98(8) :900-909.

[4] 成心锟,钱邦平,邱勇.腰椎椎弓根螺钉置入对近端相邻关节突关节侵扰的影响因素研究进展[J].中国脊椎脊髓杂志, 2016,26(8): 754-758.

[5] 姚欣强,陈建庭,郑明辉,等.经伤椎固定与单纯短节段椎弓根钉内固定治疗AO-A型胸腰椎骨折的疗效比较[J]. 中国骨与关节损伤杂志,2016, 31(9):69-72.

[6] 丁磊,丁伟伟,闫生亮,等. 后路经伤椎单侧椎弓根通道植骨并置钉短节段内固定修复胸腰段椎体爆裂性骨折[J]. 中国组织工程研究,2014,18(44):7100-7105.

[7] 林飞跃,徐杨,尹晓明,等. Wiltse入路结合伤椎置钉治疗胸腰椎骨折[J]. 中国当代医药,2015,22(34):121-126.

[8] 李长青,罗刚,周跃,等.新型微创经皮椎弓根螺钉内固定治疗胸腰椎骨折[J].中华创伤杂志,2009,25(6):522- 525.

[9] Mobbs RJ, Sivabalan P, Li J. Technjque, challenges and indications for percutaneous pedicle screw fixation. J C1in Neumsci. 2011;18(6):741-749.

[10] 张竞,蒋雷生,邵将,等. 经皮椎弓根螺钉内固定治疗胸腰段骨折的围手术期临床研究[J]. 脊柱外科杂志,2014 ,12 (3):176-179.

[11] Raley DA, Mobbs RJ. Retrospective computed tomography scan analysis of percutaneously inserted pedicle screws for posterior transpedicular stabilization of the thoracic and lumbar spine: accuracy and complication rates. Spine (Phila Pa 1976). 2012 ;37(12) :1092-1100.

[12] 明江华,郑慧锋,赵奇,等. Sextant 经皮椎弓根钉棒微创系统治疗胸腰椎骨折:随访评价[J].中国组织工程研究, 2013, 17(48):8343-8348.

[13] Kruger A, Rammler K, Ziring E, et al. Percutaneous minimally invasive instrumentation for traumatic thoracic and lumbar fractures: a prospective analysis. Acta Orthop Belg. 2012; 78(3):376-381.

[14] Wang HW, Li CQ, Zhou Y, et al. Percutaneous pedicle screw fixation through the pedicle of fractured vertebra in the treatment of type A thoracolumbar fractures using Sextant system: an analysis of 38 cases. Chin J Traumatol. 2010; 13(3):137-145.

[15] 刘进平,冯海龙. 微创脊柱内固定技术新进展[J]. 中国现代神经疾病杂志,2016,16(4):187-193.

[16] 戴世友,栾舰,林勇,等. 椎旁肌间隙入路与传统入路椎弓根钉内固定治疗胸腰椎骨折[J]. 中国骨与关节损伤杂志, 2014 ,29(11): 1142-1143.

[17] Alexander R, Vaccaro MD, Eli M. Baron operative techniques spine surgery. London Elsevier, 2009:293-300.

[18] 黄瑛. 经皮椎弓根钉微创手术治疗脊柱骨折患者的护理观察[J]. 中国社区医师,2015,31(10): 127-128.

[19] 熊永发,宁旭,闫飞,等.经皮椎弓根钉内固定与开放手术内固定治疗老年胸腰椎骨折的疗效对比[J].中国老年学杂志, 2016,36(4): 916-917.

[20] 聂锋锋,张英华,黄寿国,等. 经皮微创椎弓根螺钉内固定与开放手术治疗胸腰椎骨折:Cobb’s角与椎体前缘高度恢复的比较 [J]. 中国组织工程研究,2014,18(44):7094-7099.

[21] 黄祁杉,彭茂秀,林淼,等.经皮椎弓根螺钉固定治疗胸腰椎骨折[J].中华骨科杂志,2005,25(12):758-760.

[22] Gelb D, Ludwig S, Karp JE , et al. Successful treatment of thoracolumbar fractures with short-segment pedicle instrumentation. J Spinal Disord Tech. 2010;23(5):293-301.

[23] Norton RP, Milne EI, Kaimrajh DN, et al. Biomechanial analysis of four- versus- six- screw constructs for short- segment pedicle screw and rod instrumentation of unstable thoracolumbar fractures. Spine J. 2014;14(8):1734 -1739.

[24] 王洪伟,李长青,周跃,等.微创与传统开放附加伤椎经椎弓根螺钉内固定手术治疗胸腰椎骨折的疗效比较[J].中国脊柱脊髓杂志, 2010,20(2):112-116.

[25] Mahar A,Kim C,Wedemeyer M,et al. Shortsegment fixation of lumbar burst fractures using pedicle fixation at the level of fracture. Spine. 2007;32 (14):1503-1507.

[26] 杨阳,刘斌,董健文,等.单纯前后路透视下经皮椎弓根穿刺术的临床应用[J].中国脊柱脊髓杂志,2014,24(10):918-922.

[27] 唐康,张文志,段丽群,等. 微创经皮椎弓根螺钉联合伤椎置钉治疗胸腰段脊椎骨折[J].临床骨科杂志,2014,17(3):253-257.

[28] 江正良,林奇生,王一民, 等.传统后路与附加伤椎固定治疗胸腰椎骨折比较[J].中华全科医学,2013, 10(1):9-10.

[29] 贺新宁,欧晔灵,杜志勇,等. 经皮椎弓根钉内固定治疗胸腰椎骨折[J].实用骨科杂志,2014,20(6):484-487.

[30] 谢兆林,谭海涛,江建中,等.微创经皮椎弓根螺钉内固定术治疗胸腰椎骨折25例[J]. 广西医科大学学报, 2014, 31(4): 685-687.
