Collagen-gelatin scaffolds for the repair of peripheral nerve defects

Abstract

Abstract:

BACKGROUND: Collagen-gelatin composite scaffolds have been reported to be able to promote the early recovery of peripheral nerve defects. However, this conclusion has not been further confirmed.
OBJECTIVE: To investigate the biocompatibility of the collagen-gelatin scaffold and its treatment outcomes in the repair of peripheral nerve defects.
METHODS: The collagen-gelatin scaffold was co-cultured with bone marrow mesenchymal stem cells (BMSCs) of Sprague-Dawley rats for 5 days, and then the cell growth was observed. Twenty Sprague-Dawley rats were enrolled, modeled into a left 30-mm peroneal nerve defect and randomized into experimental and control groups. The collagen-gelatin scaffold composited with BMSCs was implanted into the experimental group, and autograft
nerve implanted into the control group. Morphology of the middle bridge was observed, and electrophysiology was conducted at 16 weeks after implantation.

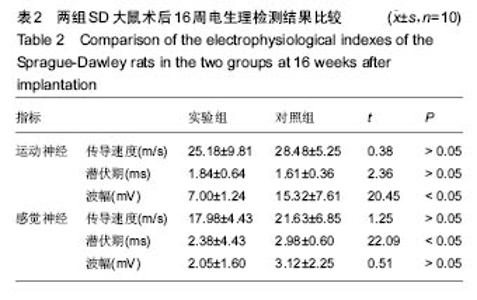

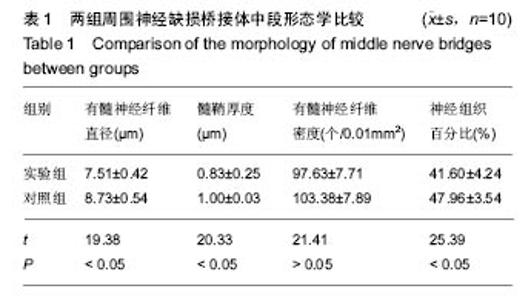

RESULTS AND CONCLUSION: BMSCs grew and adhered well onto the scaffold. The myelinated nerve fiber density did not significantly differ between groups (P > 0.05). The myelinated nerve fiber diameter, myelin sheath thickness and percentage of nerve tissues in the experimental group were significantly lower than those in the control group (P < 0.05). There were no significant differences in the conduction velocity, latency of motor nerves and the conduction velocity and amplitude of sensory nerves between groups (P > 0.05). The amplitude of motor nerves and the latency of sensory nerves in the experimental group were significantly lower than those in the control group (P < 0.05). To conclude, the collagen-gelatin scaffold holds a good cytocompatibity and is ideal for the repair of peripheral nerve defects.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Collagen, Gelatin, Peripheral Nerves, Tissue Engineering

CLC Number:

R318

Liu Tian-dan, Zhang Bao-chao, Hao Ming-liang.

Collagen-gelatin scaffolds for the repair of peripheral nerve defects

[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(2): 286-290.

Figures/Tables 6

References

[1]Marston WA,Hanft J,Norwood P,et al.The efficacy and safety of Dermagraft in improving the healing of chronic diabetic foot ulcers: results of a prospective randomized trial. Diabetes Care.2003;26(6):1701-1705.

[2]Anders S,Volz M,Frick H,et al. A randomized,controlled trial com- paring autologous matrix-induced chondrogenesis (AMIC)to micro-fracture: Analysis of 1- and 2-year follow-up data of 2 centers.Open Orthop J.2013;7: 133-143.

[3]Schüettler KF,Struewer J,Rominer MB,et al.Repair of a chondral de- fect using a cell free sca old in a young patient—a case report of suc-cessful sca old transformation and colonization.BMC Surgery.2013;13:11-17.

[4]张皑峰,欧喜超,杨朝阳,等.应用结合bFGF的壳聚糖导管修复大鼠坐骨神经损伤的实验研究[J].中国康复理论与实践, 2008, 14(12):1133-1135.

[5]Marques PA,Gon alves G,Singh MK,et al. Graphene oxide and hy-droxyapatite as fillers of polylactic acid nanocomposites: preparation and characterization.J Nanosci Nanotechnol.2012;12(8):6686-6692.

[6]Gu Y,Chen L,Yang HL,et al. Evaluation of an injectable silk fibroin enhanced calcium phosphate cement loaded with human recombinant bone morphogenetic protein-2 in ovine lumbar interbody fusion.J Biomed Mater Res A.2011;97(2): 177-185.

[7]Mirahmadi F,Tafazzoli-Shadpour M,Shokrgozar MA,et al.Enhanced mechanical properties of thermosensitive chitosan hydrogel by silk fi-bers for cartilage tissue engineering.Mater Sci Eng C Mater Biol Appl.2013;33(8): 4786-4794.

[8]刘中宁,姜婷,王衣祥.富血小板血浆促进人牙髓细胞的体内矿化潜能[J].北京大学学报:医学版,2011,43(2):276-279.

[9]方厂云,曹莹,夏宇,等.大鼠牙乳头细胞与纳米羟基磷灰石的体外复合培养[J].中南大学学报:医学版,2007,32(1):114:118.

[10]Kim NR,Lee DH,Chung PH,et al.Distinct differentiation properties of human dental pulp cells on collagen,gelatin,and chitosan scaffolds. Oral Surg Oral Med Oral Pathol Oral Radiol Endod.2009;108(5):e94-100.

[11]张文涛,刘建华,王慧明,等.重组人BMP-2修饰的β磷酸三钙/胶原材料制备及其诱导成牙性能的初步研究[J].中国修复重建外科杂志,2011,25(2):149-154.

[12]王瑛慧,王万永,贾智.APA微囊包裹的牙髓干细胞成牙本质作用的研究[J].天津医科大学学报,2006,12(4):548-550.

[13]包柳郁,金岩,史俊南,等.人牙源性间充质细胞体内立体培养模型的建立--构建组织工程化牙本质和牙髓组织[J].牙体牙髓牙周病学杂志,2004,14(11):603-606.

[14]李珊,樊明文,梁素霞.成人牙髓干细胞与壳聚糖-磷酸三钙复合材料相容性试验研究[J].口腔医学研究,2006,22(3):264-266.

[15]陈建洪,唐倩,王萍,等.应用SGBG/PHBV复合材料构建牙本质牙髓复合体样结构的初步研究[J].临床医学工程, 2011,18(9): 1339-1340.

[16]Zeng W,Huang JH,Luo ZJ,et al.Ionically cross linked chitosan microspheres for controlled release of bioactive nerve factor. Int J Pharm.2011;421(2):283-290．

[17]焦旭文,何仲义,李军平,等．NGF 和 GM1 联合应用对去细胞异种神经支架移植后神经再生和修复的影响[J].神经解剖学杂志, 2007,23(5):495-500．

[18]Lian XF,Wang W,Zhang L,et al.Co application of muscle derived stem cells and FK－506 influences nerve regeneration and recovery following acellular nerve allograft implantation.Zhongguo Zu Zhi Gong Cheng Yan Jiu Yu Lin Chuang Kang Fu. 2010;14(3):389-392．

[19]谭太贵,马景鉴,张文治,等．神经干细胞在PLGA、壳聚糖和明胶膜表面的生长规律[J].中国生物医学工程学报, 2006,25(3): 377-381．

[20]许文静,赵喆,赵斌,等.不同数量BMSCs对大鼠背根神经节生长影响的实验研究[J].中国修复重建外科杂志, 2011,25(10): 1245-1249．

[21]袁普卫,贺西京,王国毓,等.嗅鞘细胞移植对脊髓损伤后损伤区髓鞘相关轴突生长抑制因子受体表达的影响[J].中国骨伤, 2011, 24(1):51-54．

[22]van der Zande M,Vandebriel RJ,Van Doren E,et al. Distribution,elimination,and toxicity of silver nanoparticles and silver ions in rats after 28-day oral exposure.ACS Nano. 2012; 6(8):7427-7442.

[23]Lin JJ,Lin WC,Li SD,et al.Evaluation of the antibacterial activity and biocompatibility for silver nanoparticles immobilized on nano silicate platelets.CS Appl Mater Interfaces. 2013;5(2):433-443.

[24]胡莹,刘笑涵,王靖宇,等.低强度脉冲超声波辐照与泡沫TiC / Ti 对犬节段性骨缺修复的促进作用[J].中国比较医学杂志, 2013, 23(4):44-47.

[25][31]Hu N,Feng C,Jiang Y,et al.Regulative Effect of Mir-205 on Osteogenic Differentiation of Bone Mesenchymal Stem Cells ( BMSCs) : Possible Role of SATB2/Runx2 and ERK/MAPK Pathway.Int J Mol Sci.2015;16(5):10491-10506．

[26]Yang H,Aprecio RM,Zhou X,et al.Therapeutic Effect of TSG-6 Engineered iPSC-Derived MSCs on Experimental Periodokntitis in Rats: A Pilot Study.PloS One.2014;9(6): e100285．

[27]Liu Y,Goldberg AJ,Dennis JE,et al.One-step derivation of mesenchymal stem cell ( MSC) -like cells from human pluripotent stem cells on a fibrillar collagen coating.PloS One. 2012;7:e33225．

[28]Ganji F,Abroun S,Baharvand H,et al.Differentiation potential of o bombay human-induced pluripotent stem cells and human embryonic stem cells into fetal erythroid-like cells.Cell J.2015;16(4):426-439．
