Effect of headless reduction screws and common headless compression screws in the treatment of medial malleolus fractures

doi:10.3969/j.issn.2095-4344.2336

Abstract

Abstract:

BACKGROUND: The headless reduction screw is an improved hollow screw. The clinical data are few compared with the common headless compression screws in the treatment of internal malleolus fracture.

OBJECTIVE: To compare the postoperative effects of headless reduction screws and common headless compression screws in the treatment of medial malleolus fractures.

METHODS: Totally 100 patients with medial malleolus fracture at the Department of Orthopedics, Affiliated Hospital to Chengdu University from July 2016 to October 2018 were retrospectively analyzed. Patients in the headless reduction screw group (n=50) were treated with headless reduction screw for internal fixation. Patients in the common headless compression screw group (n=50) were treated with common headless compression screws. Ankle radiographic examination was performed in each group after surgery to assess fracture healing time, complications, and AOFAS score.

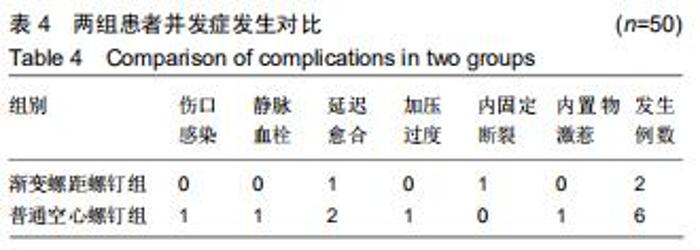

RESULTS AND CONCLUSION: (1) There was no significant difference in fracture healing time and AOFAS score between the two groups 6 weeks to 18 months after surgery (P > 0.05). (2) Analysis of complications: delayed healing appeared in one case 7 months after operation, and internal fixation fracture in one case 12 months after operation in the headless reduction screw group. Wound infection appeared in one patient 2 days after operation, vein thrombosis in one patient 3 months after operation, delayed healing in two patients 6 and 9 months after operation, overpressure in one patient 1 day after operation, and internal irritation in one patient 5 months after operation in the common headless compression screw group. There was no statistical difference in the number of complications between the two groups (P > 0.05). The number of complications was less in the headless reduction screw group than in the common headless compression screw group. (3) These results conclude that the clinical effect of applying headless reduction screw is similar to that of common headless compression screw group in the treatment of medial malleolus fracture. Headless reduction screws can reduce the complications properly.

Key words: bone, medial malleolus, fracture, screw, internal fixation, infection, complication, stability

CLC Number:

Zheng Jiang, Chen Erdong, Chen Mingcan, Li Kainan. Effect of headless reduction screws and common headless compression screws in the treatment of medial malleolus fractures[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(36): 5832-5836.

Figures/Tables 7

References

[1] WHITE TO, CARTER TH. Ankle fractures: facts and fiction. Bone Joint J. 2018;7(4):3-8.

[2] AITKEN SA, JOHNSTON I, JENNINGS AC, et al. An evaluation of the Herscovici classification for fractures of the medial malleolus. Foot Ankle Surg. 2017;23:317-320.

[3] KUSNEZOV NA , EISENSTEIN ED, DIAB N, et al. Medial malleolar fractures and associated deltoid ligament disruptions: current management controversies. Orthopedics. 2017;40(2):e216-e222.

[4] HERSCOVICI D JR, SCADUTO JM, INFANTE A. Con-servative treatment of isolated fractures of the medial malleolus. J Bone Joint Surg Br. 2007;89:89-93.

[5] KITAOKA HB, ALEXANDER IJ, ADELAAR RS, et al. Clinical rating systems for the ankle-hindfoot, midfoot, hallux, andlesser toes. Foot Ankle Int. 1994;15(7):349-353.

[6] 陈孝平,汪建平.外科学[M]:北京:人民卫生出版社,2013: 634-635.

[7] 侯树勋.现代创伤骨科学[M].北京:人民军医出版社,2002:1255.

[8] DAVIDOVITCH RI, EGOL KA. The medial malleolus osteoligamentous complex and its role in ankle fractures. Bull NYU Hosp Jt Dis. 2009;67(4):318-324.

[9] BROCKWELL J, YEUNG Y, GRIFFITH JF. Stress fractures of the foot and ankle. Sports Med Arthrosc. 2009;17(3):149-159.

[10] KOPP F. Traumatic peroneal dislocation with medial malleolus fracture: a case report. Foot Ankle Int. 2008;29(7): 756-758.

[11] LAREAU CR, BARITEAU JT, PALLER DJ, et al. Contribution of the medial malleolus to tibiotalar joint contact characteristics. Foot Ankle Spec. 2015;8:23-28.

[12] ALLURI RK, TAN EW. Indications, postoperative management, and advances in ankle fracture fixation. Tech Foot Ankle.2018; 17(3):105-114.

[13] TANG J, HU JF, GUO WC, et al. Research and application of absorbable screw in orthopedics: a clinical review comparing PDLLA screw with metal screw in patients with simple medial malleolus fracture. Chin J Traumatol. 2013;16(1):27-30.

[14] KHURANA S, KARIA R, EGOL KA. Operative treatment of nonunion following distal fibula and medial malleolar ankle fractures. Foot Ankle Int. 2013;34(3):365-371.

[15] 汪国栋,孟乘飞,陈磊,等.改良关节镜前内侧入路有限切开内固定治疗内踝移位骨折[J].中华创伤骨科杂志,2015,17(6):539-540,

[16] 陈雁西,俞光荣.踝关节骨折的治疗策略与数字化临床路径[J].中华骨科杂志,2011,31(3):275-284.

[17] PAKARINEN HJ, FLINKKIL TE, OHTONEN PP, et al. Stability criteria for nonoperative ankle fracture management. Foot Ankle Int. 2011;32(2):141-147.

[18] CARTER TH, OLIVER WM, GRAHAM C, et al. Medial malleolus: operative or non-operative (MOON) trial protocol - a prospective randomised controlled trial of operative versus non-operative management of associated medial malleolus fractures in unstable fractures of the ankle. Trials. 2019;20(1):565.

[19] MCKENNA PB, O'SHEA K, BURKE T. Less is more: lag screw only fixation of lateral malleolar fractures Paul B. Int Orthop. 2007;31(4):497-502.

[20] 叶超,洪建军,郑亦静,等.经皮微创内固定技术(MIPO)治疗踝关节骨折的疗效分析[J].中国骨与关节损伤杂志,2014,29(8): 788-790.

[21] LIN CC, LIN KJ, CHEN WC, et al. Larger screw diameter may not uarantee greater pullout strength for headless screws: a biomechanical study. Biomed Tech (Berl). 2017;24;62(3): 257-261.

[22] LIN CC, LIN KP, HUANG CC, et al. Partially threaded headless screw may benefit adequate interfragmentary compression and reduced driving torque for small bone fixation. J Orthop Surg (Hong Kong). 2018;26(1):1-6.

[23] HART A, HARVEY EJ, LEFEBVRE LP, et al. Insertion profiles of 4 headless compression screws. J Hand Surg Am. 2013;38: 1728-1734.

[24] BARNES H, CANNADA LK, WATSON JT. A clinical evaluation of alternative fixation techniques for medial malleolus fractures. Injury. 2014;45:1365-1367.

[25] RICCI WM, TORNETTA P, BORRELLI J JR. Lag screw fixation of medial malleolar fractures: a biomechanical, radiographic, and clinical comparison of unicortical partially threaded lagscrews and bicortical fully threaded lag screws. J Orthop Trauma. 2012;26:602-606.

[26] SAINI P, AGGRAWAL A, MEENA S, et al. Miniarthrotomy assisted percutaneous screw fixation for displaced medial malleolus fractures a novel technique. J Clin Orthop Trauma. 2014;5:252-256.

[27] MANDEL J, BEHERY O, NARAYANAN R, et al. Single- vs 2-screw lag fixation of the medial malleolus in unstable ankle fractures. Foot Ankle Int. 2019;40(7):790-796.

[28] BUCKLEY R, KWEK E, DUFFY P, et al. Single-screw fixation compared with double screw fixation for treatment of medial malleolar fractures: a prospective randomized trial. J Orthop Trauma. 2018;32(11):548-553.

[29] SHAH Y, SYED T, MYSZWESKI T, et al. Comparison of outcome following either one or two screws for medial malleolar fracture fixation. Injury Extra. 2009;40(10):223-224.

[30] DEMILL SL, BUSSEWITZ BW, PHILBIN TM. Injury to the Posterior Tibial Tendon After Open Reduction Internal Fixation of the Medial Malleolus. Foot Ankle Spec. 2015;8(5):360-363.

[31] FEMINO JE, GRUBER BF, KARUNAKAR MA. Safe zone for the placement of medial malleolar screws. J Bone Joint Surg Am. 2007;89(1):133-138.

[32] GIORDANO V, GOMES AF, AMARAL NP, et al. Preventing surgical complications: a survey on surgeons' perception of intra-articular malleolar screw misplacement in a cadaveric study. Patient Saf Surg. 2011;5(1):24.
