Biological behavior of rat bone marrow mesenchymal stem cells in oligo(poly(ethylene glycol)fumarate) hydrogel

doi:10.3969/j.issn.2095-4344.2016.16.016

Abstract

Abstract:

BACKGROUND: Oligo(poly(ethylene glycol)fumarate) (OPF) hydrogel is a kind of biomaterial with good biocompatibility, injectability, and biodegradability. It is known that there are differences in the characteristics of hydrogels with different molecular weights. Under osteogenic induction, bone marrow mesenchymal stem cells encapsulated in the suitable molecular weight hydrogel have better proliferation and differentiation. Therefore, the use of OPF hydrogel provides new options for bone tissue-engineered scaffold.

OBJECTIVE: To investigate the effect of OPF hydrogel with different molecular weights on the proliferation and differentiation of encapsulated rat bone marrow mesenchymal stem cells in vitro.

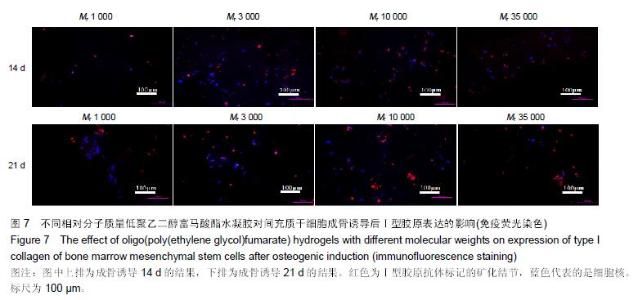

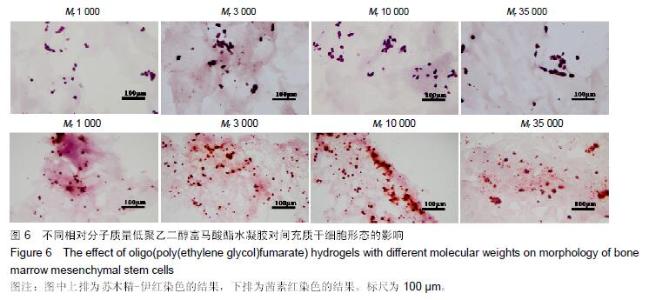

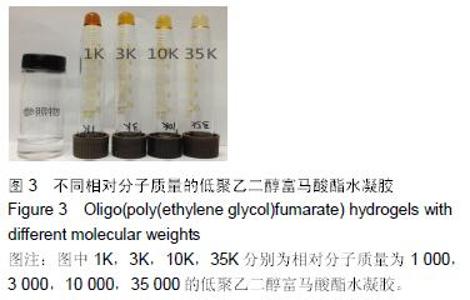

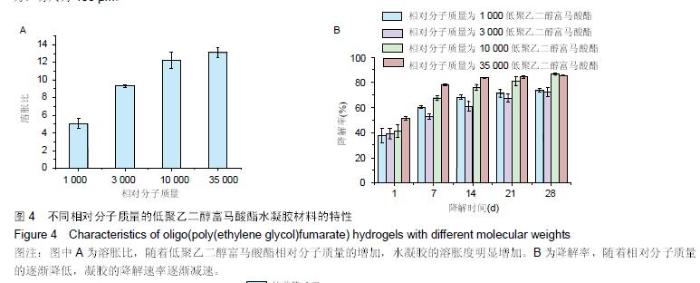

METHODS: Four kinds of OPF hydrogels with molecular weights of 1 000, 3 000, 10 000 and 35 000 were developed by OPF crosslinking with a redox radical initiation system. Hydrogel swelling and degradation properties were detected. Afterwards, bone marrow mesenchymal stem cells encapsulated in different hydrogels were cultured in osteogenic medium for 1-3 weeks. The effects of hydrogels on morphplogy of bone marrow mesenchymal stem cells and osteogenic differentiation were detected via histological staining (hematoxylin-eosin staining and alizarin red staining) and immunofluorescence staining.

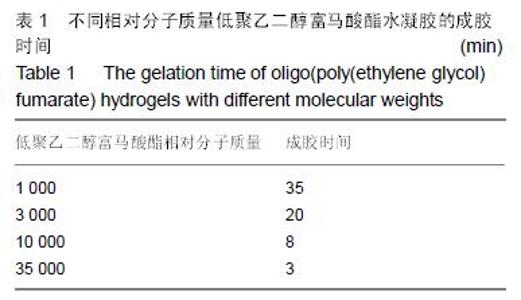

RESULTS AND CONCLUSION: With the increase of molecular weight of hydrogels, the gelation time was shortened, the swelling ratio significantly increased, and the hydrogel degradation rate was proportional to the molecular weight. In addition, the number of mineralized nodules formed in 3 000 and 10 000 molecular weight hydrogels was more than that in the other hydrogels, indicating that hydrogels with appropriate swelling and degradation properties are beneficial to cell proliferation and differentiation. In conclusion, OPF hydrogels have good biocompatibility and hydrogels with 3 000 and 10 000 molecular weight play active regulatory roles in osteogenic differentiation of mesenchymal stem cells.
中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Gels, Mesenchymal Stem Cells, Tissue Engineering

Wei Li-jun1, Cao Jun-kai1, Li Jun-jie2, Feng Lan-lan2 . Biological behavior of rat bone marrow mesenchymal stem cells in oligo(poly(ethylene glycol)fumarate) hydrogel[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(16): 2397-2404.

Figures/Tables 8

References

[1] Petite H, Viateau V, Bensaïd W, et al. Tissue-engineered bone regeneration. Nat Biotechnol. 2000;18(9):959-963.

[2] Ragetly GR, Griffon DJ. The rationale behind novel bone grafting techniques in small animals. Vet Comp Orthop Traumatol. 2011;24(1):1-8.

[3] Mohand-Kaci F, Assoul N, Martelly I, et al. Optimized hyaluronic acid-hydrogel design and culture conditions for preservation of mesenchymal stem cell properties. Tissue Eng Part C Methods. 2013;19(4): 288-298.

[4] 秦蕴豪,张长青.间充质干细胞促进骨再生的生物学基础及应用[J].中华创伤骨科杂志,2014,16(6):533-536.

[5] Nakahara H, Misawa H, Yoshida A, et al. Bone repair using a hybrid scaffold of self-assembling peptide PuraMatrix and polyetheretherketone cage in rats. Cell Transplant. 2010;19(6):791-797.

[6] Hou T, Li Z, Luo F, et al. A composite demineralized bone matrix--self assembling peptide scaffold for enhancing cell and growth factor activity in bone marrow. Biomaterials. 2014;35(22):5689-5699.

[7] Spiller KL, Maher SA, Lowman AM. Hydrogels for the repair of articular cartilage defects. Tissue Eng Part B Rev. 2011;17(4):281-299.

[8] Kinard LA, Kasper FK, Mikos AG. Synthesis of oligo(poly(ethylene glycol) fumarate). Nat Protoc. 2012;7(6):1219-1227.

[9] Fisher JP, Lalani Z, Bossano CM, et al. Effect of biomaterial properties on bone healing in a rabbit tooth extraction socket model. J Biomed Mater Res A. 2004; 68(3):428-438.

[10] Holland TA, Tabata Y, Mikos AG. Dual growth factor delivery from degradable oligo(poly(ethylene glycol) fumarate) hydrogel scaffolds for cartilage tissue engineering. J Control Release. 2005;101(1-3):111-125.

[11] Guo X, Park H, Young S, et al. Repair of osteochondral defects with biodegradable hydrogel composites encapsulating marrow mesenchymal stem cells in a rabbit model. Acta Biomater. 2010;6(1):39-47.

[12] Pittenger MF, Mackay AM, Beck SC, et al. Multilineage potential of adult human mesenchymal stem cells. Science. 1999;284(5411):143-147.

[13] Danišovi? L, Varga I, Polák S. Growth factors and chondrogenic differentiation of mesenchymal stem cells. Tissue Cell. 2012;44(2):69-73.

[14] Kopen GC, Prockop DJ, Phinney DG. Marrow stromal cells migrate throughout forebrain and cerebellum, and they differentiate into astrocytes after injection into neonatal mouse brains. Proc Natl Acad Sci U S A. 1999;96(19):10711-10716.

[15] Petersen BE, Bowen WC, Patrene KD, et al. Bone marrow as a potential source of hepatic oval cells. Science. 1999;284(5417):1168-1170.

[16] Lam J, Lu S, Meretoja VV, et al. Generation of osteochondral tissue constructs with chondrogenically and osteogenically predifferentiated mesenchymal stem cells encapsulated in bilayered hydrogels. Acta Biomater. 2014;10(3):1112-1123.

[17] Vo TN, Kasper FK, Mikos AG. Strategies for controlled delivery of growth factors and cells for bone regeneration. Adv Drug Deliv Rev. 2012;64(12): 1292-1309.

[18] Mawad D, Stewart E, Officer DL, et al. A Single Component Conducting Polymer Hydrogel as a Scaffold for Tissue Engineering. Adv Funct Mater. 2012; 22(13):2692-2699.

[19] 张永光,王志强.骨移植替代材料研究进展[J].中国修复重建外科杂志,2008,22(10):1264-1268.

[20] Guarino V, Gloria A, Raucci MG, et al. Hydrogel-based platforms for the regeneration of osteochondral tissue and intervertebral disc. Polymers. 2012;4(3):1590-1612.

[21] Stevens MM. Biomaterials for bone tissue engineering. Mater Today. 2008;11(5):18-25.

[22] Xu W, Ma J, Jabbari E. Material properties and osteogenic differentiation of marrow stromal cells on fiber-reinforced laminated hydrogel nanocomposites. Acta Biomater. 2010;6(6):1992-2002.

[23] Dudas JR, Marra KG, Cooper GM, et al. The osteogenic potential of adipose-derived stem cells for the repair of rabbit calvarial defects. Ann Plast Surg. 2006;56(5):543-548.

[24] Liu Y, Zhou Y, Feng H, et al. Injectable tissue-engineered bone composed of human adipose-derived stromal cells and platelet-rich plasma. Biomaterials. 2008;29(23):3338-3345.

[25] Taipaleenmäki H, Suomi S, Hentunen T, et al. Impact of stromal cell composition on BMP-induced chondrogenic differentiation of mouse bone marrow derived mesenchymal cells. Exp Cell Res. 2008; 314(13): 2400-2410.

[26] Guo X, Wang C, Zhang Y, et al. Repair of large articular cartilage defects with implants of autologous mesenchymal stem cells seeded into beta-tricalcium phosphate in a sheep model. Tissue Eng. 2004;10 (11-12): 1818-1829.

[27] Bosnakovski D, Mizuno M, Kim G, et al. Chondrogenic differentiation of bovine bone marrow mesenchymal stem cells (MSCs) in different hydrogels: influence of collagen type II extracellular matrix on MSC chondrogenesis. Biotechnol Bioeng. 2006;93(6):1152-1163.

[28] Meretoja VV, Dahlin RL, Wright S, et al. The effect of hypoxia on the chondrogenic differentiation of co-cultured articular chondrocytes and mesenchymal stem cells in scaffolds. Biomaterials. 2013;34(17): 4266-4273.

[29] Kim K, Lam J, Lu S, et al. Osteochondral tissue regeneration using a bilayered composite hydrogel with modulating dual growth factor release kinetics in a rabbit model. J Control Release. 2013;168(2):166-178.

[30] Lei Y, Gojgini S, Lam J, et al. The spreading, migration and proliferation of mouse mesenchymal stem cells cultured inside hyaluronic acid hydrogels. Biomaterials. 2011;32(1):39-47.
