Sealing effects of two desensitizers on the dentinal tubule: a scanning electron microscope observation

doi:10.3969/j.issn.2095-4344.2015.38.015

Abstract

Abstract:

BACKGROUND: Both Ms Coat and Green OrTM desensitizers can seal dentinal tubules effectively, isolate the dentinal tubule from external stimuli and also reduce the dentinal hypersensitivity. The scholars around the world have discussed their effects from the descriptive and qualitative view.
OBJECTIVE: To quantitatively assess and compare the sealing effects of Ms Coat and Green OrTM desensitizers on dentine tubules.
METHODS: Thirty fresh human third molar samples were made into 3-mm dentin specimens that were treated with 17% EDTA for 2 minutes and randomly divided into three groups: Ms Coat group, Green OrTM group and control group with no treatment. In the former two groups, MS Coat desensitizer and Green OrTM desensitizer were applied respectively on the dentin surfaces. Scanning electron microscope was used to observe the dentin surface and longitudinal sections.
RESULTS AND CONCLUSION: (1) Surface observation: In the control group, all of the dentinal tubules were exposed; in the MS Coat group, it was observed that almost all the dentinal tubules were obliterated; in the Green OrTM group, the dentin tubules were covered with irregular crystalline substance and only a small number of exposed dentine tubules were visible but narrowed obviously. (2) Longitudinal profile observation: In the control group, the dentin tubules were strip-shaped and arranged in parallel without any blockage; in the MS coat group, the tubules were covered with dense sediments, and the dentinal tubules were basically closed; in the Green OrTM group, there were scaly crystalline material deposited within the dentinal tubules. Dentinal diameter and number of dentinal tubules were ranked as follows: control group > Green OrTM group > MS Coat group (P < 0.05). Both Ms Coat and Green OrTM desensitizers can occlude the tubules effectively, and moreover, the MS Coat is superior to the Green OrTM.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Dentin Desensitizing Agents, Dentin, Pit and Fissure Sealants

CLC Number:

R318

Li Na, Zhu Li-jiang, Wang Xiang-lan, Zheng Zhao-jie. Sealing effects of two desensitizers on the dentinal tubule: a scanning electron microscope observation [J]. Chinese Journal of Tissue Engineering Research, 2015, 19(38): 6150-6154.

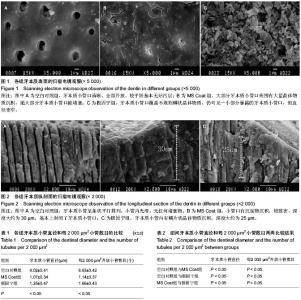

Figures/Tables 1

References

[1] Schmidlin PR. Current management of dentin hypersensitivity. Clin Oral Invest.2013; 17 (Suppl 1):S55-S59.
[2] 荣文笙,胡德渝,冯希平,等.我国城市地区成人牙本质敏感流行病学调查[J].中华口腔医学杂志,2010,45(3):141-145.
[3] West NX,Lussi A.Dentin hypersensitivity: pain mechanisms and aetiology of exposed cervical dentin.Clin Oral Investiq. 2013;17(Supp1):S9-19.
[4] Shiau HJ.Dentin hypersensitivity. J Evid Based Dent Pract. 2012;12(3 Suppl):220-228.
[5] sabel CCMP,Ana KMA,Marcos AJRM.Diagnosis and treat- ment of dentinal hypersensitivity.J Oral Sci.2009;51(3): 323-332.
[6] Trushkowsky RD,Oquendo A.Treatment of dentin hypersensitivity. Dent Clin North Am. 2011;55(3):599-608.
[7] Rösing CK,Fiorini T.Dentine hypersensitivity: analysis of self-care products. Braz Oral Res.2009;23(Suppl 1):56-63.
[8] Saha S,Bateman GJ.Mucogingival grafting procedures-an update.Dent Update.2008;35(8):561-562,565-568.

[9] Absi EG,Addy M,Adams D.Dentine hypersensitivity. A study of the patency of dentinal tubules in sensitive and non-sensitive cervical dentine.J Clin Periodontol. 1987;14(5):280-284.
[10] Yoshiyama M,Masada J,Uchida A.Scanning electron microscopic characterization of sensitive vs. insensitive human radicular dentin.J Dent Res.1989;68(11):1498-1502.
[11] 李雅萍,赵信义,沈丽娟,等.人牙本质通透性的体外测定[J].牙体牙髓牙周病学杂志,2013,23(4):266-269.
[12] Lenzi TL,Guglielmi Cde A,Arana-Chavez VE,et al.Tubule density and diameter in coronal dentin from primary and permanent human teeth.Microsc Microanal. 2013;19(6): 1445-1449.
[13] Schilke R,Lisson JA.Comparison of the number and diameter of dentinal tubules in human and bovine dentine by scanning electron microscopic investigation. Arch Oral Biol. 2000;45(5): 355-361.
[14] Lopes MB,Sinhoreti MA.Comparative study of tubular diameter and quantity for human and bovine dentin at different depths.Braz Dent J.2009;20(4):279-283.
[15] Bakry AS,Takahashi H.The durability of phosphoric acid promoted bioglass–dentin interaction layer.Dent Mater.2013; 29(4):357-364.
[16] Gillam DG,Mordan NJ,Sinodinou AD,et al.The effects of oxalate-containing products on the exposed dentine surface: an SEM investigation.J Oral Rehabil. 2001;28(11):1037-1044.
[17] Raafat Abdelaziz R,Mosallam RS,Yousry MM.Tubular occlusion of simulated hypersensitive dentin by the combined use of ozone and desensitizing agents.Acta Odontol Scand. 2011;69(6):395-400.
[18] Cunha-Cruz J, Stout JR. Dentin hypersensitivity and oxalates: a systematic review. J Dent Res.2011;90(3):304-310.
[19] Brenna F,Tagliabue A,Levrini L,et al. Scanning electron microscopy evaluation of the line between a new dentinal desensitizer and dentine.Minerva Stomatol.2003;52(9): 413-425.
[20] 杨清岭,陈思杰,王尹. 硅酸三钙封闭牙本质小管的作用[J].中国组织工程研究,2013,17(38):6740-6746.
[21] Ahmed TR,Mordan NJ.In vitro quantification of changes in human dentine tubule parameters using SEM and digital analysis.J Oral Rehabil.2005;32(8):589-597．
[22] Cakar G,Kuru B.Effect of Er:YAG and CO2 Lasers with and without Sodium Fluoride Gel on Dentinal Tubules: A Scanning Electron Microscope Examination. Photomed Laser Surg. 2008; 26(6):565-571.
[23] 张喆,王胜.四种脱敏剂对离体牙牙本质小管通透性的影响[J].中国临床康复,2006,37(10):106-110.
[24] Zhang Y.The effects of Pain-Free® desensitizer on dentine permeability and tubule occlusion overtime, in vitro.J Clin Ferwdumol.1998;25: 884-891.
[25] 钱进.脱敏剂MS_COAT牙本质阻塞牙本质小管的电镜观察分析[J].口腔医学,2012,31(1):21-32.
[26] 赵思铭,高学军.极固宁对牙本质小管封闭作用的扫描电镜研究[J].现代口腔医学杂志,2013,27(4):214-217.
[27] Markowitz K.The original desensitizers: strontium and potassium salts.J Clin Dent.2009;20(5):145-151.
[28] Orchardson R,Gillam DG.The efficacy of potassium saltsas agents for treating dentin hypersensitivity.J Orofac Pain.2000; 14(1):9-19.
[29] 于玲,刘静明.三种脱敏剂治疗牙本质过敏症的临床疗效观察[J].现代口腔医学杂志, 2007,21(2):113-115.
