Chen Xuan-huang, Zhang Guo-dong, Wu Chang-fu, Lin Hai-bin. Design of digitized anterior approach screw fixation program: Clinical application in the treatment of type Ⅱ odontoid fractures[J]. Chinese Journal of Tissue Engineering Research, doi: 10.3969/j.issn.2095-4344.2013.26.024.

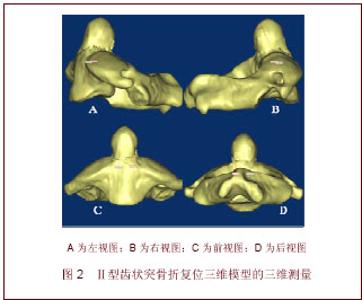

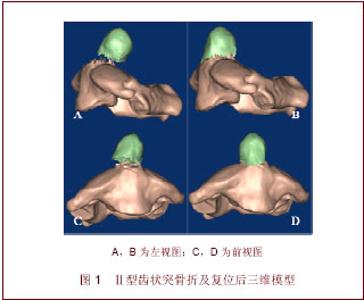

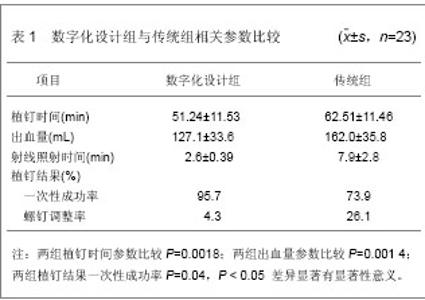

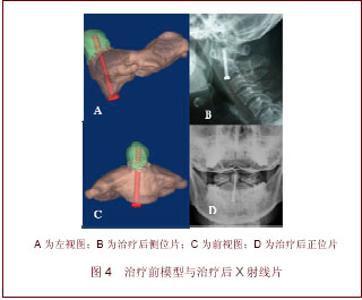

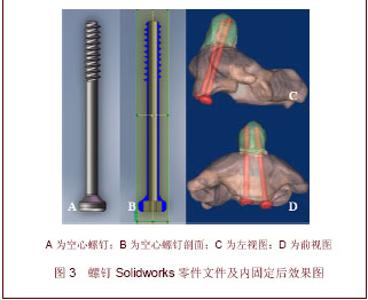

2.4 虚拟内固定过程及临床应用 空心螺钉之Stl文件输入Mimics,运行Reposition命令,通过旋转、移动方式完成对骨折模型进行虚拟固定。文章标本模型选用左侧空心螺钉规格为 (Ф3.5 mm) 32 mm,右侧为 (Ф3.5 mm) 30 mm。 自2007年3月至2011年3月,莆田学院附属医院对具备颈前路螺钉内固定手术适应证的46例Ⅱ型齿状突骨折患者,随机分为2组。采用数字化设计螺钉内固定方案指导治疗23例(数字化设计组),采用传统经验植钉治疗23例(传统组)。所有患者气管全麻成功后取仰卧位,颅脑中立,颈椎适度后伸,保持颅骨牵引,调整颈椎屈伸情况以取得良好的复位,C型臂透视下复位满意后再行手术,予C4平面横切口,经内脏鞘和血管鞘间隙达椎体前方,定位颈椎中线,在C臂透视下于C2椎体下缘中点瞄准齿状突钻入导针,然后沿导针置入中空拉力螺钉,术后常规佩戴颈托3个月,术后3个月随访复查X射线片,治疗前年龄、性别、操作者年资经验、切口暴露、进针点、植入螺钉枚数对比无显著性意义。比较两组患者的植钉时间、出血量、射线照射时间和植钉结果差异。数字化设计组治疗前应用计算机技术对采集的CT图像在Mimics中进行三维重建,Solidworks绘制、设计内固定物,完成虚拟内固定,使内固定物位置精准。治疗时按事先设计的进钉点、进钉方向、进钉深度、螺钉直径等选钉、置钉,固定牢靠。治疗后侧位、开口位X射线片或CT示螺钉位置良好,未发生与螺钉相关的神经血管并发症,无内固定松动或断钉现象,见图4。两组患者的治疗时间、出血量、射线照射时间和植钉结果差异有显著性意义,见表1。"
