Clinical outcomes of unilateral lumbar pedicle screw combined with translamina facet screw fixation versus bilateral fixation

doi:10.3969/j.issn.2095-4344.2013.09.008

Abstract

Abstract:

BACKGROUND: The translaminar facet joint screw fixation and interbody fusion in the treatment of spinal disorders is a unique fixation method which can be used for degenerative lumbar spinal fusion.
OBJECTIVE: To observe the clinical effect of the minimally invasive transforaminal lumbar interbody fusion combined with unilateral lumbar pedicle screw and translamina facet screw fixation versus conventional posterior lumbar interbody fusion combined with bilateral pedicle screw fixation for the treatment of low back pain.

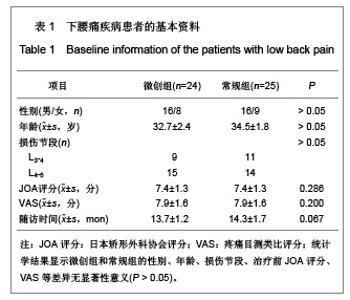

METHODS: Forty-nine patients had lumbar disc herniation with lumbar spinal mild instability were selected from Wu Jing Zong Dui Hospital of Guangdong Province between June 2010 and June 2012. All the patients were treated with posterior decompression and interbody fusion and internal fixation. Among the 49 patients, 24 patients were treated with minimally invasive transforaminal lumbar interbody fusion combined with unilateral lumbar pedicle screw and translamina facet screw fixation, and 25 patients were treated with conventional posterior lumbar interbody fusion combined with bilateral pedicle screws fixation. The clinical effects of the two methods above were compared.

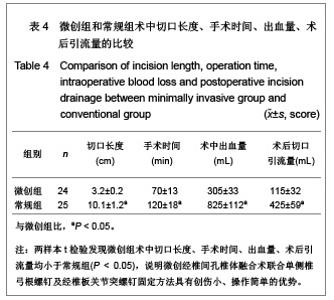

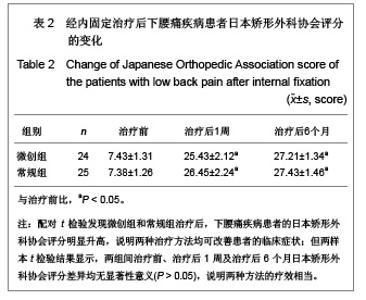

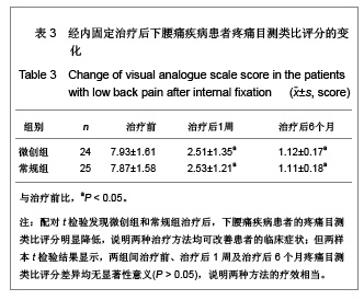

RESULTS AND CONCLUSION: There were no significant differences of vertebral fusion rate, Japanese Orthopedic Association score and visual analogue scale score between two groups (P > 0.05). These two approaches had similar clinical outcomes for single-level lumbar degenerative disorders with no instability. These two methods could effectively improve intervertebral fusion rate, make the small joint stability, relieve clinical symptoms and make outpatient follow-up satisfaction. In addition the incision length, operative time, intraoperative blood loss, postoperative incision drainage of minimally invasive transforaminal lumbar interbody fusion combined with unilateral lumbar pedicle screw and translamina facet screw fixation technology were significantly reduced (_P< 0.05), and it indicated that the method had the advantages of small trauma and simple operation.

Key words: bone and joint implants, spinal implants, translamina facet screw, pedicle screws, fixation, intervertebral fusion, transforaminal lumbar interbody fusion, posterior lumbar interbody fusion, degenerative lumbar disease, provincial grants-supported paper, photographs-containing paper of bone and joint implants

CLC Number:

R318

Xue Jian, Jin An-min, Sun Xiao-ping, Wang Yan-bin, Xie Wei-yong. Clinical outcomes of unilateral lumbar pedicle screw combined with translamina facet screw fixation versus bilateral fixation[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(9): 1571-1578.

Figures/Tables 6

References

[1] Chi YL. Zhongguo Jizhu Jisui Zazhi. 2005;15(3):133-134. 池永龙.脊柱外科的微创意识,微创观念与微创技术[J].中国脊柱脊髓杂志,2005,15(3):133-134.

[2] Gejo R, Matsui H, Kawaguchi Y, et al. Serial changes in trunk muscle performance after posterior lumbar surgery. Spine. 1999;24(10):1023-1028.

[3] Pavlov PW, Meijers H, van Limbeek J, et al. Good outcome and restoration of lordosis after anterior lumbar interbody fusion with additional posterior fixation. Spine (Phila Pa 1976). 2004;29(17):1893-1900.

[4] Aepli M, Mannion AF, Grob D. Translaminar screw fixation of the lumbar spine: long-term outcome. Spine (Phila Pa 1976). 2009;34(14):1492-1498.

[5] Suk SI, Lee CK, Kim WJ, et al. Adding posterior lumbar interbody fusion to pedicle screw fixation and posterolateral fusion after decompression in spondylolytic spondylolisthesis. Spine (Phila Pa 1976). 1997;22(2):210-220.

[6] Japanese Orthopaedic Association. Assessment of surgical treatment of low back pain. Jpn Orthop Assoc. 1984; 58:1183-1187.

[7] Chu JZ, Cui ZM, Xu GH, et al. Zhongguo Gu yu Guanjie Zazhi. 2012;1(1):41-45. 储惊蛰,崔志明,徐冠华.改良PLIF术治疗原位复发性腰椎间盘突出症[J].中国骨与关节杂志,2012,1(1):41-45.

[8] DiPaola CP, Molinari RW. Posterior lumbar interbody fusion. J Am Acad Orthop Surg. 2008;16(3):130-139.

[9] Brantigan JW, Neidre A, Toohey JS. The Lumbar I/F Cage for posterior lumbar interbody fusion with the variable screw placement system: 10-year results of a Food and Drug Administration clinical trial. Spine J. 2004;4(6):681-688.

[10] Uzi EA, Dabby D, Tolessa E, et al. Early retropulsion of titanium-threaded cages after posterior lumbar interbody fusion: a report of two cases. Spine (Phila Pa 1976). 2001; 26(9):1073-1075.

[11] Ebara S, Harada T, Hosono N, et al. Intraoperative measurement of lumbar spinal instability. Spine (Phila Pa 1976). 1992;17(3 Suppl):S44-50.

[12] Lowe TG, Coe JD. Bioresorbable polymer implants in the unilateral transforaminal lumbar interbody fusion procedure. Orthopedics. 2002;25(10 Suppl):s1179-1183.

[13] Rosenberg WS, Mummaneni PV. Transforaminal lumbar interbody fusion: technique, complications, and early results. Neurosurgery. 2001;48(3):569-575.

[14] Suk KS, Lee HM, Kim NH, et al. Unilateral versus bilateral pedicle screw fixation in lumbar spinal fusion. Spine (Phila Pa 1976). 2000;25(14):1843-1847.

[15] Chen HH, Cheung HH, Wang WK, et al. Biomechanical analysis of unilateral fixation with interbody cages. Spine (Phila Pa 1976). 2005;30(4):E92-96.

[16] Chen ZM. Shanghai: Dier Junyi Daxue. 2012. 陈志明.腰椎单侧椎弓根螺钉固定的生物力学研究及临床应用[D].上海:第二军医大学,2012.

[17] Liu YS, Chen QX, Liao SH, et al. Guoji Shengwu Yixue Gongcheng Zazhi. 2006;31(5):260-266. 刘耀升,陈其昕,廖胜辉,等.小关节角矢状化、椎间盘退变对退变性腰椎滑移作用的有限元研究[J].国际生物医学工程杂志,2006, 31(5):260-266.

[18] Little JS, Ianuzzi A, Chiu JB, et al. Human lumbar facet joint capsule strains: II. Alteration of strains subsequent to anterior interbody fixation. Spine J. 2004;4(2):153-162.

[19] Kandziora F, Schleicher P, Scholz M, et al. Biomechanical testing of the lumbar facet interference screw. Spine (Phila Pa 1976). 2005;30(2):E34-39.

[20] Burton D, McIff T, Fox T, et al. Biomechanical analysis of posterior fixation techniques in a 360 degrees arthrodesis model. Spine (Phila Pa 1976). 2005;30(24):2765-2771.

[21] Schmid R, Lindtner RA, Lill M, et al. Combined posteroanterior fusion versus transforaminal lumbar interbody fusion (TLIF) in thoracolumbar burst fractures. Injury. 2012; 43(4):475-479.

[22] Rodgers WB, Gerber EJ, Patterson J. Intraoperative and early postoperative complications in extreme lateral interbody fusion: an analysis of 600 cases. Spine (Phila Pa 1976). 2011; 36(1):26-32.

[23] Motosuneya T, Asazuma T, Tsuji T, et al. Postoperative change of the cross-sectional area of back musculature after 5 surgical procedures as assessed by magnetic resonance imaging. J Spinal Disord Tech. 2006;19(5):318-322.

[24] Moskowitz A. Transforaminal lumbar interbody fusion. Orthop Clin North Am. 2002;33(2):359-366.
