Chinese Journal of Tissue Engineering Research ›› 2020, Vol. 24 ›› Issue (3): 485-492.doi: 10.3969/j.issn.2095-4344.1950
Suture-Button fixation and screw fixation for the treatment of distal tibiofibular syndesmosis injury: a meta-analysis
Tian Chenyang, Chen Bin, Sun Zhengtao, Wang Xinjun, Sun Haiyu
- Department of Orthopedics, Second Hospital of Shanxi Medical University, Taiyuan 030001, Shanxi Province, China
-
Received:2019-04-24Revised:2019-04-28Accepted:2019-06-12Online:2020-01-28Published:2019-12-27 -
Contact:Sun Haiyu, Chief physician, Department of Orthopedics, Second Hospital of Shanxi Medical University, Taiyuan 030001, Shanxi Province, China -
About author:Tian Chenyang, Master candidate, Department of Orthopedics, Second Hospital of Shanxi Medical University, Taiyuan 030001, Shanxi Province, China
CLC Number:
Cite this article
Tian Chenyang, Chen Bin, Sun Zhengtao, Wang Xinjun, Sun Haiyu. Suture-Button fixation and screw fixation for the treatment of distal tibiofibular syndesmosis injury: a meta-analysis[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(3): 485-492.
share this article
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

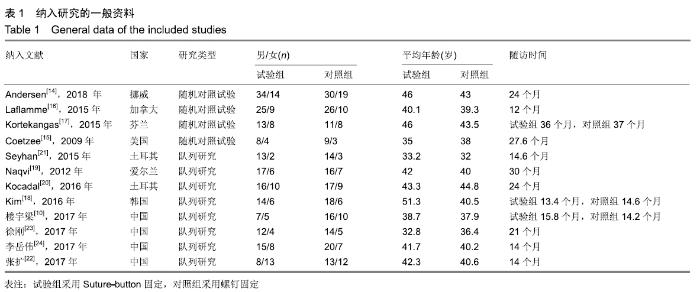

2.1 文献纳入情况 通过检索词共检索出中英文文献485篇，剔除重复文献237篇，根据纳入标准及阅读题目及摘要后剔除200篇，进一步阅读全文后排除摘要、病例报道、综述以及会议文献12篇，最终纳入12个文献研究[7，14-24]，见图1；其中8篇为英文文献[14-21]，4篇为中文文献[7，22-24]。共计564例患者，其中试验组(Suture-Button固定)261例患者，对照组(螺钉固定)303例患者，纳入文献的基本情况，见表1。"

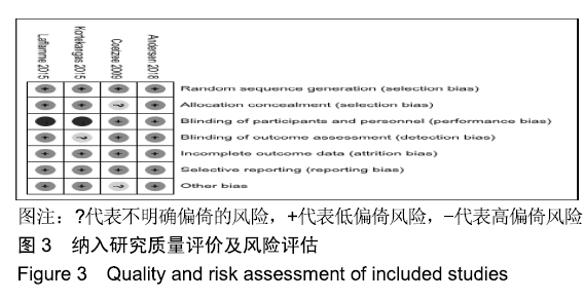

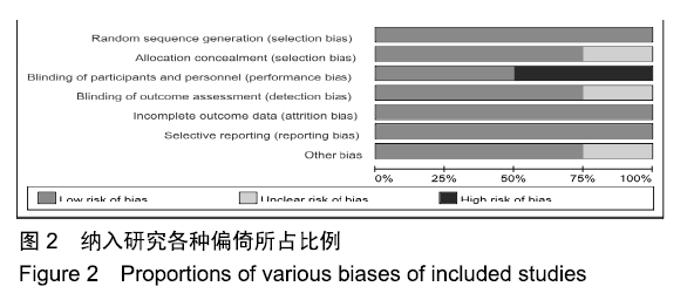

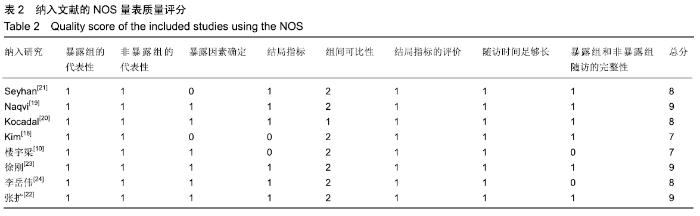

2.2 纳入文献的质量评价 随机对照研究采用“Cochrane协作网的偏倚风险评估标准”对纳入的4个研究进行质量评价[14-17]，纳入研究各种偏倚所占比例见图2，纳入研究质量评价及风险评估见图3。用NOS量表评价8个队列研究如表2所示，其中2项研究得7分，3项研究得8分，3项研究得9分，表明8个队列研究都是高质量的[18-24]。"
"
"

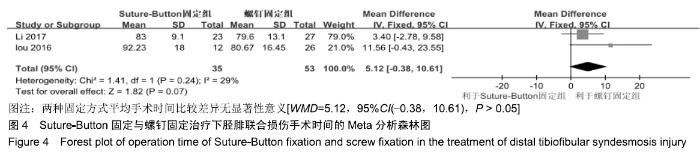

2.3 Meta分析结果 2.3.1 两种方式手术时间比较结果 2项研究报道了平均手术时间比较[10，24]，研究结果间不存在统计学异质性(P > 0.05，I2=29%)，采用固定效应模式分析，结果显示两种手术方式在平均手术时间比较差异无显著性意义[WMD=5.12，95%CI(-0.38，10.61)，P > 0.05]，见图4。"
2.3.2 两种方式完全负重时间比较结果 3项研究报道了完全负重时间比较[10，19，22]，研究结果间不存在统计学异质性(P > 0.05，I2=13%)，采用固定效应模式分析，结果显示两种方式完全负重时间比较差异有显著性意义[WMD=-1.50，95%CI(-2.08，-0.92)，P < 0.05]，见图5，即Suture-Button固定方式完全负重时间短。"
2.3.3 两种方式术后AOFAS评分比较结果 10项研究报道了术后AOFAS评分比较[14-16，18-24]，其中1篇文献所给数据不充分，应予以排除；4篇有术后3个月的评分，5篇有术后6个月的评分，7篇有术后12个月的评分，4篇有术后24个月的评分。 术后3个月研究结果间不存在统计学异质性(P > 0.05，I2=0%)，采用固定效应模式分析，结果显示Suture-Button固定术后3个月的AOFAS评分优于螺钉固定[WMD=6.50，95%CI(3.41，9.58)，P < 0.05]，见图6。"

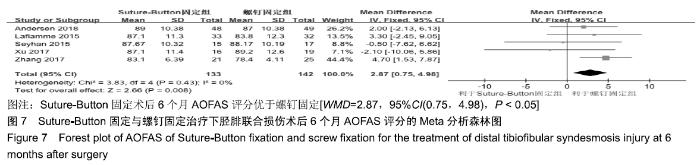

术后6个月研究结果间不存在统计学异质性(P > 0.05，I2=0%)，采用固定效应模式分析，结果显示Suture-Button固定术后6个月AOFAS评分优于螺钉固定[WMD=2.87，95%CI(0.75，4.98)，P < 0.05]，见图7。 "

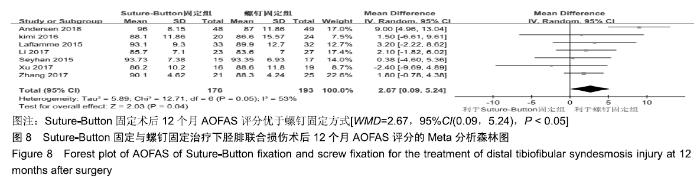

随访12个月研究结果间存在统计学异质性(P < 0.05，I2=53%)，采用随机效应模式分析，结果显示Suture-Button固定术后12个月AOFAS评分优于螺钉固定[WMD=2.67，95%CI(0.09，5.24)，P < 0.05]，见图8。"
术后24个月研究结果间存在统计学异质性(P < 0.05，I2=53%)，采用随机效应模式分析，结果显示Suture-Button固定术后12个月AOFAS评分优于螺钉固定[WMD=5.79，95%CI(1.41，10.18)，P < 0.05]，见图9。由此可知，Suture-Button固定术后AOFAS评分优于螺钉固定。"

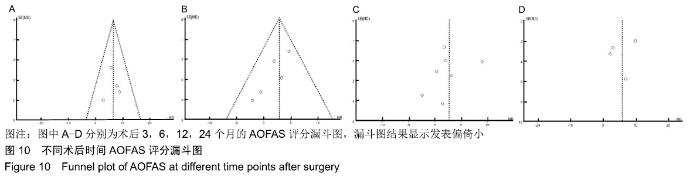

通过检验评估纳入研究的发表偏倚，漏斗图结果显示发表偏倚小，见图10。"

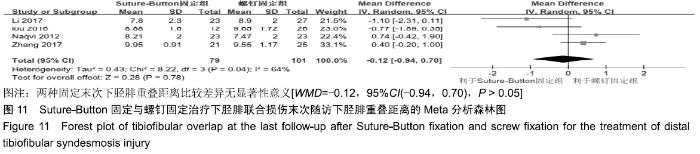

2.3.4 两种方式术后末次随访下胫腓重叠距离比较结果 4项研究报道了末次下胫腓重叠距离比较[10，19，22，24]，采用随机效应模式分析，结果显示两种方式末次下胫腓重叠距离比较差异无显著性意义[WMD=-0.12，95%CI(-0.94，0.70)，P > 0.05]，见图11。"

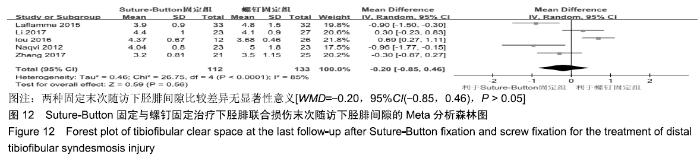

2.3.5 两种方式术后末次随访下胫腓间隙比较结果 5项研究报道了下胫腓间隙比较[10，16，19，22，24]，研究结果间存在统计学异质性(P < 0.05，I2=85%)，采用随机效应模式分析，结果显示两种方式末次随访下胫腓间隙比较差异无显著性意义[WMD=-0.20，95%CI(-0.85，0.46)，P > 0.05]，见图12。 "

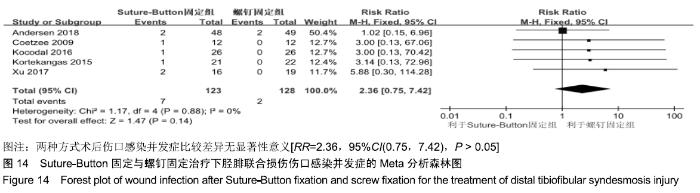

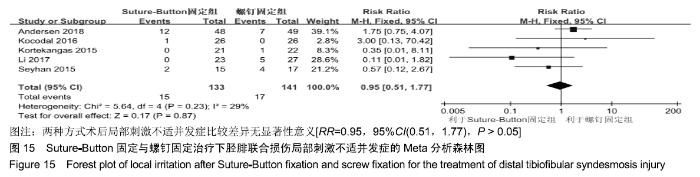

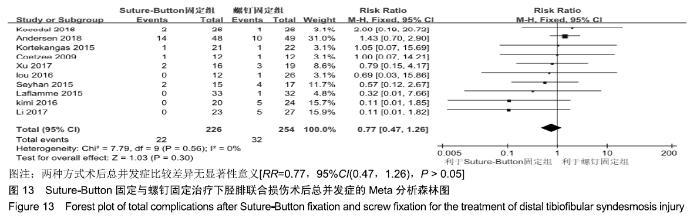

2.3.6 两种方式术后总并发症比较结果 10项研究报道了术后并发症的比较[10，14-18，20-21，23-24]，术后总并发症不存在统计学异质性(P > 0.05，I2=0%)，采用固定效应模式分析，结果显示两种方式术后总并发症比较差异无显著性意义[RR=0.77，95%CI(0.47，1.26)，P > 0.05]，见图13；其中伤口感染并发症不存在统计学异质性(P > 0.05，I2=0%)，采用固定效应模式分析，结果显示两种方式术后伤口感染并发症比较差异无显著性意义[RR=2.36，95%CI(0.75，7.42)，P > 0.05]，见图14；其中局部刺激不适并发症不存在统计学异质性(P > 0.05，I2=29%)，采用固定效应模式分析，结果显示两种方式术后局部刺激不适并发症比较差异无显著性意义[RR=0.95，95%CI(0.51，1.77)，P > 0.05]，见图15；其中内固定断裂并发症不存在统计学异质性(P > 0.05，I2=0%)，采用固定效应模式分析，结果显示Suture-Button固定的螺钉断裂并发症低于螺钉固定[RR=0.25，95%CI(0.08，0.76)，P < 0.05]，见图16。 "
"
"
"
| [1] 曲文庆,李文亮.踝关节骨关节炎的保踝治疗新进展[J].中华创伤骨科杂志,2018,20(8):732-736. [2] VAN HEEST TJ, LAFFERTY PM.Injuries to the ankle syndesmosis.J Bone Joint Surg Am.2014;96(7):603-613. [3] SCHEPERS T.Acute distal tibiofibular syndesmosis injury: a systematic review of suture-button versus syndesmotic screw repair. Int Orthop.2012;36(6):1199-1206. [4] ZHANG P, LIANG Y, HE J, et al.A systematic review of suture-button versus syndesmotic screw in the treatment of distal tibiofibular syndesmosis injury.BMC Musculoskelet Disord.2017; 18(1):286. [5] 牟风云,胡章勇,刘陵.三种螺钉固定方式治疗下胫腓联合分离对踝关节功能影响的比较研究[J].创伤外科杂志,2017,19(10):777-780. [6] SCHEPERS T, VAN LIESHOUT EM, VAN DER LINDEN HJ, et al. Aftercare following syndesmotic screw placement: a systematic review.J Foot Ankle Surg.2013;52(4):491-494. [7] VAN DEN BEKEROM MP, KLOEN P, LUITSE JS, et al. Complications of Distal Tibiofibular Syndesmotic Screw Stabilization: Analysis of 236 Patients.J Foot Ankle Surg.2013; 52(4):456-459. [8] 毕刚,陈大伟,李春光,等.下胫腓联合损伤对踝关节稳定性影响的生物力学研究[J].中国矫形外科杂志,2017,25(20):1881-1885. [9] SCHON JM, WILLIAMS BT, VENDERLEY MB, et al. A 3D CT analysis of screw and suture button fixation of the syndesmosis. Foot Ankle Int. 2017,38(2):208-214. [10] 楼宇梁,洪建军,邵希文,等.Endobutton与螺钉内固定治疗下胫腓联合分离的临床疗效分析[J].中国骨伤,2016,29(8):729-733. [11] KLITZMAN R, ZHAO H, ZHANG LQ, et a1.Suture-button versus screw fixation of the syndesmosis:A biomechanicalanalysis.Foot Ankle Int. 2010;31(1):69-75. [12] GREEN S.Cochrane Handbook for Systematic Reviews of Interventions: Cochrane Book Series.Naunyn-Schmiedebergs Archiv für experimentelle Pathologie und Pharmakologie.2011, 5(2):S38. [13] WELLS GA, SHEA BJ, O'CONNELL D, et al.The newcastle- ottawa scale (NOS) for assessing the quality of non-randomized studies in meta-analysis.Appl Eng Agric.2014;18:727-734. [14] ANDERSEN MR, FRIHAGEN F, HELLUND JC, et al.Randomized Trial Comparing Suture Button with Single Syndesmotic Screw for Syndesmosis Injury.J Bone Joint Surg Am.2018;100(1):2-12. [15] COETZEE JC, EBELING P.Treatment of Syndesmosis Disruptions With TightRope Fixation.J Foot Ankle Surg.2009;7(3):196-202. [16] LAFLAMME M, BELZILE EL, BEDARD L, et al.A prospective randomized multicenter trial comparing clinical outcomes of patients treated surgically with a static or dynamic implant for acute ankle syndesmosis rupture.J Orthop Trauma.2015;29(5): 216-223. [17] KORTEKANGAS T, SAVOLA O, FLINKKILA T, et al.A prospective randomised study comparing TightRope and syndesmotic screw fixation for accuracy and maintenance of syndesmotic reduction assessed with bilateral computed tomography.Injury.2015; 46(6): 1119-1126. [18] KIM JH, GWAK HC, LEE CR, et al.A Comparison of Screw Fixation and Suture-Button Fixation in a Syndesmosis Injury in an Ankle Fracture. J Foot Ankle Surg.2016;55(5):985-990. [19] NAQVI GA, CUNNINGHAM P, LYNCH B, et al.Fixation of Ankle Syndesmotic Injuries: Comparison of TightRope Fixation and Syndesmotic Screw Fixation for Accuracy of Syndesmotic Reduction. Am J Sport Med.2012;40(12):2828-2835. [20] KOCADAL O, YUCEL M, PEPE M, et al.Evaluation of Reduction Accuracy of Suture-Button and Screw Fixation Techniques for Syndesmotic Injuries.Foot Ankle Int.2016;37(12):1317. [21] SEYHAN M, DONMEZ F, MAHIROGULLARI M, et al.Comparison of screw fixation with elastic fixation methods in the treatment of syndesmosis injuries in ankle fractures.Injury.2015;46:S19-S23. [22] 张扩,卢全忠,沈林华,等.TightRope与金属螺钉内固定治疗下胫腓联合分离的临床疗效对比[J]. 中国骨与关节损伤杂志,2017,32(10): 1037-1040. [23] 徐刚,李小飞,史东平,等.动态与静态固定 2 种方式在治疗伴下胫腓联合损伤的踝关节骨折中的疗效比较[J].中国骨与关节损伤杂志, 2017, 32(4):1672-9935. [24] 李岳伟,张茗慧,李小荣,等.弹性固定及坚强固定治疗踝关节旋前-外旋型骨折合并下胫腓联合分离的疗效比较[J].骨与关节修复重建, 2017, 31(7):1002-1892 [25] VALKERING KP, VERGROESEN DA, Nolte PA.Isolated syndesmosis ankle injury.Orthopedics.2012;35(12):1705-1710. [26] PAKARINEN H.Stability-based classification for ankle fracture management and the syndesmosis injury in ankle fractures due to a supination external rotation mechanism of injury.Acta Orthop Suppl. 2012;83(347):1-26. [27] THORNES B, SHANNON F, GUINEY AM, et al.Suture-Button Syndesmosis Fixation.Clin Orthop Relat Res.2005;(431):207-212. [28] COTTOM JM, HYER CF, PHILBIN TM, et al.Transosseous Fixation of the Distal Tibiofibular Syndesmosis: Comparison of an Interosseous Suture and Endobutton to Traditional Screw Fixation in 50 Cases.J Foot Ankle Surg.2009;48(6):620-630. [29] TERAMOTO A, SUZUKI D, KAMIYA T, et al.Comparison of Different Fixation Methods of the Suture-Button Implant for Tibiofibular Syndesmosis Injuries.Am J Sport Med.2011;39(10): 2226-2232. [30] LITTLE MILTION MT, BERKES MB, SCHOTTEL PC, et al. Anatomic Fixation of Supination External Rotation Type IV Equivalent Ankle Fractures.J Orthop Trauma.2015;29(5):250-255. [31] KAFTANDZIEV I, SPASOV M, TRPESKI S, et al.Fate of the syndesmotic screw-Search for a prudent solution.Injury.2015;46: S125-S129. [32] ANDERSEN MR, FRIHAGEN F, MADSEN JE, et al.High complication rate after syndesmotic screw removal.Injury.2015; 46(11):2283-2287. [33] LALLI TA, MATTHEWS LJ, HANSELMAN AE, et al.Economic impact of syndesmosis hardware removal. Foot.2015;25:131-133. [34] SCHEPERS T, VAN LIESHOUT EM, DE VRIES MR, et al. Complications of Syndesmotic Screw Removal.Foot Ankle Int. 2011;32(11):1040-1044. [35] SCHEPERS T.To retain or remove the syndesmotic screw: a review of literature. Arch Orthop Trauma Surg.2011;131(7): 879-883. [36] MANJOO A, SANDERS DW, TIESZER C, et al.Functional and Radiographic Results of Patients with Syndesmotic Screw Fixation: Implications for Screw Removal.J Orthop Trauma.2010; 24(1):2-6. [37] HODGSON P, THOMAS R.Avoiding suture knot prominence with suture button along distal fibula: technical tip.Foot Ankle Int. 2011; 32:908-909. |
