Plantar pressure characteristics and gait analysis of outdoor workers

doi:10.12307/2026.748

Abstract

Abstract: BACKGROUND: Outdoor workers frequently walk on uneven surfaces, which exposes them to abnormal foot biomechanics and makes them high-risk individuals for plantar fasciitis and Achilles tendinopathy.
OBJECTIVE: To analyze the plantar pressure distribution and gait characteristics of outdoor workers under natural walking conditions, in order to provide a basis for high-risk foot monitoring and the design of protective footwear.

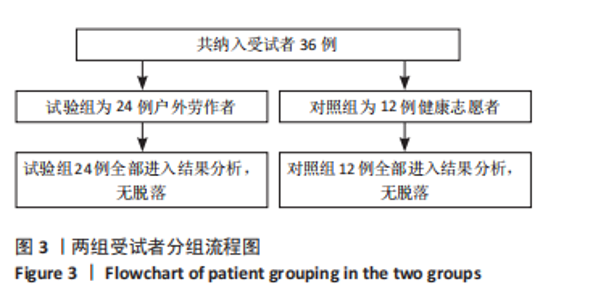

METHODS: This study included 24 outdoor workers as the experimental group and 12 healthy individuals as the control group. Both groups underwent natural gait testing using the PRESSUREPLATE-SCIENTIC pressure plate. The PODOMED gait analysis system was used to collect plantar pressure parameters across the full gait cycle, including peak plantar pressure, foot load distribution ratios, cadence, walking speed, stance phase, swing phase, and center of pressure displacement. Differences between the two groups in terms of plantar pressure and gait parameters were analyzed.

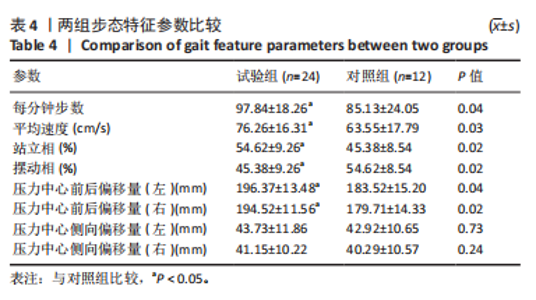

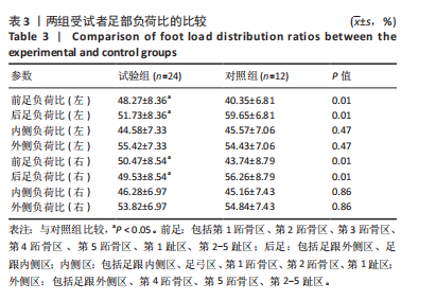

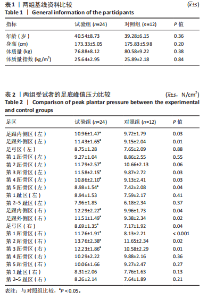

RESULTS AND CONCLUSION: (1) Compared with the control group, the experimental group showed significantly higher peak pressures in the medial heel (left), lateral heel (left), third to fifth metatarsal regions (left), medial heel (right), lateral heel (right), midfoot (right), and first to third metatarsal regions (right) (P < 0.05). (2) Compared with the control group, in the experimental group, the forefoot load ratios (left and right) were significantly greater, while the rearfoot load ratios (left and right) were significantly smaller (P < 0.05). (3) The experimental group also exhibited higher cadence and walking speed (P < 0.05), longer stance phase duration, shorter swing phase duration (P < 0.05), and greater anterior-posterior center of pressure displacement on both feet (P < 0.05). Given the specific environmental conditions of outdoor workers, targeted attention should be paid to the pressure borne by the heel, forefoot, and arch regions to ensure appropriate foot care and prevent foot disorders.

Key words: outdoor workers, plantar pressure, gait analysis, high-risk foot, biomechanics

CLC Number:

Liu Zixuan, Wei Dehua, Zheng Hailiang, Wang Jiangning, Gao Lei. Plantar pressure characteristics and gait analysis of outdoor workers[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(16): 4146-4153.

Figures/Tables 5

References

[1] 刘潇,张珑,张浩,等. 足底筋膜炎相关危险因素的研究进展[J]. 解放军医学院学报,2021,42(10):1124-1128
[2] SUNG KC, CHUNG JY, FENG IJ, et al. Plantar fasciitis in physicians and nurses:a nationwide population-based study. Ind Health. 2020; 58(2):153-160.
[3] WERNER RA, GELL N, HARTIGAN A, et al. Risk factors for plantar fasciitis among assembly plant workers. PM R. 2010;2(2):110-167.
[4] AHSAN M, SHANAB AA, NUHMANI S. Plantar Pressure Distribution Among Diabetes and Healthy Participants: A Cross-sectional Study. Int J Prev Med. 2021;12:88.
[5] 朱晨辰,殷缘,周迎基,等.体质量指数对足底压力的影响[J].中国组织工程研究,2024,28(18):2808-2813.
[6] CLELAND LD, ROWLAND HM, MAZZÀ C, et al. Complexity of spatio-temporal plantar pressure patterns during everyday behaviours. J R Soc Interface. 2023;20(203):20230052.
[7] WITHERS RV, PERRIN BM, LANDORF KB, et al. Offloading effects of a removable cast walker with and without modification for diabetes-related foot ulceration: a plantar pressure study. J Foot Ankle Res. 2023;16(1):27.
[8] HERBERT E. A cinematic study of the distribution of pressure in the human foot. Anatl Record. 1934;59(4): 481-491.
[9] LORKOWSKI J, GAWRONSKA K, POKORSKI M. Pedobarography: A Review on Methods and Practical Use in Foot Disorders. Appl Sci. 2021;11:11020.
[10] MUN F, CHOI A. Deep learning approach to estimate foot pressure distribution in walking with application for a cost-effective insole system. J Neuroeng Rehabil. 2022;19(1):4.
[11] ARZEHGAR A, NIA RGNN, HOSEINKHANI M, et al. An overview of plantar pressure distribution measurements and its applications in health and medicine. Gait Posture. 2025;117:235-244.
[12] FUCHS MCHW, HERMANS MMN, KARS HJJ, et al. Plantar pressure distribution and wearing characteristics of three forefoot offloading shoes in healthy adult subjects. Foot (Edinb). 2020;45:101744.
[13] HE YJ, ZHENG XL, WANG DF, et al. Static and Dynamic Plantar Pressure Distribution in 94 Patients with Different Stages of Unilateral Knee Osteoarthritis Using the Footscan® Platform System: An Observational Study. Med Sci Monit. 2023;29:e938485.
[14] JANDOVA S, MENDRICKY R. Benefits of 3D Printed and Customized Anatomical Footwear Insoles for Plantar Pressure Distribution. 3D Print Addit Manuf. 2022;9(6):547-556.
[15] WANG Y, ZHOU H, NIE Z, et al. Prevalence of Achilles tendinopathy in physical exercise: A systematic review and meta-analysis. Sports Med Health Sci. 2022;4(3):152-159.
[16] HAMSTRA-WRIGHT KL, HUXEL BLIVEN KC, BAY RC, et al. Risk Factors for Plantar Fasciitis in Physically Active Individuals: A Systematic Review and Meta-Analysis. Sports Health. 2021;13(3):296-303.
[17] CHEUNG JT, ZHANG M, AN KN. Effect of Achilles tendon loading on plantar fascia tension in the standing foot. Clin Biomech (Bristol). 2006;21(2):194-203.
[18] BULDT AK, ALLAN JJ, LANDORF KB, et al. The relationship between foot posture and plantar pressure during walking in adults: A systematic review. Gait Posture. 2018;62:56-67.
[19] NANDIKOLLA VK, BOCHEN R, MEZA S, et al. Experimental Gait Analysis to Study Stress Distribution of the Human Foot. J Med Eng. 2017;2017:3432074.
[20] STOLWIJK NM, KEIJSERS NLW, PASMA JH, et al. Treatment of metatarsalgia based on claw toe deformity through soft tissue release of the metatarsophalangeal joint and resection of the proximal interphalangeal joint: Evaluation based on foot kinematics and plantar pressure distribution. Foot Ankle Surg. 2020;26(7):755-762.
[21] KIRMIZI M, SENGUL YS, ANGIN S. The effects of gait speed on plantar pressure variables in individuals with normal foot posture and flatfoot. Acta Bioeng Biomech. 2020;22(3):161-168.
[22] RICHER L, FORTIN E, GAGNON G, et al. Impact of plantar fasciitis on postural control and walking in young middle-aged adults. Foot (Edinb). 2022;53:101951.
[23] PARK JS, KIM CH. Ground-Reaction-Force-Based Gait Analysis and Its Application to Gait Disorder Assessment: New Indices for Quantifying Walking Behavior. Sensors (Basel). 2022;22(19):7558.
[24] MOUSAVI SH, KHORRAMROO F, JAFARNEZHADGERO A. Gait retraining targeting foot pronation: A systematic review and meta-analysis. PLoS One. 2024;19(3):e0298646.
[25] HABIBNEZHAD M, FARDHOSSEINI S, PUCKETT J, et al. A Mixed VR and Physical Framework to Evaluate Impacts of Virtual Legs and Elevated Narrow Working Space on Construction Workers’ Gait Pattern//36th International Symposium on Automation and Robotics in Construction. 2019.
[26] SIMON S, DULLY J, DINDORF C, et al. Impact of Fatigue on Ergonomic Risk Scores and Foot Kinetics: A Field Study Employing Inertial and In-Shoe Plantar Pressure Measurement Devices. Sensors (Basel). 2024;24(4):1175.
[27] SONG Q, XU K, YU B, et al. Could Insoles Offload Pressure? An Evaluation of the Effects of Arch-supported Functional Insoles on Plantar Pressure Distribution during Race Walking. Res Sports Med. 2015;23(3):278-288.
[28] TESSUTTI V, TROMBINI-SOUZA F, RIBEIRO AP, et al. In-shoe plantar pressure distribution during running on natural grass and asphalt in recreational runners. J Sci Med Sport. 2010;13(1):151-155.
[29] HAWRYLAK A, GRONOWSKA H. Plantar Pressure Distribution in Female Olympic-Style Weightlifters. Int J Environ Res Public Health. 2020;17(8):2669.
[30] SHAKOURI E, MOSSAYEBI A, SARAEIAN P. Fabrication of medical footwear for suitable distribution of stress and strain and reduction of plantar pressure by numerical and experimental approaches. Proc Inst Mech Eng H. 2019;233(10):1051-1063.
[31] SUBRAMANIAM S, MAJUMDER S, FAISAL AI, et al. Insole-Based Systems for Health Monitoring: Current Solutions and Research Challenges. Sensors (Basel). 2022;22(2):438.
[32] TSE CTF, RYAN MB, DIEN J, et al. An exploration of changes in plantar pressure distributions during walking with standalone and supported lateral wedge insole designs. J Foot Ankle Res. 2021;14(1):55.
[33] MICKLE KJ, MUNRO BJ, LORD SR, et al. Gait, balance and plantar pressures in older people with toe deformities. Gait Posture. 2011; 34(3):347-351.
[34] LOUEY MGY, MUDGE A, WOJCIECHOWSKI E, et al. A model to calculate the progression of the centre of pressure under the foot during gait analysis. Gait Posture. 2017;57:147-153.
[35] TISSERAND R, PLARD J, ROBERT T. Relative contributions of postural balance mechanisms reveal studying the CoP displacement alone may be incomplete for analysis of challenging standing postures. Gait Posture. 2023;101:134-137.
[36] REN B, LIU J. Design of a Plantar Pressure Insole Measuring System Based on Modular Photoelectric Pressure Sensor Unit. Sensors (Basel). 2021;21(11):3780.
[37] DAS PS, SKAF D, ROSE L, et al. Gait Pattern Analysis: Integration of a Highly Sensitive Flexible Pressure Sensor on a Wireless Instrumented Insole. Sensors (Basel). 2024;24(9):2944.
[38] PENG HT, LIU LW, CHEN CJ, et al. The Soft Prefabricated Orthopedic Insole Decreases Plantar Pressure during Uphill Walking with Heavy Load Carriage. Bioengineering (Basel). 2023;10(3):353.
[39] VAN NETTEN JJ, RASPOVIC A, LAVERY LA, et al. Prevention of foot ulcers in persons with diabetes at risk of ulceration: A systematic review and meta-analysis. Diabetes Metab Res Rev. 2024;40(3):e3652.
[40] GOTHARD AT, HOTT JW, ANTON SR. Dynamic Characterization of a Low-Cost Fully and Continuously 3D Printed Capacitive Pressure-Sensing System for Plantar Pressure Measurements. Sensors (Basel). 2023;23(19):8209.
[41] FULLIN A, CARAVAGGI P, PICERNO P, et al. Variability of Postural Stability and Plantar Pressure Parameters in Healthy Subjects Evaluated by a Novel Pressure Plate. Int J Environ Res Public Health. 2022;19(5):2913.
[42] LUNA-PEREJÓN F, SALVADOR-DOMÍNGUEZ B, PEREZ-PEÑA F, et al. Smart Shoe Insole Based on Polydimethylsiloxane Composite Capacitive Sensors. Sensors (Basel). 2023;23(3):1298.
