Constructing an animal model of temporomandibular joint osteoarthritis in Sprague-Dawley rats by digital technology

doi:10.12307/2024.573

Abstract

Abstract: BACKGROUND: Temporomandibular joint osteoarthritis is a common oral disease with a high incidence. However, temporomandibular joint osteoarthritis is not easy to be detected in the early stage, and it is difficult to obtain clinical pathological specimens, so it is difficult to carry out related research. The application of digital 3D printing technology to animal models of Temporomandibular joint osteoarthritis increases the consistency of the animal models, thus promoting the study of temporomandibular joint osteoarthritis.
OBJECTIVE: To establish a standardized animal model of temporomandibular joint osteoarthritis using novel digital technology.
METHODS: According to the different modeling methods of unilateral anterior crossbite, 30 female Sprague-Dawley rats were randomly divided into traditional model group, digital model group, and control group (n=10 per group). Cartilage specimens of the condyles were collected at 4 and 8 weeks after modeling. The apparent morphology was observed by stereoscopic microscope. The pathological morphology was observed by hematoxylin-eosin staining and Safranin O/fast green staining. Changes in the expression of interleukin-1β and tumor necrosis factor-α were observed by ELISA, and changes in the expression of aggrecan, type II collagen and matrix metalloproteinase-13 were observed by immunohistochemical staining.

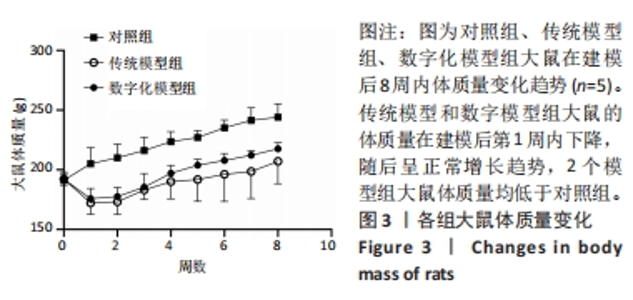

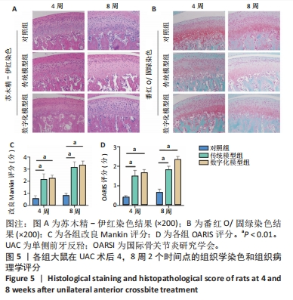

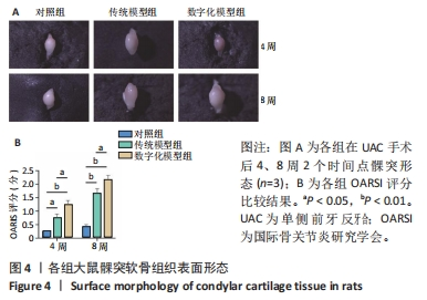

RESULTS AND CONCLUSION: Different degrees of degeneration were observed in the digital and traditional model groups. The body mass of rats in both the model groups decreased during the 1st week after intervention and subsequently demonstrated growth trend and were significantly lower than that in the control group. The results of stereoscopic microscope showed that at 4 and 8 weeks after modeling, the deformation and defect degree of the digital model group was significantly higher than that of the traditional model group. At these two time points, the Osteoarthritis Research Society International scores of the digital model group and the traditional model group were higher than those of the control group, and the Osteoarthritis Research Society International score of the digital model group was higher than that of the traditional model group (P < 0.05). Histopathological observation showed that the modified Mankin score and Osteoarthritis Research Society International score of the two model groups were significantly higher than those of the control group of the same age at 4 and 8 weeks after modeling (P < 0.05). Immunohistochemical staining results showed that at two time points, compared with the control group of the same age, the expression of aggrecan and type II collagen decreased in the traditional model group and the digital model group, while the expression of matrix metalloproteinase 13 increased (P < 0.05). ELISA results showed that the expression levels of inflammatory factors interleukin-1β and tumor necrosis factor-α in the traditional and digital model groups were higher than those in the control group at 8 weeks, and the expression levels of interleukin-1β and tumor necrosis factor-α in the digital model group were higher than those in the traditional model group (P < 0.05). To conclude, the personalized metal tube designed and produced by 3D printing technology can quickly guide the osteoarthritis-like lesions of the temporomandibular joint without repeated trial and adjustment, which is reproducible and suitable for promotion and application.

Key words: temporomandibular joint, osteoarthritis, digital technology, 3D printing, animal model, unilateral anterior crossbite, occlusion, condylar cartilage, degenerative changes, high precision

CLC Number:

Liu Penghui, Wu Fan, Wang Zejie, Wu Gaoyi, Zhou Libo. Constructing an animal model of temporomandibular joint osteoarthritis in Sprague-Dawley rats by digital technology[J]. Chinese Journal of Tissue Engineering Research, 2024, 28(35): 5642-5648.

Figures/Tables 4

References

[1] WANG XD, ZHANG JN, GAN YH, et al. Current understanding of pathogenesis and treatment of TMJ osteoarthritis. J Dent Res. 2015;94(5):666-673.
[2] 孟娟红,甘业华,马绪臣.颞下颌关节骨关节炎发病的分子机制及相关治疗的实验研究[J].北京大学学报(医学版),2013,45(1):4.
[3] HE D, AN Y, LI Y, et al. RNA sequencing reveals target genes of temporomandibular joint osteoarthritis in rats after the treatment of low-intensity pulsed ultrasound. Gene. 2018;672:126-136.
[4] ZHANG M, YANG H, LU L, et al. Matrix replenishing by BMSCs is beneficial for osteoarthritic temporomandibular joint cartilage. Osteoarthritis Cartilage. 2017;25(9):1551-1562.
[5] LONG HQ, TIAN PF, GUAN YX, et al. Expression of Ihh signaling pathway in condylar cartilage after bite-raising in adult rats. J Mol Histol. 2019; 50(5):459-470.
[6] ZHANG M, WANG H, ZHANG J, et al. Unilateral anterior crossbite induces aberrant mineral deposition in degenerative temporomandibular cartilage in rats. Osteoarthritis Cartilage. 2016; 24(5):921-931.
[7] ZHANG HY, XIE MJ, YANG HX, et al. Catabolic changes of rat temporomandibular joint discs induced by unilateral anterior crossbite. J Oral Rehabil. 2019;46(4):340-348.
[8] WANG D, YANG H, ZHANG M, et al. Insulin-like growth factor-1 engaged in the mandibular condylar cartilage degeneration induced by experimental unilateral anterior crossbite. Arch Oral Biol. 2019;98: 17-25.
[9] LIU J, YANG H, ZHANG H, et al. Biomechanically reduced expression of Derlin-3 is linked to the apoptosis of chondrocytes in the mandibular condylar cartilage via the endoplasmic reticulum stress pathway. Arch Oral Biol. 2020;118:104843.
[10] ROBINSON NB, KRIEGER K, KHAN FM, et al. The current state of animal models in research: a review. Int J Surg. 2019;72:9-13.
[11] NESIC D, SCHAEFER BM, SUN Y, et al. 3D printing approach in dentistry: the future for personalized oral soft tissue regeneration. J Clin Med. 2020;9(7):2238.
[12] ZHENG J, CHEN X, JIANG W, et al. An innovative total temporomandibular joint prosthesis with customized design and 3D printing additive fabrication: a prospective clinical study. J Transl Med. 2019;17(1):4.
[13] LIU YD, LIAO LF, ZHANG HY, et al. Reducing dietary loading decreases mouse temporomandibular joint degradation induced by anterior crossbite prosthesis. Osteoarthritis Cartilage. 2014;22(2):302-312.
[14] ZHANG J, LIAO L, ZHU J, et al. Osteochondral interface stiffening in mandibular condylar osteoarthritis. J Dent Res. 2018;97(5):563-570.
[15] WANG Y L, ZHANG J, ZHANG M, et al. Cartilage degradation in temporomandibular joint induced by unilateral anterior crossbite prosthesis. Oral Dis. 2014;20(3):301-306.
[16] PRITZKER KP, GAY S, JIMENEZ SA, et al. Osteoarthritis cartilage histopathology: grading and staging. Osteoarthritis Cartilage. 2006; 14(1):13-29.
[17] VAN DER SLUIJS JA, GEESINK RG, VAN DER LINDEN AJ, et al. The reliability of the Mankin score for osteoarthritis. J Orthop Res. 1992; 10(1):58-61.
[18] YUAN W, WU Y, ZHOU X, et al. Comparison and applicability of three induction methods of temporomandibular joint osteoarthritis in murine models. J Oral Rehabil. 2022;49(4):430-441.
[19] 叶程心月,汤颖,刘超,等.SD大鼠牙列的显微CT观测 [J].实用口腔医学杂志,2019,35(6):794-799.
[20] LIU X, CAI HX, CAO PY, et al. TLR4 contributes to the damage of cartilage and subchondral bone in discectomy-induced TMJOA mice. J Cell Mol Med. 2020;24(19):11489-11499.
[21] BI R, CHEN K, WANG Y, et al. Regulating fibrocartilage stem cells via TNF-alpha/Nf-kappaB in TMJ osteoarthritis. J Dent Res. 2022;101(3):312-322.
[22] JIANG H, XU L, LIU W, et al. Chronic pain causes peripheral and central responses in MIA-induced TMJOA rats. Cell Mol Neurobiol. 2022;42(5):1441-1451.
[23] ZHANG C, ZHU M, WANG H, et al. LOXL2 attenuates osteoarthritis through inactivating Integrin/FAK signaling. Sci Rep. 2021;11(1):17020.
[24] LIANG C, YANG T, WU G, et al. Therapeutic effect of low-intensity pulsed ultrasound on temporomandibular joint injury induced by chronic sleep deprivation in rats. Am J Transl Res. 2019;11(6):3328-3340.
[25] CHEN G, ZHAO H, MA S, et al. Circadian rhythm protein bmal1 modulates cartilage gene expression in temporomandibular joint osteoarthritis via the MAPK/ERK pathway. Front Pharmacol. 2020;11: 527744.
[26] DU J, JIANG Q, MEI L, et al. Effect of high fat diet and excessive compressive mechanical force on pathologic changes of temporomandibular joint. Sci Rep. 2020;10(1):17457.
[27] ROGERS-DECOTES AW, PORTO SC, DUPUIS LE, et al. ADAMTS5 is required for normal trabeculated bone development in the mandibular condyle. Osteoarthritis Cartilage. 2021;29(4):547-557.
[28] ZHANG J, ZHANG S, QI WJ, et al. Mechanism and potential contributing factors to temporomandibular joint osteoarthritis. Oral Dis. 2023;29(3): 1060-1069.
[29] ZHANG Y, XU X, ZHOU P, et al. Elder mice exhibit more severe degeneration and milder regeneration in temporomandibular joints subjected to bilateral anterior crossbite. Front Physiol. 2021;12:750468.
[30] ZHANG Y, LIU Q, XU X, et al. Long-term effect of bilateral anterior elevation of occlusion on the temporomandibular joints. Oral Dis. 2022;28(7):1911-1920.
[31] MA S, ZHANG A, LI X, et al. MiR-21-5p regulates extracellular matrix degradation and angiogenesis in TMJOA by targeting Spry1. Arthritis Res Ther. 2020;22(1):99.
[32] SPERRY MM, KARTHA S, WINKELSTEIN BA, et al. Experimental methods to inform diagnostic approaches for painful TMJ osteoarthritis. J Dent Res. 2019;98(4):388-397.
