Potential molecular mechanism of Guizhi Shaoyao Zhimu Decoction in the treatment of gouty arthritis based on network pharmacology and molecular docking

doi:10.12307/2022.040

Abstract

Abstract: BACKGROUND: Clinical studies have shown that Guizhi Shaoyao Zhimu Decoction is effective in treating gouty arthritis, but its pharmacological mechanism is not yet clear.
OBJECTIVE: To explore the potential molecular mechanism of Guizhi Shaoyao Zhimu Decoction in the treatment of gouty arthritis based on network pharmacology and molecular docking.

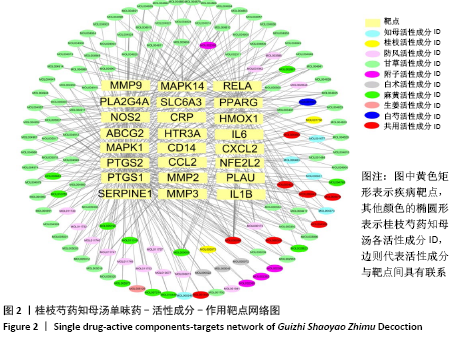

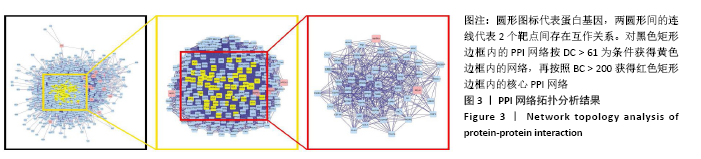

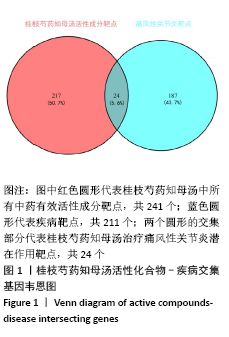

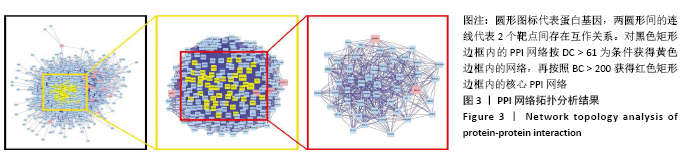

METHODS: The active components and corresponding targets of Guizhi Shaoyao Zhimu Decoction was screened by TCMSP database. The related targets of gouty arthritis were obtained by the query results of Gene Cards, OMIM and DigSee databases. The potential targets of Guizhi Shaoyao Zhimu Decoction in the treatment of gouty arthritis were obtained by mapping intersection by Venny platform. The network of “single drug-active target-potential target” and the protein interaction network of Guizhi Shaoyao Zhimu Decoction in the treatment of gouty arthritis were constructed by Cytoscape software. The action targets of Guizhi Shaoyao Zhimu Decoction were analyzed by David database including the gene ontology (GO) analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis. Finally, molecular docking between key active ingredients and key targets was performed using Autodock software.

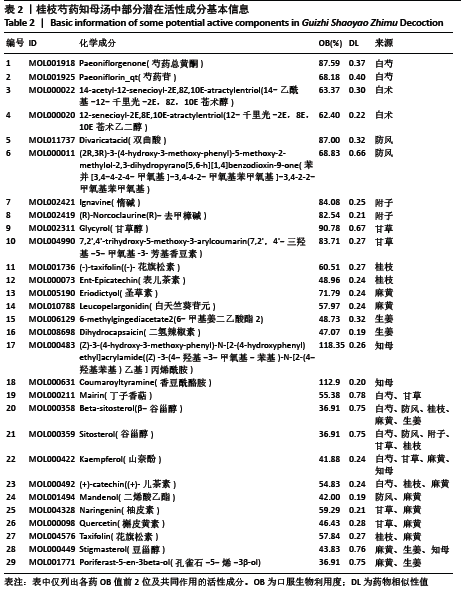

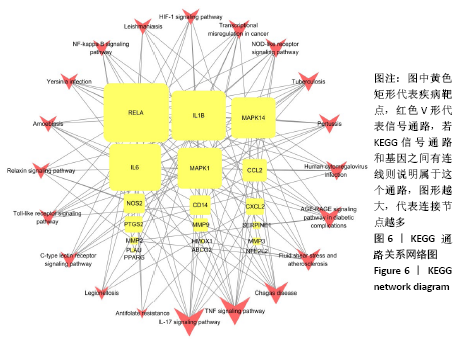

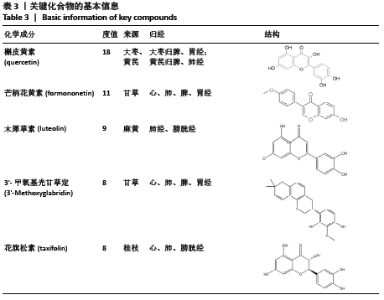

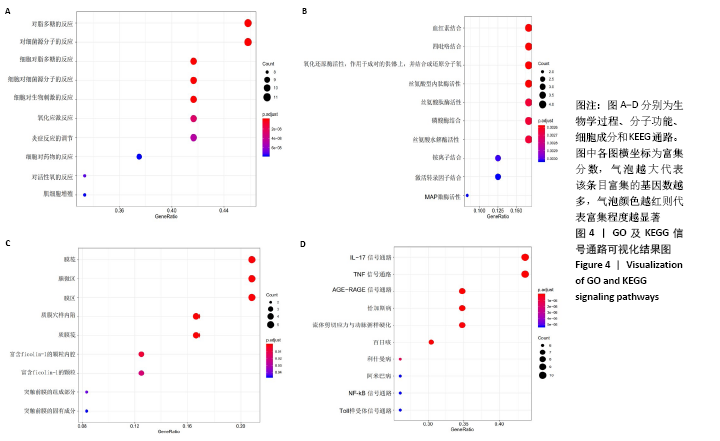

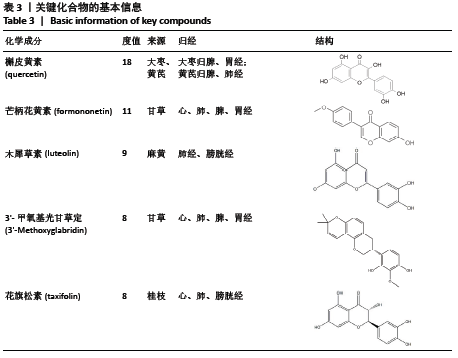

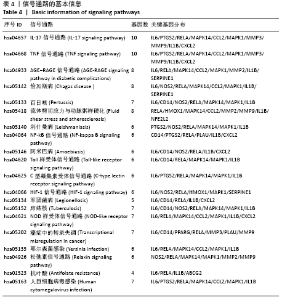

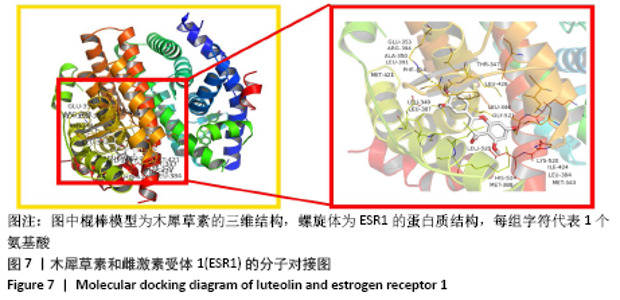

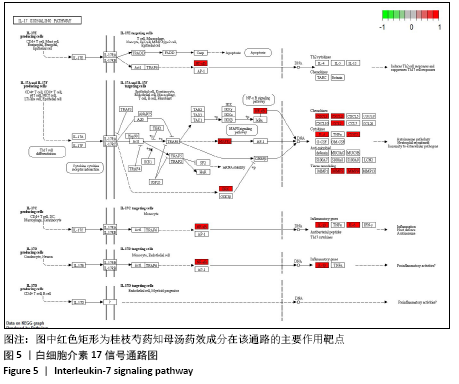

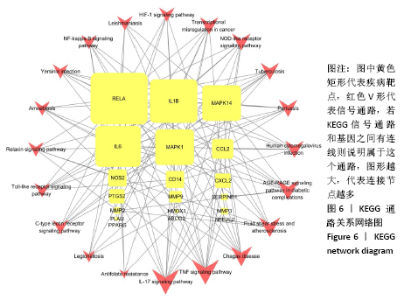

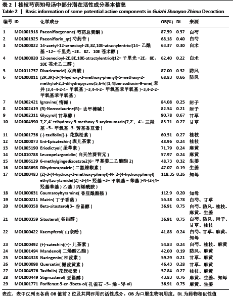

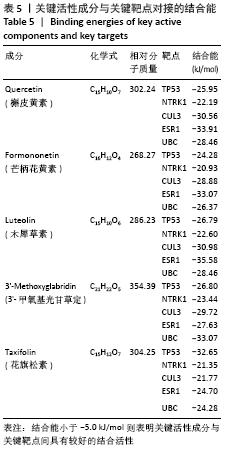

RESULTS AND CONCLUSION: There were 180 active components and 24 targets related to the treatment of gouty arthritis by Guizhi Shaoyao Zhimu Decoction. The key active components were quercetin, formononetin, luteolin, 3'-methoxyglabridin, taxifolin. The key targets were P53, neurotrophic receptor tyrosine kinase 1, Cullin3, estrogen receptor 1, and ubiquitin C. Molecular docking results showed that the key active components showed good binding activity with the key targets of gouty arthritis treatment. GO analysis showed that the key targets were mainly involved in many biological processes such as lipopolysaccharide reaction, bacterial derived molecules response, cell response to biological stimulation, oxidative stress response, regulation of inflammatory response, and response to reactive oxygen species. KEGG pathway analysis showed that Guizhi Shaoyao Zhimu Decoction mainly acted on interleukin-17 pathway, tumor necrosis factor pathway, AGE-RAGE pathway, NOD like receptor pathway, nuclear factor-κB pathway, and Toll like receptor pathway. To conclude, Guizhi Shaoyao Zhimu Decoction could reduce immune-inflammatory reaction, inhibit chondrocyte apoptosis and improve the ability of anti-oxidation stress response by multi-component, multi-target and multi-pathway, so as to play a role in the treatment of gouty arthritis. The protein scaffold drug delivery system can be used orally or locally in the future by screening of effective components, which is conducive to the remission of the disease.

Key words: joint, gout, arthritis, traditional Chinese medicine, hyperuricemia, molecular mechanism, network pharmacology, signaling pathway

CLC Number:

Zhang Xiaoyun, Li Huanan, Chen Feng, Chai Yuan, Gan Bin, Li Song, Chen Dingpeng. Potential molecular mechanism of Guizhi Shaoyao Zhimu Decoction in the treatment of gouty arthritis based on network pharmacology and molecular docking[J]. Chinese Journal of Tissue Engineering Research, 2022, 26(2): 245-252.

Figures/Tables 11

References

[1] TATSIY O, MAYER TZ, CARALHO OLIVEIRA V, et al. Cytokine production and NET formation by monosodium urate-activated human neutrophils involves early and late events, and requires upstream TAK1 and Syk. Front Immunol. 2020. doi: 10.3389/fimmu.2019.02996.
[2] HSIEH CY, LI LH, LAM Y, et al. Synthetic 4-hydroxy auxarconjugatin b, a novel autophagy inducer, attenuates gouty inflammation by inhibiting the NLRP3 inflammasome. Cells. 2020;9(2):279.
[3] 舒建龙,李凤珍,覃裕旺.痛风病理及临床中西医治疗的研究进展[J].中国实验方剂学杂志, 2020,26(2):218-227.
[4] 黄聪,彭伟,牟茂婷,等.基于“肢节痹病”的桂枝芍药知母汤的现代药理作用探讨[J].时珍国医国药,2019,30(4):949-950.
[5] 乔晓涵.桂枝芍药知母汤加减方治疗急性痛风性关节炎疗效观察[D].沈阳:辽宁中医药大学, 2019.
[6] LI G, XU Q, HAN K, et al. Experimental evidence and network pharmacology-based analysis reveal the molecular mechanism of Tongxinluo capsule administered in coronary heart diseases. Biosci Rep. 2020;40(10):BSR20201349.
[7] SAKLE NS, MORE SA, MOKALE SN. A network pharmacology-based approach to explore potential targets of Caesalpinia pulcherima: an updated prototype in drug discovery. Sci Rep. 2020;10(1):17217.
[8] ZHANG Q, LI R, PENG W, et al. Identification of the active constituents and significant pathways of Guizhi-Shaoyao-Zhimu decoction for the treatment of diabetes mellitus based on molecular docking and network pharmacology. Comb Chem High Throughput Screen. 2019; 22(9):584-598.
[9] 汪选斌,陆金健.中药药理规范研究的思考[J].世界科学技术-中医药现代化,2019,21(9):1846-1854.
[10] GUO Q, MAO X, ZHANG Y, et al. Guizhi-Shaoyao-Zhimu decoction attenuates rheumatoid arthritis partially by reversing inflammation-immune system imbalance. J Transl Med. 2016;14(1):165.
[11] ZHANG Q, PENG W, WEI S, et al. Guizhi-Shaoyao-Zhimu decoction possesses anti-arthritic effects on type II collagen-induced arthritis in rats via suppression of inflammatory reactions, inhibition of invasion & migration and induction of apoptosis in synovial fibroblasts. Biomed Pharmacother. 2019;118:109367.
[12] ZHANG KH, WANG MQ, WEI LL, et al. Investigation of the effects and mechanisms of dendrobium loddigesii rolfe extract on the treatment of gout. Evid Based Complement Alternat Med. 2020; 2020:4367347.
[13] ZHOU Q, SUN HJ, LIU SM, et al. Anti-inflammation effects of the total saponin fraction from Dioscorea nipponica Makino on rats with gouty arthritis by influencing MAPK signalling pathway. BMC Complement Med Ther. 2020;20(1):261.
[14] ZHOU M, ZE K, HUA L, et al. Cyr61 promotes inflammation of a gouty arthritis model in rats. Mediators Inflamm. 2020;2020:8298615.
[15] 李建,张洁瑛,孙鹏,等.平胃散合桂枝芍药知母汤加减治疗慢性痛风性关节炎的疗效机制[J].中国实验方剂学杂志,2018,24(1):180-185.
[16] RUIZ-MIYAZAWA KW, STAURENGO-FERRARI L, MIZOKAMI SS, et al. Quercetin inhibits gout arthritis in mice: induction of an opioid-dependent regulation of inflammasome. Inflammopharmacology. 2017;25(5):555-570.
[17] FU X, QIN T, YU J, et al. Formononetin ameliorates cognitive disorder via pgc-1α pathway in neuroinflammation conditions in high-fat diet-induced mice. CNS Neurol Disord Drug Targets. 2019;18(7):566-577.
[18] WANG S, CAO M, XU S, et al. Luteolin alters macrophage polarization to inhibit inflammation. Inflammation. 2020;43(1):95-108.
[19] LI P, LI Y, JIANG H, et al. Glabridin, an isoflavan from licorice root, ameliorates imiquimod-induced psoriasis-like inflammation of BALB/c mice.Int Immunopharmacol. 2018;59:243-251.
[20] 李想,李冀.甘草提取物活性成分药理作用研究进展[J].江苏中医药,2019,51(5):81-86.
[21] Wu SC, YANG ZQ, LIU F, et al. Antibacterial effect and mode of action of flavonoids from licorice against methicillin-resistant staphylococcus aureus. Front Microbiol. 2019;10:2489.
[22] YUAN X, LI N, ZHANG M, et al. Taxifolin attenuates IMQ-induced murine psoriasis-like dermatitis by regulating T helper cell responses via Notch1 and JAK2/STAT3 signal pathways. Biomed Pharmacother. 2020;123:109747.
[23] HAUGEN J, CHANDYO RK, BROKSTAD KA, et al. Cytokine concentrations in plasma from children with severe and non-severe community acquired pneumonia. PLoS One. 2015;10(9):e0138978.
[24] PISANI LP, ESTADELLA D, RIBEIRO DA. The role of toll like receptors (TLRs) in oral carcinogenesis. Anticancer Res. 2017;37(10):5389-5394.
[25] CHEN Y, WU D, SUN L. Clinical Significance of High-Mobility Group Box 1 Protein (HMGB1) and Nod-Like Receptor Protein 3(NLRP3) in Patients with Ulcerative Colitis. Med Sci Monit. 2020;26:e919530.
[26] FREUDENSTEEIN D, LITCHFIELD C, CARAMIA F, et al. TP53 status, patient sex, and the immune response as determinants of lung cancer patient survival. Cancers (Basel). 2020;12(6):1535.
[27] DONG Z, CHEN W, CHEN C, et al. CUL3 deficiency causes social deficits and anxiety-like behaviors by impairing excitation-inhibition balance through the promotion of cap-dependent translation. Neuron. 2020;105(3):475-490.
[28] EDREES MAH, LUO J, SUN F, et al. Ubc9 deficiency selectively impairs the functionality of common lymphoid progenitors (CLPs) during bone marrow hematopoiesis. Mol Immunol. 2019;114:314-322.
[29] 黄聪,彭伟,牟茂婷,等.基于“肢节痹病”的桂枝芍药知母汤的现代药理作用探讨[J].时珍国医国药,2019,30(4):949-950.
[30] SAKELLARIOU G, SCIRE CA, ADINOLFI A, et al. Differential diagnosis of inflammatory arthropathies by musculoskeletal ultrasonography: a systematic literature review. Front Med (Lausanne). 2020;7:141.
[31] FENG K, CHEN Z, PENGCHENG L, et al. Quercetin attenuates oxidative stress-induced apoptosis via SIRT1/AMPK-mediated inhibition of ER stress in rat chondrocytes and prevents the progression of osteoarthritis in a rat model. J Cell Physiol. 2019;234(10):18192-18205.
[32] CHO IA, KIM TH, LIM H, et al. Formononetin antagonizes the interleukin-1β-induced catabolic effects through suppressing inflammation in primary rat chondrocytes. Inflammation. 2019;42(4):1426-1440.
[33] FEI J, LIANG B, JIANG C, et al. Luteolin inhibits IL-1β-induced in?ammation in rat chondrocytes and attenuates osteoarthritis progression in a rat model. Biomed Pharmacother. 2019;109:1586-1592.
[34] YAMAMOTO S, IWAKUMA T. Regulators of oncogenic mutant TP53 gain of function. Cancers (Basel). 2018;11(1):4.
[35] UHLMANN C, KUHN LM, TIGGES J, et al. Efficient modulation of TP53 expression in human induced pluripotent stem cells. Curr Protoc Stem Cell Biol. 2020;52(1):e102.
[36] CAO L, BASUDAN A, SIKORA MJ, et al. Frequent amplifications of ESR1, ERBB2 and MDM4 in primary invasive lobular breast carcinoma. Cancer Lett. 2019;461:21-30.
[37] KONG Y, WANG Z, HUANG M, et al. CUL7 promotes cancer cell survival through promoting Caspase-8 ubiquitination. Int J Cancer. 2019;145(5):1371-1381.
[38] HWANG HS, LEE MH, CHOI MH, et al. NOD2 signaling pathway is involved in fibronectin fragment- induced pro-catabolic factor expressions in human articular chondrocytes. BMB Rep. 2019;52(6):373-378.
[39] PAN H, DAI H, WANG L, et al. MicroRNA-410-3p modulates chondrocyte apoptosis and inflammation by targeting high mobility group box 1 (HMGB1) in an osteoarthritis mouse model. BMC Musculoskelet Disord. 2020;21(1):486.
[40] 吴剑静,胡洛爽,叶天申,等.桂枝芍药知母汤加减结合微针刀治疗急性痛风性关节炎疗效观察[J].实用中医药杂志,2020,36(3):279-280.
[41] LI R, JIA Z, ZHU H. Regulation of Nrf2 signaling. React Oxyg Species (Apex). 2019;8(24):312-322.
[42] YANG SC, CHEN PJ, CHANG SH, et al. Luteolin attenuates neutrophilic oxidative stress and inflammatory arthritis by inhibiting Raf1 activity. Biochem Pharmacol. 2018;154:384-396.
