Biomechanical and histological analysis of alveolar distraction osteogenesis in a canine model

doi:10.3969/j.issn.2095-4344.2014.20.018

Abstract

Abstract:

BACKGROUND: Alveolar distraction osteogenesis is an important method for treating alveolar bone atrophy, the osteogenesis process and biomechanics play a crucial role in the following implantation and repair. At present, no related experimental studies are found.
OBJECTIVE: To analyze the biomechanical and histological characteristics of alveolar distraction osteogenesis in a canine model.
METHODS: Twelve adult mongrel canines received premolars extraction and alveoloplasty in mandible to establish an atrophy alveolar model. After 3 months, a segmental alveolar osteotomy was performed in the randomly selected unilateral atrophy alveolar and two intra-osseous distractors were placed. After a 7-days latency period, the alveolar ridge was augmented at a rate of 1.0 mm/d for 5 days. After a consolidation of 1, 2,
and 3 months, the canines were sacrificed and the specimens of the distracted alveolar bone were harvested for clinical, radiographic, histological and biomechanical analysis.
RESULTS AND CONCLUSION: The alveolar distractors obtained good healing with surrounding tissue. The atrophy alveolar bones were augmented for (4.80±0.50) mm and (5.12±0.47) mm by clinical and radiographic findings immediately after distraction, respectively. The bone trabeculae in the distracted chamber matured from 1 to 3 months of consolidation by histological analysis. The shearing force of alveolar distraction chamber increased from 1 to 3 months. After 3 months’ consolidation, the shearing force of distracted chamber was comparable to host bone. The histological and biomechanical property of distracted alveolar chamber is comparable to host bone after 3 months’ consolidation.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

全文链接：

Key words: osteogenesis, distraction, mechanics, histology, dental implantation

CLC Number:

R318

Zhou Miao, Che Yue-juan, Guo Ming-yan, Huang Dai-ying, Piao Zheng-guo, Yu Xiao-wei, Chen Song-ling. Biomechanical and histological analysis of alveolar distraction osteogenesis in a canine model[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(20): 3212-3217.

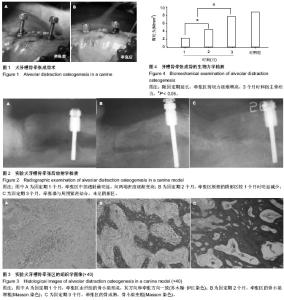

Figures/Tables 1

2.1 临床检查所有的动物能耐受整个手术和牵张过程。有1只出现伤口感染导致牵张器排出，其余伤口愈合正常。固定期0，1，2和3个月的临床牙槽嵴增加高度值分别为(4.80±0.50) mm，(4.67±0.31) mm，(4.41±0.19) mm和(4.32±0.21) mm，增加高度随固定时间延长有所降低。在牵张后2个月复查，舌侧骨板触诊坚硬、连续性好。在整个观察期，唇侧骨面触诊粗糙。牙槽黏膜和牙龈颜色未出现明显改变。牵张器与周围组织愈合良好。 2.2 放射学检查种植体植入后放射学检查显示牵张器就位良好，在输送盘和基骨间有约1 mm的阴影。所有的牵张器都可使输送盘增高，输送盘两端有明显的骨突。固定期1个月时，发现输送盘与基骨之间有明显的透射区，输送盘两端与基骨的界限变模糊，骨突明显变钝。颊侧的透射影比舌侧更明显。垂直向观察，牵张区中部透射最明显，向两端密度逐渐变高(图2A)。固定期2个月时，牵张区的阻射较1个月明显上升，牵张区与基骨和输送盘的界限隐约可见。输送盘两端的骨突与邻近骨连接平滑。牵张区的阻射为舌侧高于颊侧、两端高于中间(垂直向)。颊侧的阴影区较1个月时明显减少(图2B)。固定期3个月时，牵张区阻射较2个月又有提高。牵张区舌侧骨与基骨和输送盘阻射程度无分别。颊侧牵张区可见中间段向舌侧凹陷。螺纹杆周围骨质成明显阻射影。整个牵张器与周围骨紧密结合，未见阴影区(图2C)。固定期0，1，2和3个月的放射学牙槽嵴高度增加值分别是(5.12±0.67) mm，(4.92±0.57) mm，(4.73±0.46) mm和(4.58±0.35) mm，增加高度随固定时间延长而降低。 2.3 组织学检查固定期1个月时，牵张区可见由3个区组成：与两边的宿主骨交界处为疏松的、网状骨小梁，中间为纤维组织区。牵张区未发现有软骨的存在，骨组织主要是由纤维组织中的间充质细胞直接分化为骨母细胞，再分化为成骨细胞产生新生骨，新生骨进一步改建、成熟。在骨小梁区，可看到靠近中间的部分较为幼稚，骨小梁纤细，有时在纤维组织中直接形成骨岛；在接近宿主骨的部分，骨小梁逐渐致密、粗大，并向板状骨过渡，形成陷窝状的编织骨。在新生骨小梁的周围有成骨细胞规则地围绕，提示有活跃的成骨。纤维结构区可见纤维组织排列与牵张方向一致，其间可见大量的毛细血管，新生血管的方向与牵张方向一致(图3A)。在整个牵张区未发现软骨成骨区，说明牙槽骨牵张成骨术的骨愈合是以膜内成骨的方式进行的，与骨折愈合的方式明显不同。固定期2个月时，大部分的牵张区由网状的骨小梁组成。骨小梁的结构较1个月时变粗，变密和规则。在骨小梁的周围可见成骨细胞围绕。舌侧骨板由完整的骨小梁连接；在颊侧，有软组织向内生长，使颊侧牵张区形成凹陷，这与放射学检查的结果一致(图3B)。固定期3个月时，牵张区主要由板状骨和编织骨组成，有规则的哈弗管。骨组织间的血管密度较1个月、2个月有降低。可观察到骨组织的血管方向与牵张方向一致。板状骨中可以观察到破骨细胞，提示存在骨的形成与改建(图3C)。 2.4 生物力学检测比较1个月组、2个月组、3个月组与对照组的剪切力发现：牵张区的剪切力值随着固定期的延长而上升，1个月组、2个月组与3个月组间比较差异有显著性意义(P < 0.05)，3个月组与对照组比较差异无显著性意义(P > 0.05)，见图4。"

References

[1] Langenbeck BV. About the pathologic length growth of long bones and its employment in surgical praxis. Berl Klin Wochenschr. 1869;26:265.
[2] Ilizarov GA.The tension-stress effect on the genesis and growth of tissues. Part I. The influence of stability of fixation and soft-tissue preservation.Clin Orthop Relat Res. 1989; (238):249-281.
[3] Ilizarov GA.The tension-stress effect on the genesis and growth of tissues: Part II. The influence of the rate and frequency of distraction.Clin Orthop Relat Res. 1989;(239): 263-285.
[4] Block MS, Daire J, Stover J,et al.Changes in the inferior alveolar nerve following mandibular lengthening in the dog using distraction osteogenesis.J Oral Maxillofac Surg. 1993; 51(6):652-660.
[5] Block MS, Chang A, Crawford C.Mandibular alveolar ridge augmentation in the dog using distraction osteogenesis.J Oral Maxillofac Surg. 1996;54(3):309-314.
[6] Block MS, Almerico B, Crawford C,et al.Bone response to functioning implants in dog mandibular alveolar ridges augmented with distraction osteogenesis.Int J Oral Maxillofac Implants. 1998;13(3):342-351.
[7] Makarov MR, Harper RP, Cope JB,et al.Evaluation of inferior alveolar nerve function during distraction osteogenesis in the dog.J Oral Maxillofac Surg. 1998;56(12):1417-1423.
[8] Engel PS, Rauch DM, Ladov MJ,et al.Alveolar distraction osteogenesis: a new alternative to bone grafts. Report of three cases.J N J Dent Assoc. 1999;70(1):15, 20-21, 56-57.
[9] Mitsukawa N, Saiga A, Morishita T,et al.Special distraction osteogenesis before bone grafting for alveolar cleft defects to correct maxillary deformities in patients with bilateral cleft lips and palates: Distraction osteogenesis performed separately for each bone segment.J Craniomaxillofac Surg. 2013. [Epub ahead of print]
[10] Kumar N, Prashantha G, Raikar S, et al.Dento-Alveolar Distraction Osteogenesis for rapid Orthodontic Canine Retraction.J Int Oral Health. 2013;5(6):31-41.
[11] Block MS, Gardiner D, Almerico B,et al.Loaded hydroxylapatite-coated implants and uncoated titanium-threaded implants in distracted dog alveolar ridges. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2000; 89(6): 676-685.
[12] Yamauchi K, Takahashi T, Nogami S,et al.Horizontal alveolar distraction osteogenesis for dental implant: long-term results.Clin Oral Implants Res. 2013;24(5):563-568.
[13] Ugurlu F, Sener BC, Dergin G,et al.Potential complications and precautions in vertical alveolar distraction osteogenesis: a retrospective study of 40 patients.J Craniomaxillofac Surg. 2013;41(7):569-573.
[14] Rachmiel A, Emodi O, Gutmacher Z,et al.Oral and dental restoration of wide alveolar cleft using distraction osteogenesis and temporary anchorage devices.J Craniomaxillofac Surg. 2013;41(8):728-734.
[15] Ohba S, Tobita T, Tajima N,et al.Correction of an asymmetric maxillary dental arch by alveolar bone distraction osteogenesis.Am J Orthod Dentofacial Orthop. 2013;143(2): 266-273.
[16] Kim JW, Cho MH, Kim SJ,et al.Alveolar distraction osteogenesis versus autogenous onlay bone graft for vertical augmentation of severely atrophied alveolar ridges after 12 years of long-term follow-up.Oral Surg Oral Med Oral Pathol Oral Radiol. 2013;116(5):540-549.
[17] Kawashima W, Takayama K, Fujii R,et al.Vector-controlled alveolar distraction osteogenesis using an implant-fixed provisional prosthesis: a case report.Implant Dent. 2013; 22(1):26-30.
[18] Joss CU, Triaca A, Antonini M, et al.Neurosensory and functional evaluation in distraction osteogenesis of the anterior mandibular alveolar process.Int J Oral Maxillofac Surg. 2013;42(1):55-61.
[19] Isomura ET, Shogen Y, Hamaguchi M,et al.Electrophysiologic evaluation of inferior alveolar nerve regenerated by bifocal distraction osteogenesis in dogs.Plast Reconstr Surg. 2013; 132(4):877-882. .
[20] Isomura ET, Shogen Y, Hamaguchi M, et al.Inferior alveolar nerve regeneration after bifocal distraction osteogenesis in dogs.J Oral Maxillofac Surg. 2013;71(10):1810.e1-11.
[21] Felice P, Lizio G, Checchi L.Alveolar distraction osteogenesis in posterior atrophic mandible: a case report on a new technical approach.Implant Dent. 2013;22(4):332-338.
[22] Faysal U, Cem SB, Atilla S.Effects of different consolidation periods on bone formation and implant success in alveolar distraction osteogenesis: a clinical study.J Craniomaxillofac Surg. 2013;41(3):194-197.
[23] Cheung LK, Chua HD, Hariri F,et al.Alveolar distraction osteogenesis for dental implant rehabilitation following fibular reconstruction: a case series.J Oral Maxillofac Surg. 2013; 71(2):255-271.
[24] Chiapasco M, Casentini P, Zaniboni M.Bone augmentation procedures in implant dentistry.Int J Oral Maxillofac Implants. 2009;24 Suppl:237-259.
[25] McAllister BS, Haghighat K.Bone augmentation techniques.J Periodontol. 2007;78(3):377-396.
[26] Uckan S, Veziroglu F, Dayangac E.Alveolar distraction osteogenesis versus autogenous onlay bone grafting for alveolar ridge augmentation: Technique, complications, and implant survival rates.Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2008;106(4):511-515.
[27] Vega LG, Bilbao A.Alveolar distraction osteogenesis for dental implant preparation: an update.Oral Maxillofac Surg Clin North Am. 2010;22(3):369-385.
[28] Cheung LK, Hariri F, Chua HD.Alveolar distraction osteogenesis for oral rehabilitation in reconstructed jaws.Curr Opin Otolaryngol Head Neck Surg. 2011;19(4):312-316.
[29] Saulacic N, Gándara-Vila P, Somoza-Martín M,et al. Distraction osteogenesis of the alveolar ridge: a review of the literature.Med Oral. 2004;9(4):321-327.
[30] Emtiaz S, Noroozi S, Caramês J,et al.Alveolar vertical distraction osteogenesis: historical and biologic review and case presentation.Int J Periodontics Restorative Dent. 2006; 26(6):529-541.
[31] Boyne PJ, Herford AS.Distraction osteogenesis of the nasal and antral osseous floor to enhance alveolar height.J Oral Maxillofac Surg. 2004;62(9 Suppl 2):123-130.
[32] Whitesides LM, Meyer RA.Effect of distraction osteogenesis on the severely hypoplastic mandible and inferior alveolar nerve function.J Oral Maxillofac Surg. 2004;62(3):292-297.
[33] Oda T, Sawaki Y, Ueda M.Alveolar ridge augmentation by distraction osteogenesis using titanium implants: an experimental study.Int J Oral Maxillofac Surg. 1999;28(2): 151-156.
[34] Chiapasco M, Zaniboni M, Rimondini L.Autogenous onlay bone grafts vs. alveolar distraction osteogenesis for the correction of vertically deficient edentulous ridges: a 2-4-year prospective study on humans.Clin Oral Implants Res. 2007; 18(4):432-440.
[35] Zhao Y, Liu Y, Liu B,et al.Bone healing process around distraction implants following alveolar distraction osteogenesis: a preliminary experimental study in dogs.Int J Periodontics Restorative Dent. 2009;29(5):523-533.
[36] Chiapasco M, Consolo U, Bianchi A,et al.Alveolar distraction osteogenesis for the correction of vertically deficient edentulous ridges: a multicenter prospective study on humans.Int J Oral Maxillofac Implants. 2004;19(3):399-407.
[37] Sezer B, Koyuncu BÖ, Günbay T, et al.Alveolar distraction osteogenesis in the human mandible: a clinical and histomorphometric study.Implant Dent. 2012;21(4):317-322.
[38] Alkan A, Ba? B, Inal S.Alveolar distraction osteogenesis of bone graft reconstructed mandible.Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2005;100(3):e39-42.
[39] Braidy H, Appelbaum M.Alveolar distraction osteogenesis of the severely atrophic anterior maxilla: surgical and prosthetic challenges.J Prosthodont. 2011;20(2):139-143.
[40] Mazzonetto R, Serra E Silva FM, Ribeiro Torezan JF.Clinical assessment of 40 patients subjected to alveolar distraction osteogenesis.Implant Dent. 2005;14(2):149-153.
[41] Henkel KO, Ma L, Lenz JH,et al.Closure of vertical alveolar bone defects with guided horizontal distraction osteogenesis: an experimental study in pigs and first clinical results.J Craniomaxillofac Surg. 2001;29(5):249-253.
[42] Saulacic N, Zix J, Iizuka T.Complication rates and associated factors in alveolar distraction osteogenesis: a comprehensive review.Int J Oral Maxillofac Surg. 2009;38(3):210-217.
[43] Perdijk FB, Meijer GJ, Strijen PJ,et al.Complications in alveolar distraction osteogenesis of the atrophic mandible.Int J Oral Maxillofac Surg. 2007;36(10):916-921.
[44] Garcia Garcia A, Somoza Martin M, Gandara Vila P,et al.Alveolar ridge osteogenesis using 2 intraosseous distractors: uniform and nonuniform distraction.J Oral Maxillofac Surg. 2002;60(12):1510-1512.
[45] Veziroglu F, Yilmaz D.Biomechanical evaluation of the consolidation period of alveolar distraction osteogenesis with three-dimensional finite element analysis.Int J Oral Maxillofac Surg. 2008;37(5):448-452.
[46] Enislidis G, Fock N, Millesi-Schobel G,et al.Analysis of complications following alveolar distraction osteogenesis and implant placement in the partially edentulous mandible.Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2005;100(1): 25-30.
[47] Wolf JH.Julis Wolff and his "law of bone remodeling". Orthopade. 1995;24(5):378-386.
[48] Costantino PD, Friedman CD.Distraction osteogenesis. Applications for mandibular regrowth.Otolaryngol Clin North Am. 1991;24(6):1433-1443.
[49] Costantino PD, Shybut G, Friedman CD,et al.Segmental mandibular regeneration by distraction osteogenesis. An experimental study.Arch Otolaryngol Head Neck Surg. 1990; 116(5):535-545.
