Finite element model of rabbit tibial fracture

doi:10.3969/j.issn.2095-4344.2013.04.009

Abstract

Abstract:

BACKGROUND: The original data of the medical biomechanics finite element analysis often come from body CT images. Wide range CT scanning can cause damage to human.
OBJECTIVE: To establish a three-dimensional finite element model of rabbit tibial fracture.
METHODS: A 1-year-old male New Zealand white rabbit was selected, sawing the middle of the left tibia by surgery. Reading the 135-layer of 0.625 mm thick consecutive CT DICOM3.0 format images of rabbit left tibial with the MIMICS10.01 software directly. The surface mesh model was established by images positioning, images organizing, interpolated processing and surface smoothing processing, then the meshmodel was introduced into ANSYS10.0 software directly to mesh body, and then transferred the body mesh to MIMICS10.01 for assignment on the basis of CT values.

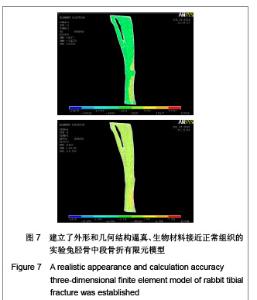

RESULTS AND CONCLUSION: A realistic appearance and calculation accuracy three-dimensional finite element model of rabbit tibial fracture was established. The model was real and effective by applying load and analyzing. The result showed the three-dimensional finite element model of rabbit tibial fracture could be made faster and more accurate by applying MIMICS10.01 software and ANSYS10.0 software. The establishment of the model lays a foundation for rabbit further biomechanical analysis of fracture healing.

Key words: bone and joint implants, three-dimensional finite element analysis of bone and joint, tibial fractures, model, three-dimensional finite element, rabbit, biomechanics, CT, ANSYS10.0, MIMICS10.01, other grants-supported paper, photographs-containing paper of bone and joint implants

CLC Number:

R318

Li Xiao-lin, Ren Bo-xu, Xu Zi-sheng. Finite element model of rabbit tibial fracture[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(4): 620-624.

Figures/Tables 1

References

[1] Goel VK, Park H, Kong W. Investigation of vibration characteristics of the ligamentous lumbar spine using the finite element approach. J Biomech Eng. 1994;116(4):377-383.

[2] Greaves CY, Gadala MS, Oxland TR. A three-dimensional finite element model of the cervical spine with spinal cord: an investigation of three injury mechanisms. Ann Biomed Eng. 2008;36(3):396-405.

[3] Hu HY,He ZJ,Lv LP,et al. Jiefangjun Yixue Zazhi. 2008; 33(3): 273-275. 胡辉莹,何忠杰,吕丽萍,等.应用MIMICS软件辅助重建人体胸廓三维有限元模型的研究[J].解放军医学杂志,2008,33(3): 273-275.

[4] Li B,Zhao WZ,Chen BZ,et al. Zhongguo Zuzhi Gongcheng Yanjiu yu Linchuang Kangfu. 2010;14(13):2299-2302. 李斌,赵文志,陈秉智,等.全颈椎有限元模型的建立与验证[J].中国组织工程研究与临床康复,2010,14(13):2299-2302.

[5] Li XL. Shandong Yiyao. 2009;49(14):8-10. 李孝林.基于CT精细扫描构建人体胸腰段脊柱三维有限元模型的方法及意义[J].山东医药, 2009,49(14):8-10.

[6] Wang ZY,Liu ZD,Wang Z,et al. Shengwu Yixue Gongchengxue Zazhi. 2008;25(5):1084-1088. 汪正宇,刘祖德,王哲,等.青少年特发性脊柱侧凸有限元模型的建立及其意义[J].生物医学工程学杂志,2008,25(5):1084-1088.

[7] Diederich S, Lenzen H. Radiation exposure associated with imaging of the chest: comparison of different radiographic and computed tomography techniques. Cancer. 2000;89 (11 Suppl): 2457-2560.

[8] Golding SJ, Shrimpton PC.Commentary. Radiation dose in CT: are we meeting the challenge. Br J Radiol. 2002;75(889):1-4.

[9] Maikos JT, Qian Z, Metaxas D,et al. Finite element analysis of spinal cord injury in the rat. J Neurotrauma. 2008;25(7): 795-816.

[10] Farke AA. Frontal sinuses and head-butting in goats: a finite element analysis. J Exp Biol. 2008;211(Pt 19):3085-3094.

[11] Chen Y, Miao Y, Xu C,et al.Wound ballistics of the pig mandibular angle: a preliminary finite element analysis and experimental study. J Biomech. 2010;43(6):1131-1137.

[12] Li ZX,Zhang CL. Zhongguo Zuzhi Gongcheng Yanjiu yu Linchuang Kangfu. 2008;12(26):5189-5192. 李志香,张春林.兔股骨三维生物力学模型的建立[J].中国组织工程研究与临床康复, 2008,12(26):5189-5192.

[13] Shi J,Qiu WL,Jiang WB,et al. Zhongguo Kouqiang Hemian Waike Zazhi. 2007;5(3):220-224. 史俊,邱蔚六,姜闻博,等.兔下颌骨骨折三维有限元模型的建立[J].中国口腔颌面外科杂志,2007,5(3):220-224.

[14] Li YF,Hu M,Wu ZH,et al. Huaxi Kouqiang Yixue Zazhi.2009; 27(2):135-138. 李岩峰,胡敏,吴子恒,等.不完全截骨牵张成骨重建犬下颌骨节段缺失的有限元模型建立[J].华西口腔医学杂志,2009,27(2): 135-138.
