Finite element analysis of different tibial shaft fracture fixed by Locking compression plate under different movement gait

doi:10.3969/j.issn.2095-4344.2013.04.008

Abstract

Abstract:

BACKGROUND: In recent years, the finite element analysis has been widely used in the mechanical analysis of human fracture internal fixation model, but studies on the finite element analysis are often under the static state, the reports on the finite element analysis under physiological state are few.
OBJECTIVE: To explore the stress distribution of different tibial shaft fractures fixed by locking compression plate under different movement gaits through three-dimensional finite element analysis.
METHODS: CT scan was performed to obtain the thin layer scanning image of normal adult tibiofibula and foot; three-dimensional models were established by relative software, and then transverse, oblique, spiral, comminuted fractures were imitated on the models and combined with the locking plate to generate the experimental models. The models in each group were subjected to the same axial compression load of 600 N. The stress distribution of the models under heel-strike phase, the midstance phase and the push-off phase was analyzed with software Ansys 12.0.

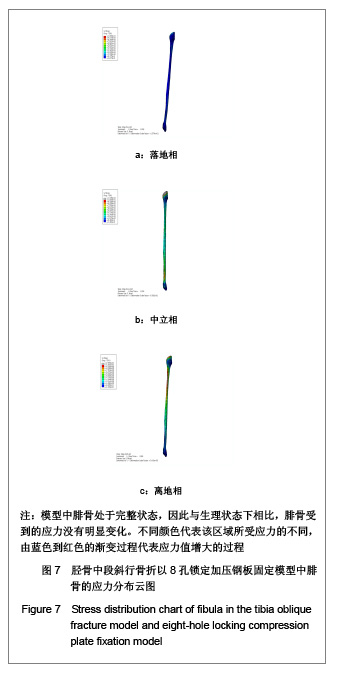

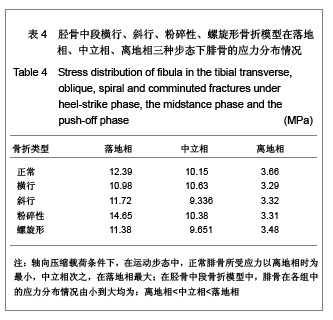

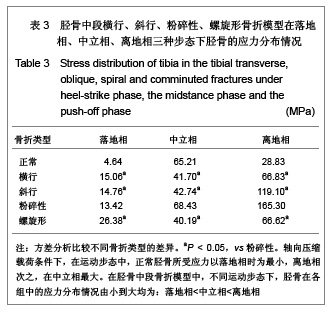

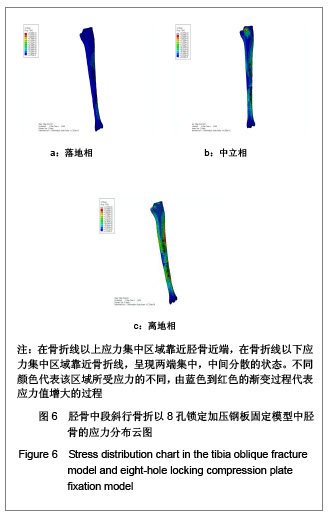

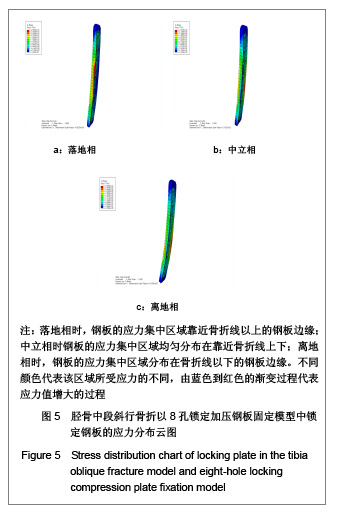

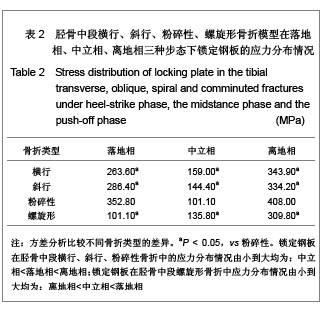

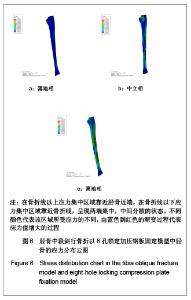

RESULTS AND CONCLUSION: Under this experimental model, the stress distribution of tibia in four groups from small to large was heel-strike phase < midstance phase < push-off phase; the stress distribution of locking compression plate in the tibial transverse, oblique and comminuted fractures from small to large was the midstance phase < the heel-strike phase < the push-off phase; stress distribution of locking compression plate in the tibial spiral fracture group from small to large was the push-off phase < the midstance phase < the heel-strike phase. Under the physiological state, the largest stress of the locking compression plate and the tibia were in the push-off phase. The stress distribution of the locking compression plate focused on the middle or edge of itself; while the stress distribution of the tibia focused on the proximal end above the fracture line and on the end under the fracture line. From the overall of the tibia, the stress distribution focused on both ends, and scattered on the middle.

Key words: bone and joint implants, three-dimensional finite element analysis of bone and joint, tibia, locking compression plate, movement gaits, finite element analysis, stress distribution, internal fixation, threshold, Hyper Mesh, modulus of elasticity, biomechanics, provincial grants-supported paper, photographs-containing paper of bone and joint implants

CLC Number:

R318

Li Yun-gang, Chen Wei-jian, Li Gui-tao, Sun Hong-tao, Yan Jian-hao, Wang Xiong-chang, Wang Jing. Finite element analysis of different tibial shaft fracture fixed by Locking compression plate under different movement gait[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(4): 612-619.

Figures/Tables 6
