Three-dimensional visualizational reconstruction of pedicled island skin flap with arterial arch at the superior border of abductor hallucis muscle

doi:10.3969/j.issn.2095-4344.2013.31.010

Abstract

Abstract:

BACKGROUND: At present, design of pedicled island skin flap with arterial arch at the superior border of abductor hallucis muscle mainly depends on clinician’s abstract thinking, which makes it difficult for quantitative analysis and exchange learning, and makes it limited in clinical application.
OBJECTIVE: To perform the three-dimensional reconstruction of pedicled island skin flap with arterial arch at the superior border of abductor hallucis muscle, and to establish visible models of the flap.

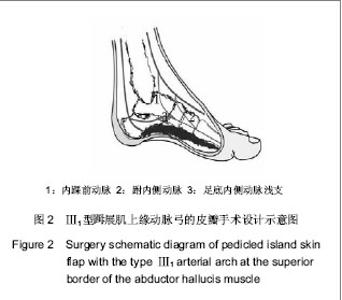

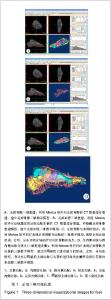

METHODS: One fresh adult cadaver specimen was collected and perfused with the mixture of lead oxide-gelatine through anterior tibial artery and posterior tibial artery, and then received spiral CT scanning. The branch of anterior medial malleolus artery, medial tarsal artery and the superficial branch of medial plantar artery as well as its anastomotic branch were reconstructed with mimics10.0 software, in order to observe the constitute, track-way and distribution of arterial arch at the superior border of abductor hallucis muscle. According to the feature of anatomical structures, reconstruction was conducted in skin and vessel to obtain three-dimensional arterial skin flap structure.
RESULTS AND CONCLUSION: The layers of three-dimensional reconstruction were distinctively displayed, and the arterial arch at the superior border of abductor hallucis muscle was displayed well with strong physical sense and clear relationship between skin and arteries. The morphology of various anatomical structures could be bserved clearly on the three-dimensional reconstruction image, especially the formation of arterial arch at the superior border of abductor hallucis muscle and its surface projection. Three-dimensional reconstruction of pedicled island skin flap with arterial arch at the superior border of abductor hallucis muscle may provide great value for basic research, clinical experiments and surgical planning, and provide visual reference for the individual operation design and can be able to enhance the successful rate of surgery.

Key words: organ transplantation, tissue transplantation, adductor hallucis, island flap, foot, applied anatomy, digitization, three-dimensional reconstruction, National 863 program of China

CLC Number:

R318

Tan Wei, Li Dong-sheng, Li Xu, Huang Wen-hua. Three-dimensional visualizational reconstruction of pedicled island skin flap with arterial arch at the superior border of abductor hallucis muscle[J]. Chinese Journal of Tissue Engineering Research, doi: 10.3969/j.issn.2095-4344.2013.31.010.

Figures/Tables 2

References

[1] KassM, Witkin A, Terzopoulos D. Snakes: Active Contour Models. Inter J of ComP Visi. 1988;1(1): 321-331.

[2] Gibson S, Fyock C, Grimson E,et al.Volumetric object modeling for surgical simulation.Med Image Anal. 1998;2(2): 121-132.

[3] Hamada N, Ikuta Y, Ikeda A.Arteries to the great and second toes based on three-dimensional analysis of 100 cadaveric feet.Surg Radiol Anat. 1993;15(3):187-192.

[4] Unger EC, Schilling JD, Awad AN,et al. MR angiography of the foot and ankle.J Magn Reson Imaging. 1995;5(1):1-5.

[5] Ebisudani S.Three-dimensional analysis of the arterial patterns of the lateral plantar region.Scand J Plast Reconstr Surg Hand Surg. 2008;42(4):174-181.

[6] Chan JW, Wong C, Ward K,et al.Three- and four-dimensional computed tomographic angiography studies of the supraclavicular artery island flap.Plast Reconstr Surg. 2010; 125(2):525-531.

[7] Mei J, Yin Z, Zhang J,et al. A mini pig model for visualization of perforator flap by using angiography and MIMICS.Surg Radiol Anat. 2010;32(5):477-484.

[8] Foley WD, Stonely T.CT angiography of the lower extremities.Radiol Clin North Am. 2010;48(2):367-396.

[9] Tang M, Geddes CR, Yang D, et al. Modified lead oxide-gelatin injection technique for vascular studies. J Clin Anat. 2002; 1(1): 73-78.

[10] 楼新法,梅劲,Christopher R,等.明胶-氧化铅血管造影术的优化[J].中国临床解剖学杂志, 2006, 24(2): 259.

[11] Rees MJ, Taylor GI.A simplified lead oxide cadaver injection technique. Plast Reconstr Surg. 1986;77(1):141-145.

[12] 李常辉,王增涛,缪博,等.第1跖骨颈部跖侧动脉分布及吻合的临床解剖研究[J].中国临床解剖学杂志,2007,25(6):625-631.

[13] Gupta A.The versatile medial plantar artery and its flaps.Ann Plast Surg. 2007;58(3):348.

[14] 毛海蛟,尹维刚,史增元.足内侧逆行岛状皮瓣的应用解剖[J].中国临床解剖学志, 2009, 27(3): 279-282.

[15] 谭为,徐达传,张伟,等.展肌上缘动脉弓的分型及其临床意义[J].中国临床解剖学杂志,2012,30(2):141-148.

[16] 谭为,古丽扎尔•阿布都热西提,黄文华,等.展肌上缘动脉弓为蒂逆行岛状皮瓣修复前足底皮肤缺损的应用解剖[J].南方医科大学学报,2012,32(11):1592-1596.

[17] Rees MJ, Taylor GI. A simplified lead oxide cadaver injection technique. Plast Reconstr Surg. 1986;77(1):141-145.

[18] Wu WC, Chang YP, So YC,et al.The combined use of flaps based on the subscapular vascular system for limb reconstruction.Br J Plast Surg. 1997;50(2):73-80.

[19] Taylor GI, Palmer JH.The vascular territories (angiosomes) of the body: experimental study and clinical applications. Br J Plast Surg. 1987;40(2):113-141.

[20] Lu S, Xu Y, Zhang Y,et al.Application of computed tomography angiography in visualize of latissimus dorsi myocutaneous flap transplantation. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2009;23(7):818-821.

[21] Gacto-Sánchez P, Sicilia-Castro D, Gómez-Cía T,et al. Computed tomographic angiography with VirSSPA three-dimensional software for perforator navigation improves perioperative outcomes in DIEP flap breast reconstruction. Plast Reconstr Surg. 2010;125(1):24-31.

[22] Tang M, Ding M, Almutairi K,et al.Three-dimensional angiography of the submental artery perforator flap.J Plast Reconstr Aesthet Surg. 2011;64(5):608-613.

[23] Ji WP, Li H, Huang YB,et al. Digital anatomy of the perforator flap in the thigh.Zhonghua Zheng Xing Wai Ke Za Zhi. 2012; 28(2):96-100.

[24] Wang WH, Deng JY, Li M,et al. Preoperative three-dimensional reconstruction in vascularized fibular flap transfer.J Craniomaxillofac Surg. 2012;40(7):599-603.

[25] Yin ZX, Peng TH, Ding HM,et al.Three-dimensional visualization of the cutaneous angiosome using angiography. Clin Anat. 2013;26(2):282-287.

[26] Stokes R, Whetzel TP, Stevenson TR.Three-dimensional reconstruction of the below-knee amputation stump: use of the combined scapular/parascapular flap.Plast Reconstr Surg. 1994;94(5):732-736.

[27] Lorensen WE,Cline HE. Marching cubes:a high-resolution 3-D surface construction algorithm. Comput Graph. 1987;21: 163-169.

[28] Pan WR, Cheng NM, Vally F.A modified lead oxide cadaveric injection technique for embalmed contrast radiography.Plast Reconstr Surg. 2010;125(6):261e-2e.

[29] Saint-Cyr M, Schaverien M, Arbique G,et al.Three- and four-dimensional computed tomographic angiography and venography for the investigation of the vascular anatomy and perfusion of perforator flaps.Plast Reconstr Surg. 2008;121(3): 772-780.

[30] Taylor GI, Gianoutsos MP, Morris SF.The neurovascular territories of the skin and muscles: anatomic study and clinical implications. Plast Reconstr Surg. 1994;94(1):1-36.

[31] Rees MJ, Taylor GI. A simplified lead oxide cadaver injection technique. Plast Reconstr Surg. 1986;77(1):141-145.

[32] Zhang YZ, Li YB, Jiang YH,et al.Three-dimensional reconstructive methods in the visualization of anterolateral thigh flap.Surg Radiol Anat. 2008;30(1):77-81.

[33] 徐凯,裴国献,张元智,等.基于个人计算机对足背供区移植皮瓣的三维可视化设计[J]．中国组织工程研究与临床康复,2007, 11(25):4879-4882.

[34] 张元智,李严兵,唐茂林.数字化与虚拟现实技术在皮瓣移植中的应用[J].中华创伤骨科杂志,2006,8(6):501-504.

[35] 张志浩,李严斌,梅劲.应用放射造影术进行血管3D可视化研究初探[J].中国临床解剖学杂志,2006,24(3):255-258.

[36] 杨大平,唐茂林,Geddes CR.皮肤穿支血管的解剖学研究[J].中国临床解剖学杂志,2006,24(3):232-235.

[37] Tang M, Yin Z, Morris SF. A pilot study on three-dimensional visualization of perforator flaps by using angiography in cadavers. Plast Reconstr Surg. 2008;122(2):429-437.

[38] Chu HW, Shi FP, Chen GF. Application of CAD/CAM technique in three-dimensional reconstruction of zygomatic complex defect.Zhejiang Da Xue Xue Bao Yi Xue Ban. 2012; 41(3):245-249.

[39] 丁自海,钟世镇.微创外科解剖学研究中存在的问题及对策[J].中国临床解剖学杂志, 2005, 23(2): 115-117.

[40] 梅劲,宋铁山,戴开宇,等.人体皮动脉的解剖学定位定量研究[J].中国临床解剖学杂志,2006,24(3):236-239.

[41] 原晓景,徐达传,高成杰,等.螺旋CT三维重建成人髋关节周围血管的初步研究[J].中国临床解剖学杂志,2006,24(1):43-46．

[42] 胡罢生,张雪林,周锋,等.多层螺旋CT扫描三维重建后逐层显示解剖结构及临床意义[J].中国临床解剖学杂志,2006,24(1): 47-49．

[43] Spitzer MJ, Kramer M, Neukam FW,et al.Validation of optical three-dimensional plagiocephalometry by computed tomography, direct measurement, and indirect measurements using thermoplastic bands.J Craniofac Surg. 2011;22(1): 129-134.
