Effects of unilateral biportal endoscopic transforaminal lumbar interbody fusion on paraspinal muscles

doi:10.12307/2025.831

Abstract

Abstract: BACKGROUND: With the development of unilateral biportal endoscopic technology, endoscopic lumbar fusion surgery has become an increasingly popular development trend in spinal surgery. Unilateral biportal endoscopic transforaminal lumbar interbody fusion shows significant advantages for preserving paravertebral muscle and reducing intraoperative bleeding in spinal stenosis and lumbar spondylolisthesis in the lumbar spine with degenerative changes.
OBJECTIVE: To compare the effects of unilateral biportal endoscopic lumbar interbody fusion and traditional open transluminal lumbar interbody fusion on paraspinal muscles.
METHODS: A retrospective analysis was conducted on the clinical data of 60 patients who visited the Department of Spine Surgery, Second Affiliated Hospital of Soochow University from October 2019 to November 2022 and underwent single segment unilateral decompression fusion. They were divided into two groups according to different surgical procedures. Group A received unilateral biportal endoscopic lumbar interbody fusion. Group B received traditional open transluminal lumbar interbody fusion. All patients underwent magnetic resonance imaging examination before and 3 months after surgery. Basic patient information, last follow-up time, magnetic resonance imaging images, visual analog scale scores for lower back and leg pain, and Oswestry Disability Index were collected.

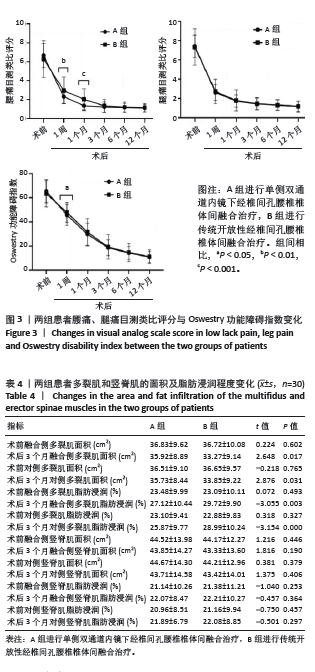

RESULTS AND CONCLUSION: (1) Three months after surgery, the cross-sectional area of the bilateral multifidus muscle in group A was significantly larger than that of group B (P < 0.05), and the degree of fat infiltration was lower (P < 0.01). (2) There was no significant difference in the cross-sectional area and degree of fat infiltration of bilateral erector spinae muscles between the two groups 3 months after surgery (P > 0.05). (3) It is concluded that unilateral biportal endoscopic lumbar interbody fusion is more effective than traditional open transluminal lumbar interbody fusion in protecting multifidus muscle, reducing multifidus muscle atrophy and fat infiltration. Both surgical methods did not have a significant impact on the erector spine muscle.

Key words: unilateral biportal endoscopy, lumbar interbody fusion through intervertebral foramen, lumbar disc herniation, paraspinal muscle injury, multifidus muscle, magnetic resonance imaging, pain, orthopedic implant

CLC Number:

R459.9|R318|R681.5

Wang Qianliang, Zhang Qianzhongyi, Peng Yujian, Yan Jun.

Effects of unilateral biportal endoscopic transforaminal lumbar interbody fusion on paraspinal muscles

[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(27): 5862-5868.

Figures/Tables 4

References

[1] MOBBS RJ, PHAN K, MALHAM G, et al. Lumbar interbody fusion: techniques, indications and comparison of interbody fusion options including PLIF, TLIF, MI-TLIF, OLIF/ATP, LLIF and ALIF. J Spine Surg. 2015;1(1):2-18.
[2] KONG F, ZHOU Q, QIAO Y, et al. [Comparison of unilateral biportal endoscopic transforaminal lumbar interbody fusion versus minimally invasive tubular transforaminal lumbar interbody fusion for lumbar degenerative disease]. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2022;36(5):592-599.
[3] DING Q, TANG X, ZHANG R, et al. Do Radiographic Results of Transforaminal Lumbar Interbody Fusion Vary with Cage Position in Patients with Degenerative Lumbar Diseases? Orthop Surg. 2022; 14(4):730-741.
[4] KANG MS, HEO DH, KIM HB, et al. Biportal Endoscopic Technique for Transforaminal Lumbar Interbody Fusion: Review of Current Research. Int J Spine Surg. 2021;15(suppl 3):S84-S92.
[5] KIM JE, YOO HS, CHOI DJ, et al. Comparison of Minimal Invasive Versus Biportal Endoscopic Transforaminal Lumbar Interbody Fusion for Single-level Lumbar Disease. Clin Spine Surg. 2021;34(2):E64-E71.
[6] SONG KS, LEE CW, MOON JG. Biportal Endoscopic Spinal Surgery for Bilateral Lumbar Foraminal Decompression by Switching Surgeon’s Position and Primary 2 Portals: A Report of 2 Cases With Technical Note. Neurospine. 2019;16(1):138-147.
[7] HEO DH, SON SK, EUM JH, et al. Fully endoscopic lumbar interbody fusion using a percutaneous unilateral biportal endoscopic technique: technical note and preliminary clinical results. Neurosurg Focus. 2017;43(2):E8.
[8] GUO W, YE J, LI T, et al. Evaluation of the learning curve and complications in unilateral biportal endoscopic transforaminal lumbar interbody fusion: cumulative sum analysis and risk-adjusted cumulative sum analysis. J Orthop Surg Res. 2024;19(1):194.
[9] TIAN D, LIU J, ZHU B, et al. Unilateral biportal endoscopic extreme transforaminal lumbar interbody fusion with large cage combined with endoscopic unilateral pedicle screw fixation for lumbar degenerative diseases: a technical note and preliminary effects. Acta Neurochir (Wien). 2023;165(1):117-123.
[10] HEO DH, KIM JS, PARK CW, et al. Contralateral Sublaminar Endoscopic Approach for Removal of Lumbar Juxtafacet Cysts Using Percutaneous Biportal Endoscopic Surgery: Technical Report and Preliminary Results. World Neurosurg. 2019;122:474-479.
[11] PARK JH, JUN SG, JUNG JT, et al. Posterior Percutaneous Endoscopic Cervical Foraminotomy and Diskectomy With Unilateral Biportal Endoscopy. Orthopedics. 2017;40(5):e779-e783.
[12] HEO DH, EUM JH, JO JY, et al. Modified far lateral endoscopic transforaminal lumbar interbody fusion using a biportal endoscopic approach: technical report and preliminary results. Acta Neurochir (Wien). 2021;163(4):1205-1209.
[13] YOU X, ZHAO B, ZHANG T, et al. Clinical Efficacy of Unilateral Dual-channel Endoscopic Lumbar Interbody Fusion for Lumbar Spondylolisthesis with Spinal Scoliosis. Orthop Surg. 2024;16(5):1134-1142.
[14] FU H, HU Y, YANG D, et al. [Comparison of effectiveness between unilateral biportal endoscopic decompression and unilateral biportal endoscopic lumbar interbody fusion for degree Idegenerative lumbar spondylolisthesis]. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2024; 38(2):169-175.
[15] KIM JE, CHOI DJ. Biportal Endoscopic Transforaminal Lumbar Interbody Fusion with Arthroscopy. Clin Orthop Surg. 2018;10(2): 248-252.
[16] GATAM AR, GATAM L, MAHADHIPTA H, et al. Unilateral Biportal Endoscopic Lumbar Interbody Fusion: A Technical Note and an Outcome Comparison with the Conventional Minimally Invasive Fusion. Orthop Res Rev. 2021;13:229-239.
[17] SIHVONEN T, HERNO A, PALJARVI L, et al. Local denervation atrophy of paraspinal muscles in postoperative failed back syndrome. Spine (Phila Pa 1976). 1993;18(5):575-581.
[18] HAN G, JIANG Y, ZHANG B, et al. Imaging Evaluation of Fat Infiltration in Paraspinal Muscles on MRI: A Systematic Review with a Focus on Methodology. Orthop Surg. 2021;13(4):1141-1148.
[19] LIN GX, HUANG P, KOTHEERANURAK V, et al. A Systematic Review of Unilateral Biportal Endoscopic Spinal Surgery: Preliminary Clinical Results and Complications. World Neurosurg. 2019;125:425-432.
[20] KIM N, JUNG SB. Biportal endoscopic spine surgery in the treatment of multi-level spontaneous lumbar epidural hematoma: Case report. J Orthop Sci. 2022;27(1):288-291.
[21] HIRA K, NAGATA K, HASHIZUME H, et al. Relationship of sagittal spinal alignment with low back pain and physical performance in the general population. Sci Rep. 2021;11(1):20604.
[22] HIYAMA A, KATOH H, SAKAI D, et al. The correlation analysis between sagittal alignment and cross-sectional area of paraspinal muscle in patients with lumbar spinal stenosis and degenerative spondylolisthesis. BMC Musculoskelet Disord. 2019;20(1):352.
[23] MUELLNER M, HAFFER H, MOSER M, et al. Paraspinal musculature impairment is associated with spinopelvic and spinal malalignment in patients undergoing lumbar fusion surgery. Spine J. 2022;22(12): 2006-2016.
[24] LV Y, CHEN M, WANG SL, et al. Endo-TLIF versus MIS-TLIF in 1-segment lumbar spondylolisthesis: A prospective randomized pilot study. Clin Neurol Neurosurg. 2022;212:107082.
[25] LIN GX, YAO ZK, ZHANG X, et al. Evaluation of the Outcomes of Biportal Endoscopic Lumbar Interbody Fusion Compared with Conventional Fusion Operations: A Systematic Review and Meta-Analysis. World Neurosurg. 2022;160:55-66.
[26] CHOI DJ, CHOI CM, JUNG JT, et al. Learning Curve Associated with Complications in Biportal Endoscopic Spinal Surgery: Challenges and Strategies. Asian Spine J. 2016;10(4):624-629.
[27] KIM JE, YOO HS, CHOI DJ, et al. Learning Curve and Clinical Outcome of Biportal Endoscopic-Assisted Lumbar Interbody Fusion. Biomed Res Int. 2020;2020:8815432.
[28] KIM SK, KANG SS, HONG YH, et al. Clinical comparison of unilateral biportal endoscopic technique versus open microdiscectomy for single-level lumbar discectomy: a multicenter, retrospective analysis. J Orthop Surg Res. 2018;13(1):22.
[29] PANG D, YANG J, HAI Y, et al. Changes in paraspinal muscles and facet joints after percutaneous endoscopic transforaminal lumbar interbody fusion for the treatment of lumbar spinal stenosis: A 3-year follow-up. Front Surg. 2022;9:1041105.
[30] KAWAGUCHI Y, MATSUI H, TSUJI H. Back muscle injury after posterior lumbar spine surgery. Part 2: Histologic and histochemical analyses in humans. Spine (Phila Pa 1976). 1994;19(22):2598-2602.
