Immunostimulation combined with liquid nitrogen freezing to construct a rat model of atherosclerotic vulnerable plaque

doi:10.3969/j.issn.2095-4344.2924

Abstract

Abstract:

BACKGROUND: Vulnerable plaque is the pathological basis of acute cardiac and cerebrovascular ischemic events. Establishing a suitable animal vulnerable plaque model is of great significance for guiding the prevention and treatment of cardiovascular and cerebrovascular diseases. However, there is no well-established method for constructing the vulnerable plaque model.

OBJECTIVE: To investigate whether immunostimulation can cooperate with liquid nitrogen freezing to establish an atherosclerotic vulnerable plaque model in rats, aiming to replicate the widely applicable atherosclerotic model.

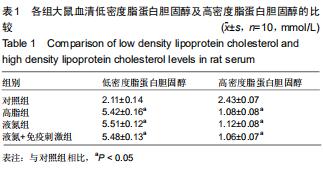

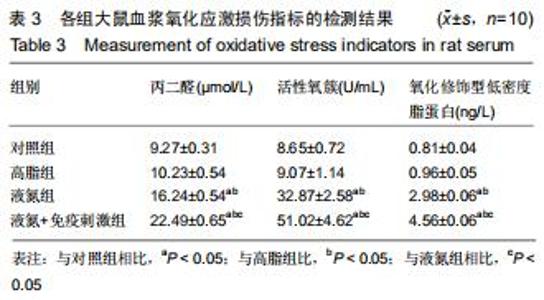

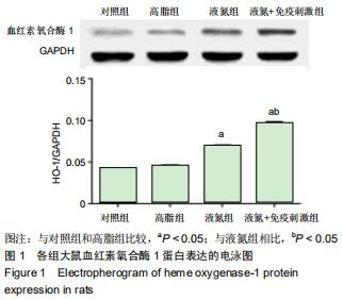

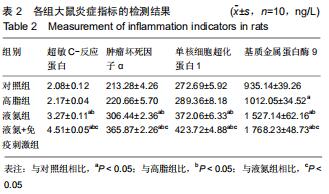

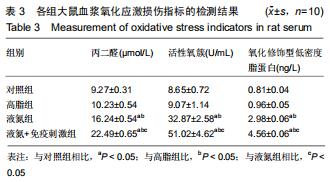

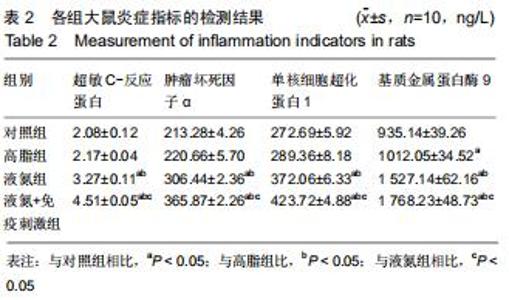

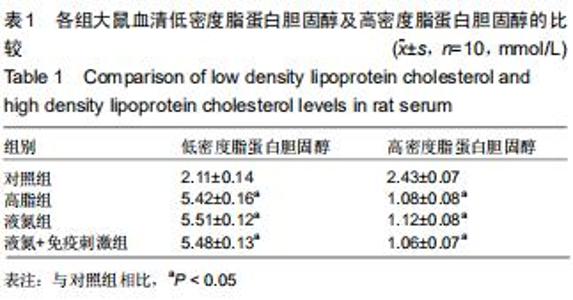

METHODS: Forty male Sprague-Dawley rats were randomly divided into four groups after 1 week of adaptive feeding, namely, control group, high-fat group, liquid nitrogen group, immunostimulation + liquid nitrogen group. After 2 weeks of conventional diet and special high-fat diet, respectively, the rats in the control group and the other groups were given a single dose of vitamin D3 injection through the abdominal cavity. Rats in the control and high-fat diet groups were subjected to sham operation with no immunostimulation and liquid nitrogen freezing, and given routine diet and special high-fat diet for 10 weeks respectively. Rats in the liquid nitrogen group and immunostimulation + liquid nitrogen group were given liquid nitrogen freezing, followed by 10 weeks of high-fat diet. During this period, the rats in the immunostimulation + liquid nitrogen group were given subcutaneous injection of bovine serum albumin (3 times per week, for 3 weeks) and intraperitoneal injection of ovalbumin (3 days interval, 5 times in total). At 10 weeks after modeling, blood samples were taken to detect blood lipid index, inflammation and oxidative stress injury index, and heme oxygenase-1 (HO-1) protein expression in rats. The target blood vessel segments of each group were executed for hematoxylin-eosin staining, and the pathological changes of atherosclerotic plaques were observed under light microscopy. The study protocol was approved by the Animal Ethics Committee of Southwest Medical University, with an approval No. IACUC:20170917006.

RESULTS AND CONCLUSION: Compared with the control group, there were no significant changes in cholesterol level, inflammatory and oxidative stress index, HO-1 protein expression and histopathological examination in the high-fat group (P > 0.05). Compared with the control and high-fat groups, the levels of serum lipids, inflammatory and oxidative stress indicators and HO-1 protein expression in the liquid nitrogen and immunostimulation + liquid nitrogen groups were significantly increased (P < 0.05). Histopathological examination also indicated that there were obvious plaques, and the increasing trend in the immunostimulation + liquid nitrogen group was more significant (P < 0.05). Compared with the liquid nitrogen group, the levels of serum lipids, inflammatory and oxidative stress indexes and HO-1 protein expression in the immunostimulation + liquid nitrogen group were significantly increased (P < 0.05), and histopathological examination also showed more obvious atherosclerotic plaques. Therefore, immunostimulation could accelerate the formation of rat common carotid atherosclerotic vulnerable plaque model in cooperation with liquid nitrogen freezing injury, which lays a foundation for the intervention experiment of atherosclerotic disease.

Key words: experiment, model, rat, immune, freezing, atherosclerosis, vascular construction, common carotid artery

CLC Number:

Wei Gang, Gao Shangyuan, Zhang Ying, Huang Weiyi. Immunostimulation combined with liquid nitrogen freezing to construct a rat model of atherosclerotic vulnerable plaque[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(35): 5656-5661.

Figures/Tables 5

References

[1] NAHAPETYAN H, MOULIS M, GROUSSET E, et al. Altered mitochondrial quality control in Atg7-deficient VSMCs promotes enhanced apoptosis and is linked to unstable atherosclerotic plaque phenotype. Cell death disease.2019;10(2):119.

[2] GABRIONE F,OBERTI L,NARDONE M, et al. Why patients with cardiovascular risks go to dentists. Is there sufficient evidence of influence of periodontal therapy on cardiovascular disease? Journal of biological regulators and homeostatic agents.2019; 33(null):113-119.

[3] SPARTALIS M,SPARTALIS E,ATHANASIOU A,et al.The role of the endothelium in premature atherosclerosis: Molecular mechanisms. Current medicinal chemistry. 2020;27(7): 1041-1051.

[4] WU MY, LI CJ, HOU M, et al. New Insights into the Role of Inflammation in the Pathogenesis of Atherosclerosis. 2017; 18(10):2034.

[5] KATTOOR AJ, POTHINENI NVK, PALAGIRI D, et al. Oxidative Stress in Atherosclerosis.Current atherosclerosis reports.2017; 19(11):42.

[6] 黄爱良,黄荣志,黄小倩,等.动脉粥样硬化动物模型构建的方法与现状[J].中国组织工程研究,2015,19(27):4423-8.

[7] MEHRAD H, MOKHTARI-DIZAJI M, GHANAATI H. Developing a rabbit model of neointimal stenosis and atherosclerotic fibrous plaque rupture. The journal of Tehran Heart Center.2011;6(3): 117-125.

[8] 张安邦,黄昕,李令根,等.复合方法制备SD大鼠动脉粥样硬化模型[J].中国中西医结合外科杂志,2015,21(3):282-5.

[9] 王双双,王丽丽,杨升华,等.改良液氮冻伤法建立易损动脉粥样硬化斑块模型[J].中国老年学杂志,2014,34(21):6082-6085.

[10] CHAUDHARY R, WALDER KR, HAGEMEYER CE, et al. Psammomys obesus: a Natural Diet-Controlled Model for Diabetes and Cardiovascular Diseases.Curr Atheroscler Rep. 2018;20(9):46.

[11] JIANG L，TU Y，KIMURA RH，et al．64Cu-labeled divalent cystine knot peptide for imaging carotid atherosclerotic plaques.J Nucl Med.2015; 56(6) :939-944.

[12] HINIKARIDOU A, ANDIA ME, INDERMUEHLE A, et al. Vascular remodeling and plaque vulnerability in a rabbit model of atherosclerosis: comparison of delayed-enhancement MR imaging with an elastin-specific contrast agent and unenhanced black-blood MR imaging.Radiology.2014;271(2):390-399．

[13] SUN X, CAO W, CUI JJ, et al. An animal model of atherosclerotic plaque disruption and thrombosis in rabbit using pharmacological triggering to plaques induced by perivascular collar placement. Cardiovasc Pathol.2013;22(4):264-269．

[14] SCHURGERS LJ, JOOSEN IA, LAUFER EM, et al. Vitamin K-antagonists accelerate atherosclerotic calcification and induce a vulnerable plaque phenotype.PLoS One.2012;7(8):e43229．

[15] CHEN L, LI X, LI C, et al. Chinese Herbal Cardiotonic Pill Stabilizes Vulnerable Plaques in Rabbits by Decreasing the Expression of Adhesion Molecules.J Cardiovasc Pharmacol. 2016;68(3):215-222.

[16] CIMMINO G, LOFFREDO FS, MORELLO A, et al. Immune- Inflammatory Activation in Acute Coronary Syndromes: A Look into the Heart of Unstable Coronary Plaque.Curr Cardiol Rev. 2017;13(2):110-117.

[17] LU JX, GUO C, OU WS, et al. Citronellal prevents endothelial dysfunction and atherosclerosis in rats.2019;120(3):3790-800.

[18] WANG SS, HU SW,ZHANG QH, et al. Mesenchymal Stem Cells Stabilize Atherosclerotic Vulnerable Plaque by Anti-Inflammatory Properties.PloS one.2015;10(8):e0136026.

[19] SUNG KC, KANG SM, CHO EJ, et al. Ferritin is independently associated with the presence of coronary artery calcium in12033 men. Arterioscler Thromb Vasc Biol.2012;32:2525- 2530.

[20] 张安邦,黄昕,李令根,等.复合方法制备SD大鼠动脉粥样硬化模型[J].中国中西医结合外科杂志,2015,21(3):282-285.

[21] MURY P, CHIRICO EN, MURA M, et al. Oxidative Stress and Inflammation, Key Targets of Atherosclerotic Plaque Progression and Vulnerability: Potential Impact of Physical Activity. Sports medicine (Auckland, NZ).2018;48(12):2725-2741.

[22] EL-ASHMAWY HM, SELIM FO, HOSNY TAM, et al. Association of low serum Meteorin like (Metrnl) concentrations with worsening of glucose tolerance, impaired endothelial function and atherosclerosis. Diabetes research and clinical practice.2019;150: 57-63.

[23] LI F, SUN XJ, XIE H, et al. The relationship between chronic periodontitis and the instability of carotid atherosclerotic plaque by serum level of MMP-9, MCP-1 and MMP-7.Shanghai Kou Qiang Yi Xue. 2015 Oct;24(5):589-593.

[24] DAI R, DONG J, LI W, et al. Antibody to oxidized low-density lipoprotein inhibits THP1 cells from apoptosis by suppressing NF-κB pathway activation. Cardiovascular diagnosis and therapy. 2019;9(4):355-361.

[25] MORENO PR. Vulnerable plaque: definition, diagnosis, and treatment. Cardiol Clin. 2010;28(1):1-30.

[26] HANSSON GK, LIBBY P, TABAS I. Inflammation and plaque vulnerability. J Intern Med.2015;278(5): 483-493.
