Prosthetic matching of knee valgus for total knee arthroplasty: three-dimensional digital measurement and analysis

doi:10.3969/j.issn.2095-4344.2015.17.026

Abstract

Abstract:

BACKGROUND: Knee valgus deformity often needs total knee arthroplasty. The choice of prosthesis in total knee arthroplasty significantly affects the long-term effects. The currently used prosthesis is designed based on the data of western countries, which cannot well match with Chinese data.

OBJECTIVE: To observe the abnormality of anatomical morphology of the femoral condyle and tibial plateau, and provide anatomical data for total knee arthroplasty in treatment of knee valgus deformity.

METHODS: 41 adult patients (53 knees) with knee valgus deformity were detected with CT scan, the obtained images were imported into Mimics 10.01 software, and digital three-dimensional model was established. The anatomical parameters were measured, and the distribution and correlation were analyzed. The knee joint parameters between knee valgus deformity patients and healthy normal knee in single deformity patients (control group, n=29) were compared

RESULTS AND CONCLUSION: X-ray findings showed that, tibiofemoral angle of knee valgus was (15.4±5.1)°, anatomical lateral distal femoral angle at coronal plane (76.6±1.2)° was decreased, and anatomical medial posterior tibia angle (95.8±0.5)° was increased. CT findings showed that, the distal condylar angle (6.5±1.3)° was increased, the poster condylar angle (5.2±1.2)° was also increased. There were significant differences compared with the control group (P < 0.05). In the total knee arthroplasty of knee valgus deformity, anatomical abnormality of femoral condyle and tibial plateau should be noted.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: Knee Valgus, Arthroplasty, Replacement, Knee, Imaging, Three-dimensional, Anatomy

CLC Number:

R318

Yuan Jing, Zhen Ping, Song Yan-feng, Wang De-gui, Gao Ming-xuan, Li Sheng-gui. Prosthetic matching of knee valgus for total knee arthroplasty: three-dimensional digital measurement and analysis[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(17): 2768-2774.

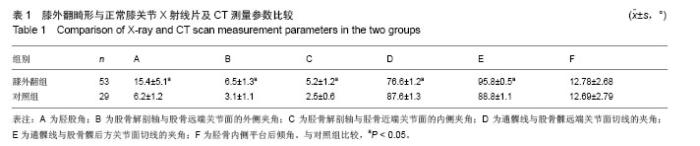

Figures/Tables 1

References

[1]Koskinen E, Remes V, Paavolainen P, et al. Results of total knee replacement with a cruciate-retaining model for severe valgus deformity-A study of 48 patients followed for an average of 9years. Knee. 2011;18(3):145-150.
[2]Nikolopoulos D, Polyzois I, Apostolopoulos A, et al. Total knee arthroplasty in severe valgus knee deformity: comparison of a standard medial parapatellar approach combined with tibial tubercle osteotomy. Knee Surg. 2011;19(11):1834-1842.
[3]Luo J w, Yu B, Qin CH. Measurement of rotational alignment of the distal femur in total knee arthroplasty. Orthop Surg. 2009; 1(3):203-206.
[4]Stevens-Lapsley JE, Schenkman ML, Dayton MR. Comparison of self-reported knee injury and osteoarthritis outcome score to performance measures in patients after total knee arthroplasty. PM R. 2011;3(6):541-549.
[5]Tang WM, Chiu KY, Kwan MF, et al. Sagittal bowing of the distal femur in Chinese patients who require total knee arthroplasty. J Orthop Res. 2005;23(1):41-45.
[6]Bertin KC, Lloyd WW. Effect of Total Knee Prosthesis Design on Patellar Tracking and Need for Lateral Retinacular Release. J Arthroplasty. 2013;28(5):772-777.
[7]Peck JN, Marcellin‐Little DJ. Revision strategies for total hip replacement. Adv Small Anim Total Joint Replacement. 2012: 109-130.
[8]Kader DF. Knee oral core topics. Postgraduate Orthopaedics: The Candidate's Guide to the FRCS (Tr and Orth) Examination.2012: 218.
[9]Bourne RB, Chesworth BM, Davis AM, et al. Patient satisfaction after total knee arthroplasty: who is satisfied and who is not? Clin Orthop Relat Res. 2010;468(1):57-63.
[10]Lee HJ, Lee JS, Jung HJ, et al. Comparison of joint line position changes after primary bilateral total knee arthroplasty performed using the navigation-assisted measured gap resection or gap balancing techniques. Knee Surg Sports Traumatol Arthrosc. 2011;19(12):2027-2032.
[11]Engh GA. Total Knee Replacement: Medial Release via Osteotomy. Surg Tech Knee. 2011:171.
[12]Morsi E, Habib ME, Hadhoud M. Comparison Between Results of High Tibial Osteotomy Above and Below Tibial Tubercle in Relation to Future Total Knee Arthroplasty. J Arthroplasty. 2014;29(11):2087-2090.
[13]Matsumoto T, Muratsu H, Kubo S, et al. Soft tissue balance using the tibia first gap technique with navigation system in cruciate-retaining total knee arthroplasty. Int Orthop. 2012; 36(5):975-980.
[14]胡翰生,王静成,熊传芝,等.应用数字化术前计划预测全膝置换中的假体尺寸[J].中国组织工程研究,2014,18(40): 6432-6437.
[15]张博,潘江,林源,等.国人膝关节参数对假体设计的意义[J].中国组织工程研究, 2010,14(48):8941-8944.
[16]Wang T, Wang KZ, Wang W, et al. Imaging measurement of normal knee in Northwestern aged people and its clinical significance in total knee arthroplasty. Xi'an Jiaotong Daxue Xuebao. 2010;2:25.
[17]Dror P, ed. Principles of deformity correction. New York: Springer, 2003:47.
[18]Lustig S, Lavoie F, Selmi TA, et al. Relationship between the surgical epicondylar axis and the articular surface of the distal femur: an anatomic study. Knee Surg Sports Traumatol Arthrosc. 2008;16(7): 674-682.
[19]罗吉伟,史占军,陈国奋,等.胫骨内侧平台后倾角的测量及其在膝关节置换术中的意义[J]. 中华关节外科杂志(电子版), 2008, 1(4): 227-229.
[20]Deschamps G, Bussière C, Donell S. Fixed bearing unicompartmental knee prosthesis: Results, complications, and technical considerations//The Knee Joint. Springer Paris, 2012: 669-684.
[21]Chiu K, Zhang S, Zhang G. Posterior slope of tibial plateau in Chinese. J Arthroplasty. 2000;15(2): 224-227.
[22]Aglietti P, Lup D, Cuomo P, et al. Total knee arthroplasty using a pie-crusting technique for valgus deformity. Clin Orthop Relat Res. 2007;464:73-77.
[23]Pagoti R, O'Brien S, Doran E, et al. Modified surgical technique for valgus knee deformity in total knee arthroplasty: a prospective study of 276 knees. J Bone Joint Surg. 2012; 94(SUPP IX):9.
[24]Williot A, Rosset P, Favard L, et al. Total knee arthroplasty in valgus knee. Orthop Traumatol Surg Res. 2010;96(4): S37-S42.
[25]Hadjicostas P, Soucacos P, Thielemann F. Computer-assisted osteotomy of the lateral femoral condyle with non-constrained total knee replacement in severe valgus knees. J Bone Joint Surg. 2008;90(11):1441-1445.
[26]Argenson JN, Bellemans J, Dodd C, et al. Tips and Pitfalls in Unicompartmental Knee Arthroplasty (UKA). ESSKA Instructional Course Lecture Book. Springer, 2014: 177-183.
[27]Buechel FF, Pappas MJ. The Knee. Principles of Human Joint Replacement. Springer, 2012:223-322.
[28]Strauch M, von Eisenhart Rothe R, Graichen H. A new navigation-based technique for lateral distalizing condylar osteotomy in patients undergoing total knee arthroplasty with fixed valgus deformity. Knee Surg Sports Traumatol Arthrosc. 2013;21(10):2263-2270.
[29]Ensini A, Barbadoro P, Leardini A, et al. TKA: Measured Resection Technique. Knee Surgery using Computer Assisted Surgery and Robotics. Springer, 2013:27-42.
[30]Richmond JC. Surgery for osteoarthritis of the knee. Rheum Dis Clin North Am. 2013;39(1):203-211.
[31]Dejour H, Walch G, Deschamps G, et al. Arthrosis of the knee in chronic anterior laxity. Orthop Traumatol Surg Res. 2014; 100(1):49-58.
[32]Ollivier M, Abdel MP, Parratte S, et al. Lateral unicondylar knee arthroplasty (UKA): Contemporary indications, surgical technique, and results. Int Orthop. 2014;38(2):449-455.
[33]Pond M. Clinical Application of Total Knee Replacement. Adv Small Animal Total Joint Replacement. 2012:151-162.
[34]Cotic M, Vogt S, Feucht MJ, et al. Prospective evaluation of a new plate fixator for valgus-producing medial open-wedge high tibial osteotomy. Knee Surg Sports Traumatol Arthrosc. 2014:1-10.
[35]Olcott CW. Posterior Stabilized Total Knee Arthroplasty. Arth Arthroplasty. 2009:121.
[36]Dyck BA, Zywiel MG, Mahomed A, et al. Associations between patient expectations of joint arthroplasty surgery and pre- and post-operative clinical status. Exp Rev Med Dev. 2014;11:403-415.
[37]曲铁兵,曾纪洲,林源,等.华北地区成人正常胫骨内侧平台后倾角的测量及临床意义[J].中华骨科杂志,2005,23(8):455-458.
[38]Berend ME, Small SR, Ritter MA, et al. The effects of bone resection depth and malalignment on strain in the proximal tibia after total knee arthroplasty. J Arthroplasty. 2010;25(2): 314-318.
[39]Lustig S, Magnussen RA. Revision Total Knee Arthroplasty: Planning and Technical Considerations. Surg Knee. 2014: 291-304.
[40]Cobb J, Pearle A. Unicompartmental Knee Arthroplasty: Robotics [M]. Knee Surgery using Computer Assisted Surgery and Robotics. Springer, 2013:95-104.
[41]Bruzzone M, Ranawat A, Castoldi F, et al. The risk of direct peroneal nerve injury using the Ranawat “inside-out” lateral release technique in valgus total knee arthroplasty. J Arthroplasty. 2010;25(1):161-165.
[42]吕厚山,关振鹏,周殿阁,等.膝关节外翻畸形的人工全膝关节置换术[J].中华外科杂志, 2005, 43(20):1305-1308.
[43]Heesterbeek P, Keijsers N, Verdonschot N, et al. A805. ligament releases during total knee replacement do not increase postoperative varus-valgus laxity. J Bone Joint Surg. 2011;93(SUPP IV):463-464.
[44]王兴山,翁习生,林进,等.人工全膝关节置换术治疗终末期膝关节病变合并膝外翻畸形的手术技巧及临床疗效评价[J].中国修复外科重建杂志,2012,26(5):513-517.
[45]Park JH, Restrepo C, Norton R, et al. Common Peroneal Nerve Palsy Following Total Knee Arthroplasty: Prognostic Factors and Course of Recovery. J Arthroplasty. 2013;28(9): 1538-1542.
