Digital placement and clinical application of lumbar pedicle screws based on 3D printing

doi:10.3969/j.issn.2095-4344.2015.17.023

Abstract

Abstract:

BACKGROUND: 3D printing to prepare individualized navigation template-assisted screw placement can elevate screw placement accuracy of spinal pedicle screw, and have good prospects for clinical application.

OBJECTIVE: To investigate the method of lumbar pedicle screw navigation placement using digital design of Mimics software combined with 3D printing module, and to explore its feasibility and accuracy.

METHODS: From February 2012 to August 2013, a total of 60 patients with lumbar diseases underwent 3D printing module-assisted lumbar pedicle screw navigation placement. All patients received continuous thin slice CT scan. We collected Dicom format images. Mimics software was used for 3D reconstruction to design screw channel and the supporting column of lumbar pedicle screw placement and to divide strippable bone surface, to design navigation module with screw channel, and then to carry out 3D printing. Navigation module was utilized for navigation screw placement during the surgery. The position and replacement of screw were observed. X-ray and CT scan were applied to assess the outcomes of screw placement. The patients were followed up for (12.17±3.21) months. Oswestry Disability Index was employed to evaluate the improvement of lumbar function. Japanese Orthopaedic Association (low back pain) scoring system was used to assess the therapeutic effects.

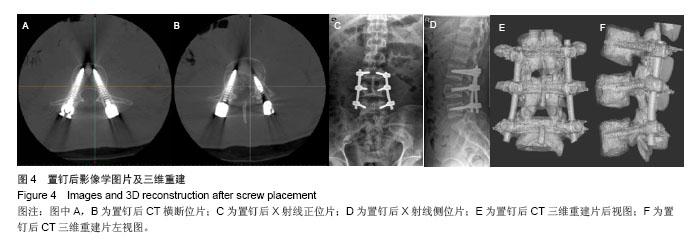

RESULTS AND CONCLUSION: 253 navigation modules were made and 253 screws were implanted. Screw channel and postoperative bone surrounding the vertebral body were observed, and no breakage was found. Postoperative X-ray and CT scan revealed that the direction of eight pedicle screws was migrated compared with preoperative design, but their positions were still satisfactory. The placement site, direction and length of 245 pedicle screws were consistent with the desired site, direction and length in Mimics software, with an accuracy of 96.84%. The navigation module was tightly connected to bone structure in front of the corresponding vertebral body, with good chimeric degree. During application, the position and stability were good. During final follow-up, Japanese Orthopaedic Association score increased, and Oswestry Disability Index was lower compared with pre-operation (P < 0.01), with an excellent and good rate of 95%. Above results confirmed that with the aid of navigation module, the digital placement of lumbar pedicle screws was precise, characterized by less complications and good therapeutic effects, and contributed to the recovery of lumbar function in patients.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: Lumbar Vertebrae, Computer-Aided Design, Internal Fixators

CLC Number:

R318

Chen Xuan-huang, Xu Wei-hong, Huang Wen-hua, Lin Hai-bin, Zhang Guo-dong, Wu Chang-fu, Chen Xu, Yu Zheng-xi. Digital placement and clinical application of lumbar pedicle screws based on 3D printing[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(17): 2752-2757.

Figures/Tables 1

References

[1]Karim A, Mukherjee D, Gonzalez-Cruz J, et al.Accuracy of pedicle screw placement for lumbar fusion using anatomic landmarks versus open laminectomy: a comparison of two surgical techniques in cadaveric specimens.Neurosurgery. 2006;59(1 Suppl 1):ONS13-19; discussion ONS13-19.
[2]Karim A, Mukherjee D, Ankem M, et al.Augmentation of anterior lumbar interbody fusion with anterior pedicle screw fixation: demonstration of novel constructs and evaluation of biomechanical stability in cadaveric specimens.Neurosurgery. 2006; 58(3):522-527; discussion 522-527.
[3]Austin MS, Vaccaro AR, Brislin B, et al.Image-guided spine surgery: a cadaver study comparing conventional open laminoforaminotomy and two image-guided techniques for pedicle screw placement in posterolateral fusion and nonfusion models.Spine (Phila Pa 1976). 2002; 27(22): 2503-2508.
[4]Zeiller SC, Lee J, Lim M, et al.Posterior thoracic segmental pedicle screw instrumentation: evolving methods of safe and effective placement.Neurol India. 2005; 53(4):458-465.
[5]Sagi HC, Manos R, Benz R,et al.Electromagnetic field-based image-guided spine surgery part one: results of a cadaveric study evaluating lumbar pedicle screw placement. Spine (Phila Pa 1976). 2003;28(17):2013-2018.
[6]Mason A, Paulsen R, Babuska JM, et al.The accuracy of pedicle screw placement using intraoperative image guidance systems.J Neurosurg Spine. 2014; 20(2):196-203.
[7]Tian NF, Huang QS, Zhou P, et al.Pedicle screw insertion accuracy with different assisted methods: a systematic review and meta-analysis of comparative studies.Eur Spine J. 2011; 20(6):846-859.
[8]Lim MR, Girardi FP, Yoon SC,et al.Accuracy of computerized frameless stereotactic image-guided pedicle screw placement into previously fused lumbar spines.Spine (Phila Pa 1976). 2005 1;30(15):1793-1798.
[9]Nottmeier EW, Pirris SM, et al.Three-dimensional image-guided placement of S2 alar screws to adjunct or salvage lumbosacral fixation.Spine J. 2010; 10(7):595-601.
[10]Reinhold M, Bach C, Audigé L, et al.Comparison of two novel fluoroscopy-based stereotactic methods for cervical pedicle screw placement and review of the literature.Eur Spine J. 2008; 17(4):564-575.
[11]Devito DP, Kaplan L, Dietl R,et al.Clinical acceptance and accuracy assessment of spinal implants guided with SpineAssist surgical robot: retrospective study.Spine (Phila Pa 1976). 2010;35(24):2109-2115.
[12]Modi H, Suh SW, Song HR, et al.Accuracy of thoracic pedicle screw placement in scoliosis using the ideal pedicle entry point during the freehand technique.Int Orthop. 2009;33(2): 469-475.
[13]Zausinger S, Scheder B, Uhl E, et al.Intraoperative computed tomography with integrated navigation system in spinal stabilizations.Spine (Phila Pa 1976). 2009; 34(26):2919-2926.
[14]Gloria A, Russo T, De Santis R, et al.3D fiber deposition technique to make multifunctional and tailor-made scaffolds for tissue engineering applications.J Appl Biomater Biomech. 2009; 7(3):141-152.
[15]Hoque ME, Chuan YL, Pashby I.Extrusion based rapid prototyping technique: an advanced platform for tissue engineering scaffold fabrication.Biopolymers. 2012; 97(2): 83-93.
[16]Carletti E, Motta A, Migliaresi C.Scaffolds for tissue engineering and 3D cell culture.Methods Mol Biol. 2011; 695:17-39.
[17]师继红,陆声,张元智,等.数字化脊柱椎弓根导航模板在胸腰椎骨折中的应用[J].中华创伤骨科杂志,2008,10(2):138-141.
[18]张少杰,王星,史君,等. 数字化导航模板辅助儿童胸椎椎弓根螺钉置钉的准确性[J].中国组织工程研究,2014,18(35): 5660-5665.
[19]高方友,王曲,刘窗溪,等.个体化3D打印模型辅助后路螺钉内固定治疗颅颈交界区畸形[J].中华神经外科杂志,2013,29(9): 896-901.
[20]Toyone T,Takahashi K,Kitahara H,et al.Visualisation of symptomatic nerve roots．Prospective study of contrast- enhanced MRI in patients with lumbar disc hemiation. J Bone Joint Surg Br.1993;75(4):529-533．
[21]Fairbank JC,Pynsent PB.The Oswestry disability index. Spine. 2000;25:2940-2952．
[22]陈玉兵,陆声,徐永清,等.个体化导航模板在胸椎椎弓根螺钉置入中的初步临床应用[J].中国脊柱脊髓杂志,2011,21(8): 1156-1160.
[23]Hu Y, Yuan ZS, Spiker WR,et al.Deviation analysis of C2 translaminar screw placement assisted by a novel rapid prototyping drill template: a cadaveric study.Eur Spine J. 2013;22(12):2770-2776.
[24]Merc M, Drstvensek I, Vogrin M, et al.A multi-level rapid prototyping drill guide template reduces the perforation risk of pedicle screw placement in the lumbar and sacral spine.Arch Orthop Trauma Surg. 2013;133(7):893-899.
[25]Lu S, Xu YQ, Lu WW, et al.A novel patient-specific navigational template for cervical pedicle screw placement. Spine (Phila Pa 1976). 2009; 34(26):E959-966.
[26]Lu S, Xu YQ, Zhang YZ, et al.Rapid prototyping drill guide template for lumbar pedicle screw placement.Chin J Traumatol. 2009;12(3):177-180.
[27]Lu S, Xu YQ, Zhang YZ, et al.A novel computer-assisted drill guide template for lumbar pedicle screw placement: a cadaveric and clinical study.Int J Med Robot. 2009;5(2): 184-191.
[28]Merc M, Drstvensek I, Vogrin M, et al.Error rate of multi-level rapid prototyping trajectories for pedicle screw placement in lumbar and sacral spine.Chin J Traumatol. 2014; 17(5): 261-266.
[29]Holly LT, Foley KT.Three-dimensional fluoroscopy-guided percutaneous thoracolumbar pedicle screw placement. Technical note.J Neurosurg. 2003;99(3 Suppl):324-329.
