Herbert screw fixation for repairing capitellum fracture through anterior elbow approach: evaluation for fracture reduction and healing

doi:10.3969/j.issn.2095-4344.2015.09.021

Abstract

Abstract:

BACKGROUND: The treatment of capitellum fracture has obtained primary consensus in the clinic, that is, open reduction and fixation for a displaced fracture. However, the selection of operation approach and the type of internal fixation are still controversial.
OBJECTIVE: To explore the effects of Herbert screw in the treatment of capitellum fracture through anterior elbow approach.
METHODS: A total of 12 patients with displaced fractures of the humeral capitellum were chosen from August 2008 to May 2012 in the Department of Orthopedics, Puren Hospital, Wuhan University of Science and Technology. They received Herbert screw fixation through anterior elbow approach. According to Bryan and Morrey classification, there were eight cases of type I fractures, three cases of type II fractures, and one case of type III fracture. The outcomes of fracture healing, elbow functions and complications were observed after fixation.

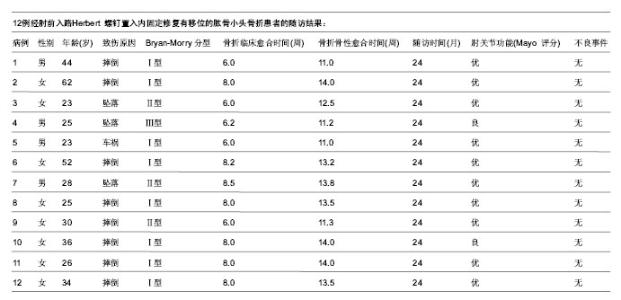

RESULTS AND CONCLUSION: In the two-year follow up, fractures in all patients were healed. There were excellent in ten patients and good in two patients according the Mayo elbow performance index. The elbow function of most patients recovered to normal. There was no evidence of the post-operative complications. These findings indicate that treatment of displaced capitellum fracture using Herbert screws through anterior elbow approach obtained satisfactory outcomes. The recovery of elbow function was good after fixation, and presented apparent advantages.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: Humeral Fracture, Fracture Fixation, Bone Nails, Fracture Healing, Recovery of Function

CLC Number:

R318

Zhang Yi, Tao Sheng-xiang, Zhang Yong, Hu Feng, Zhang Guo-hua . Herbert screw fixation for repairing capitellum fracture through anterior elbow approach: evaluation for fracture reduction and healing[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(9): 1435-1440.

Figures/Tables 3

References

[1] Faber KJ. Coronal shear fractures of the distal humerus: the capitellum and trochlea. Hand Clin. 2004;20(4):455-464.
[2] Brouwer KM, Guitton TG, Doornberg JN, et al.Fractures of the medial column of the distal humerus in adults. J Hand Surg Am. 2009;34(3):439-445.
[3] Letts M, Rumball K, Bauermeister S, et al. Fractures of the capitellum in adolescents. J Pediatr Orthop. 1997;17:315-320.
[4] Ruchelsman DE, Tejwani NC, Kwon YW, et al. Coronal plane partial articular fractures of the distal humerus: current concepts in management. J Am Acad Orthop Surg. 2008;16: 716-728.
[5] Dubberley JH, Faber KJ, Macdermid JC, et al. Outcome after open reduction and internal fixation of capitellar and trochlear fractures. J Bone Joint Surg Am. 2006;88:46-54.
[6] Grantham SA, Norris TR, Bush DC. Isolated fracture of the humeral capitellum. Clin Orthop Relat Res. 1981;161: 262-269.
[7] Mighell M, Virani NA, Shannon R, et al. Large coronal shear fractures of the capitellum and trochlea treated with headless compression screws. J Shoulder Elbow Surg. 2010;19:38-45.
[8] Trinh TQ, Harris JD, Kolovich GP, et al. Operative management of capitellar fractures: a systematic review. J Shoulder Elbow Surg. 2012;21(11):1613-1622.
[9] McKee MD, Jupiter JB, Bamberger HB. Coronal shear fractures of the distal end of the humerus. J Bone Joint Surg. 1996;78A:49-54.
[10] 冯世波,王礼跃,陈超.肱骨小头骨折误、漏诊5例分析[J].临床骨科杂志,2011,14(2):93.
[11] Simpson LA, Richards RR. Internal fixation of a capitellar fracture using Herbert screws: a case report. Clin Orthop. 1986;209:166-168
[12] Singh AP, Singh AP, Vaishya R, et al.Fractures of capitellum: a review of 14 cases treated by openreduction and internal fixation with Herbert screws. Int Orthop. 2010;34(6):897-901.
[13] Morrey BF, Adams RA. Semiconstrained arthroplasty for the treatment of rheumatoid arthritis of the elbow．J Bone Joint Surg Am.1992;74:479-490.
[14] 周智勇,陈旭,张树栋,等.肱骨小头骨折的手术治疗[J].中华创伤杂志,2011,27(3):283-286.
[15] 东靖明.肱骨小头骨折诊疗进展[J].中国矫形外科杂志,2013, 21(12):1206-1209.
[16] Kozánek M, Bartonícek J, Chase SM, et al. Treatment of distal humerus fractures in adults: a historical perspective. J Hand Surg Am. 2014;39(12):2481-2485.
[17] Cheung EV. Fractures of the capitellum. Hand Clin. 2007; 23(4):481-486.
[18] Mosheiff R, Liebergall M, Elyashuv O, et al. Surgical treatment of fractures of the capitellum in adults: a modified technique. J Orthop Trauma. 1991;5:297-300.
[19] Mehdian H, Mckee MD. Fractures of capitellum and trochlea. Orthop Clin North Am. 2000;31(1):115-127.
[20] 邱贵兴,戴尅戎.骨科手术学[M].3版.北京:人民卫生出版社,2005: 288-289.
[21] 彭超.内固定法治疗肘关节骨折[J].中华骨科杂志, 2001,21(2): 97-98.
[22] Ruchelsman DE, Tejwani NC, Kwon YW, et al. Open reduction and internal fixation of capitellar fractures with headless screws. Surgical technique. Bone Joint Surg(Am). 2009;91(Suppl 2 Pt 1):38-49.
[23] 潘哲尔,吴李闯,黄小敬,等.肘前外侧入路内固定治疗肱骨小头骨折的临床疗效[J].中华老年医学杂志,2013,32(11):1180-1182.
[24] Fowles JV, Kassab MT. Fracture of the capitulum humeri, treatment by excision. J Bone Joint Surg Am. 1974;56: 794-798.
[25] 宋文奇,张弛,王挺,等.支撑钢板治疗肱骨远端冠状面骨折[J].实用手外科杂志,2013,27(2):112-114.
[26] 吴英昌,祝永强,董磊,等.可吸收螺钉治疗肱骨小头骨折13例体会[J].中国美容医学,2011,20(z1):219-219.
[27] 贾英伟,尹芸生,韦健,等.肘外侧入路空心拉力钉内固定治疗肱骨小头Ⅰ型骨折[J].中华医学杂志,2012,92(41):2943-2945.
[28] 黄辉,李英创,黄祖奇,等.空心加压螺钉联合克氏针治疗成年肱骨小头冠状面骨折10例[J].广西医科大学学报,2013,30(6):958.
[29] 胡旭军,钱宇,孙文东,等.经肘前入路软骨钉治疗肱骨小头骨折[J].实用骨科杂志,2012,18(7):587-589.
[30] 张涛,马宝通,庞桂根,等.肱骨小头骨折的手术疗效分析[J].中国矫形外科杂志,2012,20(18):1653-1656.
[31] Koslowsky TC, Zilleken C, Dargel J，et al. Reconstruction of a Bryan and Money type I capitellar fracture in a sawbone model with four different fixation devices：An experimental study．Injury. 2012;43(3):381-385.
[32] Poynton AR, Kelly IP, O’Rourke SK. Fractures of the capitellum: a comparison of two methods. Injury. 1998;29: 341-343.
[33] Mahirogullari M, Kiral A, Solakoglu C, et al. Treatment of fractures of the humeral capitellum using Herbert screws. J Hand Surg Br. 2006;31(3):320-325.
[34] 林宏生,姚平,刘宁.掌侧经皮Herbert螺钉内固定并注入aFGF 治疗26例不稳定型腕舟骨骨折[J].暨南大学学报(自然科学与医学版),2004,25(6):40-743.
[35] 朱光明,徐耀增,耿德春,等．Herbert 螺钉治疗关节内骨折回顾性分析[J].中国矫形外科杂志,2009,17(14):1054-1057.
[36] 徐耀增,吕书军. Herbert螺钉治疗桡骨头骨折及文献复习[J].中华创伤杂志, 2006, 22(4):276-278.
[37] 阳宏奇,雷青,陈松,等.Herbert螺钉治疗肱骨小头冠状面骨折[J].中国骨与关节损伤杂志,2012,27(5):450-451.
[38] 李晨. Herbert螺钉治疗肱骨小头骨折[J].临床骨科杂志,2013, 16(2):206-208.
[39] 杨二平,胡冰,程子林,等. Herbert螺钉治疗肱骨小头骨折应用分析[J].临床医学,2012,32(01):10-11.
[40] Sano S, Rokkaku T, Saito S, et al. Herbert screw fixation of capitellar fractures. J Shoulder Elbow Surg. 2005;14( 3) : 307-311.
