Establishment and application of virtual reality technique in hip fracture operation

doi:10.3969/j.issn.2095-4344.2013.13.015

Abstract

Abstract:

BACKGROUND: The hip fractures are difficult to treat because of its complexity. Clinicians select appropriate treatment options and surgical approaches according to imaging studies, which are difficult to accurately determine the spatial three-dimensional relationship.
OBJECTIVE: To study the feasible and clinical value of computer-assisted preoperative design for hip fractures based on 64-slice spiral CT scanning data.
METHODS: CT data in .dicom format from the patients with hip fractures were imported into Mimics. In segmentation process, the three-dimensional model of fracture was built to perform simulated reduction. The reduced model in .stl format was transferred into Imageware 12.0 to determine an appropriate dynamic hip screw in a suitable place and fixed with screw. And then using rapid prototyping, the entity and navigation template were formed.

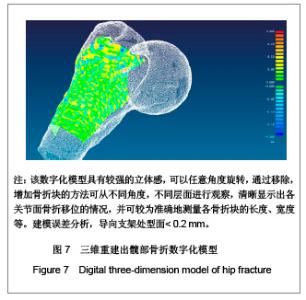

RESULTS AND CONCLUSION: The three-dimensional reconstructed visualization model could reflect the features of fractures, and the direction and degree of fracture displacement. And the fracture models could be rotated in any direction and space for observation which could simulate the internal fixation surgery. Preoperative computer-assisted virtual reality surgery can help to make a reasonable individualized surgical option, which has good clinical value.

Key words: bone and joint implants, bone and joint imaging, virtual reality, hip fracture, three-dimensional reconstruction, computer-assisted, digitalization, 64-slice spiral CT, rapid prototyping, navigation template, internal fixation, other grants-supported paper, photographs-containing paper of bone and joint implants

CLC Number:

R318

Huang Ruo-kun, Xie Ming, Yu Jia, Ren Yi-jun, Kan Wu-sheng, Huang Wen-jie. Establishment and application of virtual reality technique in hip fracture operation[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(13): 2383-2389.

Figures/Tables 1

References

[1] Abalo A, Dossim A, Ouro Bangna AF, et al. Dynamic hip screw and compression plate fixation of ipsilateral femoral neck and shaft fractures. J Orthop Surg (Hong Kong). 2008; 16(1):35-38.

[2] Luo CF,Zhu Y,Wang L,et al.Zhonghua Chuangshang Guke Zazhi.2002;4(3):188-191. 罗从风,朱越,王磊,等.459例动力髋螺钉治疗股骨粗隆周围骨折结果分析[J].中华创伤骨科杂志,2002,4(3):188-191.

[3] Foley KT, Simon DA, Rampersaud YR.Virtual fluoroscopy: computer-assisted fluoroscopic navigation.Spine (Phila Pa 1976). 2001;26(4):347-351.

[4] Simon DA, Lavallée S. Medical imaging and registration in computer assisted surgery. Clin Orthop Relat Res. 1998;(354): 17-27.

[5] Lu SB. Zonghua Guke Zhazhi. 1989;27(6):331. 卢世壁.转子间骨折分型及其内固定的选择[J].中华骨科杂志, 1989,27(6):331.

[6] Fei BW,Zhuang TG.Shengwu Yixie Gingchengxue Zhazhi. 1998;15(2):195-202. 费保蔚,庄天戈.计算机辅助外科手术(CAS)的方法和进展[J].生物医学工程学杂志,1998,15(2):195-202.

[7] Marchetti C, Bianchi A, Bassi M, et al. Mathematical modeling and numerical simulation in maxillo-facial virtual surgery (VISU). J Craniofac Surg. 2006;17(4):661-667.

[8] Seel MJ, Hafez MA, Eckman K,et al. Three-dimensional planning and virtual radiographs in revision total hip arthroplasty for instability. Clin Orthop Relat Res. 2006;442: 35-38.

[9] Rommens PM, Hessmann MH.Acetabulum fractures. Unfallchirurg. 1999;102(8):591-610.

[10] Handels H, Ehrhardt J, Plötz W, et al. Three-dimensional planning and simulation of hip operations and computer-assisted construction of endoprostheses in bone tumor surgery. Comput Aided Surg. 2001;6(2):65-76.

[11] Wang CT,Bai XL. Zhonghua Chuangshang Guke Zazhi. 2008; 10(2):103-108. 王成焘,白雪岭.骨相关外科中的数字技术[J].中华创伤骨科杂志,2008,10(2):103-108.

[12] D'Urso PS, Williamson OD, Thompson RG. Biomodeling as an aid to spinal instrumentation.Spine (Phila Pa 1976). 2005;30(24):2841-2485.

[13] Gu F,Cui YQ,Zeng B,et al. Zhongguo Zuzhi Gongcheng Yanjiu yu Linchuang Kangfu. 2010;14(9):1531-1534. 谷方,崔益群,曾兵,等.基于CT增强连续扫描数据的颅面部血管三维重建数字化模型[J]. 中国组织工程研究与临床康复,2010, 14(9): 1531-1534.

[14] Lu S,Xu YQ,Zhang YZ,et al. Zhonghua Guke Zazhi. 2008, 28(12):1002-1007. 陆声,徐永清,张元智,等.计算机辅助导航模板在下颈椎椎弓根定位中的临床应用[J].中华骨科杂志,2008,28(12):1002-1007．

[15] Suzuki M, Ogawa Y, Kawano A,et al. Rapid prototyping of temporal bone for surgical training and medical education. Acta Otolaryngol. 2004;124(4):400-402.

[16] Zhu XY,Fang CH,Bao SS, et al. Zhonghua Waike Zazhi. 2008;46(1):27-29. 朱新勇,方驰华,鲍苏苏,等.基于64排螺旋CT扫描数据三维肝脏手术仿真的研究[J]. 中华外科杂志,2008,46(1):27-29.

[17] Fang CH,Huang YP,Lu CM,et al.Zhonghua Shiyan Waikje Zazhi. 2008;25(8):1068-1070. 方驰华,黄燕鹏,鲁朝敏,等.个体化仿真手术在肝血管瘤手术治疗中的应用价值[J].中华实验外科杂志,2008,25(8):1068-1070.

[18] Messmer P,Long G,Suhm N,et al. Three-Dimensional Fracture Simulation for Preoperative Planning and Education . Eur J Trauma. 2001;27:171-177.
