Virtual knee arthroscopy system improves clinician surgical skills

doi:10.3969/j.issn.2095-4344.2013.09.018

Abstract

Abstract:

BACKGROUND: Virtual knee arthroscopy system has achieved some preliminary research results at home and abroad, but it is still unable to be popularized and applied widely because of the high cost. Therefore, we designed a set of simulation endoscopic equipment, which allows the surgeons to promote surgery skills during virtual surgery.
OBJECTIVE: To evaluate the training effect of virtual knee arthroscopy system on surgical skills of the beginning students.
METHODS: Twenty-four interns and orthopedists (16 interns with no arthroscopy operating experience; eight experts with arthroscopy operating experience) were selected from five different universities and different hospitals, and 16 interns were randomly divided into training group and control group, eight interns in each group. After system training, the training group was compared with the control group and expert group in the virtual knee arthroscopy system operation and clinical surgery operation, and the results were statistically processed.

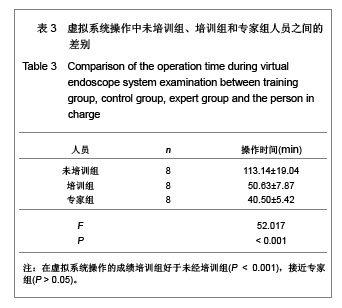

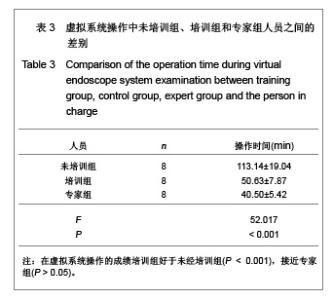

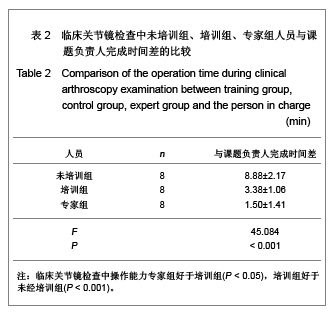

RESULTS AND CONCLUSION: In the virtual endoscope system operation, there was significant difference in the scores between the control and training groups (P < 0.001), and also between the control and expert groups (P < 0.001); however, there was no significant difference in the scores between the training and expert groups (P=0.115). In the clinical knee arthroscopy operation, there were significant differences between the training and control groups (P < 0.001), between the control and expert groups (P < 0.001), and between the training and expert groups (P=0.03). Virtual knee arthroscopy system can serve as beneficial surgery skill training for beginning students and the improvement of virtual operation technique may be related to clinical skills.

Key words: bone and joint implants, basic experiment of bone injury, virtual surgery, articular endoscope, arthroscopy, virtual surgery, virtual training system, simulation equipment, computer simulation, surgical training, skill training, operational skills, provincial grants-supported paper, photographs-containing paper of bone and joint implants

CLC Number:

R318

Chen Wei-jian, Xie Xiao-hui, Li Yun-gang, Liu Teng-fei, Sun Hong-tao, Li Gui-tao, Wang Fa-zheng. Virtual knee arthroscopy system improves clinician surgical skills[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(9): 1641-1647.

Figures/Tables 3

References

[1] Wang LD.Zhongguo Jiaoxing Waike Zazhi. 2009;17 (19): 1447-1448. 王立德.我国膝关节镜外科发展的历史进程[J].中国矫形外科杂志, 2009,17(19):1447-1448.

[2] Bigony L. Arthroscopic surgery: a historical perspective. Orthopaedic Nursing.2008;27(6):349-354,quiz 355-356.

[3] Andersen C, Winding TN, Vesterby MS. Development of simulated arthroscopic skills. Acta Orthop.2011;82(1): 90-95.

[4] Zhang H.Xibei Yixue Jiaoyu. 2010;18(01):48-51. 张晗.虚拟现实技术在医学教育中的应用探讨[J].西北医学教育, 2010,18(01):48-51.

[5] Rosen JM, Soltanian H, Redett R, et al.Evolution of virtural reality. IEEE Engineering in Medical and Biology.1996;15(2): 16-22.

[6] Justo-Janeiro JM, Pedroza-Meléndez A, et al.A new laparoscopic simulator. Cir Cir. 2007;75(1):19-23.

[7] Pedowitz RA, Esch J, Snyder S. Evaluation of a virtual reality simulator for arthroscopy skills development. Arthroscopy. 2002;18:E2

[8] Verdaasdonk EG, Stassen LP, Schijven MP, et al. Construct validity and assessment of the learning curve for the SIMENDO endoscopic simulator. Surg Endosc. 2007;21(8): 1406-1412.

[9] Maher SA, Rodeo SA, Doty SB, et al. Evaluation of a porous polyurethane scaffold in a partial meniscal defect ovine model. Arthroscopy. 2010; 26(11):1510-1519.

[10] Scanzello CR, McKeon B, Swaim BH, et al. Synovial inflammation in patients undergoing arthroscopic meniscectomy: molecular characterization and relationship to symptoms. Arthritis Rheum. 2011;63(2):391-400.

[11] Thein R, Haviv B, Kidron A, et al. Intra-articular injection of hyaluronic acid following arthroscopic partial meniscectomy of the knee. Orthopedics. 2010;33(10):724.

[12] Han SB, Shetty GM, Lee DH, et al. Unfavorable results of partial meniscectomy for complete posterior medial meniscus root tear with early osteoarthritis: a 5- to 8-year follow-up study. Arthroscopy. 2010; 26(10):1326-1332.

[13] Sturnieks DL, Besier TF, Mills PM, et al. Knee joint biomechanics following arthroscopic partial meniscectomy. J Orthop Res. 2008; 26(8):1075-1080.

[14] Bu JM,Fan LH,Xiao Y.Zhongguo Yiliao Shebei. 2009;24(11): 62-63,47. 步金梅,范林华,肖毅.计算机仿真技术在临床教学中的应用研究[J].中国医疗设备,2009;24(11):62-63,47.

[15] Howell SM. The role of arthroscopy in treating osteoarthritis of the knee in the older patient. Orthopedics. 2010;33(9):652.

[16] Spahn G, Klinger HM, Mückley T, et al. Four-year results from a randomized controlled study of knee chondroplasty with concomitant medial meniscectomy: mechanical debridement versus radiofrequency chondroplasty. Arthroscopy. 2010;26(9 Suppl):S73-80.

[17] Netravali NA, Giori NJ, Andriacchi TP. Partial medial meniscectomy and rotational differences at the knee during walking. J Biomech. 2010;43(15): 2948-2953.

[18] Zhang Y,Liu GT,Zhang ZH.Zhongguo Yiliao Shebei. 2010; 25(06):69-71,74. 张媛,刘国通,张志华.消化内镜模拟训练系统在医师培训中的应用[J].中国医疗设备,2010,25(06):69-71,74.

[19] Fisher L, Ormonde DG, Riley RH, et al. Endoscopic skills training in a simulated clinical setting. Simul Healthc. 2010;5(4):232-237.

[20] López-Vázquez E, Juan JA, Vila E, et al.Reconstruction of the anterior cruciate ligament with a Dacron prosthesis. J Bone Joint Surg Am. 1991;73(9):1294-300

[21] Tan K,Guo GY,Pan XH,et al.Jisuanji Fangzhen. 2009;26(12): 290-293,324. 谭珂,郭光友,潘新华,等.膝关节镜手术仿真训练系统设计[J].计算机仿真,2009,26(12):290-293,324.

[22] Luo W,Li SS.Shengwu Yixue Gongchengxue Jinzhan. 2010; 31(03):149-152. 罗伟,李珊珊.仿真手术刀在虚拟外科手术系统中的应用与研究[J].生物医学工程学进展,2010,31(03):149-152.

[23] Gketsis ZE, Tzagkas D, Hatzilias PV, et al. Laparoscopic image analysis for robotic arm guidance. Conf Proc IEEE Eng Med Biol Soc. 2006;1:148-151.

[24] Wang YK, Zhu JF. Zhangauo Weichuang Waike Zazhi. 2010; 10(3):278-280. 王永坤,朱江帆.虚拟内镜技术在消化系统疾病诊断中的应用[J].中国微创外科杂志,2010,10(03):278-280.

[25] Spahn G, Klinger HM, Mückley T, et al.Four-year results from a randomized controlled study of knee chondroplasty with concomitant medial meniscectomy: mechanical debridement versus radiofrequency chondroplasty. Arthroscopy. 2010;26(9 Suppl):S73-80.

[26] Netravali NA, Giori NJ, Andriacchi TP. Partial medial meniscectomy and rotational differences at the knee during walking. J Biomech. 2010;43(15): 2948-2953.

[27] Stein T, Mehling AP, Welsch F, et al. Long-term outcome after arthroscopic meniscal repair versus arthroscopic partial meniscectomy for traumatic meniscal tears. Am J Sports Med. 2010;38(8):1542-1548.

[28] Justo-Janeiro JM, Pedroza-Meléndez A, et al.A new laparoscopic simulator. Cir Cir. 2007;75(1):19-23.

[29] Vosburgh KG, San José Estépar R,et al. Natural Orifice Transluminal Endoscopic Surgery (NOTES): an opportunity for augmented reality guidance. Stud Health Technol Inform. 2007;125:485-490.

[30] Xiong YS, Xu K, Wang YZ, et al. Guofang Keji Daxue Xuebao. 2007;29(1):66-72. 熊岳山,徐凯,王彦臻,等.虚拟膝关节镜手术仿真系统的关键技术研究[J].国防科技大学学报,2007,29(1):66-72.

[31] Xie XH, Chen WJ. Xiandai Dianzi jishu. 2012,35(18):139-145. 谢晓辉,陈为坚.虚拟关节内窥镜手术训练系统[J].现代电子技术, 2012,35(18):139-145.

[32] Fan LD, Li SG, Zhang ZG, et al. Chang shang Waike Zazhi. 2008;10(6):567-570. 范立冬,李曙光,张治刚,等.虚拟现实技术在医学训练中的应用[J].创伤外科杂志,2008,10(6):567-570.
