Wrist arthroscopy combined with 2.7 mm titanium osteotomy plate fixation in treatment of ulnar impaction syndrome

doi:10.3969/j.issn.2095-4344.2884

Abstract

Abstract:

BACKGROUND: Due to the lack of understanding of the pathogenesis, ulnar impaction syndrome often referred to as carpitis, which delays the treatment of patients and causes severe carpal dysfunction.

OBJECTIVE: To retrospectively analyze the effect of arthroscopy combined with 2.7 mm titanium osteotomy plate fixation for treating the ulnar impaction syndrome.

METHODS: From March 2017 to September 2019, 12 patients with ulnar impaction syndrome were treated in the Department of Wrist, Sichuan Provincial Orthopedics Hospital. All patients received arthroscopy combined with 2.7 mm titanium osteotomy plate fixation to repair the intercarpal ligament, articular cartilage damage, and trigonal fibrocartilage complex. Ulna variation value, visual analogue scale score, modified Mayo score were compared preoperatively and 1 year postoperatively.

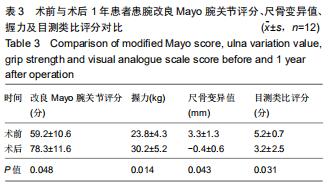

RESULTS AND CONCLUSION: (1) All the 12 patients were followed up after the operation, and bone healing was achieved. The healing time was 5-11 months, with an average of 6 months. (2) The ulna variation was (3.3±1.3) mm preoperatively, and (-0.4±0.6) mm postoperatively. The modified Mayo score was (59.2±10.6) preoperatively and (78.3±11.6) 1 year postoperatively. The effect was excellent in seven patients, good in four patients and fair in one patient. Visual analogue scale score was (5.2±0.7) preoperatively and (3.2±2.5) 1 year postoperatively. The pain was completely relieved in nine patients after surgery and significantly relieved in two patients. There were significant differences in the above indexes before and after operation (P < 0.05). (3) It is confirmed that wrist arthroscopy can clearly diagnose the ulnar impaction syndrome and the combination with 2.7 mm titanium osteotomy plate can save the operation time, reduce the rate of bone nonunion, relieve the wrist pain and improve the function of the wrist, which is conducive to early functional exercise and satisfactory effect.

Key words: bone, steel plate, internal fixation, minimally invasive, wrist arthroscopy, ulnar impaction syndrome, osseous healing

CLC Number:

Chen Keyi, Yang Shun, Cheng Yabo, Xiang Wang, Zhang Jing, Chi Haotian. Wrist arthroscopy combined with 2.7 mm titanium osteotomy plate fixation in treatment of ulnar impaction syndrome[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(33): 5326-5331.

Figures/Tables 5

References

[1] 张雪峰.尺骨撞击综合征的临床与X线分析[J].中国临床医学影像杂志,2014,25(4):286-288.

[2] 陈维娟,赵飞,李润根,等.尺骨撞击综合征的MRI诊断价值[J].影像研究与医学应用,2019,3(17):52-54.

[3] 徐文东,沈云东,蒋苏,等.腕关节镜视下治疗三角纤维软骨复合体损伤[J].中华手外科杂志,2011,27(5):259-262.

[4] 刘路,刘波,陈山林,等.创伤性腕三角纤维软骨复合体损伤的诊治进展[J].中华创伤骨科杂志,2017,19(10):911-915.

[5] STEIN JM, COOK TS, SIMONSON S, et al. Normal and variant anatomy of the wrist and hand on MR imaging. Magn Reson Imaging Clin N Am. 2011;19:595-608.

[6] PALMER AK, WERNER FW. Biomechanics of the death of radionauer zoiint. Clin Orthop Relat Res. 1984;187: 26-35.

[7] GELBENMN RH,SALAMON PB,JURIST JM,et al.Ulnar vaxiance in Kienbock’s disease. J Bone Joint Surs Am. 1975; 57(5):675-676.

[8] SACHAR K. Ulnar -sided wrist pain: evaluation and treatment of triangular fibrocartilage complex tears, ulnocarpal impactionsyndrome, and lunotriquetral ligament tears. J Hand Surg Am. 2008;33:1669-1679.

[9] PORTEOUS R, HARISH S, PARASU N. Imaging of ulnar-sided wrist pain. Can Assoc Radiol J. 2012;63:18-29.

[10] 宋海涛,任中武,柳连成,等.计算机操作引起的尺骨撞击综合征[J]. 中国矫形外科杂志,2009,17(15):1193-1195.

[11] CHUN S, PALMER AK. The ulnar impaction syndrome: follow-up of ulnar shortening osteotomy. J Hand Surg Am. 1993;18(1):46-53.

[12] HAO J, XU Z, ZHAO Z. Ulnar impaction syndrome:managed bywrist arthroscopy. Indian J Orthop.2016;50(2):172-176.

[13] OBBY JL, TOM BD, BEARCROFL PW, et al. Magnetic resonance imaging of the wrist:diagnostic performance statistics. Clin Radiol.2001;56(1):50-57.

[14] 孙广峰,金文虎,聂开瑜,等.尺骨短缩术治疗尺骨撞击综合征体会[J].中华手外科杂志,2016,32(2):149-150.

[15] 郑鑫,高伟阳,蒋良福,等.腕关节镜对三角纤维软骨复合体损伤的诊断和治疗价值分析[J].中华手外科杂志,2011,27(3):141-144.

[16] KIM BS, SONG HS. A comparison of ulnar shortening osteotomy alone versus combined arthroscopic triangular fibrocartilage complex debridement and ulnar shortening osteotomy for ulnar impaction syndrome. Clin Orthop Surg. 2011;3(3):184-190.

[17] 李忠哲,易传军,田文,等.非创伤性尺腕撞击综合征的诊断和治疗[J].中华手外科杂志,2011,27(5):273-276.

[18] FRANK RM, SLIKKER W, AL-SHIHABI L, et al. Arthroscopic-assisted outside-in repair of triangular fibrocartilage complex tears. Arthrosc Tech. 2015;4(5): e577-e581.

[19] ZIN HW, ZIU Z, SHEN ZD, et al. Arthroscopic distal metaphyseal ulnar shortening osteotomy for ulnar impaction syndrome: a different technique. J Hand Surg Am. 2013;38 (11): 2257-222.

[20] RAYHACK JM,GASSER SI,LANA LL,et al. Precision Oblique Osteotomy or shortening of theulna. J Hand Surg Am. 1993; 18(5):908-918.

[21] AHSAN ZS, SONG Y, YAO J. Outcomes of ulnar shortening osteotomyfixed with a dynamic compression system. J Hand Surg Am. 2013;38(8):1520-1523.

[22] NISHIWAKI M, NAMURA T, NAKOO Y, et al. Ulnar shortening effect on distal radioulnar joint stability: a biomechanical study. J Hand Surg Am. 2005;30(4):719-726.

[23] BORDMAN MJ, IMBRIGLIA JE. Surgical mangament of off ulnocarpal imprinting symmeme. J Hand Surg Am. 2001

[24] DARLIS NA, FERRAZZ IC, KAUFMANN RW, et al. Step-cut discullulnar-shocktening operation. J Hand Surg Am. 2005; 30(5): 943-948.

[25] AYACK JM. Tecknizue of ulnerar shortening. Teck Hand Up Excur Surg. 2007;11(1):57-65.

[26] ISAACS J, HOWARD SB, GULKIN D. A prospective study on on the rest of the rest of the offs of affirmation of the prosperity of the future of the United States of America. Hand (NQ).2010;5(2):148-154.

[27] CLARK SM, GEISSLER WB. Resuts of Ullenar Shortening Osteotomy commemorative commemorative system. Hand (NQ). 2012; 7(3): 281-285.

[28] POOL M, JAO J. Ulnar shortening ostrotomy utilizin a a TriMed ulnar ostrotomy system. Tech Hand Up Excel Surg. 2014;18(2):72-76.

[29] DAS DS, JOHNSEN PH, WOLFE SW. Soft tissue complications of dorsal versus volar plating for ulnar shortening osteotomy. J Hand Surg Am.2015;40(5):928-933.

[30] 王军,李红卫,白晨平,等.腕关节镜技术合并尺骨短缩斜形截骨治疗尺骨撞击综合征[J].中华手外科杂志,2019,35(1):24-26.

[31] 朱波,赵力,赵金岩.尺骨撞击综合征的关节镜治疗[J].中华骨科杂志,2016,36(15):980-987.

[32] HAUGSTVEDT JR, LANGER MF, BERGER RA. Distal radioulnar joint: functional anatomy, including pathomechanics. J Hand Surg Eur. 2017;42(4):338-345.

[33] SEO JB, KIM JP, YI HS, et al. The Outcomes of Arthroscopic Repair Versus Debridement for Chronic Unstable Triangular Fibrocartilage Complex Tears in Patients Undergoing Ulnar-Shortening Osteotomy. J Hand Surg Am. 2016;41(5): 615-623.

[34] FINNIGAN T. Outcomes of Ulnar Shortening for Ulnar Impaction Syndrome Using the 2.7 mm AO Ulna Shortening Osteotomy System. J Hand Surg Asian Pac. 2018;23(1): 82-89.

[35] HAMMERT WC, WILLIAMS RB, GREENBERG JA. Distal methysal, ulnar-shoring, singularity: surgical tecnique. J Hand Surg Am. 2012; 37 (5): 1071-1077.

[36] MEGERLE K, HELLMICH S, GERMANN G, et al. Hardware location and clinical outcome in ulna shortening osteotomy. Plast Reconstr Surg Glob Open. 2015;3(10):e549.

[37] OH WT, KANG HJ, CHUN YM, et al. Arthroscopic wafer procedure versus ulnar shortening osteotomy as a surgical treatment for idiopathic ulnar impaction syndrome. Arthroscopy. 2018;34(2):421-430.

[38] HAMADA Y, SAIRYO K, HIBINO N, et al. Effect of preservation of corticoperiosteal attachment on bone healing at osteotomy sites after ulna-shortening osteotomy. Hand(N Y). 2015;10:105-110.

[39] RAJGOPAL R, ROTH J, KING G, et al. Outcomes and complications of ulnar shortening osteotomy: an institutional review. Hand (N Y). 2015;10(3):535e540.

[40] MARQUEZ-LARA A, NUÑEZ FA JR, KIYMAZ T, et al. Metaphyseal versus diaphyseal ulnar shortening osteotomy for treatment of ulnar impaction syndrome: a comparative study. J Hand Surg Am. 2017;42(6): 477.e1-477.e8.

[41] HUANG HK, WANG JP, WANG ST, et al. The pre-drilled hole method in the freehand technique for ulnar shortening osteotomy: a case series study. Acta Orthop Belg. 2016; 83(3): 656-662.

[42] NAGY L, JUNGWIRTH-WEINBERGER A, CAMPBELL D, et al. The AO Ulnar Shortening Osteotomy System Indications and Surgical Technique. J Wrist Surg. 2014;3(2):91-97.

[43] FINNIGAN T, MAKARAM N, BAUMANN A, et al. Outcomes of Ulnar Shortening for Ulnar Impaction Syndrome Using the 2.7 mm AO Ulna Shortening Osteotomy System. J Hand Surg Asian Pac. 2018;23(1):82-89.
