Chinese Journal of Tissue Engineering Research ›› 2024, Vol. 28 ›› Issue (27): 4346-4352.doi: 10.12307/2024.543
Previous Articles Next Articles
Yang Jingyan1, Ma She1, Huang Renjun1, Yang Xiaoxia2, Tang Xiaochen2, Yu Dong2
Received:
2023-09-16
Accepted:
2023-11-01
Online:
2024-09-28
Published:
2024-01-27
Contact:
Yu Dong, MD, Chief physician, Master supervisor, The Third Clinical Hospital of Beijing University of Chinese Medicine, Beijing 100029, China
About author:
Yang Jingyan, Master candidate, The Third Clinical School of Beijing University of Chinese Medicine, Beijing 100029, China
Supported by:
CLC Number:
Yang Jingyan, Ma She, Huang Renjun, Yang Xiaoxia, Tang Xiaochen, Yu Dong. Yougui Pill in the treatment of lumbar disc herniation: network pharmacological analysis of active ingredients and potential targets[J]. Chinese Journal of Tissue Engineering Research, 2024, 28(27): 4346-4352.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

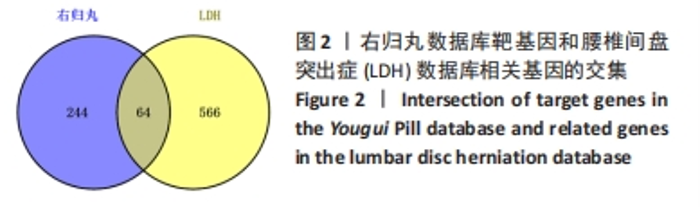

2.1 右归丸有效成分及作用靶点信息收集 通过TCMSP、TCMID平台检索符合标准的右归丸有效活性成分,剔除重复值后共138个。其中,当归有效成分6个,作用靶点52个;杜仲有效成分33个,作用靶点217个;附子有效成分8个,作用靶点33个;枸杞子有效成分50个,作用靶点200个;鹿角胶有效成分2个,作用靶点14个;肉桂有效成分12个,作用靶点67个;山药有效成分14个,作用靶点71个;山茱萸有效成分37个,作用靶点91个;熟地黄有效成分11个,作用靶点45个;菟丝子有效成分12个,作用靶点200个。将所获得的活性成分导入Uniprot数据库进行基因标准化,去除重复值共得到作用靶点基因308个。 2.2 腰椎间盘突出症靶点的收集 通过GenCards数据库共获得发病相关靶点585个,OMIM数据库获得发病相关靶点51个,剔除重复值后共收集得到腰椎间盘突出症潜在靶基因630个。 2.3 中药-疾病交集基因韦恩图 通过计算得到右归丸与腰椎间盘突出症的交集靶点共64个,右归丸可能通过这64个交集基因治疗腰椎间盘突出症,使用R包对结果绘图可视化,见图2。"

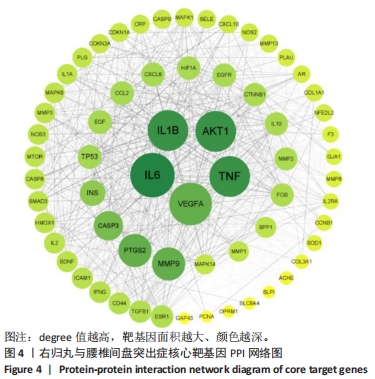

2.5 PPI网络分析 将得到交集基因信息导入在线数据库STRING,筛选minimum required interaction大于0.4的节点,去除无关联的单个节点,获得的剩余节点及关系导入Cytoscape 3.7.0软件绘制PPI网络,见图4。得到的网络图由64个节点和1 251条边组成;进一步按degree值进行筛选,根据“中药活性成分-交集靶点网络”网络与PPI网络中的关键作用靶点相互映射,推测右归丸的有效成分可能通过白细胞介素6(degree值59)、肿瘤坏死因子α(degree值58)、AKT1(degree值58)、白细胞介素1B(degree值58)、血管内皮生长因子A(degree值56)这5个核心靶点发挥改善腰椎间盘突出症的作用。"
2.7 动物实验验证结果 许多实验证实肿瘤坏死因子α是腰椎间盘突出症发生机制中重要的致炎因子,并且是神经根损伤过程中最重要的细胞因子,临床上可以借助外周血肿瘤坏死因子α水平检测作为椎间盘突出症病情变化、临床治疗以及预后判断的一种方法。故此次实验选取预测degree值排名第二的核心靶点肿瘤坏死因子α为代表进行初步验证[18]。实验结果显示,对照组、退变组、退变+右归丸组大鼠血清肿瘤坏死因子α质量浓度分别为(12.38±3.05),(52.65±1.51),(34.97±3.20) ng/L,组间两两比较差异有显著性意义(P < 0.05)。 苏木精-伊红染色显示,对照组大鼠椎间盘纤维环完整,排列整齐,髓核圆形且饱满,髓核细胞丰富,髓核组织和纤维环的边界清晰;退变组大鼠椎间盘纤维环、髓核结构遭到破坏,可见大量圆形的软骨细胞增生,髓核组织和纤维环界限不清,排列紊乱;退变+右归丸组大鼠椎间盘纤维环可见重建趋势,排列稍紊乱,胶原纤维断裂或波浪状排列,正常髓核细胞数量较退变组增多,见图6。这些实验结果表明,在右归丸干预下大鼠椎间盘退行性变模型中的肿瘤坏死因子α含量降低、炎症反应被抑制,退行性变得到改善,右归丸在动物体内对椎间盘退变具有保护作用。"

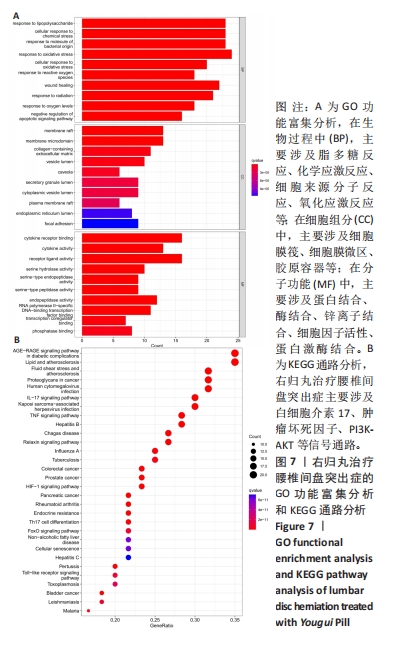

2.8 靶基因功能分析 通过对交集基因进行GO富集分析发现,在生物过程中(BP),主要涉及脂多糖反应(response to lipopolusaccharide)、化学应激反应(cellular response to chemical stress)、细胞来源分子反应(response to molecule of bacterial origin)、氧化应激反应(response to oxidative stress)等;在细胞组分(CC)中,主要涉及细胞膜筏(membrane raft)、细胞膜微区(membrane microdomain)、胶原容器(collagen-containing extracellular matrix)等;在分子功能(MF)中,主要涉及蛋白结合(protein binding)、酶结合(enzyme binding)、锌离子结合(zinc ion binding)、细胞因子活性(cytokine activity)、蛋白激酶结合(protein kinase binding),见图7。KEGG功能富集分析结果显示右归丸治疗腰椎间盘突出症主要涉及白细胞介素17、肿瘤坏死因子、PI3K-AKT等信号通路。"
[1] 中华医学会疼痛学分会脊柱源性疼痛学组.腰椎间盘突出症诊疗中国疼痛专家共识[J].中国疼痛医学杂志,2020,26(1):2-6. [2] KREINER DS, HWANG SW, EASA JE, et al. An evidence-based clinical guideline for the diagnosis and treatment of lumbar disc herniation with radiculopathy. Spine J. 2014;14(1):180-191. [3] LAWSON LY, HARFE BD. Developmental mechanisms of intervertebral disc and vertebral column formation. Wiley Interdiscip Rev Dev Biol. 2017;6(6). doi: 10.1002/wdev.283. [4] 罗卓荆,杨柳,王迪.我国椎间盘退变的生物学研究成就及展望[J].空军军医大学学报,2023,44(6):481-485,489. [5] DAMMERS R, KOEHLER PJ. Lumbar disc herniation: level increases with age. Surg Neurol. 2002;58(3-4):209-212; discussion 212-3. [6] 刘静,杨建新,王春晓,等.基于《伤寒论》六经辨证体系的腰椎间盘突出症中医证型规律研究[J].中国中医骨伤科杂志,2023, 31(7):12-16. [7] 陶桃,石明鹏,张宪帅,等.腰椎间盘突出症的古籍证据评价及辨证规律探析[J].天津中医药,2023,40(5):585-591. [8] 王大光.加味右归丸治疗肾阳虚型腰痛的临床有效性研究[J].中国社区医师,2022,38(11):75-77. [9] 殷霞,李芳.右归丸随症加减配合针刺治疗腰椎间盘突出症53例[J].实用中西医结合临床,2014,14(12):23-24. [10] 毕殿海,曾欢高,廖勇,等.右归丸联合硬膜外封闭治疗腰椎间盘突出症患者的疗效及对血清TNF-α、hs-CRP和疼痛介质的影响[J].中国医学创新,2017,14(30):12-15. [11] Li S. [Framework and practice of network-based studies for Chinese herbal formula]. Zhong Xi Yi Jie He Xue Bao. 2007;5(5):489-493. [12] 王子怡,王鑫,张岱岩,等.中医药网络药理学:《指南》引领下的新时代发展[J].中国中药杂志,2022,47(1):7-17. [13] OTASEK D, MORRIS JH, BOUÇAS J, et al. Cytoscape Automation: empowering workflow-based network analysis. Genome Biol. 2019; 20(1):185. [14] 世界中医药学会联合会.网络药理学评价方法指南[J].世界中医药, 2021,16(4):527-532. [15] 黄河.纤维环穿刺法与腰椎失稳法建立大鼠椎间盘退变模型的比较研究[D].桂林:桂林医学院,2012. [16] 王靖,唐天驷,姚啸生,等.纤维环穿刺诱导椎间盘退变动物模型的实验研究[J].中国脊柱脊髓杂志,2006,16(4):284-287,321. [17] 王镇远,冯帅华,李泽湘,等.补肾活血汤对大鼠腰椎间盘退行性变模型Fas/FasL信号通路的影响[J].湖南中医药大学学报,2023, 43(3):430-436. [18] 周嵩,蒋尧传.炎性因子对腰椎间盘突出症发病机制的研究进展[J].中国医药指南,2013,11(15):77-78. [19] 玉超杰,楚野,梁斌.腰椎间盘突出发病机制的研究进展[J].中国临床新医学,2017,10(8):824-828. [20] 陆永刚. 右归丸治疗腰椎间盘突出症(肾阳虚型)的临床疗效观察[D].长沙:湖南中医药大学,2009. [21] 蒋竹英.槲皮素对动物机体受损伤的保护作用研究进展[J].养殖与饲料,2023,22(5):109-111. [22] 邵香敏,李珂,冯爽,等.槲皮素的生物学功能及其在动物生产中应用研究进展[J].饲料工业,2023,44(17):29-35. [23] XU D, HU MJ, WANG YQ, et al. Antioxidant Activities of Quercetin and Its Complexes for Medicinal Application. Molecules. 2019;24(6):1123. [24] AA LX, FEI F, SUN RB, et al. Rebalancing of the gut flora and microbial metabolism is responsible for the anti-arthritis effect of kaempferol. Acta Pharmacol Si. 2020;41(1):73-81. [25] RAJENDRAN P, RENGARAJAN T, NANDAKUMAR N, et al. Kaempferol, a potential cytostatic and cure for inflammatory disorders. Eur J Med Chem. 2014;86:103-112. [26] BIESALSKI HK.类胡萝卜素的有益作用[C]//中国毒理学会食品毒理学专业委员会,国际膳食补充剂协会联盟.植物化学物与人体健康研究新进展国际学术研讨会论文集,2010:23. [27] LIU KD, YANG WQ, et al. Phenolic constituents with anti-inflammatory and cytotoxic activities from the rhizomes of Iris domestica. Phytochemistry. 2022;203:113370. [28] YAMAKI K, KIM DH, RYU N, et al. Effects of naturally occurring isoflavones on prostaglandin E2 production. Planta Med. 2002;68(2): 97-100. [29] OH KB, KANG H, MATSUOKA H. Detection of antifungal activity in Belamcanda chinensis by a single-cell bioassay method and isolation of its active compound, tectorigenin. Biosci Biotechnol Biochem. 2001; 65(4):939-942. [30] FARAG SF, KIMURA Y, ITO H, et al. New isoflavone glycosides from Iris spuria L. (Calizona) cultivated in Egypt. J Nat Med. 2009;63(1):91-95. [31] JUNG SH, LEE YS, LIM SS, et al. Antioxidant activities of isoflavones from the rhizomes of Belamcanda chinensis on carbon tetrachloride-induced hepatic injury in rats. Arch Pharm Res. 2004;27(2):184-188. [32] JUNG SH, LEE YS, LEE S, et al. Isoflavonoids from the rhizomes of Belamcanda chinensis and their effects on aldose reductase and sorbitol accumulation in streptozotocin induced diabetic rat tissues. Arch Pharm Res. 2002;25(3):306-312. [33] YUAN D, XIE YY, BAI X, et al. Inhibitory activity of isoflavones of Pueraria flowers on nitric oxide production from lipopolysaccharide-activated primary rat microglia. J Asian Nat Prod Res. 2009;11(6):471-481. [34] 孙达亮,石娟娟,赵均铭,等.大豆黄素抗抑郁作用及其机制研究[C]//中华医学会,中华医学会精神医学分会.中华医学会第十三次全国精神医学学术会议论文汇编,2015:1. [35] PASKU D, SOUFLA G, KATONIS P, et al. Akt/PKB isoforms expression in the human lumbar herniated disc: correlation with clinical and MRI findings. Eur Spine J. 2011;20(10):1676-1683. [36] ZHAN JW, WANG SQ, FENG MS, et al. Effects of Axial Compression and Distraction on Vascular Bud and VEGFA Expression in the Vertebral Endplate of an Ex Vivo Rabbit Spinal Motion Segment Culture Model. Spine (Phila Pa 1976). 2021;46(7):421-432. [37] RISBUD MV, SHAPIRO IM. Role of cytokines in intervertebral disc degeneration: pain and disc content. Nat Rev Rheumatol. 2014;10(1): 44-56. [38] HARSTALL R, HEINI PF, MINI RL, et al. Radiation exposure to the surgeon during fluoroscopically assisted percutaneous vertebroplasty: a prospective study. Spine (Phila Pa 1976). 2005;30(16):1893-1898. [39] TAKACS J, CARPENTER MG, GARLAND SJ, et al. The role of neuromuscular changes in aging and knee osteoarthritis on dynamic postural control. Aging Dis. 2013;4(2):84-99. [40] 龙骁.TNF-α与IL-1在退变腰椎软骨终板中的表达及意义[D].长沙:中南大学,2013. [41] 王亮,张照宏.趋化因子CXCL10(IP-10)、MMP-1及TNF-α与腰椎间盘突出症的相关性研究[J].山东医学高等专科学校学报,2015, 37(6):445-447. |
