Correlation between hand feeling and torque of screw insertion in lumbar pedicle system

doi:10.12307/2023.314

Abstract

Abstract: BACKGROUND: Screw loosening is a common complication of lumbar transpedicle screw fixation in patients with osteoporosis. It is a difficult problem for clinicians to accurately choose the right time to strengthen pedicle screw fixation.
OBJECTIVE: To investigate the correlation between hand feel and screw torque in the process of lumbar pedicle screw insertion, and initially screen the visual simulation score of hand feeling and the range of torque for bone cement reinforcement.
METHODS: A total of 34 patients with degenerative diseases of lumbar spine who underwent lumbar internal fixation fusion in Dongzhimen Hospital Affiliated to Beijing University of Traditional Chinese Medicine from January to December 2020 were included. During the operation, the operator’s hand feeling, visual simulation score of hand feeling and the maximum screw torque value were recorded, and the screw loosening was evaluated periodically after the operation. All 188 screws were divided into groups with small, average, large and laborious hand resistance according to hand feeling. Hand score and torque value among the four groups were compared, and the correlation between torque value and hand feeling was analyzed.

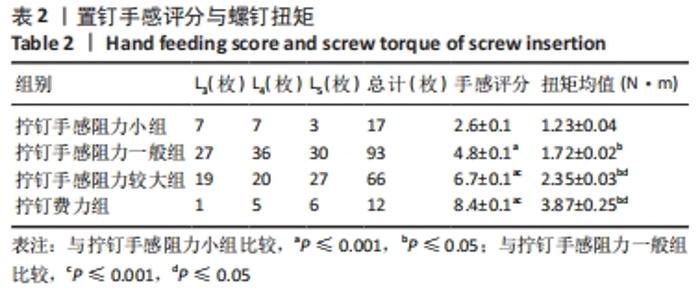

RESULTS AND CONCLUSION: (1) The hand feeling resistance group of screw insertion was reinforced with bone cement. The feeling score and torque value of this group were significantly lower than those in the other three groups (P ≤ 0.001, P ≤ 0.05), and the torque value was strongly positively correlated with the feeling of screw insertion. (2) The results showed that hand feeling score and torque value of pedicle screw could assist the surgeon to judge the stability of screw. When hand feeling score ≤ 3 and torque value ≤ 1.3 N·m, the possibility of screw loosening after operation was greater, and bone cement fixation was recommended.

Key words: pedicle screw, lumbar degenerative lesion, hand feeling of screw insertion, torque, screw looseing, bone mineral density, osteoporosis

CLC Number:

Jiang Guozheng, Feng Ningning, Yu Xing, Zhao He, Yang Yongdong, Qu Yi, Wang Fengxian. Correlation between hand feeling and torque of screw insertion in lumbar pedicle system[J]. Chinese Journal of Tissue Engineering Research, 2023, 27(18): 2861-2865.

Figures/Tables 4

References

[1] DE KUNDER SL, RIJKERS K, CAELERS IJMH, et al. Lumbar Interbody Fusion: A Historical Overview and a Future Perspective. Spine. 2018;43(16):1161-168.
[2] KIM JH, AHN DK, SHIN WS, et al. Clinical Effects and Complications of Pedicle Screw Augmentation with Bone Cement: Comparison of Fenestrated Screw Augmentation and Vertebroplasty Augmentation. Clin Orthop Surg. 2020;12(2):194-199.
[3] ZDEBLICK TA, KUNZ DN, COOKE ME, et al. Pedicle screw pullout strength. Correlation with insertional torque. Spine (Phila Pa 1976). 1993;18(12): 1673-1676.
[4] INCEOGLU S, FERRARA L, MCLAIN RF. Pedicle screw fixation strength: pullout versus insertional torque. Spine J. 2004;4(5):513-518.
[5] SIDDIQUI AA, BLAKEMORE ME, TARZI I. Experimental analysis of screw hold as judged by operators v pullout strength. Injury. 2005;36(1):55-59.
[6] ODA K, OHBA T, HIROSHI Y, et al. Factors Affecting Pedicle Screw Insertional Torque in Spine Deformity Surgery. Spine (Phila Pa 1976). 2021;46(17): E932-E938.
[7] MATSUKAWA K, YATO Y, IMABAYASHI H, et al. Feasibility of using tapping torque during lumbar pedicle screw insertion to predict screw fixation strength. J Orthop Sci. 2020;25(3):389-393.
[8] 张智海,刘忠厚,李娜,等.中国人骨质疏松症诊断标准专家共识(第三稿·2014版)[J].中国骨质疏松杂志,2014,20(9):1007-1010.
[9] 岳文峰,夏虹,王建华.骨水泥强化椎弓根螺钉固定对骨质疏松患者有利无弊?[J].中国组织工程研究,2013,17(17):3081-3088.
[10] GALBUSERA F, VOLKHEIMER D, REITMAIER S, et al. Pedicle screw loosening: a clinically relevant complication? . Eur Spine J. 2015;24(5):1005-1016.
[11] OHBA T, EBATA S, OBA H, et al. Risk Factors for Clinically Relevant Loosening of Percutaneous Pedicle Screws. Spine Surg Relat Res. 2018;3(1):79-85.
[12] 曲弋,俞兴,王逢贤,等.可灌注骨水泥螺钉在伴有骨质疏松的腰椎退行性疾病中的应用[J].中国骨伤,2019,32(10):928-932.
[13] ROMETSCH E, SPRUIT M, ZIGLER JE, et al. Screw-Related Complications After Instrumentation of the Osteoporotic Spine: A Systematic Literature Review With Meta-Analysis. Global Spine J. 2020;10(1):69-88.
[14] BOKOV A, PAVLOVA S, BULKIN A, et al. Potential contribution of pedicle screw design to loosening rate in patients with degenerative diseases of the lumbar spine: An observational study. World J Orthop. 2021;12(5):310-319.
[15] ULUSOY OL, KAHRAMAN S, KARALOK I, et al. Pulmonary cement embolism following cement-augmented fenestrated pedicle screw fixation in adult spinal deformity patients with severe osteoporosis (analysis of 2978 fenestrated screws). Eur Spine J. 2018;27(9):2348-2356.
[16] CHANG MC, KAO HC, YING SH, et al. Polymethylmethacrylate augmentation of cannulated pedicle screws for fixation in osteoporotic spines and comparison of its clinical results and biomechanical characteristics with the needle injection method. J Spinal Disord Tech. 2013;26(6):305-315.
[17] VENMANS A, LOHLE PN, VAN ROOIJ WJ, et al. Frequency and outcome of pulmonary polymethylmethacrylate embolism during percutaneous vertebroplasty. AJNR Am J Neuroradiol. 2008;29(10):1983-1985.
[18] MUELLER JU, BALDAUF J, MARX S, et al. Cement leakage in pedicle screw augmentation: a prospective analysis of 98 patients and 474 augmented pedicle screws. J Neurosurg Spine. 2016;25(1):103-109.
[19] HAN S, WAN S, NING L, et al. Percutaneous vertebroplasty versus balloon kyphoplasty for treatment of osteoporotic vertebral compression fracture:a meta-analysis of randomised and non-randomised controlled trials. Int Orthop. 2011;35(9):1349-1358.
[20] SAADEH YS, SWONG KN, YEE TJ, et al. Effect of Fenestrated Pedicle Screws with Cement Augmentation in Osteoporotic Patients Undergoing Spinal Fusion. World Neurosurg. 2020;143:e351-e361.
[21] WEISER L, HUBER G, SELLENSCHLOH K, et al. Insufficient stability of pedicle screws in osteoporotic vertebrae: biomechanical correlation of bone mineral density and pedicle screw fixation strength. Eur Spine J. 2017;26(11): 2891-2897.
[22] GREVENSTEIN D, SCHEYERER MJ, MEYER C, et al. Impact of lumbar pedicle screw positioning on screw stability - A biomechanical investigation. Clin Biomech (Bristol, Avon). 2020;74:66-72.
[23] TANI S, ISHIKAWA K, KUDO Y, et al. The effect of denosumab on pedicle screw fixation: a prospective 2-year longitudinal study using finite element analysis. J Orthop Surg Res. 2021;26;16(1):219.
[24] YAMAGATA M, KITAHARA H, MINAMI S, et al. Mechanical stability of the pedicle screw fixation systems for the lumbar spine. Spine (Phila Pa 1976). 1992;17:S51-54.
[25] PAIVA LC, FILARDI S, PINTO-NETO AM, et al. Impact of degenerative radiographic abnormalities and vertebral fractures on spinal bone density of women with osteoporosis. Sao Paulo Med J. 2002;120(1):9-12.
[26] ATALAY A, KOZAKCIOGLU M, CUBUK R, et al. Degeneration of the lumbar spine and dual-energy X-ray absorptiometry measurements in patients without osteoporosis. Clin Imaging. 2009;33(5):374-378.
[27] HELGESON MD, KANG DG, LEHMAN RA JR, et al. Tapping insertional torque allows prediction for better pedicle screw fixation and optimal screw size selection. Spine J. 2013;13(8):957-965.
[28] ISHIKAWA K, TOYONE T, SHIRAHATA T, et al. A Novel Method for the Prediction of the Pedicle Screw Stability: Regional Bone Mineral Density Around the Screw. Clin Spine Surg. 2018;31(9):E473-E480.
[29] BRASILIENSE LB, LAZARO BC, REYES PM, et al. Characteristics of immediate and fatigue strength of a dual-threaded pedicle screw in cadaveric spines. Spine J. 2013;13(8):947-956.
[30] HIRANO T, HASEGAWA K, TAKAHASHI HE, et al.Structural characteristics of the pedicle and its role inscrew stability. Spine. 1997;22(21):2504e10.
