Expression and significance of collagen fiber and matrix metalloproteinase-9 during orthodontic root resorption in rats

doi:10.12307/2022.902

Abstract

Abstract: BACKGROUND: Root resorption is the most common complication in orthodontic treatment, and is also a hot topic in current orthodontic research. Currently, the remodeling process of collagen fibers in the inferior periodontal tissue and its relationship with matrix metalloproteinase-9 remain unclear at different time points during root resorption.
OBJECTIVE: To investigate the remodeling of collagen fibers and the expression of matrix metalloproteinase-9 in the inferior periodontal tissue at different time points on the pressure side during orthodontic root resorption.
METHODS: Thirty eight-week-old male Wistar rats were selected, and the orthodontic tooth movement model was established by pulling the left maxillary first molars towards the near middle in the experimental group, and the right side was not treated as the control group. The changes of collagen fibers and expression of matrix metalloproteinase-9 in alveolar bone, root surface and periodontal tissue at 1, 3, 5, 7, 14, and 21 days were observed and analyzed by histomorphology after force application.

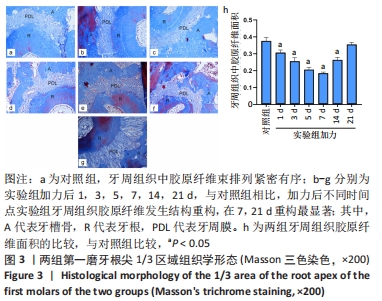

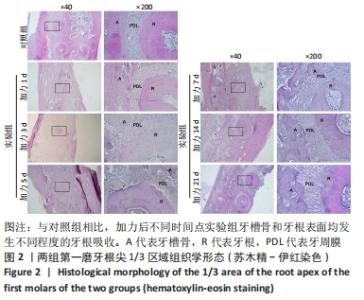

RESULTS AND CONCLUSION: (1) Hematoxylin-eosin staining and Masson's trichrome staining results confirmed that compared with the control group, the alveolar bone and tooth root surface of the experimental group had different degrees of resorption. The periodontal tissue collagen fibers underwent structural remodeling. The remodeling was most significant at 7 and 21 days. The expression of collagen fibers per unit area decreased first and then increased with the extension of the force. (2) Immunohistochemical staining confirmed that compared with the control group, the expression of matrix metalloproteinase-9 in the experimental group increased. The expression level showed a trend of first increasing and then decreasing with the extension of the application time. Pearson correlation analysis confirmed that the matrix metalloproteinase-9 expression was negatively correlated with the expression of collagen fibers in periodontal tissues (r=-0.933, P < 0.01). (3) The above results indicate that during orthodontic tooth root resorption in rats, the collagen in periodontal tissues is prolonged with time of stress. The expression level of matrix metalloproteinase-9 is related to the dynamic changes of collagen fibers and the changing trend of tooth root resorption.

Key words: orthodontic tooth movement, root resorption, matrix metalloproteinase-9, collagen fiber, animal model, orthodontic force, rat

CLC Number:

Liu Ke, Fan Haixia, Wang Hong, Cheng Huanzhi, Geng Haixia. Expression and significance of collagen fiber and matrix metalloproteinase-9 during orthodontic root resorption in rats[J]. Chinese Journal of Tissue Engineering Research, 2022, 26(27): 4288-4292.

Figures/Tables 4

References

[1] CONSOLARO A. The four mechanisms of dental resorption initiation. Dental Press J Orthod. 2013;18(3):7-9.
[2] WELTMAN B, VIG KW, FIELDS HW, et al. Root resorption associated with orthodontic tooth movement: a systematic review. Am J Orthod Dentofacial Orthop. 2010;137(4):462-476.
[3] FELLER L, KHAMMISSA RA, THOMADAKIS G, et al. Apical External Root Resorption and Repair in Orthodontic Tooth Movement: Biological Events. Biomed Res Int. 2016:4864195.
[4] VIECILLI RF, KAR-KURI MH, VARRIALE J, et al. Effects of initial stresses and time on orthodontic external root resorption. J Dent Res. 2013; 92(4):346-351.
[5] XU H, HAN X, MENG Y, et al. Favorable effect of myofibroblasts on collagen synthesis and osteocalcin production in the periodontal ligament. Am J Orthod Dentofacial Orthop. 2014;145(4):469-479.
[6] LI Z, YU M, JIN S, et al. Stress Distribution and Collagen Remodeling of Periodontal Ligament During Orthodontic Tooth Movement. Front Pharmacol. 2019;10:1263.
[7] PARDO A, CABRERA S, MALDONADO M, et al. Role of matrix metalloproteinases in the pathogenesis of idiopathic pulmonary fibrosis. Respir Res. 2016;17:23.
[8] 周嵩琳.牙周病大鼠牙组织中MMP-9表达水平及与牙根吸收程度的关系[J].中国老年学杂志,2017,37(12):2887-2889.
[9] ZHANG F, LIU E, RADAIC A, et al. Diagnostic potential and future directions of matrix metalloproteinases as biomarkers in gingival crevicular fluid of oral and systemic diseases. Int J Biol Macromol. 2021; 188:180-196.
[10] FENG L, YANG R, LIU D, et al. PDL Progenitor-Mediated PDL Recovery Contributes to Orthodontic Relapse. J Dent Res. 2016;95(9):1049-1056.
[11] LIU XC, WANG XX, ZHANG LN, et al. Inhibitory effects of resveratrol on orthodontic tooth movement and associated root resorption in rats. Arch Oral Biol. 2020;111:104642.
[12] AMUK NG, KURT G, BARAN Y, et al. Effects of cell-mediated osteoprotegerin gene transfer and mesenchymal stem cell applications on orthodontically induced root resorption of rat teeth. Eur J Orthod. 2017;39(3):235-242.
[13] SEIFI M, HAMEDI R, KHAVANDEGAR Z. The Effect of Thyroid Hormone, Prostaglandin E2, and Calcium Gluconate on Orthodontic Tooth Movement and Root Resorption in Rats. J Dent (Shiraz). 2015;16(1 Suppl): 35-42.
[14] DUNN MD, PARK CH, KOSTENUIK PJ, et al. Local delivery of osteoprotegerin inhibits mechanically mediated bone modeling in orthodontic tooth movement. Bone. 2007;41(3):446-455.
[15] KALAJZIC Z, PELUSO EB, UTREJA A, et al. Effect of cyclical forces on the periodontal ligament and alveolar bone remodeling during orthodontic tooth movement. Angle Orthod. 2014;84(2):297-303.
[16] YASSIR YA, MCINTYRE GT, BEARN DR. Orthodontic treatment and root resorption: an overview of systematic reviews. Eur J Orthod. 2021; 43(4):442-456.
[17] YOSHIMATSU M, KITAURA H, FUJIMURA Y, et al. Inhibitory effects of IL-12 on experimental tooth movement and root resorption in mice. Arch Oral Biol. 2012;57(1):36-43.
[18] BOSSHARDT DD, STADLINGER B, TERHEYDEN H. Cell-to-cell communication--periodontal regeneration. Clin Oral Implants Res. 2015;26(3):229-239.
[19] SHEMESH M, ADDADI S, MILSTEIN Y, et al. Study of Osteoclast Adhesion to Cortical Bone Surfaces: A Correlative Microscopy Approach for Concomitant Imaging of Cellular Dynamics and Surface Modifications. ACS Appl Mater Interfaces. 2016;8(24):14932-14943.
[20] RANGIANI A, JING Y, REN Y, et al. Critical roles of periostin in the process of orthodontic tooth movement. Eur J Orthod. 2016;38(4):373-378.
[21] CONNIZZO BK, SUN L, LACIN N, et al. Nonuniformity in Periodontal Ligament: Mechanics and Matrix Composition. J Dent Res. 2021; 100(2):179-186.
[22] KIRSCHNECK C, BAUER M, GUBERNATOR J, et al. Comparative assessment of mouse models for experimental orthodontic tooth movement. Sci Rep. 2020;10(1):12154.
[23] NANDA A, CHEN PJ, MEHTA S, et al. The effect of differential force system and minimal surgical intervention on orthodontic tooth movement and root resorption. Eur J Orthod. 2021;43(6):607-613.
[24] LIRA DOS SANTOS EJ, DE ALMEIDA AB, CHAVEZ MB, et al. Orthodontic tooth movement alters cementocyte ultrastructure and cellular cementum proteome signature. Bone. 2021;153:116139.
[25] KOMORI T. Functions of the osteocyte network in the regulation of bone mass. Cell Tissue Res. 2013;352(2):191-198.
[26] 蒋伟东,朱佩琪,周诺.三种染色方法在小鼠下颌第一磨牙牙根不同发育时期的染色效果比较[J].同济大学学报(医学版),2018, 39(6):66-70.
[27] REN W, WU B, PENG X, et al. Implant wear induces inflammation, but not osteoclastic bone resorption, in RANK(-/-) mice. J Orthop Res. 2006;24(8):1575-1586.
[28] XU HY, NIE EM, DENG G, et al. Periostin is essential for periodontal ligament remodeling during orthodontic treatment. Mol Med Rep. 2017;15(4):1800-1806.
[29] 黄林,方威苏,曹君.IL-1β、MMP-2在大鼠牙根吸收组织中的表达及意义[J].口腔医学研究,2019,35(6):604-607.
[30] 刘红,王毅,张勤.牙周炎大鼠正畸牙移动过程中基质金属蛋白酶7在牙周组织中的表达[J].中国组织工程研究,2019,23(11):1669-1673.
[31] 庄丽,白玉兴,李俊发.龈沟液中基质金属蛋白酶-9含量与正畸牙根吸收相关性的实验研究[J].北京口腔医学,2007(2):65-69.
[32] VAN DER ZEE E, EVERTS V, BEERTSEN W. Cytokine-induced endogenous procollagenase stored in the extracellular matrix of soft connective tissue results in a burst of collagen breakdown following its activation. J Periodontal Res. 1996;31(7):483-488.
