Vacuum sealing drainage plus skin transplantation repair skin soft tissue defects in tibia and fibula complicated fractures

doi:10.3969/j.issn.2095-4344.2014.20.024

Abstract

Abstract:

BACKGROUND: Traditional treatment of tibia and fibula fractures complicated with skin soft tissue defect is mainly external fixation, wound debridement and dressing plus skin graft or skin flap transplantation after the infection is controlled and granulation grow. This method is disadvantageous due to high cost, great pain, long hospitalization stay, infection and necrosis, even the possibility of amputation.
OBJECTIVE: To explore the clinical efficacy of vacuum sealing drainage (VSD) and external fixator in the treatment of tibia and fibula open fractmes complicated with skin defects.
METHODS: A total of 38 patients with severe open fractures of tibia and fibula complicated with skin defects were selected from Benxi Central Hospital between January 2009 and September 2013. The size of skin defects was more than 5 cm2. After external fixation, the patients underwent complete debridement and dressing, followed by VSD treatment for 5-7 days. After granulation tissue grew and the wound became fresh, the patients received intermedite thickness skin graft. And 15 cases treated without VSD were retrospectively selected, serving as control group. The infection control rate and wound healing time in the two groups were compared.
RESULTS AND CONCLUSION: After 5-7 days of VSD treatment, VSD dressings were removed, wound infection was controlled, local wound granulation tissue was fresh. Both the wound and fractures were healed well, no osteomyelitis or amputation occurred. Among the involved 38 patients, 23 cases were cured, 12 cases were effective, and three cases were ineffective. The total effective rate showed significant differences compared with the control group (92% vs. 53%; P < 0.05). VSD can completely remove the wound secretions and necrotic tissue, improve local microcirculation, eliminate the infection, VSD plus external fixator and skin grating is a simple and effective method in treatment of tibia and fibula open fractures with soft tissue defects.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

全文链接：

Key words: biocompatible mateirals, drainage, soft tissue injury, skin transplantation

CLC Number:

R318

Zhao Ji-hong, Fang Xin. Vacuum sealing drainage plus skin transplantation repair skin soft tissue defects in tibia and fibula complicated fractures[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(20): 3246-3251.

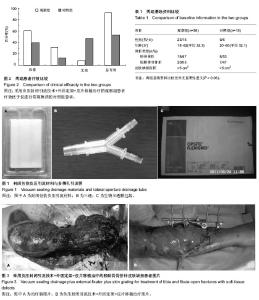

Figures/Tables 1

References

[1] Fleischmann W,Strecker W,Bombelli M,et al .Vacuum sealing as treatment of soft tissue damage in open fractures. Unfallchirurg.1993;96(9):488-492．
[2] Cedidi C,Berger A,lngianni G.The two-stage concept with temporary subcutaneous implantation of a vacuum sealing system: an alternative surgical approach in infected partial abdominal defects after lapratomy or abdominoplasty.Eur J Med Res.2002;7(9):399-403.
[3] Li RG,Yu B,Wang G,et al.Sequential therapy of vacuum sealing drainage and free-flap transplantation for children with extensive soft-tissue defects below the knee in the extremities.Injury.2012;43(6):822-828.
[4] 任高宏,余斌,王钢,等.游离组织瓣联合游离植皮负压封闭引流技术修复肢体大面积软组织缺损[J].中华创伤骨科杂志,2012, 14(10):844-849.
[5] 潘璐璐,方一呜,林崇翔,等.负压封闭引流联合局部药物冲洗治疗颌面颈部间隙感染的临床观察[J].口腔颌面外科杂志,2012, 22(6):405-408.
[6] Lavery LA,La Fontaine J,Thakral G,et al.Randomized clinical trial to compare negative-pressure wound therapy approaches with low and high pressure, silicone-coated dressing, and polyurethane foam dressing.Plast Reconstr Surg. 2014;133(3):722-726.
[7] Zhang WK,Zhang WK,Wang HB,et al.Vacuum sealing drainage and free coupling chain-link posterior tibial artery flap in the reconstruction of degloving injury of propodium. Zhonghua Zheng Xing Wai Ke Za Zhi. 2013;29(4):258-260.
[8] Qu J,Yan R,Wang L,et al.Free dermatoplasty combined with vacuum sealing drainage for the treatment of large-area soft tissue defects accompanied by bone exposure in the lower leg.Exp Ther Med.2013;5(5):1375-1380.
[9] Labler L,Trentz O.The use of vacuum assisted closure (VAC) in soft tissue injuries after high energy pelvic trauma. Langenbecks Arch Surg.2007;392(5):601-609.
[10] Labanaris AP,Polykandriotis E,Horch RE.The effect of vacuum-assisted closure on lymph vessels in chronic wounds.J Plast Reconstr Aesthet Surg.2009; 62(8):1068 -1075.
[11] Petzina R, Gustafsson L, Mokhtari A,et al.Effect of vacuum-assisted closure on blood flow in the peristernal thoracic wall after internal mammary artery harvesting.Eur J Cardiothorac Surg. 2006;30(1):85-89.
[12] Venturi ML,Attinger CE,Mesbahi AN,et al.Mechanisms and clinical applications of the vacuum-assisted closure (VAC) Device: a review.Am J Clin Dermatol. 2005;6(3):185-194.
[13] 王盛海,于泓,陈建华,等.交锁髓内钉联合封闭式负压引流治疗胫骨开放性骨折[J].吉林医学,2011,32(14):2734-2735.
[14] 李健卿.外固定支架加封闭式负压吸引治疗胫腓骨骨折40例疗效观察[J].海南医学,2010,21(17):75-76.
[15] 于虎,赵国梁,张中林,等.封闭式负压吸引联合内外固定治疗胫腓骨骨折合并皮肤缺损[J].浙江创伤外科,2012,17(1):52-53.
[16] 邹庆超,祝乾清,马献忠,等.外固定联合持续负压吸引治疗32例GustiloⅢB型胫腓骨折的回顾性分析[J].贵阳中医学院学报, 2013,34(1):258-260.
[17] 黄易燊.负压引流技术辅助胫腓骨三度开放性骨折一期清创内固定术的疗效[J].广州医药,2013,44(1):8-9.
[18] 杨润功,张宇鹏,侯树勋,等.GustiloⅢ型胫骨干开放性骨折的治疗与临床分析[J].中华创伤骨科杂志,2010,12(9):824-829．　　
[19] 白明,曾昂,张海林,等.自制简易负压吸引装置在创面修复术前的应用[J].中国美容医学,2007,16(11):1481.
[20] Ren GH,Li JW,Li RG,et al.Treatment of large circular soft tissue defect in lower extremities with a combination of bridge flaps and free skin graft covered by vacuum sealing drainage.Zhonghua Wai Ke Za Zhi. 2012;50(1):39-44.
[21] Chen Q,Liu DS,Hu W,et al.Treatment of high-pressure paint injection injuries of hand with debridement combined with vacuum sealing drainage technique.Zhongguo Gu Shang. 2011;24(10):851-853.
[22] Li RG, Yu B, Wang G,et al. Sequential therapy of vacuum sealing drainage and free-flap transplantation for children with extensive soft-tissue defects below the knee in the extremities. Injury.2012;43(6):822-828.
[23] 鄢飞,鲍同柱.负压封闭引流促进软组织创伤愈合的研究进展[J].中国全科医学,2008,11(3):539.
[24] 尚琦松,吴兵,盛文辉,等.负压封闭引流术在骨科大面积创伤中的应用体会[J].临床骨科杂志,2010,13(4):436-438.
[25] Haidukewych GJ, Israel TA, Berry DJ.Reverse obliquity fractures of the intertrochanteric region of the femur.J Bone Joint Surg Am. 2001;83-A(5):643-650.
[26] Korkmaz MF, Erdem MN, Disli Z,et al.Outcomes of trochanteric femoral fractures treated with proximal femoral nail: an analysis of 100 consecutive cases.Clin Interv Aging. 2014;9:569-574.
[27] Park SY, Yang KH, Yoo JH,et al.The treatment of reverse obliquity intertrochanteric fractures with the intramedullary hip nail.J Trauma. 2008;65(4):852-857.
[28] Ahrengart L, Törnkvist H, Fornander P,et al.A randomized study of the compression hip screw and Gamma nail in 426 fractures.Clin Orthop Relat Res. 2002;(401):209-222.
[29] Parker MJ, Handoll HH.Gamma and other cephalocondylic intramedullary nails versus extramedullary implants for extracapsular hip fractures in adults.Cochrane Database Syst Rev. 2010;(9):CD000093.
[30] Gavaskar AS, Subramanian M, Tummala NC.Results of proximal femur nail antirotation for low velocity trochanteric fractures in elderly.Indian J Orthop. 2012;46(5):556-560.
[31] 周鸿雁,郑小敏,杨志明,等.VSD负压引流敷料治疗重大毁损创伤患者的护理[J].现代中西医结合杂志,2009,18(3):320-321．
[32] 陈少全,陈木龙,王烈.封闭式负压引流的基础研究与临床应用[J].临床外科杂志,2008,16(7):495-497．
[33] Li RG,Ren GH,Tan XJ,et al.Free flap transplantation combined with skin grafting and vacuum sealing drainage for repair of circumferential or sub-circumferential soft-tissue wounds of the lower leg.Med Sci Monit.2013;19:510-517.
[34] Cen S,Huang F,Yang T,et al. Early use of vacuum sealing drainage to repair the wound of the injured in Wenchuan earthquake.Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2009;23(6):657-659.
[35] Stannard JP,Singanamala N,Volgas DA.Fix and flap in the era of vacuum suction devices: What do we know in terms of evidence based medicine?Injury.2010;41(8):780-786.
[36] Li RG,Yu B,Wang G,et al.Sequential therapy of vacuum sealing drainage and free-flap transplantation for children with extensive soft-tissue defects below the knee in the extremities. Injury. 2012;43(6):822-828.
[37] Dosluoglu HH,Loghmanee C,Lall P,et al.Management of early (<30 day) vascular groin infections using vacuum-assisted closure alone without muscle flap coverage in a consecutive patient series.J Vasc Surg. 2010;51(5):1160-1166.
[38] Wei D,Wang Y,Yuan J,et al.One-stage operation for pelvis and acetabular fractures combined with Morel-Lavallée injury by internal fixation associated with vacuum sealing drainage.Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2014; 28(1):38-42.
[39] Zhang WK,Zhang WK,Wang HB,et al.Vacuum sealing drainage and free coupling chain-link posterior tibial artery flap in the reconstruction of degloving injury of propodium. Zhonghua Zheng Xing Wai Ke Za Zhi.2013;29(4): 258-260.
[40] Zhu YZ, Li YQ, Wu F,et al.Case-control study on therapeutic effects between Kirschner wire fixation after early bebridement and staged plate fixation in the treatment of open calcaneal fractures.Zhongguo Gu Shang. 2012;25(2): 103-108.
[41] Hüfner T, Geerling J, Gerich T,et al.Open reduction and internal fixation by primary subtalar arthrodesis for intraarticular calcaneal fractures.Oper Orthop Traumatol. 2007;19(2):155-169.
[42] Qu J,Yan R,Wang L,et al.Free dermatoplasty combined with vacuum sealing drainage for the treatment of large-area soft tissue defects accompanied by bone exposure in the lower leg.Exp Ther Med.2013;5(5):1375-1380.
[43] Ren GH, Li JW, Li RG,et al.Treatment of large circular soft tissue defect in lower extremities with a combination of bridge flaps and free skin graft covered by vacuum sealing drainage.Zhonghua Wai Ke Za Zhi. 2012;50(1):39-44.
[44] Li RG, Yu B, Wang G,et al.Sequential therapy of vacuum sealing drainage and free-flap transplantation for children with extensive soft-tissue defects below the knee in the extremities. Injury. 2012;43(6):822-828.
[45] Li RG, Ren GH, Tan XJ,et al.Free flap transplantation combined with skin grafting and vacuum sealing drainage for repair of circumferential or sub-circumferential soft-tissue wounds of the lower leg.Med Sci Monit. 2013;19:510-517.
[46] Liu G,Pan SP,Chen XP.Vacuum sealing drainage for the treatment of in postoperative wound disunion after calcaneal fracture.Zhongguo Gu Shang.2012;25(9):782-784.
[47] 代庆春,张敏,姚元章.真空封闭引流在创伤修复中应用的现状和展望[J].创伤外科杂志,2007,9(4):371-373.
