Vertebroplasty for severe vertebral compression fractures: imaging evaluation

doi:10.3969/j.issn.2095-4344.2015.31.011

Abstract

Abstract:

BACKGROUND: Recent reports only concern vertebroplasty for mild to moderate vertebral compression fractures, but seldom address vertebroplasty for severe vertebral compression fractures such as vertebral collapse.
OBJECTIVE: To evaluate the efficacy and imaging features of percutaneous vertebroplasty for severe vertebral compression fractures.

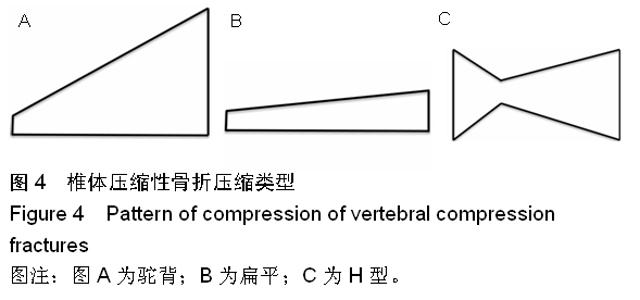

METHODS: A total of 25 patients underwent single-level vertebroplasty for vertebral compression fractures. Imaging features were then analyzed including location, pattern of compression, extent of collapse, pre- and post kyphotic angle and adjacent disc height before and after vertebroplasty.
RESULTS AND CONCLUSION: 60% (16/25) patients involved the thoracolumbar junction. The height of collapsed vertebral body was 14%-30% of original vertebral body. The average height of collapse was 5.17 mm or 22% of original vertebral body. Kyphotic angle before vertebroplasty ranged from 0-33° (averagely 16°) with an average correction of 12° after vertebroplasty. Average disc height before vertebroplasty was 7.3 mm above and 7.7 mm below. Visual analogue scale score was significantly higher preoperatively than that postoperatively, showing significant difference in pain improvement (P < 0.015). These data suggest that percutaneous vertebroplasty is safe and effective in the treatment of single level severe vertebral compression fractures.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Vertebroplasty, Fractures, Compression, Pain

CLC Number:

R318

Shi Xin-le, Chen Yu-xiang, Liu Fei, Zhao Xiao-long. Vertebroplasty for severe vertebral compression fractures: imaging evaluation [J]. Chinese Journal of Tissue Engineering Research, 2015, 19(31): 4978-4982.

Figures/Tables 3

References

[1] Diel P, Merky D, Roder C, et al. Safety and efficacy of vertebroplasty: early results of a prospective oneyear case series of osteoporosis patients in an academic highvolume center. Indian J Orthop. 2009;43:228-233.
[2] 张忠良,吴建民.中西医结合疗法改善骨质疏松性椎体压缩性骨折术后疼痛疗效观察[J].浙江中西医结合杂志,2015,56(2): 154-156.
[3] Shimony JS, Gilula LA, Zeller AJ, et al. Percutaneous vertebroplasty for malignant compression fractures with epidural involvement. Radiology. 2005;232:846-853.
[4] Hirsch JA, Reddy AS, Linfante I, et al. Pseudo-Kummel’s disease: a unique application for verebroplasty. Pain Physician.2003;6:207-211.
[5] 刘大圣,李洪,马广泉.西宁地区转移瘤导致脊柱压缩性骨折的治疗分析[J].中外医学研究,2015,25(8):49-51.
[6] Cotton A, Boutry N, Cortet B, et al. Percutaneous vertebroplasty: state of the art. Radiographics. 1998;18: 311-3 20.
[7] Becker S, Meissner J, Tuschel A, et al. Cement leakage into the posterior spinal canal during ballon kyphoplasty: a case report. J Orthop Surg. 2007;15:222-225.
[8] 崔维,刘宝戈,王磊，等.经皮椎体后凸成形术中球囊扩张体积与骨水泥注射量的相关性分析[J].中华外科杂志,2015, 53 (4):289-293.
[9] 柴仪,李倩,田伟明，等.自拟补肾活血方对压缩性骨折椎体成形术术后骨密度与功能的影响[J].中国药业,2015,66(3):14-16.
[10] 白云鹤,吴若丹,卢斌,等.经皮椎体成型术治疗骨质疏松性椎体压缩性骨折[J].中国实用医药,2015,14(6):85-86.
[11] 陈勇,王罡, 赵鹏.真空搅拌骨水泥技术应用于椎体后凸成形术的生物力学研究[J].中国现代医生,2015,53(1):58-60.
[12] Rousing R, Hansen KL, Andersen MO, et al. Twelve-months follow-up in forty-nine patients with acute/semiacute osteoporotic vertebral fractures treated conservatively or with percutaneous vertebroplasty: a clinical randomized study. Spine. 2010;35:478-482.
[13] 聂静,陈智能.叶俊材.经皮椎体成形术治疗骨质疏松压缩性骨折临床分析[J].浙江临床医学,2015,89(2):276-277.
[14] 范兆阳,刘永西.椎体成形术与保守疗法治疗骨质疏松性椎体压缩性骨折的疗效比较[J].中华灾害救援医学,2015,3(3): 144-150.
[15] O’Brien JP, Sims JT, Evans AJ. Vertebroplasty in patients with severe vertebral compression fractures: a technical report. Am J Neuroradiol. 2000;21:1555-1558.
[16] 王黎明,吕宏乐,关海森,等.高黏度骨水泥治疗椎体压缩性骨折的临床效果[J].中国医药指南,2015, 33 (7):208-209.
[17] Hodler J, Peck D, Gilula LA. Midterm outcome after vertebroplasty: predictive value of technical and patient-related factors.Radiology. 2003;227:662-668.
[18] 崔守仁,金哲,庄宏刚.经皮椎体成形术治疗老年骨质疏松性胸腰椎压缩性骨折的疗效[J].中国现代药物应用,2015, 23(5):30-31.
[19] Kallmes DF, Comstock BA, Heagerty PJ, et al. A randomized trial of vertebroplasty for osteoporotic spinal fractures . N Engl J Med. 2009,361:569-579.
[20] 许凌华,胡奇哲.不同方法治疗老年骨质疏松性胸腰椎压缩性骨折的疗效评估[J].中国农村卫生事业管理,2015, 35(1): 121-123.
[21] 卢公标, 李咸周,杜琳,等. 经皮椎体后凸成形术治疗原发骨质疏松性胸腰段椎体爆裂骨折的临床疗效观察[J]. 中国微创外科杂志,2015,26(1):50-53
[22] 莫成敏, 蔡拉加,林剑雄.椎体成形术结合唑来膦酸治疗骨质疏松性胸腰椎压缩骨折的临床研究[J].中国基层医药 ,2015,36(5): 666-670.
[23] 卢昌怀,刘志军 ,张宏波,等.骨水泥量及分布对椎体成形术后相邻椎体生物力学影响的三维有限元分析[J].中国骨质疏松杂志，2015,35(1):29-33.
[24] 郭小伟,潘玉林,焦云龙 ,等. 单侧经皮椎体成形术治疗骨质疏松性胸腰椎压缩性骨折的疗效分析和技术总结[J].中国骨科临床与基础研究杂志,2015,12(1):24-28.
[25] 张强. 经皮椎体成形术(PVP)与椎体后凸成形术(PKP)治疗胸腰椎骨质疏松性椎体骨折的临床疗效比较[J].中国保健营养:中旬刊,2014,24(1):101-102.
[26] 陈乙瑞, 骆浩, 冯世龙,等.经皮椎体后凸成形术治疗老年压缩性骨折效果分析[J].中国医药导报,2014,11(11):64-67.
[27] Buchbinder R, Osbrone RH, Ebeling PR, et al. A randomized trial of vertebroplasty for painfulosteoporotic vertebral fractures. N Engl J Med. 2009;361:557-568.
[28] Kallmes DF, Comstock BA, Heagerty PJ, et al. A randomized trialof vertebroplasty for osteoporotic spinal fractures. N Engl J Med.2009;361:569-79.
[29] 桂召柳, 吴天亮, 赵广超，等.术中导航辅助下经皮椎体成形术治疗15例椎体骨质疏松性压缩性骨折的疗效分析[J].医学信息，2014,26(5):188-189.
[30] 林艺靖经皮椎体成形术与经椎体后凸成形术在老年脊柱压缩性骨折中的临床疗效的比较[J].医学信息，2014, 22(9):100-100.
[31] 张硕,胡侦明.治疗骨质疏松性椎体压缩骨折骨水泥并发症的研究[J].医学信息,2014,(33)06:522-523.
[32] 孙阳. 经皮穿刺椎体成形术与保守法治疗骨质疏松性椎体压缩性骨折短期疗效对比[J].中国老年学杂志, 2014,17(47): 5005-5006.
[33] 李立平, 李元, 经皮椎体后凸成形术联合唑来膦酸治疗老年骨质疏松性椎体压缩性骨折的疗效[J].中国老年学杂志, 2014, 22(8):4226-4227.
[34] 胡华, 蒋林, 柳昊,等.PKP治疗骨质疏松椎体压缩性骨折术后椎体高度丢失的相关因素[J]..中国老年学杂志, 2014,26(13): 3524-3526.
[35] 周仁实,刘晓云.经皮椎体后凸成形术治疗老年骨质疏松椎体压缩性骨折的临床疗效[J]..中国老年学杂志,2014,22(9): 2555-2556.
[36] 魏永杰,万波.老年经皮椎体成形术后新发椎体压缩性骨折的发生率及相关危险因素[J].中国老年学杂志,2014,33(12): 2140-2141.
[37] 孙峥,朱民,王胜杰,等.经皮椎体成形术联合壮骨颗粒治疗椎体压缩性骨折的临床观察[J].中国临床医生, 2014,22(9): 57-58, 59.
[38] 许靖,黄胜, 巫培康,等.经皮椎体成形术后非手术椎体骨折的相关危险因素[J].中国脊柱脊髓杂志,2014,19(3) : 63-67.
[39] 钟远鸣 , 程俊 , 仇振茂,等.单双侧经椎弓根入路PVP治疗骨质疏松性椎体压缩性骨折的Meta分析[J].中国矫形外科杂志,2014, 22(10):792-797.
[40] 李军,吴家昌,蒋勇,等.椎体成形术与椎体后凸成形术治疗椎体压缩性骨折疗效的Meta分析[J].中国矫形外科杂志, 2014,22(8): 696-700.
[41] 马华松,李龙,王蒙,等.单双侧穿刺PKP治疗骨质疏松椎体压缩性骨折的对比分析[J].中国矫形外科杂志,2014,22(8):678-682.
[42] 谭健, 李平元,卢政好,等. 经皮椎体成形术在老年人多次骨质疏松性椎体压缩性骨折中的应用[J].中国现代医药杂志, 2014, 23(4):32-35.
[43] 严坚强,孙奎, 梁必如,等.唑来膦酸在骨质疏松性椎体压缩骨折经皮椎体成形术后的临床应用[J].中国骨质疏松杂志,2014, 52(12):1428-1431
[44] 翟浩瀚,陈艺,龙浩,等.经皮椎弓根穿刺辅助定位导向装置在经皮椎体成形术中的应用[J].中国骨科临床与基础研究杂志, 2014, 22(4):222-226.
[45] 林雪林.井万里单侧与双侧椎体后凸成形术治疗陈旧性骨质疏松性椎体压缩骨折的早中期观察[J].中国医药导报,2014, 6(26): 34-40.
