Three-dimensional gait analysis in normal young adults: temporal, kinematic and mechanical parameters

doi:10.3969/j.issn.2095-4344.2015.24.021

Abstract

Abstract:

BACKGROUND: Three-dimensional gait analysis is an objective gait evaluation method which has been more and more widely used in clinical detection. But there is still a lack of the unified standard for evaluating the normal human gait characteristics.
OBJECTIVE: To detect the gait data in normal China young people and to provide the reference for analyzing the abnormal gait.

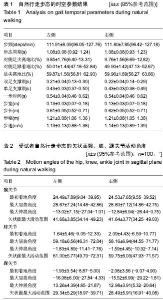

METHODS: Totally 100 normal China young adults were enrolled to test natural gaits using the three-dimensional motion capture system of the British Vicon to get the spatial and temporal parameters, kinematics parameters, kinetics parameters.

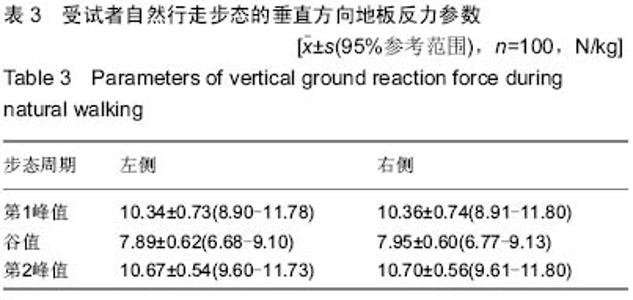

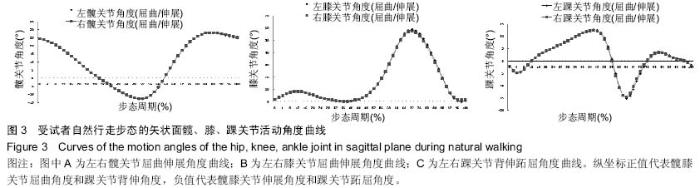

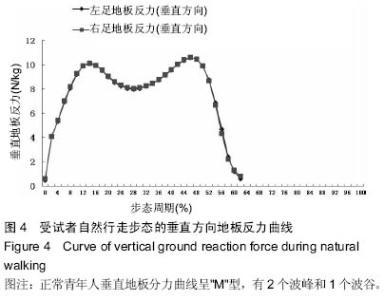

RESULTS AND CONCLUSION: The curves of left and right sides (hip, knee, ankle joint angle and vertical ground reaction) of normal young people distributed basically consistently. There were no statistically significant differences between the left side and the right side in data of the motion angles of the hip, knee, ankle joint (first landing angle, maximum flexion angle, maximum extension angle, maximum range of motion in sagittal plane) and the vertical ground reaction parameters (the first wave peak, valley and the second wave peak) (P > 0.05). The normal human gait data established can provide the reference for clinical gait analysis.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Gait, Hip, Knee, Ankle

CLC Number:

R318

Huang Ping, Zhong Hui-min, Chen Bo, Qi Jin, Qian Nian-dong, Deng Lian-fu. Three-dimensional gait analysis in normal young adults: temporal, kinematic and mechanical parameters [J]. Chinese Journal of Tissue Engineering Research, 2015, 19(24): 3882-3888.

Figures/Tables 4

References

[1] 徐文玉,丁泉涌,苏玉萍,等.步行训练的时机选择对偏瘫患者康复疗效的影响[J].中华老年心脑血管病杂志,2013,15(1):64-66.

[2] 顾昭华,王翔,罗予,等.系列跪位强化训练对脑卒中患者步行功能的影响[J].中华物理医学与康复杂志,2012,34(2):131-133.

[3] 赵文霞,陈宁,郎坤,等.膝关节控制训练联合运动疗法改善偏瘫患者步行能力的研究[J].中国老年保健医学杂志,2014,12(6): 29-31.

[4] 谢欲晓,白伟,张羽.下肢康复训练机器人的研究现状与趋势[J].中国医疗器械信息,2010,16(2):5-8.

[5] Giaquinto S, Galli M, Nolfe G. A polynomial function of gait performance. Funct Neurol. 2007;22(1):43-46.

[6] 周天健,赵吉风,田心明,等.临床实用步态分析学[M].北京:北京出版社,1993:2-193.

[7] 向静,胥方元.步态分析在临床康复应用中的研究进展[J].现代医药卫生,2014,30(22):3411-3413.

[8] 单莎瑞,黄国志,曾庆,等.步态诱发功能性电刺激对脑卒中后足下垂患者步态时空参数的影响[J].中国康复医学杂志,2013,28(6): 558-563.

[9] Boudarham J, Roche N, Pradon D, et al. Variations in kinematics during clinical gait analysis in stroke patients. PLoS One. 2013;8(6):e66421.

[10] Lamontagne M, Beaulieu ML, Varin D, et al. Gait and motion analysis of the lower extremity after total hip arthroplasty: what the orthopedic surgeon should know. Orthop Clin North Am. 2009;40(3):397-405.

[11] Nankaku M, Akiyama H, Kanzaki H, et al. Effects of vertical motion of the centre of mass on walking efficiency in the early stages after total hip arthroplasty. Hip Int. 2012;22(5): 521-526. [12] Sander K, Layher F, Anders C, et al. Gait analysis after minimally invasive total hip arthroplasty. Orthopade. 2012;41(5):365-376.

[13] Carmo AA, Kleiner AF, Costa PH, et al. Three-dimensional kinematic analysis of upper and lower limb motion during gait of post-stroke patients. Braz J Med Biol Res. 2012;45(6): 537-545.

[14] Stief F, Böhm H, Michel K, et al. Reliability and accuracy in three-dimensional gait analysis: a comparison of two lower body protocols. J Appl Biomech. 2013;29(1):105-111.

[15] Sagawa Y Jr, Armand S, Lubbeke A, et al. Associations between gait and clinical parameters in patients with severe knee osteoarthritis: a multiple correspondence analysis. Clin Biomech (Bristol, Avon). 2013;28(3):299-305.

[16] Fukaya T, Mutsuzaki H, Wadano Y. Interrater Reproducibility of Knee Movement Analyses during the Stance Phase: Use of Anatomical Landmark Calibration with a Rigid Marker Set. Rehabil Res Pract. 2013;2013:692624.

[17] Gil-Agudo A, Pérez-Nombela S, Forner-Cordero A, et al. Gait kinematic analysis in patients with a mild form of central cord syndrome. J Neuroeng Rehabil. 2011;8:7.

[18] Wren TA, Otsuka NY, Bowen RE, et al. Outcomes of lower extremity orthopedic surgery in ambulatory children with cerebral palsy with and without gait analysis: results of a randomized controlled trial. Gait Posture. 2013;38(2):236-241.

[19] Ganley KJ, Powers CM. Gait kinematics and kinetics of 7-year-old children: a comparison to adults using age-specific anthropometric data. Gait Posture. 2005;21(2):141-145.

[20] Baker R. The history of gait analysis before the advent of modern computers. Gait Posture. 2007;26(3):331-342.

[21] 黄美玲,杨万章,范佳进,等.早期使用踝足矫形器对脑卒中偏瘫患者步行功能影响的表面肌电信号研究[J].中国康复医学杂志,2014, 29(5):446-450.

[22] 刘艳成,夏群,胡永成,等.便携步态分析量化评价脊髓型颈椎病患者的步态特征[J].中国组织工程研究,2014,18(11):1774-1779.

[23] 姜文文,谭志梅,燕铁斌.功能性电刺激对脑卒中后患者步行的影响[J].中华物理医学与康复杂志,2012,34(11):868-870.

[24] 盂殿怀,伊文超,顾昭华,等.功能性电刺激辅助步行设备对脑卒中足下垂患者步态时空参数的影响[J].中国康复医学杂志,2013,28(10): 923-928.

[25] 毛世刚,张素蕊,赵萌萌,等.利用三维步态分析系统研究集体康复在膝关节功能障碍患者康复中对其步态参数的影响[J].中国医药指南, 2013,11(18):108-109.

[26] 陈龙伟,李树伟,王珏,等.脑瘫患儿步态时空和运动学参数的可靠性分析[J].中国运动医学杂志,2012,31(4):303-307.

[27] 朴雪梅,孙晏舲,薛鸾,等.三维步态分析系统在强直性脊柱炎病情评价中的应用研究[J].中国药物与临床,2013,13(7):845-849.

[28] 周安艳,李海,黄东锋,等.视频压力式步态分析系统对正常学龄前儿童的步态分析[J].中国临床康复, 2005,9(30):115-117.

[29] 蔡付文,王人成,李广庆,等.低成本人体步态分析系统的研究[J].中国康复医学杂志,2008,23(1):49-53.

[30] 赵江莉,毛玉瑢,邬培慧,等.单侧全髋关节置换术后患者下肢三维运动力学特征分析[J].中国康复医学杂志,2013,28(10):909-913.

[31] 戴胡明,方诗元.步态分析在脊柱疾病中的研究现状[J].安徽医学, 2013,34(4):514-517.

[32] 徐晓萍,陈卓铭,杨伟.病态步行姿势纠正训练在女性轻中度膝骨关节炎康复治疗中的应用效果[J].广东医学,2014,35(17): 2688-2690.

[33] 王俊,杨振辉,刘海兵,等.下肢康复机器人在脑卒中患者步行障碍中的应用和研究进展[J].中国康复医学杂志,2014,29(8):784-788.

[34] 桑德春,卢利萍,邵春霞,等.老年脑卒中偏瘫患者的三维步态分析[J].中国康复理论与实践,2013,19(9):860-862.

[35] 周敬滨,李国平,李方祥.慢性膝关节前交叉韧带损伤患者步态的运动学分析[J].中国运动医学杂志,2012,31(10):898-912.

[36] 王盛,伍琦,朱奕,等.便携式步态分析与实验室步态分析时空参数的一致性研究[J].中华物理医学与康复杂志,2014,36(8):621-624.

[37] Shemmell J, Johansson J, Portra V, et al. Control of interjoint coordination during the swing phase of normal gait at different speeds. J Neuroeng Rehabil. 2007;4:10.

[38] 胡雪艳,恽晓平,张通.基于数字视频和数字图像处理的步态分析在卒中康复训练中的应用[J].中国脑血管病杂志,2009,6(9):456-460.

[39] Kawamura CM, de Morais Filho MC, Barreto MM, et al. Comparison between visual and three-dimensional gait analysis in patients with spastic diplegic cerebral palsy. Gait Posture. 2007;25(1):18-24.

[40] 朱晓军,朱奕,王盛,等.三维运动分析系统用于平衡检测的信度与效度研究[J].中国康复医学杂志,2012,27(4):315-319.

[41] 崔大平,赵德伟,孙强,等.踝关节重建手术前后的步态分析[J].中国矫形外科杂志,2013,21(4):373-377.

[42] Miller DJ, Stergiou N, Kurz MJ. An improved surrogate method for detecting the presence of chaos in gait. J Biomech. 2006; 39(15):2873-2876.

[43] Kim CR, Yoo JY, Lee SH, et al. Gait analysis for evaluating the relationship between increased signal intensity on t2-weighted magnetic resonance imaging and gait function in cervical spondylotic myelopathy. Arch Phys Med Rehabil. 2010;91(10):1587-1592.

[44] 赵德伟,崔大平.全髋关节置换手术前后三维步态分析[J].中华外科杂志,2009,47(2):132-135.

[45] 冉茂群,肖农,任永平,等.计算机辅助三维步态评价脑性瘫痪儿童的肌力及骨盆控制能力[J].中国组织工程研究,2012,16(39):7279- 7282.

[46] 赵栩.脑卒中偏瘫步态分析在康复治疗中的应用价值[J].中国医药指南,2014,12(32):214-215.

[47] Alice N, Fabienne C, Anne-Marie W, et al. Does freezing in Parkinson's disease change limb coordination? A kinematic analysis. J Neurol. 2007;254(9):1268-1277.

[48] 邓勇,徐杨博,鲁晓波.步态分析对慢性踝关节不稳手术疗效的评价[J].现代医药卫生,2015,31(2)238-240.

[49] Amboni M, Barone P, Iuppariello L, et al. Gait patterns in Parkinsonian patients with or without mild cognitive impairment. Mov Disord. 2012 ;27(12):1536-1543.

[50] Lee JK, Park EJ. 3D spinal motion analysis during staircase walking using an ambulatory inertial and magnetic sensing system. Med Biol Eng Comput. 2011;49(7):755-764.

[51] Louis ED, Rao AK, Gerbin M. Functional correlates of gait and balance difficulty in essential tremor: balance confidence, near misses and falls. Gait Posture. 2012;35(1): 43-47.

[52] Cenni F, Leardini A, Pieri M, et al. Functional performance of a total ankle replacement: thorough assessment by combining gait and fluoroscopic analyses. Clin Biomech (Bristol, Avon). 2013;28(1):79-87.

[53] Frizera Neto A, Gallego JA, Rocon E, et al. Extraction of user's navigation commands from upper body force interaction in walker assisted gait. Biomed Eng Online. 2010;9:37.

[54] Mackey AH, Stott NS, Walt SE. Reliability and validity of an activity monitor (IDEEA) in the determination of temporal- spatial gait parameters in individuals with cerebral palsy. Gait Posture. 2008 ;28(4):634-639.

[55] Brown CR, Hillman SJ, Richardson AM, et al. Reliability and validity of the Visual Gait Assessment Scale for children with hemiplegic cerebral palsy when used by experienced and inexperienced observers. Gait Posture. 2008;27(4):648-652.

[56] 谈绎文,郑昱新,詹红生,等.三维步态分析在膝骨关节炎研究中的应用[J].国际骨科学杂志,2014,35(4):215-218.

[57] 王玉霞,于涛,楮琴,等.三维步态分析痉挛性脑性瘫痪儿步行中时空参数和骨盆运动特征[J].中国组织工程研究,2012,16(22):4039- 4043.

[58] 万青,吴伟,刘慧华,等.脑卒中患者偏瘫步态的时空及关节运动学参数分析[J].中国康复医学杂志,2014,29(11):1026-1030.

[59] 毛玉瑢,李乐,陈正宏,等.脑卒中患者步行能力与下肢三维运动学及动力学相关性分析[J].中国康复医学杂志,2012,27(5):442-447.

[60] 王煜.步态分析在脑卒中后偏瘫患者异常步态研究中的应用[J].吉林中医药,2010,30(2):124-126.

[61] Wade C, Redfern MS. Ground reaction forces during human locomotion on railroad ballast. J Appl Biomech. 2007;23(4):322- 329.

[62] Protopapadaki A, Drechsler WI, Cramp MC, et al. Hip, knee, ankle kinematics and kinetics during stair ascent and descent in healthy young individuals. Clin Biomech (Bristol, Avon). 2007; 22(2):203-210.
