Pedicle screw fixation combined with artificial bone graft improves bone formation after thoracolumbar fractures

doi:10.3969/j.issn.2095-4344.2015.16.001

Abstract

Abstract:

BACKGROUND: Simple pedicle screw fixation for thoracolumbar fractures has better outcomes, but there are some deficiencies, such as poor applicability for severe compression or burst fractures, strong vertebral pain, easy to cause vertebral wound denervation and paraspinal muscle injury, and slow recovery.
OBJECTIVE: To investigate the clinical effects of pedicle screw fixation combined with artificial bone graft for the treatment of thoracolumbar fractures.
METHODS: A total of 126 patients with thoracolumbar vertebral compression fractures, who had undergone pedicle screw fixation without bone graft (control group, n=62) and with bone graft (test group, n=64) were enrolled. The fracture healing, anterior vertebral height ratio, sagittal Cobb angle, and loss rate of vertebral height after 6 months were observed by X-ray in the two groups.
RESULTS AND CONCLUSION: All patients were followed up, and had complete fracture healing after 12-16 months. The anterior vertebral height and Cobb angle were both improved in the two groups at 1 week after operation (P < 0.01), but there was no difference between the two groups (P > 0.05). New bone formation was observed in the test group at 6 months after operation, and patients were pain-free; but the speed of bone formation was slower in the control group, and patients still suffered from painful thoracolumbar fractures. There was no difference in the loss of anterior vertebral height and Cobb angle between the two groups (P > 0.05). These findings indicate that pedicle screw fixation combined with artificial bone graft lead to a better recovery in thoracolumbar fractures.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: Spinal Fractures, Fractures, Compression, Lumbar Vertebrae, Thoracic Vertebrae, Internal Fixators

CLC Number:

R318

Ren Yong-an, Yu Sheng-hui, Gu Zu-chao, Zhang Yu, Peng Yin-xiao, Chen Xin, Gao Wei-qiang. Pedicle screw fixation combined with artificial bone graft improves bone formation after thoracolumbar fractures[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(16): 2461-2466.

Figures/Tables 3

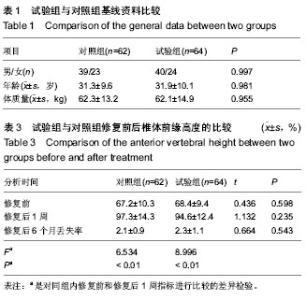

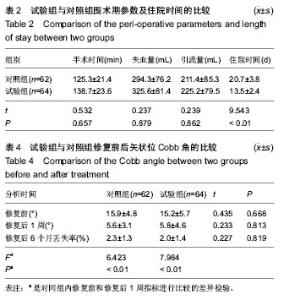

2.1 参与者数量分析两组患者均顺利完成手术治疗，均未出现出院失访情况，总随访时间为6-16个月。 2.2 两组基线资料比较两组在性别比例、年龄结构、体型等方面的差异无显著性意义(P > 0.05)，资料具有较强可比性，见表1。 2.3 围术期参数及住院时间比较试验组手术时间、失血量、引流量稍高于对照组，但差异无显著性意义(P > 0.05)；试验组住院时间短于对照组(P < 0.01)，见表2。 2.4 随访观察骨折愈合及椎体高度丢失两组患者均获得随访，修复后1周及6个月至少各拍摄1次X射线片，总随访时间为6-16个月。修复6个月后，两组骨折愈合情况良好，其中对照组伤椎高度维持较好，但新骨生成较缓慢，患者伤椎仍有痛感；试验组人工骨完全吸收，伤椎高度维持良好，可见新骨生成，患者伤椎无明显痛感。修复后12-16个月，两组骨折椎体愈合完全，取出固定螺钉，椎体高度均无明显丢失，两组骨折痊愈时间比较差异无显著性意义(P > 0.05)。 2.5 椎体前缘高度百分比比较两组修复前的椎体前缘高度百分比比较差异无显著性意义(t=0.436，P > 0.05)；修复后1周，两组间椎体前缘高度百分比比较差异无显著性意义(t=1.132，P > 0.05)，但均优于修复前(P < 0.01)；修复后6个月，两组间椎体高度丢失率比较差异无显著性意义(t=0.664，P > 0.05)，见表3。 2.6 矢状位Cobb角比较两组修复前的矢状位Cobb角比较差异无显著性意义(t=0.435，P > 0.05)；修复后1周，两组矢状位Cobb角比较差异无显著性意义(t=0.233， P，但均优于修复前(P < 0.01)；修复后6个月，两组矢状位Cobb角比较差异无显著性意义(t=0.227，P > 0.05)，见表4。 > 0.05) 2.7 不良反应对照组3例因创面出现积液延期愈合，其余患者伤口Ⅰ期愈合。试验组未发生与人工骨复合物相关的不良反应。 2.8 典型病例 34岁男性患者，2012年5月因高处坠落致椎体骨折，受伤后第5天接受手术治疗。根据患者病情结合患者意愿，选择伤椎置钉并植入人工骨复合物疗法治疗，治疗方案经医院伦理委员会核准。修复前检查表明，患者T12节段爆裂性骨折(图1A，B)；通过伤椎置钉并植入人工骨复合物后1周，可见伤椎创面人工骨填充理想，凝固成形状态维持良好，未出现渗漏(图1C，D)；修复后6个月，患者椎体高度维持良好，伤椎创面显影表明人工骨已基本吸收完全，创面可见明显新骨组织生成(图1E，F)，患者伤椎位置感觉正常，已无明显痛感；修复后12个月，骨折愈合，取出内固定螺钉，椎体高度未见明显丢失。"

References

[1] 丁磊,丁伟伟,闫生亮,等.后路经伤椎单侧椎弓根通道植骨并置钉短节段内固定修复胸腰段椎体爆裂性骨折[J].中国组织工程研究, 2014,18(44):7100-7105.
[2] 张兆川,马超,吴德慧,等.椎弓根螺钉椎旁肌间隙与后正中入路内固定修复胸腰椎骨折:稳定性比较[J].中国组织工程研究,2014, 18(40):6451-6458.
[3] 徐松,纳强,张雄文,等.经伤椎置钉与植骨椎弓根钉内固定治疗单节段胸腰椎骨折[J].中国骨与关节损伤杂志,2014,29(6):1-2.
[4] 彭小忠,肖侃侃.微创与开放方案置入椎弓根螺钉内固定修复胸腰椎骨折[J].中国组织工程研究,2014,18(26):4212-4218.
[5] 王述华,邓经德,刘立斌,等.胸腰椎骨折伤椎置钉固定的疗效观察[J].临床骨科杂志,2014,17(6):652-654.
[6] 袁志峰,邵斌,曾景平.经伤椎置钉治疗胸腰椎骨折的临床运用及疗效分析[J].脊柱外科杂志,2013,11(1):32-35.
[7] Bose S,Roy M,Bandyopadhyay A.Recent advances in bone tissue engineering scaffolds.Trends Biotechnol.2012;30(10): 546-554.
[8] Ha KY,Kim YH,Chang DG,et al.Causes of late revision surgery after bone cement augmentation in osteoporotic vertebral compression fractures.Asian Spine J.2013;7(4): 294-300.
[9] Kruger A,Rammler K,Ziring E,et al.Percutaneous minimally invasive instrumentation for traumatic thoracic and lumbar fractures: a prospective analysis. Acta Orthop Belg.2012; 78(3):376-381.
[10] 史晓林,刘清阁,张昊,等.不同植骨材料重建伤椎修复胸腰椎爆裂骨折:验证植骨愈合[J].中国组织工程研究,2014,18(39): 6233-6239.
[11] 储朝明,刘艺,李钦亮,等.注射型人工骨结合伤椎置钉治疗胸腰椎骨折[J].齐齐哈尔医学院学报,2013,34(17):2510-2512.
[12] Xing D,Ma JX,Ma XL,et al.A meta-analysis of balloon kyphoplasty compared to percutaneous vertebroplasty for treating osteoporotic vertebral compression fractures.J Clin Neurosci.2013;20(6):795-803.
[13] Yang H, Shi JH, Ebraheim M,et al.Outcome of thoracolumbar burst fractures treated with indirect reduction and fixation without fusion.Eur Spine J.2011;20(3): 380-386.
[14] Yu CW,Hsieh MK,Chen LH,et al.Percutaneous balloon kyphoplasty for the treatment of vertebral compression fractures.BMC Surg.2014;14:3.
[15] Georgy BA.Feasibility,safety and cement leakage in vertebroplasty of osteoporotic and malignant compression fractures using ultra-viscous cement and hydraulic delivery system. Pain Physician.2012;15(3):223-228.
[16] 明江华,郑慧锋,赵奇,等.Sextant 经皮椎弓根钉棒微创系统治疗胸腰椎骨折：随访评价[J].中国组织工程研究,2013,17(48): 8343-8348.
[17] 陈海峰,王健.富集骨髓干细胞复合人工骨在椎体后路融合中的临床应用[J].临床骨科杂志,2009,12(3):259-261.
[18] 黄宇峰,沈彬,赵卫东,等.短节段固定融合结合人工骨椎体增强术治疗骨质疏松性胸腰椎骨折[J].创伤外科杂志,2013,15(2): 115-118.
[19] Chen D,An ZQ,Song S,et al.Percutaneous vertebroplasty compared with conservative treatment in patients with chronic painful osteoporotic spinal fractures.J Clin Neurosci.2014; 21(3):473-477.
[20] Kim JH,Yoo SH.Long-term Follow-up of Percutaneous Vertebroplasty in Osteoporotic Compression Fracture: Minimum of 5 Years Follow-up.Asian Spine J.2012; 6(1):6-14.
[21] Liu J,Li X,Tang D,et al.Comparing pain reduction following vertebroplasty and conservative treatment for osteoporotic vertebral compression fractures: a meta-analysis of randomized controlled trials.Pain Physician.2013;16(5): 455-464.
[22] 王羿萌,皮斌,朱晓宇,等.椎弓根螺钉经后路置入修复多节段胸椎骨折:随访验证椎体高度恢复[J].中国组织工程研究,2014, 18(48): 7763-7768.
[23] Kim KW,Cho KJ,Kim SW,et al.A nation-wide, outpatient-based survey on the pain, disability, and satisfaction of patients with osteoporotic vertebral compression fractures.Asian Spine J. 2013;7(4):301-307.
[24] Dong SH, Chen HN, Tian JW,et al.Effects of minimally invasive percutaneous and trans-spatium intermuscular short-segment pedicle instrumentation on thoracolumbar mono-segmental vertebral fractures without neurological compromise.Orthop Traumatol Surg Res.2013;99(4):405-411.
[25] Stevenson M,Gomersall T,Lloyd Jones M,et al.Percutaneous vertebroplasty and percutaneous balloon kyphoplasty for the treatment of osteoporotic vertebral fractures: a systematic review and cost-effectiveness analysis.Health Technol Assess. 2014;18(17):1-290.
[26] 于海龙,刘军,陈语,等.腰椎骨折伤椎置钉中椎弓根螺钉可视化技术的应用[J].中国组织工程研究,2014,18(4):547-552.
[27] Tofuku K, Koga H, Ijiri K,et al. Combined posterior and delayed staged mini-open anterior short-segment fusion for thoracolumbar burst fractures. J Spinal Disord Tech. 2012; 25(1):38-46.
[28] Khojasteh A,Behnia H,Shayesteh YS,et al.Localized bone augmentation with cortical bone blocks tented over different particulate bone substitutes:aretrospective study.Int J Oral Maxillofac Implants.2012;27(6):1481-1493.
[29] 周英杰,赵刚,李森,等.经皮聚甲基丙烯酸甲酯骨水泥椎体成形结合手法牵引复位治疗骨质疏松性胸腰椎压缩骨折[J].中国组织工程研究,2012,16(21):3823-3827.
[30] 冯新民,王静成,张亮,等.高黏度骨水泥在修复骨质疏松性胸腰椎骨折中的应用[J].中国组织工程研究,2014,18(30):4757-4763.
[31] 刘训伟,钟建,彭湘涛,等.联合钙盐骨水泥及可降解网状微孔球囊椎体成形的体外实验[J].中国组织工程研究,2014,18(12): 1817-1823.
[32] 彭成忠,周春芳,曾钊,等.脊柱外固定和椎体成形注入骨水泥治疗老年胸腰椎骨折[J].中国组织工程研究,2013,17(4):582-587.
[33] 叶前驱,熊德建,陈森荣.经伤椎置钉并植入人工骨复合物治疗胸腰椎骨折[J].实用骨科杂志,2013,19(6):537-539.
