Accuracy of pedicle screw placement based on three-dimensional lumbar reconstruction

doi:10.3969/j.issn.2095-4344.2013.13.008

Abstract

Abstract:

BACKGROUND: The three-dimensional reconstruction techniques have been widely used in preoperative planning of pedicle screw placement, but the direct accuracy analysis of the forecast parameters has not yet been reported.
OBJECTIVE: To analyze the accuracy of three-dimensional reconstruction based on computerized tomography in the application of lumbar pedicle screw placement.

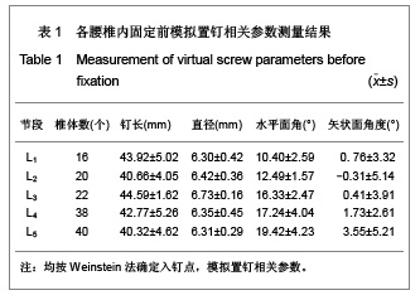

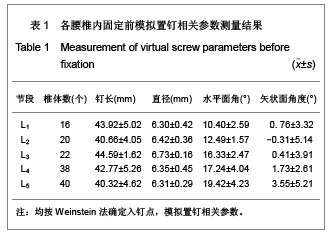

METHODS: By the using of the Mimics software, we selected 136 lumbar pedicles to perform the preoperative three-dimensional reconstruction, which were randomly selected from 30 patients treated with pedicle screw fixation. By the simulation modules of Mimics, the length, diameter, transverse section angle and sagital section angle were preoperatively predicted. Then, the data were statistically compared with the actual data of the patients postoperatively.

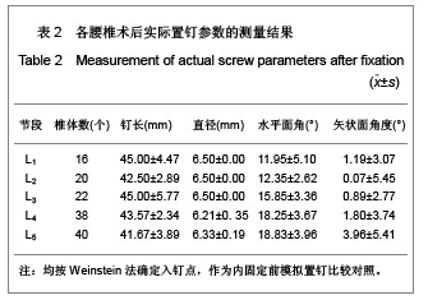

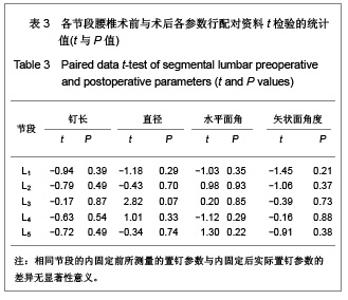

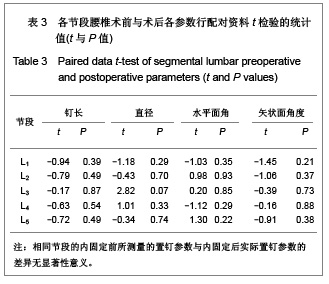

RESULTS AND CONCLUSION: Through the three-dimensional lumbar reconstruction preoperatively by Mimics software, the best channel of pedicle screw placement was designed and the placement of the screw was simulated. The length, diameter, transverse section angle and sagital section angle of preoperative predicted pedicle screw were pre-measured. There was no significant difference of the data when compared with the actual data obtained from the C-arm and intra-fixation navigation system after placement (P > 0.05). The postoperative actual location and length of pedicle screws were excellent from CT scans. Through the preoperative three-dimensional lumbar reconstruction by Mimics software, the parameters of simulating pedicle screw placement can precisely guide and improve the safety of pedicle screws placement.

Key words: bone and joint implants, spinal implants, three-dimensional reconstruction, pedicle screw, accuracy, lumbar, transeverse section angle, sagital section angle, simulate pedicle screw placement, screw parameters, internal fixation, provincial grants-supported paper, photographs-containing paper of bone and joint implants

CLC Number:

R318

Yang Bo, Fang Shi-bing, Yin Biao, Song Lei, Wang Le, Wan Sheng-yu, Xie Jing-kai. Accuracy of pedicle screw placement based on three-dimensional lumbar reconstruction[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(13): 2333-2338.

Figures/Tables 3

References

[1] Youkilis AS,Quint DJ,McGillicuddy JE,et al.Stereotactic navigation for placement of pedicle screws in the thoracic spine. Neurosurgery. 2001; 48(4): 771-779.

[2] Foley KT,Simon DA,Rampersaud YR.Virtual fluoroscopy: computer-assisted fluoroscopic navigation. Spine.2001;26(4): 347-351.

[3] weinstein JN, Rydevik BL, Rauschning W. Anatomic and technical consideration of pedicle screw fixation. Clin Orthop Relat Res.1992;(284): 34-46.

[4] West JL, Ogilvie JW, Bradford DS. Complications of the variable screw plate pedicle screw fixation. Spine.1991;16(5): 576-579.

[5] Wegener B, Birkenmaier C, Fottner A, et al. Delayed perforation of the aorta by a thoracic pedicle screw. Eur Spine J. 2008;17(suppl 2): S351-354.

[6] Hicks JM, Singla A, Shen FH, et al. Complications of pedicle screw fixation in scoliosis surgery: a systematic review. Spine. 2010;35(11): E465-470.

[7] Roy-Camille R, Saillant G, Mazel C. Internal fixation of the lumbar spine with pedicle screw plating. Clin Orthop Relat Res.1986;(203): 7-17.

[8] Magerl FP. Stabilization of the lower thoracic and lumbar spine with external skeletal fixation. Clin Orthop Relat Res. 1984;(189): 125-141.

[9] Krag MH, Van Hal ME, Beynnon BD. Placement of transpedicular vertebral screws close to anterior vertebral cortex: Description of methods. Spine.1989;14(8): 879-883.

[10] Tian NF, Huang QS, Zhou P, et al. Pedicle screw insertion accuracy with different assisted methods: a systematic review and meta-analysis of comparative studies. Eur Spine J.2011; 20(6): 846-859.

[11] Zausinger S, Scheder B, Uhl E, et al. Intraoperative computed tomography with integrated navigation system in spinal stabilizations. Spine(Phila pa 1976).2009;34(26): 2919-2926.

[12] Verma R,Krishan S,Haendlmayer K,et al. Functional outcome of computer-assisted spinal pedicle screw placement: a systematic review and meta-analysis of 23 studies including 5,992 pedicle screws. Eur Spine J.2010;19(3): 370-375.

[13] Xiong CZ, Hao JM, Tang TS. Zhonghua Guke Zazhi. 2002; 22(1):31-35. 熊传芝,郝敬明,唐天驷.椎弓根钉道参数的变异性及其相关因素的研究[J].中华骨科杂志,2002,22(1):31-35.

[14] Mao XF,Yang B,Li SM.Yingxiang Zhenduan Yu Jieru Fangshexue. 2007;16(4):187-189. 毛晓芬,杨波,李斯明.极外侧型腰椎间盘突出症的CT、MRI表现[J].影像诊断与介入放射学,2007,16(4):187-189.

[15] Ke YH,Yin D,Chang YB,et al.Zhongguo Linchuang Jiepoxue Zazhi. 2012,30(1):52-55. 柯雨洪,尹东,昌耘冰,等.CT三维重建在脊柱半椎体畸形矫正手术中的价值[J].中国临床解剖学杂志,2012,30(1):52-55.

[16] Forsythe B, Kopf S, Wong AK, et al. The location of femoral and tibial tunnels in anatomic double-bundle anterior cruciate ligament reconstruction analyzed by three-dimensional computed tomography models. J Bone Joint Surg Am.2010; 92(6): 1418-1426.

[17] Galibarov PE,Prendergast PJ,Lennon AB.A method to reconstruct patient-specific proximal femur surface models from planar pre-operative radiographs. Med Eng Phys.2010; 32(10): 1180-1188.

[18] Müller MC, Belei P, de la Fuente M, et al. Evaluation of a new computer-assisted surgical planning and navigation system based on two-dimensional fluoroscopy for insertion of a proximal femoral nail: an experimental study. Proc Inst Mech Eng H.2011;225(5): 477-486.

[19] Song L,Zhong SZ,Li YB,et al.Zhongguo Jiaoxing Waike Zazhi. 2007,15(10):765-767. 宋磊,钟世镇,李严兵,等.经皮手术治疗骶髂关节损伤的临床解剖学数字化研究[J].中国矫形外科杂志,2007,15(10):765-767.

[20] Du CL,Ma XL,Zhang T,et al.Shengwu Yixue Gongcheng Yu Linchuang. 2012,16(3):223-227. 杜长岭,马信龙,张弢,等.双侧股骨近端对称性及解剖形态的三维重建研究[J].生物医学工程与临床,2012,16(3):223-227.

[21] Yu HL,Xiang LB,Liu J, et al. Zhongguo Jiaoxing Waike Zazhi. 2010,18(2):157-159. 于海龙,项良碧,刘军,等.CT三维重建技术在手术治疗胸腰段椎体骨折中应用[J].中国矫形外科杂志,2010,18(2):157-159.
