Distribution law and pathological characteristics of cystic degeneration in steroid-induced femoral head necrosis

doi:10.12307/2023.580

Chinese Journal of Tissue Engineering Research ›› 2023, Vol. 27 ›› Issue (31): 4996-5001.doi: 10.12307/2023.580

Distribution law and pathological characteristics of cystic degeneration in steroid-induced femoral head necrosis

Tian Jiaqing1, He Mincong2, 3, Wei Yurou1, He Xianshun1, Zhong Yuan1, Jiang Yulai1, Zhan Zhiwei1, Wei Tengfei1, He Xiaoming2, 3, Wei Qiushi2, 3

1Third Clinical Medical College, Guangzhou University of Chinese Medicine, Guangzhou 510405, Guangdong Province, China; 2Institute of Joint, Third Affiliated Hospital of Guangzhou University of Chinese Medicine, Guangzhou 510000, Guangdong Province, China; 3Guangdong Institute of Traditional Chinese Medicine Bone Injury, Guangzhou 510000, Guangdong Province, China

Received:2022-07-11 Accepted:2022-10-12 Online:2023-11-08 Published:2023-01-31
Contact: Wei Qiushi, MD, Associate chief physician, Institute of Joint, Third Affiliated Hospital of Guangzhou University of Chinese Medicine, Guangzhou 510000, Guangdong Province, China; Guangdong Institute of Traditional Chinese Medicine Bone Injury, Guangzhou 510000, Guangdong Province, China
About author:Tian Jiaqing, Third Clinical Medical College, Guangzhou University of Chinese Medicine, Guangzhou 510405, Guangdong Province, China
Supported by:
National Natural Science Foundation of China (General Program), No. 82274544 (to WQS); Open Projects of Guangdong Institute of Traditional Chinese Medicine Bone Injury in 2021, Nos. GYH202101-01 (to WQS [project participant]) and GYH202101-04 (to WQS); Major Project of "Double First-class" and High-level University Discipline Collaborative Innovation Team of Guangzhou University of Chinese Medicine, No. 2021XK05 (to WQS [project participant]); "Double First-class" and High-level University Discipline Collaborative Innovation Team Cultivation Project of Guangzhou University of Chinese Medicine, No. 2021XK41 (to WQS); 2021 Special Project of Guangdong Provincial Department of Education in Key Fields of Ordinary Universities, No. 2021ZDZX2005 (to WQS); Young Science Foundation of National Natural Science Foundation of China, No. 82004392 (to HMC)

Abstract

Abstract: BACKGROUND: The reduction of mechanical bearing capacity of the femoral head is the main cause of femoral head collapse, and cystic degeneration affects the normal mechanical conduction pathway of the hip joint. However, few studies have explored the relationship between the two in the development of femoral head necrosis.
OBJECTIVE: To discuss the distribution law and pathological characteristics of cystic degeneration in steroid-induced femoral head necrosis based on heat map model and pathological results.

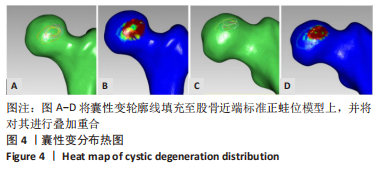

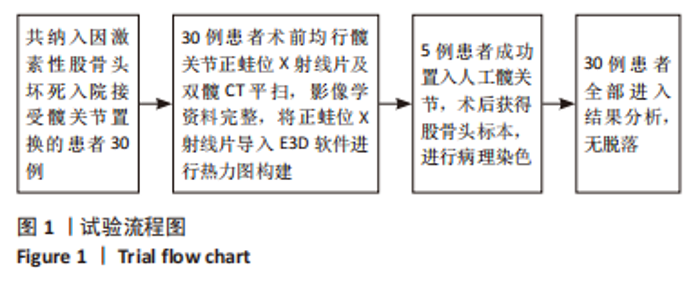

METHODS: Thirty patients (30 hips) who were diagnosed with steroid-induced femoral head necrosis in the Third Affiliated Hospital of Guangzhou University of Chinese Medicine from June to December 2021 were selected as the research objects, and the outline of cystic degeneration of steroid-induced femoral head necrosis was extracted and the contour line was matched to the standard femoral head model to present the contour line as a heat map. Necrosis position and necrosis area of the femoral head were recorded and counted to study the relationship between the two. Hematoxylin-eosin staining was used for histomorphological changes of femoral head specimens.

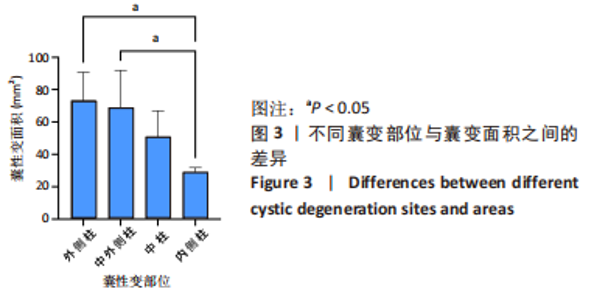

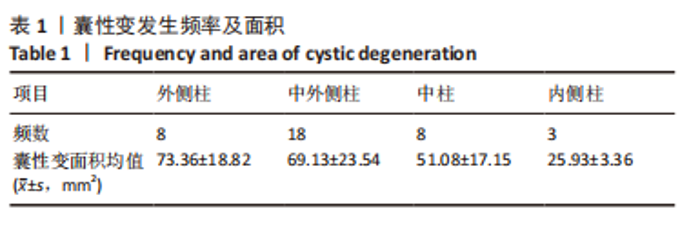

RESULTS AND CONCLUSION: (1) Based on the heat map of the cystic degeneration of steroid-induced femoral head necrosis and the pathological results of the femoral head, we found that cystic degeneration commonly occurred in the medial and lateral columns of the femoral head after steroid-induced femoral head necrosis. Compared with the area of cystic degeneration of the medial column, the area of cystic degeneration of the lateral column was larger, and with the inward movement of cystic degeneration, its area also decreased. (2) In addition, microfracture lines were scattered around cystic degeneration, which may be one of the important factors affecting the mechanical bearing capacity and stability of the femoral head.

Key words: steroid-induced femoral head necrosis, cystic degeneration, heat map, microfracture, mechanical bearing capacity, distribution law, pathological characteristics

CLC Number:

Tian Jiaqing, He Mincong, Wei Yurou, He Xianshun, Zhong Yuan, Jiang Yulai, Zhan Zhiwei, Wei Tengfei, He Xiaoming, Wei Qiushi. Distribution law and pathological characteristics of cystic degeneration in steroid-induced femoral head necrosis[J]. Chinese Journal of Tissue Engineering Research, 2023, 27(31): 4996-5001.

Figures/Tables 7

References

[1] JIN T, ZHANG Y, SUN Y, et al. IL-4 gene polymorphisms and their relation to steroid-induced osteonecrosis of the femoral head in Chinese population. Mol Genet Genomic Med. 2019;7(3):e563.
[2] 冯成龙,杨贤达,冯文韬,等. 股骨头坏死松质骨生物力学特征的空间分布规律[J]. 医用生物力学,2022,37(1):27-32.
[3] 周正新,朱磊,李文华,等. 中药骨痹通消颗粒干预激素性股骨头坏死模型兔的细胞凋亡[J]. 中国组织工程研究,2018,22(20):3190-3194.
[4] KANG JS, MOON KH, KWON DG, et al. The natural history of asymptomatic osteonecrosis of the femoral head. Int Orthop. 2013;37(3):379-384.
[5] 王学文,韦标方. 冲击波治疗不同面积股骨头坏死的疗效比较[J]. 中国矫形外科杂志,2022,30(8):1-6.
[6] 何伟. 精确诊断前提下股骨头坏死非手术治疗实践[J]. 临床外科杂志,2017,25(8):580-582.
[7] 魏秋实,何伟,张庆文,等. 围塌陷期股骨头坏死不同影像学表现研究[J]. 中国修复重建外科杂志,2021,35(9):1105-1110.
[8] 狄勋元,金明新. 成人股骨头缺血性坏死囊变区的组织学研究[J]. 中华外科杂志,1990(2):77-79.
[9] GAO F, HAN J, HE Z, et al. Radiological analysis of cystic lesion in osteonecrosis of the femoral head. Int Orthop. 2018;42(7):1615-1621.
[10] HAMADA H, TAKAO M, SAKAI T, et al. Subchondral fracture begins from the bone resorption area in osteonecrosis of the femoral head: a micro-computerised tomography study. Int Orthop. 2018;42(7):1479-1484.
[11] 杨鹏. “筋骨并重”理论指导下髋关节肌骨联合仿真及股骨头坏死模块化建模[D]. 广州:广州中医药大学,2021.
[12] 王宏润,李宏宇,韦明照. 基于三柱结构分型股骨头坏死的有限元研究[J]. 中国矫形外科杂志,2020,28(9):832-836.
[13] CHEN L, HONG G, FANG B, et al. Predicting the collapse of the femoral head due to osteonecrosis: From basic methods to application prospects. J Orthop Translat. 2017;11:62-72.
[14] RESNICK D, NIWAYAMA G, COUTTS RD. Subchondral cysts (geodes) in arthritic disorders: pathologic and radiographic appearance of the hip joint.. AJR. American J Roentgenol. 1977;128(5):799-806.
[15] DOMITROVIC R, RASHED K, CVIJANOVIC O, et al. Myricitrin exhibits antioxidant, anti-inflammatory and antifibrotic activity in carbon tetrachloride-intoxicated mice. Chem Biol Interact. 2015;230:21-29.
[16] 王羽,丁彦彦,秦合伟,等.补肾消蚀方治疗非创伤性股骨头缺血性坏死的临床疗效观察[J].中国疗养医学,2022,31(11):1207-1211.
[17] LAU HW, WONG KC, HO K, et al. Long-term outcome of vascularized iliac bone grafting for osteonecrosis of femoral head: A retrospective study with 17-year follow-up. J Orthop Surg (Hong Kong). 2021;29(1): 617657130.
[18] 程省,赵玉果,汤立新,等. 骨松宝颗粒联合唑来膦酸治疗早中期股骨头坏死的临床研究[J]. 现代药物与临床,2021,36(9):1889-1893.
[19] 刘光波,马海洋,卢强,等. 股骨头骨坏死囊性变位置分布特征[J]. 解放军医学院学报,2019,40(12):1109-1113.
[20] LIU GB, LI R, LU Q, et al. Three-dimensional distribution of cystic lesions in osteonecrosis of the femoral head. J Orthop Translat. 2020; 22:109-115.
[21] BAHK JH, JO WL, KIM SC, et al. Lateral pillar is the key in supporting pre-collapse osteonecrosis of the femoral head: a finite element model analysis of propensity-score matched cohorts. J Orthop Surg Res. 2021;16(1):728.
[22] WEN P, ZHANG Y, HAO L, et al. The effect of the necrotic area on the biomechanics of the femoral head - a finite element study. BMC Musculoskelet Disord. 2020;21(1):211.
[23] UTSUNOMIYA T, MOTOMURA G, IKEMURA S, et al. Effects of sclerotic changes on stress concentration in early-stage osteonecrosis: A patient-specific, 3D finite element analysis. J Orthop Res. 2018;36(12):3169-3177.
[24] 陈敏,汤彩敬,许杰雄. 增强MRI检查在诊断早期股骨头坏死中的应用价值[J]. 当代医药论丛,2017,15(18):164-165.
[25] 马信龙,李海涛,马剑雄,等. 股骨近端主压力骨小梁生物力学特性[J]. 生物医学工程与临床,2012,16(2):118-122.
[26] 汪金平,杨天府,钟凤林,等. 股骨生物力学特性的有限元分析[J]. 中华创伤骨科杂志,2005(10):931-934.
[27] 李获,孟昊业,马海洋,等. 早中期股骨头坏死样本的骨微结构分析[J]. 解放军医学院学报,2021,42(2):189-196.
[28] SKERRY T. Mechanostat function during skeletal development. J Musculoskelet Neuronal Interact. 2008;8(1):12.
[29] LEE GC, STEINBERG ME. Are we evaluating osteonecrosis adequately? Int Orthop. 2012;36(12):2433-2439.
[30] MCERLAIN DD, MILNER JS, IVANOV TG, et al. Subchondral cysts create increased intra-osseous stress in early knee OA: A finite element analysis using simulated lesions. Bone. 2011;48(3):639-646.
[31] 赵昕. 股骨头缺血性坏死的生物力学研究及塌陷风险预测[D]. 西安:长安大学,2021.
[32] LI S, LIU Y, ZHOU G, et al. Pre-collapse femoral head necrosis treated by hip abduction: a computational biomechanical analysis. Health Inf Sci Syst. 2022;10(1):8.
[33] LI TX, HUANG ZQ, LI Y, et al. Prediction of Collapse Using Patient-Specific Finite Element Analysis of Osteonecrosis of the Femoral Head. Orthop Surg. 2019;11(5):794-800.
[34] ZHANG Z, LIN T, ZHONG Y, et al. Effect of femoral head necrosis cystic area on femoral head collapse and stress distribution in femoral head: A clinical and finite element study. Open Med (Wars). 2022;17(1):1282-1291.
[35] 王敏,杨伟民,李斯明. 股骨头囊性变预测激素性股骨头坏死的临床意义[J]. 中华骨与关节外科杂志,2019,12(6):434-438.
[36] 邢立峰,周玲玲,王颖,等. 股骨头囊性变的鉴别诊断[J]. 中国中医骨伤科杂志,2011,19(9):45-47.
[37] ZHANG Y, WANG X, JIANG C, et al. Biomechanical research of medial femoral circumflex vascularized bone-grafting in the treatment of early-to-mid osteonecrosis of the femoral head: a finite element analysis. J Orthop Surg Res. 2022;17(1):441.
[38] Association RTCO. Expert consensus on clinical diagnosis and treatment technique of osteonecrosis of the femoral head (2022 version). Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2022;36(11): 1319-1326.
[39] 秦国宁,邢飞,卢斌,等. 新鲜正常股骨头组织力学加载下内部空间结构变化[J]. 医用生物力学,2021,36(S1):41.
[40] 蔡淼鑫. 基于微观辨证研究股骨头（前）外侧柱完整性与腓骨支撑手术疗效的关系[D]. 广州:广州中医药大学,2021.
[41] 张长灏,孟昊业,汪爱媛,等. 股骨头坏死中松质骨微观力学特性的演变规律[J]. 北京生物医学工程,2021,40(2):123-129.
