Antibacterial effect of sodium hypochlorite on in vitro biofilm formation of Enterococcus faecalis in different phases

doi:10.3969/j.issn.2095-4344.2014.52.026

Abstract

Abstract:

BACKGROUND: Studies have reported Enterococcus faecalis can exist in environment which is lack of nutrients and antimicrobials to cause re-infection of the root canal. Sodium hypochlorite solution is shown to have strong scavenging action as a root canal flushing fluid to eliminate residual Enterococcus faecalis.

OBJECTIVE: To explore the antibacterial effect of sodium hypochlorite on in vitro biofilm formation of Enterococcus faecalis in different phases.

METHODS: Biofilm models of Enterococcus faecalis were established at exponential phase, stationary phase and starvation phase, and then the biofilms were exposed to various concentrations of sodium hypochlorite solutions (1.0%, 2.5%, 5.25%). The contact time was 30 seconds, 5 minutes and 10 minutes. The direct optical observation of Enterococcus faecalis was conducted under confocal laser scanning microscope.

RESULTS AND CONCLUSION: In the same concentration of sodium hypochlorite solutions, the biofilms of starved cells were more resistant to sodium hypochlorite than those formed in the exponential phase and stationary phase (P < 0.05). When the concentration of sodium hypochlorite was 1%, the reduction of viable cells showed significant difference between the exponential phase and stationary phase (P < 0.05). When the concentration of sodium hypochlorite was 2.5% and 5.25%, the reduction of viable cells in the exponential phase and stationary phase had no statistical difference (P > 0.05). For the biofilms at the same phase, 5.25% sodium hypochlorite reduced more viable cells than 2.5% and 1% sodium hypochlorite (P < 0.05), and 2.5% sodium hypochlorite also could reduce more viable cells than 1% sodium hypochlorite, but it only exhibited a significant difference when the contact time was 30 seconds (P < 0.05). These results show that under the same concentration and same contact time, the Enterococcus faecalis biofilms at the starvation phase are more resistant to sodium hypochlorite than those at the exponential phase and stationary phase. Under the same contact time, 5.25% sodium hypochlorite exhibits the best antibacterial effect on the Enterococcus faecalis biofilms at the starvation phase.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: sodium hypochlorite, Enterococcus faecalis, biofilms

CLC Number:

R318

Wang Shan-shan, Dong Ming, Wang Li-na, Niu Wei-dong. Antibacterial effect of sodium hypochlorite on in vitro biofilm formation of Enterococcus faecalis in different phases [J]. Chinese Journal of Tissue Engineering Research, 2014, 18(52): 8509-8514.

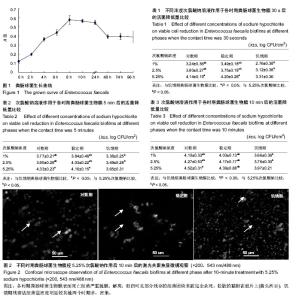

Figures/Tables 1

2.1 粪肠球菌生长曲线图图1所示：0-8 h，细菌大量繁殖快速增长，为对数期；8-24 h，细菌活性达到高水平后并保持相对稳定状态，为稳定期；48 h后，细菌开始大量死亡，细菌活性降低，但并没有完全死亡，而是在缺乏营养的环境中保持相应活性，为饥饿期。 2.2 次氯酸钠溶液对不同时期粪肠球菌生物膜的药物结果统计分析表明，各时期粪肠球菌生物膜在次氯酸钠溶液用药实验中，数据符合正态分布，相同作用时间内不同生理时期粪肠球菌生物膜对不同浓度次氯酸钠药物敏感性差异有显著性意义(P < 0.05)。药物作用30 s(表1)：①组间比较：在1%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义 (P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)；在2.5%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)；在5.25%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)。②组内比较：对数期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。稳定期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。饥饿期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。药物作用5 min(表2)：①组间比较：在1%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)；在2.5%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)；在5.25%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)。 ②组内比较：对数期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。稳定期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。饥饿期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。药物作用10 min(表3)：①组间比较：在1%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)；在2.5%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)；在5.25%次氯酸钠作用下，对数期与稳定期活菌降低量比较差异无显著性意义(P > 0.05)，对数期、稳定期与饥饿期活菌降低量比较差异有显著性意义(P < 0.05)。 ②组内比较：对数期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠作用下的活菌降低量比较差异有显著性意义(P < 0.05)。稳定期组中，1%与2.5%次氯酸钠作用下的活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠药物作用下的活菌降低量比较差异有显著性意义(P < 0.05)。饥饿期组中，1%与2.5%次氯酸钠药物作用下活菌降低量比较差异无显著性意义(P > 0.05)；1%、2.5%与5.25%次氯酸钠药物作用下活菌降低量比较差异有显著性意义(P < 0.05)。 2.3 不同时期粪肠球菌生物膜药物作用效果观察药物作用30 s、5 min、10 min后，3个不同时期粪肠球菌生物膜结构破坏，失去原有生物膜棉絮状结构特点，松脱、解离，失去生物膜保护后的细菌大量死亡，但各时期生物膜中仍有细菌存活。在药物实验过程中的数据分析结果中也同样得以证明，因此选取最大浓度(5.25%次氯酸钠)作用10 min后的生物膜样本进行观察。激光共聚焦显微镜下观察生物膜中的细菌绿色为活细菌，红色为死细菌，桔黄色和橙色一般认为是由死菌和活菌重叠造成的。图1显示，次氯酸钠溶液作用10 min后，发现各时期粪肠球菌生物膜表面死亡细菌严重脱膜、解离，但仍可见部分残存的细菌团块未被完全杀死，松散的黏附在玻片上(箭头所示)，饥饿期残留活细菌量密度明显较其他两个时期多，密集。"

References

[1] Siqueira JF. Aetiology of root canal treatment failure: why well-treated teeth can fail.Int Endod J.2001;34(1):1-10.
[2] Niu WD,Wang LN,Dong M.Relationship of Biofilm Formation and gelE Gene Expression in Enterococcus faecalis Recovered from Root Canals in Patients Requiring Endodontic Retreatment.J Endod.2011;37(5):631-636.
[3] 李海燕,徐学良.粪肠球菌感染牙根管的研究新进展[J].广东牙病防治,2008,16(z1):661-663.
[4] 郑建博,王丽娜,宋其义等.再治疗根管粪肠球菌生物膜形成与临床表现相关性分析[J].华西口腔医学杂志,2012,30(1):65-72.
[5] Sundqvist G,Figdor D,Persson S,et al.Sjogren U.Microbiologic analysis of teeth with failed endodontic treatment and the outcome of conservative re-treatment. Oral Surg Oral Med Oral Pathol Oral Radiol Endod.1998;85(1):86-93.
[6] Hancock HH,Sigurdsson AD,Trope MB,et al.Bacteria isolated after unsuccessful endodontic treatment in a North American population. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2001;91(5):579-586.
[7] Distel JW,Hatton JF,Gillespie MJ.Biofilm formation in medicated root canals. J Endod.2002;28(10):689-693.
[8] Molander A,Reit C,Dahlé NG,et al. Microbiological status of root - filled teeth with apical periodontitis. Int Endod J.1998;31(1):1-7.
[9] Hancock HH,Sigurdsson AD,Trope MB,et al.Bacteria isolated after unsuccessful endodontic treatment in a North American population. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2001;91(5):579-586.
[10] Gomes BP,Pinheiro ET,Sousa EL,et al.Enterococcus faecalis in dental root canals detected by culture and by polymerase chain reaction analysis.Oral Surg Oral Med Oral Pathol Oral Radio Endod.2006;102(2):247-253.
[11] Naenni N,Thoma K,Zehnder M.Soft tissue Dissolution capacity of currently used and potential endodontic irrigants.J Endod.2004;30(11):785-787.
[12] Okino LA,Siqueira EL,Santos M,et al.Dissolution of pulp tissue by aqueous solution of chlorhexidine digluconate and chlorhexidine digluconate gel.Int Endod J.2004;37(1):38-41.
[13] 喻学洲,周永庆,邬利民.四种浓度次氯酸钠溶液溶解牙髓的实验研究[J].现代口腔医学杂志,2009,23(5):489-490.
[14] Irala LE,Grazziotin-Soares R,Salles AA,et al.Dissolution of bovine pulp tissue in solutions consisting of varying NaOCl concentrations and combined with EDTA. Braz Oral Res. 2010;24(3):271-276.
[15] Vianna ME,Gomes BP,Berber VB,et al.In vitro evaluation of the antimicrobial activity of chlorhexidine and sodium hypochlorite.Oral Surg Oral Med Oral Pathol Oral Radiol Endod.2004;97(1):79-84.
[16] 冯朝华,高学军,沈篙.次氯酸钠对根管内粪肠球菌杀菌效果的体外研究[J].中华口腔医学杂志,2007,42(6):355-337.
[17] 于雅琼,仇丽鸿.次氯酸钠用于根管冲洗研究进展[J].中国实用口腔科杂志,2012,5(8):504-508.
[18] Sen BH,Akdeniz BG,Denizci AA.The effect of ethylenediaminetetraacetic acid on Candida albicans.Oral Surg Oral Med Oral Pathol Oral Radiol Endod.2000;90(5):651-655.
[19] Dunavant TR,Regan JD.Comparative Evaluation of Endo-dontic Irrigants against EnterococcusFaecalisBiofilms.J Endod.2006;32(6):527-531.
[20] Berber VB,Gomes BP,Sena NT,et al.Efficacy of various concentrations of NaOCl and instrumentation techniques in reducing Enterococcus faecalis within root canals and dentinal tubules.Int Endod J.2006;39(1):10-17.
[21] 张敬之,史春,黄林,等.次氯酸钠溶液冲洗根管对粪肠球菌的作用研究[J].大连医科大学学报,2008,30(6):508-509.
[22] 李慧,刘漪,张行炜,等.不同pH值次氯酸钠对粪肠球菌抗菌效果的体外研究[J].口腔医学研究,2010,26(3):323-325.
[23] 李新军,郭晓丽,孙应明,等.茶多酚、MTAD和次氯酸南液抑制粪肠球菌及其生物膜的作用比较[J].牙体牙髓牙周学杂志, 2011, 21(11):632-635.
[24] Liu HY,Wei X,Ling J,et al. Biofilm Formation Capability of Enterococcus faecalis Cells in Starvation Phase and Its Susceptibility to Sodium Hypochlorite. J Endod .2010; 36(4): 36:630-635.
[25] Isabelle P.The Susceptibility of Starved, Stationary Phase,and Growing Cells of Enterococcus faecalis to Endodontic Medicaments.J Endod.2005;31(5):380-386.
[26] George S,Kishen A,Song KP.The Role of Environmental Changes on Monospecies Biofilm Formation on Root Canal Wall by Enterococcus faecalis.J Endod.2005;31(12):867-872.
[27] Kishen A, George S, Kumar R, et al. Enterococcus faecalis-mediated biomineralized biofilm formation on root canal.J Biomed Mater Res A.2006;77(2):406-415.
[28] 张静兰.根管充填后粪肠球菌再感染的研究[J].国外医学:口腔医学分册,2006,33(3):177-179.
[29] Figdor D,Davies JK,Sundqvist G.Starvation survival, growth and recovery of Enterococcus faecalis in human serum. Oral Miciobiol Immunol.2003;18(4):234-239.
[30] Giard JC,Hartks A,Flahaut S,et al.Starvation-induced multiresistance in Enterococcus faecalis JH222.Curr Microbiol.1996;32(5):264-271.
[31] Laplace JM,Thuault M,Hartke A,et al.Sodium hypochlorite stress in Enterococcus faecalis: in?uence of antecedent growth conditions and induced proteins. Curr Microbiol. 1997;34(5):284-289.
[32] Mafu AA,Plumety C,Deschenes L,et al.Adhesion of pathogenic bacteria to food contact surfaces:influence of pH of culture.Int J Microbiol.2011;2011:972494.
[33] Miñana M,Carnes D,Walker WA III,et al.pH changes at the surface of root dentin after intracanal dressing with calcium oxide and calcium hydroxide.J Endod.2001; 27(1):43-5.
[34] 卢婷,徐琼.碱性环境对饥饿期粪肠球菌疏水性的影响[J].南方医科大学学报,2012,32(5):681-684.
[35] Pamp SJ,Sternberg C,Tolker-Nielsen T.Insight into the microbial multicellular lifestyle via flow-cell technology and confocalmicroscopy.Cytometry A.2009;75(2):90-103．
[36] 唐子圣,朱敏,刘正.变异链球菌生物膜结果观察[J].中华微生物学和免疫学,2004,24(2):103-106.
[37] 唐子圣,朱敏,刘正.变异链球菌生物膜对抗菌剂敏感性的研究[J].中华口腔医学,2006,42(5):266-268.
