Construction of recombinant adenovirus vector for human matrix metalloproteinase-1 gene and detection of collagen type III degradation in vitro

doi:10.3969/j.issn.2095-4344.2014.49.022

Abstract

Abstract:

BACKGROUND: Matrix metalloproteinase-1 can degrade extracellular matrix, which is mainly collagen type I, and has the potential to reverse fibrosis tissue.

OBJECTIVE: To construct the recombinant adenovirus vector containing human matrix metalloproteinase-1 (hMMP-1) gene with GatewayTM Clone Technology, and observe the capacity of degrading collagen type III in vitro.

METHODS: The gene hMMP-1 was amplified by using PCR from the pcDNA3.1 plasmid and was cut down by the double endonuclease. The linear gene fragment was connected to the entry vector pENTER^TM 1A. Then the entry clone and the destination vectors pJTI™ R4 Dest CMV-N-EmGFP pA Vector recombined using the LR reaction to form the expression clone pAd-hMMP-1-eGFP. The linear pAd-hMMP-1-eGFP cut down by endonuclease Pac I was transfected into HEK293A cells to packaging the Ad-hMMP-1-eGFP. The transfected situation was observed under a fluorescence microscope, the target protein expression was detected by western-blot assay and RT-PCR. Cells can be divided into three groups: blank control group: HEK293A cells, AD-EGFP group: HEK293A cells were infected by Ad-eGFP, AD-HMMP1-EGF group: HEK293A cells were infected by Ad-hMMP1-eGFP and collagen type III. The content of collagen type III was detected by ELISA kits after 24, 48 and 72 hours.

RESULTS AND CONCLUSION: It was confirmed that the entry vector and the destination vector both contained hMMP-1 target gene by restriction analysis and sequencing. The green fluorescent protein was observed in the 293A cells transfected by the Ad-hMMP-1-eGFP at 4 days. The fluorescence intensity was the highest at 10 days. The virus was collected at 12 days, the viral titer was determined as 4.84 × 10¹⁰ PFU/mL, the target protein was efficient expression via western-blot assay. Blank control group and AD-EGFP group had no obvious change of collagen content with the extension of time. The rate of collagen degradation in AD-HMMP1-EGFP group was 24%, 56% and 81% respectively at 24, 48, 72 hours. AD-HMMP1-EGFP group degraded collagen significantly compared with the other two groups (P < 0.01). The recombinant adenovirus vector containing hMMP-1 was successfully constructed by using the Gateway technology, this method was more efficient and specific than with the traditional methods. The hMMP1 degraded collagen type III significantly in vitro.

中国组织工程研究杂志出版内容重点：肾移植；肝移植；移植；心脏移植；组织移植；皮肤移植；皮瓣移植；血管移植；器官移植；组织工程

全文链接：

Key words: matrix metalloproteinase-1, virus, collagen type III

CLC Number:

R318

Du Chao, Jiang Ming-de, Zeng Wei-zheng, Zheng Shu-mei. Construction of recombinant adenovirus vector for human matrix metalloproteinase-1 gene and detection of collagen type III degradation in vitro [J]. Chinese Journal of Tissue Engineering Research, 2014, 18(49): 7995-8000.

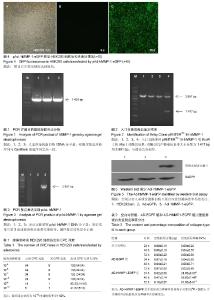

Figures/Tables 1

2.1 目的基因的获取及测序结果从携带人基质金属蛋白酶1的pcDNA3.1质粒中PCR扩增出约1 428 bp大小基因条带(图1)，经测序鉴定所获序列与GenBank报道序列完全一致。 2.2 入门克隆的构建及鉴定结果经限制性内切酶 EcoⅠ和XhoⅠ双酶切基因片段人基质金属蛋白酶1和约3 891 bp的pENTERTM 1A质粒后，成功连接构建入门克隆质粒pENTERTM 1A-hMMP-1，其中第4泳道为阳性结果，双酶切后产物电泳条带大小分别为1 417 bp和3 891 bp，测序结果显示与理论完全相符(图2)。R 2.3 表达克隆的构建及鉴定结果利用LR反应体外重组入门克隆pENTERTM 1A-hMMP-1和目的载体pJTITM R4 Dest CMV-N-EmGFP pA Vector后，转化入感受态大肠杆菌Stbl3，挑选阳性菌落进行PCR鉴定，引物为pAd- hMMP-1-f：GAA CCC ACT GCT TAC TGG CTT；pAd- hMMP-1-r：TCG AGA CCG AGG AGA GGG T；产物大小2 951 bp；与第3泳道凝胶电泳条带结果相符，送交测序鉴定结果完全正确(图3)。 2.4 重组腺病毒包装及鉴定结果经PacⅠ酶切线性化腺病毒质粒pAd- hMMP-1-eGFP并转入HEK293A细胞后，4 d左右在荧光显微镜下可观察到绿色荧光蛋白表达，10 d左右荧光强度达到最高(图4)。将收集到的目的蛋白进行Western blot鉴定，结果证实人基质金属蛋白酶1蛋白在重组腺病毒中高效表达(图5)。 2.5 腺病毒滴度测定(TCID50)结果将腺病毒按梯度浓度感染96孔板中HEK293细胞后，5 d左右细胞开始出现病变状态CPE(Cytopathic effect)，逐渐皱缩变小，形态不规则，并且细胞间缝隙增大，由贴壁状态变为悬浮，10 d后计数出现CPE的孔数(表1)，用Reed-Muench两氏法计算病毒滴度。 lgTCID50=距离比例×稀释度对数之间的差+高于50%病变率的稀释度的对数，即TCID50=10-9.84/0.1 mL，所得病毒滴度=4.84×1010 PFU/mL。 2.6 ELISA试剂盒检测人基质金属蛋白酶1体外降解Ⅲ型胶原蛋白能力细胞培养24，48，72 h后，收集含胶原蛋白细胞培养基上清，离心后用Ⅲ型胶原蛋白ELISA检测试剂盒分别进行检测，结果显示空白对照组、AD-EGFP组中胶原蛋白含量无明显变化，而AD-HMMP1-EGFP组中胶原蛋白降解率显著高于对照组(P < 0.01)，并且随时间延长胶原蛋白降解率在逐渐增加(表2)。 "

References

[1] Liu KC, Lin BS, Gao AD, et al. Integrase-Deficient Lentivirus: Opportunities and Challenges for Human Gene Therapy. Curr Gene Ther. 2014; [Epub ahead of print].
[2] Kafri T.Lentivirus vectors: difficulties and hopes before clinical trials.Curr Opin MolTher.2001;3(4):316-326.
[3] Choi EW, Seen DS, Song YB,et al.AdHTS: a high-throughput system for generating recombinant adenoviruses.J Biotechnol. 2012;162(2-3):246-252.
[4] Macleod SH, Elgadi MM, Bossi G. et al. HER3 targeting of adenovirus by fiber modification increases infection of breast cancer cells in vitro, but not following intratumoral injection in mice.Cancer Gene Ther.2012;19(12) :888-898.
[5] Woessner JF Jr. Matrix metalloproteinases and their inhibitors in connective tissue remodeling. FASEB J.1991;5:2145-2154.
[6] McCawley LJ, Matrisian LM. Matrix metalloproteinases: they’re not just for matrix anymore! Curr. Opin. Cell Biol. 2001; 13:534-540.
[7] Woessner JF, Nagase H. Matrix metalloproteinases and TIMPs. NewYork: Oxford University Press.2000 : 1 -10.
[8] Iimuro Y, Nishio T, Morimoto T, et al. Delivery of matrix metalloproteinase-1 attenuates establish-ed liver fibrosis in the rat. Gastroenterology.2003;124(2): 445-458.
[9] Petersen LK, Stowers RS . A Gateway MultiSite recombination cloning toolkit. PloSOne.2011;6(9):e24531.
[10] Esposito D,Garvey LA,Chakiath CS.et al.Gateway cloning for protein expression. Methods Mol Biol. 2009; 498:31-54.
[11] Hagara D,Schwarzenbach HR,Cerny A.New aspects in sonography of the liver.Praxis.2012;101(18):1161-1166.
[12] Dall'Agata M, Gramenzi A, Biselli M, et al. Hepatitis C virus reinfection after liver transplantation: is there a role for direct antiviral agents? World J Gastroenterol.2014;20(28): 9253-9260.
[13] Davis GL, Albright E, Cook SF, et al.Projecting future complications of chronic hepatitis C in the United States. Liver Transplant.2013;9:331-338.
[14] Kinnman N and Houset C. Peribiliary myofibroblasts in biliary type liver fibrosis.Front. Biosci. 2012;7:496-503.
[15] Prosdocimi FC,Rodini CO,Sogayar MC,et al.Calcifying Cystic Odontogenic Tumour: immunohistochemical expression of matrix metalloproteinases, their inhibitors (TIMPs and RECK) and inducer (EMMPRIN).J Oral Pathol Med.2014; 12(3): 345-352.
[16] Annie Pardo, Moises Selman. MMP-1:the elder of the family. The International Journal of Bioche-mistry & Cell Biology. 2005; 37 :283-288.
[17] Murawaki Y, Koda M, Yamda S, et al. Serum collagenase activity in patients with chronic liver disease. J Hepatol, 1993; 18(3):328-334.
[18] 刘天会,丛敏,王萍,等. MMP1过表达抑制人肝星状细胞I型胶原表达[J].肝脏,2009, 14(4):291-294.
[19] Zhao J, Lever AM. Lentivirus- mediated gene expression. Methods Mol Biol. 2007;366:343-355
[20] Salle GL, Rober t JJ, Berrard S, et al. An adenovirus vector for gene transfer into neurous and glia in the brain. Science. 1993; 259-988.
[21] Okiyoneda T, Kai H.Introduction of the conventional method of DNA transfection by adenovirus vector. Nihon Yakurigaku Zasshi.2002;119(6) :337-344.
[22] Macleod SH, Elgadi MM, Bossi G. et al. HER3 targeting of adenovirus by fiber modification increases infection of breast cancer cells in vitro, but not following intratumoral injection in mice.Cancer Gene Ther.2012;19(12):888-898.
[23] Xu F,Li S,Li XL, et al. PhaseⅠand biodistribution study of recombinant adenovirus vector- mediated herpes simplex virus thymidine kinase gene and ganciclovir administration in patients with head and neck cancer and other malignant tumors. Cancer Gene Therapy.2009;16(9):723-730.
[24] Siller-López F, Sandoval A, Salgado S,et al.Treatment with human metal-oproteinase-8 gene delivery ameliorates experimental rat liver cirrhosis. Gastroenterology. 2004; 26:1122-1133.
[25] Niidomeand T, Huang L.Gene therapy progress and prospects: nonviral vectors.Gene Ther.2002;9:1647-1652.
[26] Aoyama T,Yamamoto S,Kanematsu A,et al.Local delivery of matrix metal-oproteinase gene prevents the onset of renal sclerosis in streptozotocin-induced diabetic mice.Tissue Eng.2003;9:1289-1299.
