Safe range of artificial acetabular cup installation angle for different head-neck ratios

doi:10.3969/j.issn.2095-4344.2014.35.003

Abstract

Abstract:

BACKGROUND: Improper angle of prosthesis placement often induces acetabular cup impact, and limits the scope of activity of artificial hip joint, and cannot meet the requirement of daily life. At present, the angle of acetabular cup installation remains controversial during total hip arthroplasty. Moreover, there is lack of targeted guide for the acetabular cup installation during hip arthroplasty with different head-neck ratios.
OBJECTIVE: To explore the safe range of the artificial acetabular cup installation angle for different head-neck ratios.
METHODS: In accordance with the calculation formula of range of internal rotation and external rotation, abduction and adduction, flexion and extension after total hip replacement, interpretation of dynamical variety law of acetabular abduction and anteversion, and deriving inequalities depending on Widmer’s standard of artificial hip joint normal activities range: (1) external rotation range was at least 40°, and internal rotation range was at least 80°. (2) Abduction range was at least 50°, and adduction range was at least 50°. (3) Anteflexion range was at least 130°, and extension range was at least 40°. The safety scope of artificial hip joint installation angle at different head-neck ratios was determined by solving the above three groups of inequality.
RESULTS AND CONCLUSION: The safe range of the artificial acetabular cup installation angle for different head-neck ratios was different. To meet the normal hip joint activities, the head-neck ratios of artificial hip should be greater than 22/12. Artificial hip joint activities gradually increase with the enlargement of head neck ratios. With enlarging the head-neck ratios, the acetabular cup installation safety angle scope of abduction and anteversin gradually increases and the extreme of abduction increases gradually, then with anteversion increasing gradually, the abduction upper extreme of the security scope gradually decrease and lower extreme of the security scope gradually increase, tending to 45° symmetrically. When anteversion is the biggest, the abduction should be 45°.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: arthroplasty, replacement, hip, joint prosthesis, hip prosthesis

CLC Number:

R318

Zhang Zhen-hua, Sun Fu-jie, Hu Ke-zheng, Nie Wen-bo, Wang Ming-xing. Safe range of artificial acetabular cup installation angle for different head-neck ratios[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(35): 5589-5594.

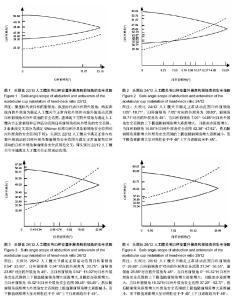

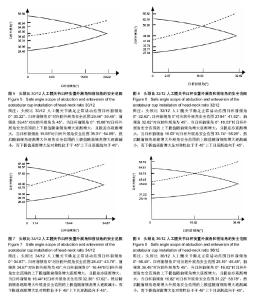

Figures/Tables 2

References

[1] Fackler CD, Poss R. Dislocation in total hip arthroplasties. Clin Orthop Relat Res. 1980;151:169-178.
[2] Lewinnek GE, Lewis JL, Tarr R, et al. Dislocations after total hip replacement arthroplasties. J Bone Joint Surg Am. 1978; 60:217-220.
[3] Ritter MA. Dislocation and subluxation of the total hip replacement. Clin Orthop Relat Res. 1976;121:92-94.
[4] Woo RY, Morrey BF. Dislocations after total hip arthroplasty. J Bone Joint Surg Am. 1982;64:1295-1306.
[5] Dorr LD, Wan Z. Causes of and treatment protocol for instability of total hip replacement. Clin Orthop Relat Res. 1998; 355:144-151.
[6] Widmer KH, Zurfluh B. Compliant positioning of total hip components for optimal range of motion. J Orthop Res. 2004;22(4):815-821.
[7] Barrack RL. Dislocation after total hip arthroplasty: implant design and orientation. J Am Acad Orthop Surg. 2003;11(2): 89-99.
[8] Bader R, Willmann G.Ceramic cups for hip endoprostheses. 6: Cup design, inclination and antetorsion angle modify range of motion and impingement.Biomed Tech (Berl). 1999;44(7-8): 212-219.
[9] Rittmeister M, Callitsis C. Factors Influencing Cup Orientation in 500 Consecutive Total Hip Replacements. Clin Orthop Relat Res. 2006;445:192-196.
[10] Charnley J. Total hip replacement by low friction arthroplasty. ClinOrthop Relat Res. 1970;72:7-21.
[11] Coventry MB. Late dislocations in patients with Charnley total hiparthroplasty. J Bone Joint Surg. 1985;67:832-841.
[12] D’Lima DD, Urquhart AG, Buehler KO, et al. The effect of the orientation of the acetabular and femoral components　on the range of motion of the hip at different head neck ratios. J Bone Joint Surg. 2000;82:315-321.
[13] Kummer F, Shah S, Iyer S, et al. The effect of acetabular cup　orientations on limiting hip rotation. J Arthroplasty. 1999; 14: 509-513.
[14] Lewinnek GE, Lewis JL, Tarr R, et al. Dislocations after total hip replacement arthroplasties. J Bone Joint Surg. 1978; 60: 217-220.
[15] Wentzensen A, Zheng G, Vock B, et al. Image based cup navigation. Int Orthop. 2003;27:43-46.
[16] Hirakawa K, Mitsugi N, Koshino T, et al. Effect of acetabular cup position and orientation in cemented total hip arthroplasty. Clin Orthop Relat Res. 2001;388:135-142.
[17] 张振华,刘永涛,赵峰,等.全髋关节置换后髋关节内外旋活动范围计算[J].国组织工程研究与临床康复,2009,13(35):6836- 6840.
[18] 张振华,刘永涛,赵峰,等.全髋关节置换后髋关节内收外展活动范围计算[J].生物医学工程与临床,2010,14(3):236-239.
[19] 张振华,刘永涛.全髋关节置换后髋关节前屈后神活动范围计算[J].临床医学工程,2010,17(2):4-6.
[20] 刘永涛,张振华.髋臼外展角与前倾角动态变化规律的数学方法解析[J].中国组织工程研究与临床康复,2009,13(35): 6973- 6975.
[21] Ma RF, Liu SL, Xu J. The measurement of proximal femur and its clinical significance. Clin J Orthop. 2002;5(3):164-166.
[22] SoongM, Rubash HE, MacaulayW. Dislocation after total hip arthroplasty. J Am Acad Orthop Surg. 2004;2(5): 314-321.
[23] Nadzadi ME, Pedersen DR, Yack HJ, et al. Kinematics, kinetics, and finite element analysis of common place maneuvers at risk for total hip dislocation. J Biomech. 2003; 36: 577-591.
[24] Kennedy JG, Rogers WB, Soffe KE, et al. Effect of acetabular component orientation on recurrent dislocation, pelvic osteolysis, polyethylene wear, and component migration. J Arthroplasty. 1998;13: 530-534.
[25] Yoder SA, Brand RA, Pedersen DR, et al. Total hip acetabular component position affects component loosening rates.Clin Orthop Relat Res. 1988;228: 79-87.
[26] Bartz RL, Noble PC, Kadakia NR, et al. The effect of femoral component head size on posterior dislocation of the artificial hip joint. J Bone Joint Surg (Am). 2000;82: 1300-1307.
[27] Yoshimine F, Ginbayashi X. A mathematical formula to calculate the theoretical range of motion for total hip replacement. J Biomech. 2002;35: 989-993.
[28] Yoshimine F. The influence of the oscillation angle and the neck anteversion of the prosthesis on the cup safe zone that fulfills the criteria for range of motion in total hip replacements. The required oscillation angle for an acceptable cup safe zone. J Biomech. 2005;38:125-132.
[29] Kluess D, Martin H, Mittelmeier W, et al. Influence of femoral head size on impingement, dislocation and stress distribution in total hip replacement. Med Eng Phys. 2007; 29 (4):465-471.
[30] Nadzadi ME, Pedersen DR, Callaghan JJ, et al. Effects of acetabular component orientation on dislocation propensity for small head size total hip arthroplasty. Clin Biomech. 2002; 17 (1) : 32-40.
[31] 费俊梁,齐新生.假体方位角对全髋关节置换术后疗效的影响[J].现代医学,2006,1(34):21-24.
[32] 罗志平,戴闽. 不同股骨头颈直径比与髋臼角对人工髋关节活动的影响[J].中国矫形外科杂志,2005,10 (13):757-760.
