Feasibility of two kinds of atlantal lateral mass screw fixation

doi:10.3969/j.issn.2095-4344.2014.31.009

Abstract

Abstract:

BACKGROUND: Atlantal lateral mass screw fixation contains lateral mass screw fixation under the posterior arch of the atlas and lateral mass screw fixation via the posterior arch of atlas (also called atlas pedicle screw fixation) according to different insertion points. The two methods have their advantages and disadvantages. There are lacks of the comparative studies on bony anatomy feasibility by two kinds of atlantal lateral mass screw fixation.
OBJECTIVE: To compare the feasibility associated with two kinds of atlantal lateral mass screw fixations taking Chinese data of atlantal bony anatomy as evidence.
METHODS: Data of CT scans in 30 adults with cervical spondylosis (60 sides) were collected, and data were reconstructed using CT workstation. We measured key bone anatomy structure after atlantal lateral mass screw fixation. The atlantal lateral mass was suitable for lateral mass screw fixation via the posterior arch of atlas if its height and width of vertebral artery groove at the posterior arch ≥ 4 mm. It was suitable for lateral mass screw fixation under the posterior arch of the atlas if the height of posterior arch of atlas lateral mass ≥ 4 mm.
RESULTS AND CONCLUSION: The height of vertebral artery groove at the posterior arch was (4.54±1.17) mm. The width of vertebral artery groove at the posterior arch was (8.69±1.12) mm. The height of posterior arch of atlas lateral mass was (4.98±1.07) mm. There were 41 cases with the height of vertebral artery groove at the posterior arch > 4 mm (suitable for lateral mass screw fixation via the posterior arch of atlas, occupying 68%. There were 52 cases with the height of posterior arch of atlas lateral mass > 4 mm (suitable for lateral mass screw
fixation under the posterior arch of the atlas), occupying 87%. There were significant differences in the differences between the two groups (P < 0.05). These results indicated that lateral mass screw fixation under the posterior arch of the atlas was more feasible compared with lateral mass screw fixation via the posterior arch of atlas. Preoperative CT measure for key anatomic structure was significant for making personalized surgical plan.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: internal fixators, anatomy, cicatrix, hypertrophic

CLC Number:

R318

Gong Min, Jiang Jun-wei, Liu Hao, Zhou Yun. Feasibility of two kinds of atlantal lateral mass screw fixation[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(31): 4968-4972.

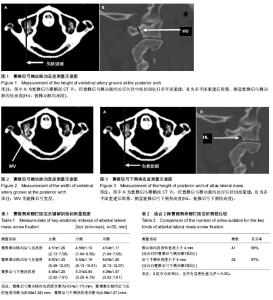

Figures/Tables 1

References

[1] Magrel F,Seman PS. Stable posterior fusion of the atlas and axis by transarticular screw fixation.In cervical Spine.Edited by Kehr P, Werdner PA. New York:Springer-Verlag, 1987: 322-327.
[2] Madawi AA,Casey AT, Solanki GA,et al.Radiological and anatomical evaluation of the atlantoaxial transarticular screw fixation technique.J Neurosurg. 1997;86:961-968.
[3] Goel A, Laheri V. Plate and screw fixation for atlanto-axial subluxiation. J Acta Neurochir(Wien). 1994;129:47-53.
[4] Resnick DK, Benzel EC. C1-2 pedicle screw fixation with rigid cantilever beam construct: case report and technical note. J Neurosurg. 2002;50:426-428.
[5] Paramore CG, Dickman CA, Sonntag VKH. The anatomical suitability of the C1-2 complex for transarticular screw fixation. J Neurosurg. 1996;85:221-224.
[6] Igarashi T,Kikuchi S,Sato K,et al. Anatomical study of the axis for surgical planning of transarticular screw fixation.Clin Orthop. 2003;408:162-166.
[7] 窦海成,徐晖,黄其杉,等.后路寰枢椎关节突螺钉直径限制因素的影像学分析[J].中华创伤杂志, 2012, 28(10): 931-932.
[8] Harms J, Melcher RP. Posterior C1–C2 fusion with polyaxial screw and rod fixation. Spine. 2001;26(22): 2467-2471.
[9] Tan M, Wang H, Wang Y, et al. Morphometric evaluation of screw fixation in atlas via posterior arch and lateral mass. Spine. 2003;28(9): 888-895.
[10] 郝定均,贺宝荣,许正伟,等.寰椎椎弓根螺钉和侧块螺钉技术的临床疗效比较[J].中华骨科杂志, 2011, 31(12): 1297-1303.
[11] Fensky F, Kueny RA, Sellenschloh K, et al. Biomechanical advantage of C1 pedicle screws over C1 lateral mass screws: a cadaveric study. Eur Spine J. 2014;23(4):724-731.
[12] 董亮,谭明生,移平,等.颈椎前路椎弓根螺钉置入的解剖学研究[J]. 中国矫形外科杂志, 2014, 22(2): 138-143.
[13] 崔巍,彭磊,王金财,等.寰枢关节齿突侧块间隙的多层螺旋CT研究[J]. 中华放射学杂志, 2010, 44(8): 831-836.
[14] 郑宇,蔡贤华,黄卫兵,等.前路经寰枢关节螺钉内固定术置钉安全性的CT测量研究[J].中国矫形外科杂志, 2012, 19(23): 1990-1994.
[15] 王慧敏,谭明生,张光铂,等.寰椎经后弓侧块螺钉固定通道的影像学测量[J].中国矫形外科杂志, 2003, 11(1): 34-37.
[16] Ma XY, Yin QS, Wu ZH, et al. Anatomic considerations for the pedicle screw placement in the first cervical vertebra. J Spine. 2005,30:1519-1523.
[17] 郝定均,方向义,吴起宁,等.经寰椎后弓上颈椎稳定性重建的解剖学研究[J].中华骨科杂志, 2011, 31(4): 339-342.
[18] 陈雍君,赵慧毅,谢柏臻,等.寰椎椎弓根钉内固定通道的三维 CT 影像学研究[J].中国骨与关节损伤杂志, 2012, 27(1): 1-3.
[19] Lynch J, Christensen D, Currier B. C1 lateral mass screws:Technique and morphometric study.Presented at the American Association of Neurological Surgeons meeting, Toronto, ON, Canada, 2001.
[20] Wang MY, Srinath MD, Samudrala MD. Cadaver morphometric analysis for atlantal lateral mass screw placement. J Neurosurg. 2004;54:1436-1440.
[21] 夏虹,钟世镇,刘景发,等.寰椎侧块后路螺钉固定的可行性研究[J]. 中国矫形外科杂志, 2002,10(9):888-891.
