Effect of contralateral cortical locking plate length on biomechanics of internal fixation for distal femur fractures

doi:10.12307/2026.544

Abstract

Abstract: BACKGROUND: Contralateral cortical locking technique has achieved good clinical outcome in the treatment of distal femur fractures in clinical practice, but the influence of the choice of contralateral cortical locking plate length on biomechanics of internal fixation for distal femur fractures has not been clarified. Thus, the clinical guidance for contralateral cortical locking application remains unavailable.
OBJECTIVE: To explore the effect of different contralateral cortical locking plate lengths on the biomechanics of internal fixation of distal femur fractures.
METHODS: CT image data of the 4th generation synthetic Sawbones femur model were used to create a digital model of the comminuted fracture defect of a distal femur (AO-A3) using three-dimensional reconstruction techniques. On this basis, three different lengths of contralateral cortical locking steel plates with 14, 16, and 18 holes were simulated. Finite element analysis was performed by applying equal axial compression loads to the three sets of internal fixation models to compare the stiffness, the magnitude of displacement change at the fracture end, and the maximum equivalent stress among different models.

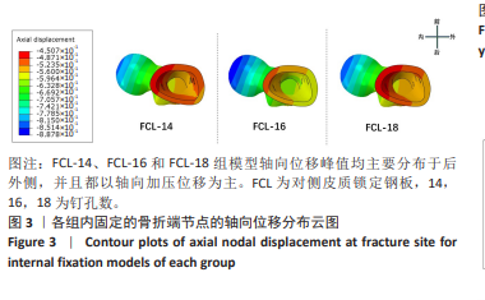

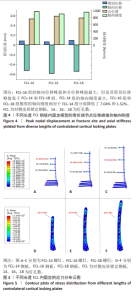

RESULTS AND CONCLUSION: (1) For different lengths of contralateral cortical locking plates, the 16-hole plate model had the lowest axial stiffness, the highest displacement at the fracture, and the peak equivalent stress was located at the proximal P4 screw, with values that were 7.47% and 1.80% higher compared to the 14-hole and 18-hole screws with the highest stress, respectively. (2) Comparing the plate stresses of the three models, the 16-hole plate had the smallest peak stress and the highest stress was located at the first nail hole proximal to the plate. (3) The stability of contralateral cortical locking plate fixation for distal femur fractures did not improve with the increase in length. The appropriate plate length should be selected following the principles of patient individualization and trauma control in clinical practice.

Key words: contralateral cortical locking, femur fracture, internal fixation, biomechanics, finite element analysis, orthopedic implant

CLC Number:

Ouyang Hanbin, Lin Kewei, Zhang Xin, Zhang Ziwei, Feng Bolin, Zhong Huan, Huang Huajun. Effect of contralateral cortical locking plate length on biomechanics of internal fixation for distal femur fractures[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(15): 3832-3838.

Figures/Tables 2

References

[1] CLAIREAUX HA, SEARLE HKC, PARSONS NR, et al. Interventions for treating fractures of the distal femur in adults. Cochrane Database Syst Rev. 2022;10(10):CD010606.
[2] JAIN D, ARORA R, GARG R, et al. Functional outcome of open distal femoral fractures managed with lateral locking plates. Int Orthop. 2020;44(4):725-733.
[3] FU P, LIANG W, GAO Z, et al. Comparison of locking compression plate and distal femoral replacement for periprosthetic distal femoral fractures: a retrospective study. J Int Med Res. 2022;50(10): 3000605221133012.
[4] HENDERSON CE, KUHL LL, FITZPATRICK DC, et al. Locking plates for distal femur fractures: is there a problem with fracture healing. J Orthop Trauma. 2011;25 Suppl 1:S8-S14.
[5] WANG R, ZHANG H, CUI H, et al. Clinical effects and risk factors of far cortical locking system in the treatment of lower limb fractures. Injury. 2019;50(2):432-437.
[6] LUJAN TJ, HENDERSON CE, MADEY SM, et al. Locked plating of distal femur fractures leads to inconsistent and asymmetric callus formation. J Orthop Trauma. 2010;24(3):156-162.
[7] SARWAR A, GEE A, BOUGHERARA H, et al. Biomechanical optimization of the far cortical locking technique for early healing of distal femur fractures. Med Eng Phys. 2021;89:63-72.
[8] CHAO CK, CHEN YL, WU JM, et al. Contradictory working length effects in locked plating of the distal and middle femoral fractures-a biomechanical study. Clin Biomech (Bristol). 2020;80:105198.
[9] 钟环,欧阳汉斌,魏波,等. 桡骨远端骨折锁定钢板的拓扑优化及有限元分析[J]. 中国矫形外科杂志,2018,26(23):2189-2194.
[10] BOTTLANG M, DOORNINK J, BYRD GD, et al. A nonlocking end screw can decrease fracture risk caused by locked plating in the osteoporotic diaphysis. J Bone Joint Surg Am. 2009;91(3):620-627.
[11] BOTTLANG M, DOORNINK J, FITZPATRICK DC, et al. Far cortical locking can reduce stiffness of locked plating constructs while retaining construct strength. J Bone Joint Surg Am. 2009;91(8):1985-1994.
[12] DOORNINK J, FITZPATRICK DC, MADEY SM, et al. Far cortical locking enables flexible fixation with periarticular locking plates. J Orthop Trauma. 2011;25 Suppl 1:S29-S34.
[13] ADAMS JD JR, TANNER SL, JERAY KJ. Far Cortical Locking Screws in Distal Femur Fractures. Orthopedics. 2015;38(3):e153-e156.
[14] 崔浩诚,章浩,佟大可,等.对侧皮质锁定螺钉内固定治疗下肢长骨骨折的疗效评估[J]. 中国骨与关节损伤杂志,2018,33(6):590-593.
[15] RIEDEL MD, OPPIZZI G, O’HARA NN, et al. Biomechanical comparison of distal femoral fracture fixation: Analysis of non-locked, locked, and far-cortical locked constructs. J Orthop Res. 2020;38(12):2573-2579.
[16] 李辰,李建涛,周坚锋,等. 短与长髓内钉治疗不稳定粗隆下骨折的有限元分析[J]. 中国矫形外科杂志,2019,27(4):361-366.
[17] 许铎,孙锐坚,王天宇,等. 基于有限元生物力学分析的股骨远端A型骨折探索与再思考[J].中华外科杂志,2019,57(11):812-817.
[18] BLIEMEL C, OBERKIRCHER L, BOCKMANN B, et al. Impact of cement-augmented condylar screws in locking plate osteosynthesis for distal femoral fractures - A biomechanical analysis. Injury. 2016;47(12):2688-2693.
[19] BOTTLANG M, DOORNINK J, LUJAN TJ, et al. Effects of construct stiffness on healing of fractures stabilized with locking plates. J Bone Joint Surg Am. 2010;92 Suppl 2:12-22.
[20] BOTTLANG M, FITZPATRICK DC, SHEERIN D, et al. Dynamic fixation of distal femur fractures using far cortical locking screws: a prospective observational study. J Orthop Trauma. 2014;28(4):181-188.
[21] ENGLAND T, KHAN H, MONIZ S, et al. Does Far Cortical Locking Improve Fracture Healing in Distal Femur Fractures: A Randomised, Controlled, Prospective Multicentre Study. J Clin Med. 2023;12(24):7554.
[22] LIM EJ, CHO JW, SHON OJ, et al. Far cortical locking constructs for fixation of distal femur fractures in an Asian population: A prospective observational study. JOrthop Sci. 2024;3:S0949-2658 (24)00052-6.
[23] PERREN SM. Evolution of the internal fixation of long bone fractures. The scientific basis of biological internal fixation: choosing a new balance between stability and biolog. J Bone Joint Surg Br. 2002;84(8): 1093-110.
[24] 邓羽平. 长骨骨折中对侧皮质锁定结构的生物力学分析与结构优化设计[D]. 广州:南方医科大学,2021.
[25] LEE DO, KANG HW, KIM DY, et al. Efficacy of Far Cortical Locking Screws in Treating Distal Tibia Fractures in Comparison With That of Standard Locking Screws. J Foot Ankle Surg. 2023;62(3):422-425.
[26] WANG R, ZHANG H, CUI H, et al. Clinical effects and risk factors of far cortical locking system in the treatment of lower limb fractures. Injury. 2019;50(2):432-437.
[27] 赵洪波,徐志强,曹成明,等. 非接触锁定钢板(NCB)结合MotionLoc螺钉内固定治疗股骨下段骨折31例[J]. 生物骨科材料与临床研究,2022,19(2):77-81.
[28] SANDMANN G, ATESCHRANG A, FREUDE T, et al. Dynamic locking screws in proximal humeral plate osteosynthesis demonstrate superior fixation properties: a biomechanical study. J Exp Orthop. 2020;7(1):82.
[29] PLUMAROM Y, KARAM MD, MARSH JL. The Evolution, Current State and Clinical Benefits of Far Cortical Fracture Fixation. Iowa Orthop J. 2023;43(1):177-183.
[30] AUGAT P, BURGER J, SCHLORLEMMER S, et al. Shear movement at the fracture site delays healing in a diaphyseal fracture model. J Orthop Res. 2003;21(6):1011-1017.
[31] BOTTLANG M, SHETTY SS, BLANKENAU C, et al. Advances in Dynamization of Plate Fixation to Promote Natural Bone Healing. J Clin Med. 2024;13(10):2905.
[32] ZHANG NZ, LIU BL, LUAN YC, et al. Failure analysis of a locking compression plate with asymmetric holes and polyaxial screws. J Mech Behav Biomed Mater. 2023;138:105645.
[33] KNAKANALU P, ORFANOS G, DWYER J, et al. Can locking plate fixation of symphyseal disruptions allow early weight bearing? Injury. 2021;52(10):2725-2729.
[34] 朱云,陈渝,邱皓,等. 对侧皮质锁定螺钉治疗骨质疏松股骨骨折的有限元分析[J]. 中国组织工程研究,2021,25(24):3832-3837.
