Biomechanical analysis of new horizontal screw-screw crosslink in C1-C2 pedicle screw-rod fixation

doi:10.12307/2024.021

Abstract

Abstract: BACKGROUND: Posterior atlantoaxial pedicle screw rod internal fixation is the main method for treating atlantoaxial dislocation, and the horizontal crosslink plays an important role in the antirotation ability of the internal fixation system. The new horizontal screw-screw crosslink can effectively overcome the disadvantages of traditional horizontal crosslink, such as inconvenient installation, impact on bone grafting bed, and potential spinal cord injury. However, the biomechanical properties of the new horizontal screw-screw crosslink with different installation modes are still unclear.
OBJECTIVE: To investigate the biomechanical characteristics of new different installation modes of horizontal screw-screw crosslink in the C1-C2 pedicle screw-rod fixation and to provide a theoretical basis for optimal installation mode.
METHODS: Six fresh human occipitocervical specimens were divided into the intact state group (group A), and the atlantoaxial instability model of type II odontoid fracture was established based on the intact state group as the instability group (group B). The C1-C2 pedicle screw-rod fixation was performed on each specimen based on the instability group (group C). In group C, different installation modes of horizontal screw-screw crosslink were successively installed in each specimen, including upper transverse connection (two atlas screw tails) as group D, lower transverse connection (two axis screw tails) as group E, diagonal transverse connection (upper left and lower right for group F, lower left and upper right for group G), and cross transverse connection as group H. The specimen models were tested in order of flexion, extension, lateral flexion and lateral rotation on a three-dimensional motion machine, and the atlantoaxial range of motion of each group of specimens was obtained. Repeated measure analysis of variance was used to evaluate the biomechanical properties of each group.

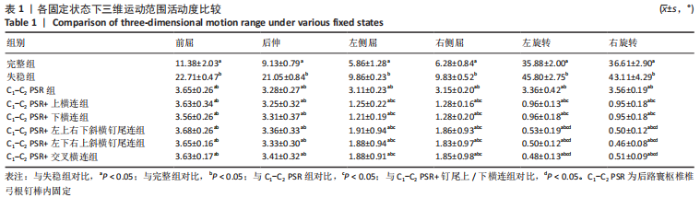

RESULTS AND CONCLUSION: (1) Under six states, the range of motion of groups A, C, D, E, F, G and H was smaller than that of group B, and there were statistically significant differences (P < 0.05). (2) In the flexion and extension states, there was no significant difference among the five types of horizontal screw-screw crosslink groups (P > 0.05). (3) In the left and right rotation directions, there were significant differences in D and E groups compared with F, G and H groups (P < 0.05); there were no significant differences between D and E groups, and F and G groups (P > 0.05), and there were no significant differences in F and G groups compared with H group (P > 0.05). (4) In conclusion, under flexion-extension states, the biomechanical stability of five types of horizontal screw-screw crosslink groups was similar, but under the rotation state, the stability of diagonal horizontal screw-screw crosslink group and cross horizontal screw-screw crosslink group was obviously better than that of transverse horizontal screw-screw crosslink group; however, the stability of diagonal horizontal screw-screw crosslink group is similar to the cross horizontal screw-screw crosslink group, so the former is more worthy of clinical recommendation.

Key words: horizontal screw-screw crosslink, posterior, atlantoaxial, internal fixation, biomechanics

CLC Number:

Ouyang Beiping, Ma Xiangyang, Luo Chunshan, Zou Xiaobao, Lu Tingsheng, Chen Qiling. Biomechanical analysis of new horizontal screw-screw crosslink in C1-C2 pedicle screw-rod fixation[J]. Chinese Journal of Tissue Engineering Research, 2024, 28(12): 1837-1841.

Figures/Tables 1

References

[1] OUYANG B, ZOU X, LUO C, et al. Finite Element Analysis of Horizontal Screw-Screw Crosslink Used in C1-C2 Pedicle Screw-Rod Fixation. Med Sci Monit. 2021;27:e932026.
[2] SHAO J, GAO Y, GAO K, et al. Comparison of imaging parameters pre- and post- reductive procedure for atlantoaxial dislocation via posterior fixation using pedicle screw and rod: a cross-sectional study. BMC Musculoskelet Disord. 2019;20:451.
[3] BURKHARDT BW, PODOLSKI W, PITZEN TR, et al. The Feasibility of C1-C2 Screw-rod Fixation in the Children 5 Years of Age and Younger. J Pediatr Orthop. 2021;41:e651-e658.
[4] TATTER C, FLETCHER-SANDERSJÖÖ A, PERSSON O, et al. Fluoroscopy-Assisted C1-C2 Posterior Fixation for Atlantoaxial Instability: A Single-Center Case Series of 78 Patients. Medicina (Kaunas). 2022;58:undefined.
[5] UNNI C, PETTAKKANDY V, P AJ, et al.Atlantoaxial Stabilization by Posterior C1 and C2 Screw-Rod Fixation for Various Pathologies: Case Series and Comprehensive Review of Literature. J Neurosci Rural Pract. 2021;12(2): 228-235.
[6] ZHANG J, ZHANG Z, ZHU Y, et al. C1 Titanium Cables Combined with C2 Pedicle Screw-Rod Fixation for Atlantoaxial Instability Not Suitable for Placement of C1 Screws. World Neurosurg. 2018;120:e453-e456.
[7] SHI L, SHEN K, DENG R, et al. Novel unilateral C1 double screw and ipsilateral C2 pedicle screw placement combined with contralateral laminar screw-rod fixation for atlantoaxial instability. Eur Spine J. 2019;28(2):362-369.
[8] SHEN K, DENG Z, YANG J, et al. Biomechanical study of novel unilateral C1 posterior arch screws and C2 laminar screws combined with an ipsilateral crossed C1-C2 pedicle screw-rod fixation for atlantoaxial instability. Arch Orthop Trauma Surg. 2017;137(10):1349-1355.
[9] PATKAR SV. New entry point for C2 screw, in posterior C1-C2 fixation (Goel-Harm’s technique) significantly reducing the possibility of vertebral artery injury. Neurol Res. 2016;38(2):93-97.
[10] WANG HW, YIN YH, LI T, et al. Effects of transverse connector on reduction and fixation of atlantoaxial dislocation and basilar invagination using posterior C1-C2 screw-rod technique. Spine J. 2019;19(12):1995-2002.
[11] DU YQ, LI T, MA C, et al.Biomechanical evaluation of two alternative techniques to the Goel-Harms technique for atlantoaxial fixation: C1 lateral mass-C2 bicortical translaminar screw fixation and C1 lateral mass-C2/3 transarticular screw fixation. J Neurosurg Spine. 2020;17:1-7.
[12] DU JY, AICHMAIR A, KUEPER J, et al. Biomechanical analysis of screw constructs for atlantoaxial fixation in cadavers: a systematic review and meta-analysis. J Neurosurg Spine. 2015;22(2):151-161.
[13] Li T, Ma C, Du YQ, et al. The Role of Transverse Connectors in C1-C2 fixation for Atlantoaxial Instability: Is It Necessary? A Biomechanical Study. World Neurosurg. 2020;140:e212-e218.
[14] TAN J, LI L, SUN G, et al. C1 lateral mass-C2 pedicle screws and crosslink compression fixation for unstable atlas fracture. Spine (Phila Pa 1976). 2009; 34(23):2505-2509.
[15] TESSITORE E, MOMJIAN A, PAYER M. Posterior reduction and fixation of an unstable Jefferson fracture with C1 lateral mass screws, C2 isthmus screws, and crosslink fixation: technical case report. Neurosurgery. 2008;63(1 Suppl 1):ONSE100-1; discussion ONSE101.
[16] SIM HB, LEE JW, PARK JT, et al. Biomechanical evaluations of various C1-C2 posterior fixation techniques. Spine. 2011;36(6):E401.
[17] GEBAUER M, BARVENCIK F, BRIEM D, et al. Evaluation of anatomic landmarks and safe zones for screw placement in the atlas via the posterior arch. Eur Spine J. 2010;19(1):85-90.
[18] RESNICK DK, BENZEL EC. C1-C2 pedicle screw fixation with rigid cantilever beam construct: case reportand technical note. Neurosurg. 2002;50(2):426-428.
[19] EBRAHEIM N, ROLLINS JR JR, XU R, et al. Anatomic consideration of C2 pedicle screw placement. Spine.1996;21(6):691-695.
[20] LYNN G, MUKHERJEE DP, KRUSE RN, et al. Mechanical stability of thoracolumbar pedicle screw fixation. The effect of crosslinks. Spine (Phila Pa 1976). 1997;22:1568-1572.
[21] MIRZAEI F, IRANMEHR A, SHOKOUHI G, et al. The role of cross-link augmentation on fusion rate and patient satisfaction among patients with traumatic thoracolumbar spinal fracture: A randomized clinical trial. Neurocirugia (Astur : Engl Ed). 2022;33(3):105-110.
[22] WANG T, CAI Z, ZHAO Y, et al. The Influence of Cross-Links on Long-Segment Instrumentation Following Spinal Osteotomy: A Finite Element Analysis. World Neurosurg. 2019;123:e294-e302.
[23] CORNAZ F, FASSER MR, SNEDEKER JG, et al. The biomechanical fundamentals of crosslink-augmentation in posterior spinal instrumentation. Sci Rep. 2022; 12(1):7621.
[24] DURMUS YE, ULUS A, SENEL A. The Trans-Spinous Crosslink Increases the Pull-Out Strength of the Pedicle Screw Instrumentation. Turk Neurosurg. 2022;32(2):292-297.
[25] BRASILIENSEL BC, LAZARO BCR, REYES PM, et al. Stabilization of the atlantoaxial joint with C1-C3 lateral mass screw constructs: biomechanical comparison with standard technique. Neurosurgery. 2010; (suppl_2):422-428.
[26] 马向阳,杨进城,邹小宝,等. 寰枢椎后路专用钉棒固定器械的研制与初步临床应用[J]. 中国骨科临床与基础研究杂志,2016,8(5):261-268.
[27] QIU F, ZOU XB, XU XL, et al. A biomechanical comparison of crossed and parallel rod configurations in atlantoaxial internal fixation. Eur Spine J. 2021; 30(2):576-584.
[28] LU Y, LEE YP, BHATIA NN, et al. Biomechanical Comparison of C1 Lateral Mass-C2 Short Pedicle Screw-C3 Lateral Mass Screw-Rod Construct Versus Goel-Harms Fixation for Atlantoaxial Instability. Spine (Phila Pa 1976). 2019; 44(7):E393-E399.
[29] HENRIQUES T, CUNNINGHAM BW, OLERUD C, et al. Biomechanical comparison of five different atlantoaxial posterior fixation techniques. Spine (Phila Pa 1976). 2000;25(22):2877-2883.
[30] ZHANG BC, LIU HB, CAI XH, et al. Biomechanical comparison of a novel transoral atlantoaxial anchored cage with established fixation technique - a finite element analysis. BMC Musculoskelet Disord. 2015;16:261.
[31] LEBLOND G, MOENS NMM, GAITERO L, et al. Computed Tomography and Biomechanical Comparison between Trans-Articular Screw Fixation and 2 Polymethylmethacrylate Cemented Constructs for Ventral Atlantoaxial Stabilization. Vet Comp Orthop Traumatol. 2018;31(5):344-355.
[32] HERZOG JP, ZARKADIS NJ, PRABHAKAR G, et al. Biomechanical comparison of a novel C1 posterior U-construct with four other techniques in a C1-C2 fixation model. J Orthop. 2018;15(2):741-745.
[33] DMITRIEV AE, LEHMAN RA JR, HELGESON MD,et al. Acute and long-term stability of atlantoaxial fixation methods: a biomechanical comparison of pars, pedicle, and intralaminar fixation in an intact and odontoid fracture model. Spine (Phila Pa 1976). 2009;34(4):365-370.
[34] LASSWELL TL, MEDLEY JB, CALLAGHAN JP, et al. Biomechanical comparison of a C1 posterior arch clamp with C1 lateral mass screws in constructs for C1-C2 fusion. Proc Inst Mech Eng H. 2021;235(12):1463-1470.
[35] ELLIOTT RE, TANWEER O, BOAH A, et al. Comparison of safety and stability of C-2 pars and pedicle screws for atlantoaxial fusion: meta-analysis and review of the literature. J Neurosurg Spine. 2012;17(6):577-593.
[36] CAI X, YI X, LI H, et al. Preclinical evaluation of a novel anterior non-fusion fixation device for atlantoaxial instability: an in vivo comparison study in a canine model. Eur Spine J. 2019;28(5):1225-1233.
[37] CADENA G, DUONG HT, LIU JJ, et al. Atlantoaxial fixation using C1 posterior arch screws: feasibility study, morphometric data, and biomechanical analysis. J Neurosurg Spine. 2018;30(3):314-322.
[38] MIZUTANI J, INADA A, KATO K, et al. Advantages of an on-the-screwhead crosslink connector for atlantoaxial fixation using the Goel/Harms technique. J Clin Neurosci. 2018;50:183-189.
[39] VALDEVIT A, KAMBIC HE, MCLAIN RF. Torsional stability of cross-link configurations: a biomechanical analysis. Spine J. 2005;5(4):441-445.
[40] LIM TH, KIM JG, FUJIWARA A, et al. Biomechanical evaluation of diagonal fixation in pedicle screw instrumentation. Spine (Phila Pa 1976). 2001; 26(22):2498-2503.
[41] ALIZADEH M, KADIR MR, FADHLI MM, et al. The use of X-shaped cross-link in posterior spinal constructs improves stability in thoracolumbar burst fracture: a finite element analysis. J Orthop Res. 2013;31:1447-1454.
