Comparison of headless compression screw and interlocking compression plate fixation in ankle fusion

doi:10.3969/j.issn.2095-4344.2016.31.009

Abstract

Abstract:

BACKGROUND: The ankle fusion is an important treating means of end-stage ankle joint disease. Internal fixation of implant has become the preferred way of fixation, but fixation of different implants has different effects.

OBJECTIVE: To explore the value of different internal fixation methods in ankle fusion.

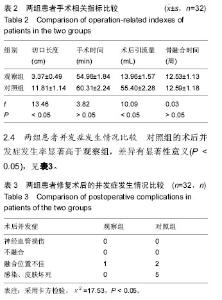

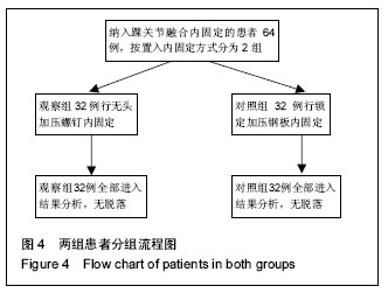

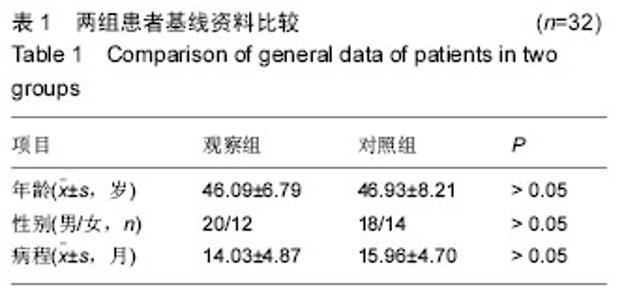

METHODS: A retrospective analysis was performed in 64 cases of ankle fusion from September 2012 to March 2015. They were divided into the observation group (32 cases) and control group (32 cases) according to the way of internal fixation of implant. The observation group underwent headless compression screw fixation. The control group underwent interlocking compression plate fixation. Length of incision, operation time, postoperative drainage volume, postoperative complications, healing time of bone and functional recovery of ankle-hindfoot were observed and compared between the two groups.

RESULTS AND CONCLUSION: (1) There was no statistical significance in operation time and healing time of bone between the two groups (P > 0.05). (2) Length of incision and postoperative drainage volume were significantly greater in the control group than in the observation group. The incidence of postoperative complications was significantly higher in the control group than in the observation group (P < 0.05). (3) No significant differences in preoperative American Orthopaedic Foot and Ankle Society ankle-hindfoot score were found between the two groups (P > 0.05), but the score was significantly higher in the observation group than in the control group in final follow-up (P < 0.05). (4) These findings suggest that compared with the interlocking compression plate, headless compression screw treatment for ankle fusion can obtain better effect, small trauma, less postoperative complications, fixed firmly, more in line with the physiological and biomechanical requirements.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

CLC Number:

R318

Gui Zhong-shan, Xu Xiao-feng, Li Huan-yi. Comparison of headless compression screw and interlocking compression plate fixation in ankle fusion[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(31): 4623-4629.

Figures/Tables 4

References

[1] Saltzman CL.Perspective on total ankle replacement. Foot Ankle Clin. 2000;5(4):761-775.
[2] Kitaoka HB,Alexander IJ,Adelaar RS,et al．Clinical rating systems for the ankle hindfoot,mid foot,hallux, and lesser toes．Foot Ankle Int. 1994;15(7):349-353.
[3] Zhao H,Yang Y,Yu G,et al. A systematic review of outcome and failure rate of uncemented Scandinavian total ankle replacement. Int Orthop. 2011;35(12): 1751-1758.
[4] Fuchs S,Sandmann C,Skwara A,et al. Quality of life 20 years after arthrodesis of the ankle. A study of adjacent joints. J Bone Joint Surg Br. 2003;85(7): 994-998.
[5] Brodsky JW,Polo FE,Coleman SC,et al. Changes in gait following the Scandinavian total ankle replacement. J Bone Joint Surg Am. 2011;93(20) : 1890-1896.
[6] Mazur JM,Schwartz E,Simon SR. Ankle arthrodesis: long-term follow-up with gait analysis. J Bone Joint Surg Am. 1979;61(7):964-975.
[7] Bonnin M,Judet T,Colombier JA,et al. Midterm results of the Salto total ankle prosthesis. Clin Orthop. 2004; 424: 6-18.
[8] Krause FG, Windolf M, Bora B, et al. Impact of complications in total ankle replacement and ankle arthrodesis analyzed with avalidated outcome measurement. J Bone Joint Surg Am. 2011;93(9): 830-839.
[9] Kokkonen A, Ikävalko M, Tiihonen R, et al. High rate of osteolytic lesions in medium-term followup after the AES total ankle replacement. Foot Ankle Int. 2011; 32(2):168-175.
[10] Barg A, Suter T, Zwicky L, et al. Medial pain syndrome in patients with total ankle replacement. Orthopade. 2011;40(11):991-992,994-999.
[11] Hopgood P, Kumar R, Wood PL. Ankle arthrodesis for failed total ankle replacement. J Bone Joint Surg Br. 2006; 88(8):1032-1038.
[12] Hintermann B, Barg A, Knupp M. Revision arthroplasty of the ankle joint. Orthopade. 2011;40(11):1000-1007.
[13] Pinzur MS,Noonan T.Ankle arthrodesis with a retrograde femoral nail for Charcot ankle arthropathy. Foot Ankle Int. 2005;26(7):545-549.
[14] Albert E. Zur resection des kniegelenkes. Wien Med Press,1879.
[15] Norman E,Stephan HW,Linas J. Ankle fusion after failed total ankle replacement. Tech Foot Ankle Surg. 2010;4:199-204.
[16] Nihal A, Gellman RE, Embil JM, et al. Ankle arthrodesis. Foot Ankle Surg. 2008;14(1): 1-10.
[17] Mann RA, Van Manen JW, Wapner K, et al. Ankle fusion. Clin Orthop Relat Res. 1991;(268):49-55.
[18] McGuire MR,Kyle RF,Gustilo RB,et al．Comparative analysis of ankle arthroplasty versus ankle arthrodesis. Clin Orthop Relat Res. 1988;(226): 174-181.
[19] Akra GA, Middleton A, Adedapo AO, et al. Outcome of ankle arthrodesis using a transfibular approach. J Foot Ankle Surg. 2010;49(6):508-512.
[20] Torudom Y. The results of ankle arthrodesis with screws for end stage ankle arthrosis. J Med Assoc Thai. 2010;93 Suppl 2: S50-54.
[21] Karl-Heinz K,Hans-Jorg T,Fusszentrum W. Ankle arthrodesis with an anterior approach. Tech Foot Ankle Surg. 2007;4: 243- 248.
[22] Alonso VA,Lauge PH,Lidgren L,et al. Initial stability of ankle arthrodesis with three-screw fixation. A finite element analysis. Clin Biomech. 2004;7: 751.
[23] Zwipp H, Rammelt S, Endres T, et al. High union rates and function scores at midterm followup with ankle arthrodesis using a four screw technique. Clin Orthop Relat Res. 2010;468(4): 958-968.
[24] Brodsky AR,Bohne WH,Huffard B,et al．An analysis of talar surface area occupied by screw fixation in ankle fusions. Foot Ankle Int. 2006;1: 53-55.
[25] Ahmad J, Pour AE, Raikin SM. The modifi ed use of a proximal humeral locking plate for tibiotalocalcaneal arthrodesis. Foot Ankle Int. 2007;28(9):977-983.
[26] 施忠民,张弛,顾文奇,等. 经外踝截骨锁定钢板内固定行踝关节融合[J].中国修复重建外科杂志,2011, 25(7): 781-784.
[27] O’Neill PJ, Logel KJ, Parks BG, et al. Rigidity comparison of locking plate and intramedullary fixation for tibiotalocalcaneal arthrodesis. Foot Ankle Int. 2008; 29(6):581-586.
[28] Chodos MD, Parks BG, Schon LC, et al. Blade plate compared with locking plate for tibiotalocalcaneal arthrodesis: a cadaver study. Foot Ankle Int. 2008; 29(2): 219-224.
[29] Younger AS, Wing KJ, Glazebrook M, et al. Patient expectation and satisfaction as measures of operative outcome in end-stage ankle arthritis: a prospective cohort study of total ankle replacement versus ankle fusion. Foot Ankle Int. 2015;36(2):123-134.
