Clinical significance of external wall of femoral intertrochanteric fracture and the treatment of internal fixation

doi:10.3969/j.issn.2095-4344.2821

Abstract

Abstract:

BACKGROUND: The concept of the lateral wall as a hot area has emerged in recent years, and has great guiding significance for the treatment of intertrochanteric fractures.

OBJECTIVE: To review the definition, scope, thickness of the lateral wall and its important role in the surgical treatment of intertrochanteric fractures.

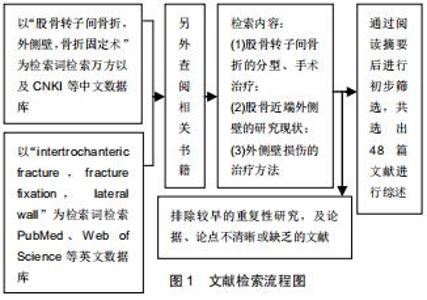

METHODS: The authors searched Wanfang, CNKI, PubMed, and Web of Science. The search terms were

“intertrochanteric fracture, lateral wall, fracture fixation” in Chinese and English. The retrieved documents were sorted, analyzed and summarized.

RESULTS AND CONCLUSION: (1) The definition, scope, thickness and measurement method of the lateral wall and its clinical significance were sorted out. (2) Classification criteria based on lateral intertrochanteric fractures of the femur were summarized. (3) In terms of treatment, four kinds of treatment methods: extramedullary fixation, intramedullary fixation, artificial joint replacement and other treatment methods were listed. Causes and treatment of fracture of lateral wall during and after operation were analyzed. (4) The results showed that the integrity of the lateral wall directly affected the stability of the internal fixation, even the success of the internal fixation. The complete lateral wall can prevent the distal femur from moving inward and the head pin from withdrawing, and prevent the coxa varus deformity. Clinicians should make use of detailed imaging examination, analyze fracture types, comprehensively consider various factors, and select appropriate repair methods.

Key words: bone, fracture, femur, lateral wall, joint, fixation, extramedullary fixation, intramedullary fixation, artificial joint replacement

CLC Number:

Tao Jin, Xiong Guirun, Liu Pengran, Jiao Rui, Li Xiaolei, Yan Lianqi. Clinical significance of external wall of femoral intertrochanteric fracture and the treatment of internal fixation[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(30): 4854-4859.

Figures/Tables 2

References

[1] PARK CG, YOON TR, PARK KS. Outcomes of internal fixation with compression hip screws in lateral decubitus position for treatment of femoral intertrochanteric fractures. Hip Pelvis. 2018;30(4):254-259.

[2] VAISHYA R, AGARWAL AK ,NWAGBARA IC, et al. Simultaneous bilateral intertrochanteric fractures of the femur: a case report and review of the literature. Cureus. 2017;9(5):1236-1248.

[3] PARKER MJ. Trochanteric hip fractures. Fixation failure commoner with femoral medialization,a comparison of 101 cases.Acta Orthop Scand. 1996;67(4):329-332.

[4] GOTFRIED Y. The lateral trochanteric wall:a key element in the reconstruction of unstable pertrochanteric hip fractures. Clin Orthop Relat Res. 2004;(425):82-86.

[5] IM GI, SHIN YW, SONG YJ. Potentially unstable intertrochanteric fractures. J Orthop Trauma. 2005;19(1):5-9.

[6] PALM H, JACOBSEN S, SONNE-HOLM S, et al. Integrity of the lateral femoral wall in intertrochanteric hip fractures: an important predictor of a reoperation. J Bone Joint Surg Am. 2007;89(3):470-475.

[7] HAQ RU, MANHAS V, PANKAJ A, et al. Proximal femoral nails compared with reverse distal femoral locking plates in intertrochanteric fractures with a compromised lateral wall;a randomised controlled trial. Int Orthop. 2014;38(7):1443-1449.

[8] MA Z, CHANG SM. Letter to the editor:where is the lateral femoral wall? Int Orthop.2014;38(12):2645-2646.

[9] 张英琪,张世民,熊文峰,等.股骨近端外侧壁的骨折特征地图研究[J].中国临床解剖学杂志,2017,35(2):121-125.

[10] GAO Z, LV Y, ZHOU F, et al. Risk factors for implant failure after fixation of proximal femoral fractures with fracture of the lateral femoral wall. Injury. 2018;49(2):315-322.

[11] HSU CE, SHIH CM, WANG CC, et al. Lateral femoral wall thickness: A reliable predictor of post-operative lateral wall fracture in intertrochanteric fractures. Bone Joint J. 2013;95-B(8):1134-1138.

[12] KELLAM JF, MEINBERG EG, AGEL J, et al. Fracture and dislocation classification compendium-2018: international comprehensive classification of fractures and dislocations committee. J Orthop Trauma. 2018;32(Suppl 1):S1-S170.

[13] KOVAL KJ, OH CK, EGOL KA. Does a traction-internal rotation radiograph help to better evaluate fractures of the proximal femur? Bull NYU Hosp Jt Dis. 2008;66(2):102-106.

[14] KLAUS-ARNO S, AXEL E, REINHOLD G. The corrective intertrochanteric adduction osteotomy without removal of a wedge. Orthop Traumatol. 2000;8(1):1-13.

[15] KIELBASINSKI PODLASZEWSKA O, BEKVALAC J, WILLIAMS RL, et al. The innominate tubercle of the femur: Application to anterior surgical approaches to the hip. Clin Anat. 2017;30(5):578-584.

[16] 胥少汀,葛宝丰,徐印坎.实用骨科学[M]. 3版.北京:人民军医出版社, 2005.

[17] 顾海伦,杨军,王维,等.不稳定型股骨转子间外侧壁骨折的治疗策略[J].中华创伤骨科杂志,2016,18(8):679-684.

[18] BABHULKAR S. Unstable trochanteric fractures:Issues and avoiding pitfalls. Injury. 2017;48(4):803-818.

[19] CLAWSON DK. Trochanteric fractures treated by the sliding screw plate fixation method. J Trauma. 1964;4(6):737-752.

[20] ABRAM SG, POLLARD TC, ANDRADE AJ. Inadequate three-point proximal fixation predicts failure of the Gamma nail.Bone Joint J. 2013;95-B(6):825-830.

[21] PRADEEP AR, KIRANKUMAR A, DHEENADHAYALAN J, et al. Intraoperative lateral wall fractures during Dynamic Hip Screw fixation for intertrochanteric fractures-Incidence,causative factors and clinical outcome.Injury. 2018;,49(2):334-338.

[22] CHEHADE MJ, CARBONE T, AWWARD D, et al. Influence of fracture stability on early patient mortality and reoperation after pertrochanteric and intertrochanteric hip fractures. J Orthop Trauma. 2015;29(12): 538-543.

[23] NASAB SAM, KHORRAMDIN E. The assessment of mortality and quality of life after intertrochanteric fracture of femur in patients older than 60 at Emam Khomeini Hospital of Ahvaz. Pak J Med Sci. 2017; 33(4):895-898.

[24] SETIOBUDI T, NG YH, LIM CT, et al. Clinical outcome following treatment of stable and unstable intertrochanteric fractures with dynamic hip screw. Ann Acad Med Singapore. 2011;40(11):482-487.

[25] HSU CE, CHIU YC, TSAI SH, et al. Trochanter stabilising plate improves treatment outcomes in AO/OTA 31-A2 intertrochanteric fractures with critical thin femoral lateral walls. Injury. 2015;46(6):1047-1053.

[26] ZHANG L, SHEN J, YU S, et al. Percutaneous compression plate versus dynamic hip screw for treatment of intertrochanteric hip fractures: a meta-analyse of five randomized controlled trials. Sci World J. 2014; 2014:1-11.

[27] LANGFORD J, PILLAI G, UGLIAILORO AD, et al. Perioperative lateral trochanteric wall fractures: sliding hip screw versus percutaneous compression plate for intertrochanteric hip fractures. J Orthop Trauma. 2011;25(4):191-195.

[28] 唐天华,谭文成,唐三元,等.经皮加压钢板与动力髋螺钉治疗股骨转子间骨折的Meta分析[J].中国矫形外科杂志, 2015,23(16):1454-1460.

[29] 李彦文.PFNA与解剖型锁定钢板内固定治疗老年股骨粗隆间骨折的疗效比较[J].中外医疗,2016,35(18):49-50.

[30] 卢正楷,沙宇,王必胜,等.不同方法治疗老年股骨转子间骨折的疗效分析[J].临床骨科杂志,2011,14(4):397-399.

[31] NÜCHTERN JV, RUECKER AH, SELLENSCHLOH K, et al. Malpositioning of the lag screws by 1- or 2-screw nailing systems for pertrochanteric femoral fractures. J Orthop Trauma. 2014;28(5): 276-282.

[32] SIM JC, KIM TH, HONG KD, et al. Comparative study of intertrochanteric fracture treated with tile proximal femoral nail anti-rotation and the third generation of Gamma nail. J Korean Fract Soc. 2013;26(1):37-43.

[33] 吴昕杰,李炽峰,魏新.两种内固定治疗股骨粗隆间骨折的临床研究[J].中华关节外科杂志(电子版),2019,13(5):619-624.

[34] LI H, ZHANG W, YAN J, et al. Greater trochanter of the femur (GTF) vs. proximal femoral nail anti-rotation (PFNA) for unstable intertrochanteric femoral fracture.. Eur Rev Med Pharmacol Sci. 2018;22(1 suppl):8-14.

[35] GADEGONE WM, SHIVASHANKAR B, LOKHANDE V, et al. Augmentation of proximal femoral nail in unstable trochanteric fractures. SICOT J. 2017;88(3):12.

[36] KREGOR PJ, OBREMSKEY WT, KREDER HJ, et al. Unstable Pertrochanteric Femoral Fractures.J Orthop Trauma. 2005;19(1): 63-66.

[37] CIUFO DJ, ZARUTA DA, LIPOF JS, et al. Risk Factors Associated With Cephalomedullary Nail Cutout in the Treatment of Trochanteric Hip Fractures. J Orthop Trauma. 2017;31(11):583-588.

[38] KULKARNI SG, BABHULKAR SS, KULKARNI SM, et al. Augmentation of intramedullary nailing in unstable intertrochanteric fractures using cerclage wire and lag screws: a comparative study. Injury. 2017;48: S18-S22.

[39] HUANG Y, ZHANG C, LUO Y. A comparative biomechanical study of proximal femoral nail (InterTAN) and proximal femoral nail antirotation for intertrochanteric fractures. Int Orthop. 2013;37(12):2465-2473.

[40] 张晋华,许钰,曹华.股骨近端抗旋髓内钉与联合加压交锁髓内钉系统应用于老年股骨粗隆间骨折的治疗体会[J].中国药物与临床,2018,18(9): 1548-1550.

[41] MATRE K, VINJE T, HAVELIN LI, et al. TRIGEN INTERTAN Intramedullary Nail Versus Sliding Hip Screw: A Prospective, Randomized Multicenter Study on Pain, Function, and Complications in 684 Patients with an Intertrochanteric or Subtrochanteric Fracture and One Year of Follow-up.J Bone Joint Surg Am.2013;95(3):200-208.

[42] 李祖涛,周文正,缪晓刚,等. InterTan、PFNA、Gamma 3型髓内钉内固定治疗老年不稳定股骨粗隆间骨折的疗效比较[J].中国骨与关节损伤杂志, 2018, 33(10):15-18.

[43] 刘永伟,冯晓波,谢卯,等.PFNA与InterTan钉治疗老年股骨转子间不稳定性骨折临床疗效的比较:一项前瞻性研究[J].第二军医大学学报,2017, 38(4):432-436.

[44] 王振东,樊强,李永德.人工股骨头置换术治疗高龄不稳定粗隆间骨折的疗效观察[J].中华损伤与修复杂志(电子版),2011,6(1):45-47.

[45] 封海,陈纪伟,潘阳阳,等.人工股骨头置换术与Gamma 3型髓内钉内固定选择性治疗老年股骨粗隆间骨折的比较[J].中国骨与关节损伤杂志,2018, 33(12):14-17.

[46] BABHULKAR S. Unstable trochanteric fractures: Issues and avoiding pitfalls. Injury. 2017;48(4):803-818.

[47] BOOPALAN PR, OH JK, KIM TY, et al. Incidence and radiologic outcome of intraoperative lateral wall fractures in OTA 31A1 and A2 fractures treated with cephalomedullary nailing. J Orthop Trauma. 2012;26(11):638-642.

[48] KOKOROGHIANNIS C, AKTSELIS I, DELIGEORGIS A, et al. Evolving concepts of stability and intramedullary fixation of intertrochanteric fractures-A review. Injury. 2012;43(6):686-693.
