Chinese Journal of Tissue Engineering Research ›› 2020, Vol. 24 ›› Issue (33): 5255-5261.doi: 10.3969/j.issn.2095-4344.2342
Previous Articles Next Articles
Zhao Dezhu1, Guan Tianmin1, Wu Bin2, Mei Zhao3
1School of Mechanical Engineering, Dalian Jiaotong University, Dalian 116028, Liaoning Province, China; 2Orthopedic Laboratory of Affiliated Zhongshan Hospital of Dalian University, Dalian 116001, Liaoning Province, China; 3Technology Department of Huazhu Medical Technology (Shanghai) Co., Ltd., Shanghai 201204, China
Received:
2020-01-06
Revised:
2020-01-10
Accepted:
2020-03-03
Online:
2020-11-28
Published:
2020-09-27
Contact:
Guan Tianmin, MD, Professor, Doctoral supervisor, School of Mechanical Engineering, Dalian Jiaotong University, Dalian 116028, Liaoning Province, China
About author:
Zhao Dezhu, Doctoral candidate, School of Mechanical Engineering, Dalian Jiaotong University, Dalian 116028, Liaoning Province, China
CLC Number:
Zhao Dezhu, Guan Tianmin, Wu Bin, Mei Zhao. Design and implementation of an adolescent idiopathic scoliosis orthosis design expert system based on fuzzy logic[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(33): 5255-5261.

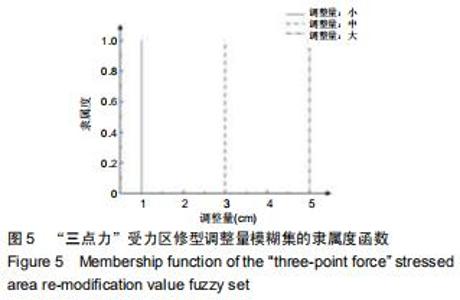

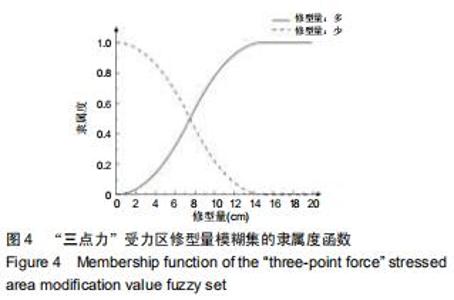

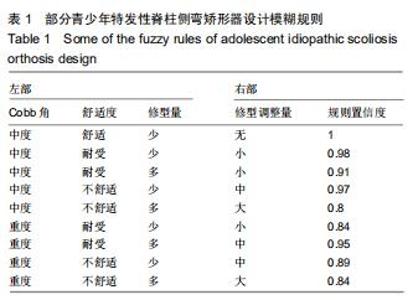

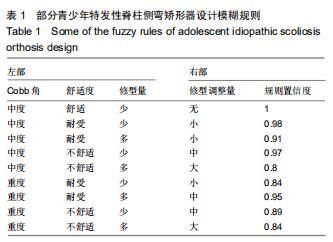

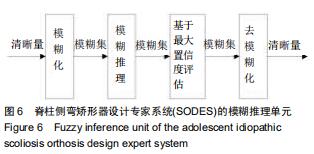

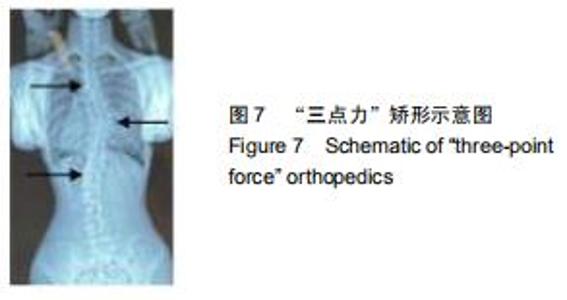

接下来,以患者A的AIS矫形器修型调整量()的推理为例介绍SODES模糊逻辑模型的工作原理。AIS矫形器设计的基本流程是:医生按照“三点力”矫形生物力学确定AIS矫形器压力施加区的修型量(),“三点力”矫形示意图见图7。再根据修型量对患者的阳模进行修型并制造AIS矫形器。在患者试戴AIS矫形器后,医生根据患者的反馈确定AIS矫形器的修型调整量,并按照修型调整量对AIS矫形器的修型进行调整。通过调整AIS矫形器压力施加区的高度,进而调整其对患者施加的矫形力,直到患者穿戴矫形器时再无不适的感觉[26-30]。可见,修型量和修型调整量的确定是保证AIS矫形器满足患者个性化需求的重要因素。首先,定义SODES中舒适度模糊集F的论域为:F={舒适,耐受,不舒适}。部分的AIS矫形器设计模糊规则见表1。 "
接下来,以患者A的AIS矫形器修型调整量()的推理为例介绍SODES模糊逻辑模型的工作原理。AIS矫形器设计的基本流程是:医生按照“三点力”矫形生物力学确定AIS矫形器压力施加区的修型量(),“三点力”矫形示意图见图7。再根据修型量对患者的阳模进行修型并制造AIS矫形器。在患者试戴AIS矫形器后,医生根据患者的反馈确定AIS矫形器的修型调整量,并按照修型调整量对AIS矫形器的修型进行调整。通过调整AIS矫形器压力施加区的高度,进而调整其对患者施加的矫形力,直到患者穿戴矫形器时再无不适的感觉[26-30]。可见,修型量和修型调整量的确定是保证AIS矫形器满足患者个性化需求的重要因素。首先,定义SODES中舒适度模糊集F的论域为:F={舒适,耐受,不舒适}。部分的AIS矫形器设计模糊规则见表1。 "

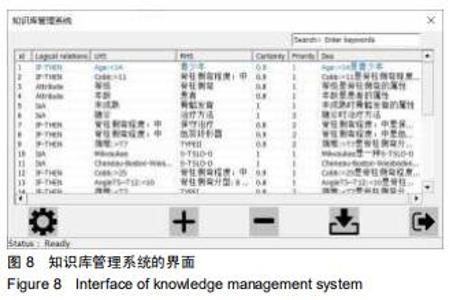

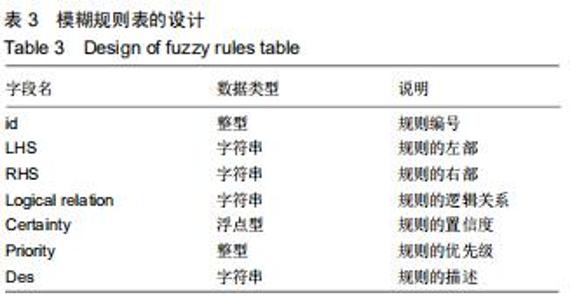

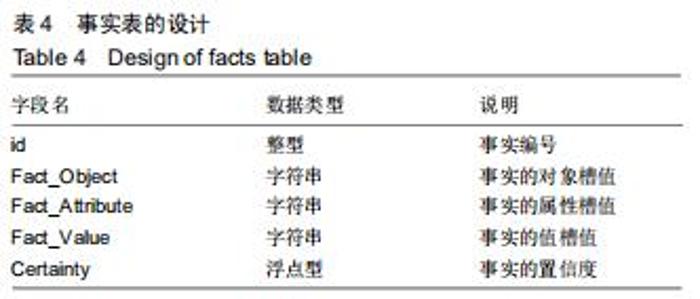

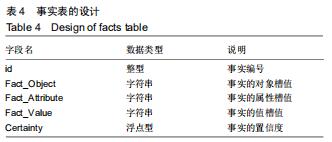

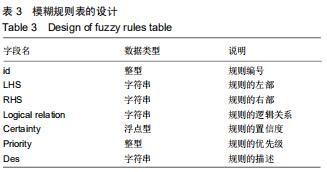

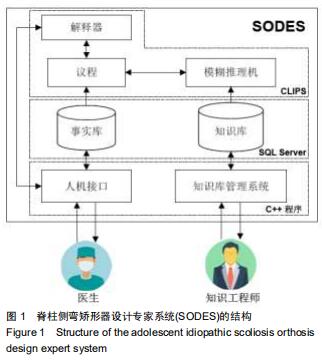

然而,CLIPS具有知识库不易于管理与维护的不足。因此,此文选用VC++与SQL Server 2017开发知识库管理系统,从而实现知识库的管理机制。此文通过MFC开发知识库管理系统的应用层、SQL Server 2017搭建知识库管理系统的物理层并通过ADO接口实现知识库管理系统的应用层与物理层的连接。知识库管理系统中模糊规则表用于保存知识库中的模糊规则,该模糊规则表的设计见表3。知识库管理系统中事实表用于保存事实库中的已知事实,该事实表的设计见表4。知识工程师通过与AIS保守治疗专家面谈和案例研究,从而概念化、形式化出848条AIS的诊疗和AIS矫形器设计规则。知识库管理系统的界面见图8。 "
然而,CLIPS具有知识库不易于管理与维护的不足。因此,此文选用VC++与SQL Server 2017开发知识库管理系统,从而实现知识库的管理机制。此文通过MFC开发知识库管理系统的应用层、SQL Server 2017搭建知识库管理系统的物理层并通过ADO接口实现知识库管理系统的应用层与物理层的连接。知识库管理系统中模糊规则表用于保存知识库中的模糊规则,该模糊规则表的设计见表3。知识库管理系统中事实表用于保存事实库中的已知事实,该事实表的设计见表4。知识工程师通过与AIS保守治疗专家面谈和案例研究,从而概念化、形式化出848条AIS的诊疗和AIS矫形器设计规则。知识库管理系统的界面见图8。 "
然而,CLIPS具有知识库不易于管理与维护的不足。因此,此文选用VC++与SQL Server 2017开发知识库管理系统,从而实现知识库的管理机制。此文通过MFC开发知识库管理系统的应用层、SQL Server 2017搭建知识库管理系统的物理层并通过ADO接口实现知识库管理系统的应用层与物理层的连接。知识库管理系统中模糊规则表用于保存知识库中的模糊规则,该模糊规则表的设计见表3。知识库管理系统中事实表用于保存事实库中的已知事实,该事实表的设计见表4。知识工程师通过与AIS保守治疗专家面谈和案例研究,从而概念化、形式化出848条AIS的诊疗和AIS矫形器设计规则。知识库管理系统的界面见图8。 "
[1] MENG YC, MA J, LIN T, et al. Functional variants of hepatocyte growth factor identified in patients with adolescent idiopathic scoliosis. J Cell Biochem. 2019;120(10):18236-18245.
[2] CHEUNG JY, YIU KL, VIDYADHARA S, et al. Predictability of supine radiographs for determining in-brace correction for adolescent idiopathic scoliosis. Spine. 2018;43(14):971-976.
[3] ZHU ZZ, ZHAO ZH, TSENG CC, et al. Selective fusion in lenke 5 adolescent idiopathic scoliosis. World Neurosurg. 2018;118(2): 784-791.
[4] WANG WL, YANG M, SEONG PH. Development of a rule-based diagnostic platform on an object-oriented expert system shell. Ann Nucl Energy. 2016;88(3):252-264.
[5] RAMADOSS AK, KRISHNASWAMY M. Embedding inference engine in fuzzy expert robotic system shell in a humanoid robot platform for selecting stochastic appropriate fuzzy implications for approximate reasoning. Artif Life and Robot. 2015;20(4):13-18.
[6] Ö F, ESER S, AVCI D. An expert system for brain tumor detection: fuzzy C-means with super resolution and convolutional neural network with extreme learning machine. Med Hypotheses. 2019;134(3): 528-536
[7] WANG SH, SUN XL. The global system-ranking efficiency model and calculating examples with consideration of the nonhomogeneity of decision-making units. Expert Syst. 2018;7(9):134-142.
[8] MARYAM H, AZAM O, ALI V, et al. A fuzzy rule-based expert system for diagnosing cystic fibrosis. Electronic Physician. 2017;9(12):74-84.
[9] HASSAN AM, BEHROUZ MB, ALI AF. Design and implementation of a web-based fuzzy expert system for diagnosing depressive disorder. Appl Intell. 2017;48(5):1302-1313.
[10] UMAIR A, ANTONI L, KASHIF Z. Performance evaluation of rule-based expert systems: An example from medical billing domain. Expert Syst. 2017;34(6):156-163.
[11] SOUZA D, DANILO C, GUEDES NA, et al. Trend-weighted rule-based expert system with application to industrial process monitoring. Int J Innov Comput I.2017;13(4):1257-1272.
[12] 苏羽,赵海,苏威积,等.基于模糊专家系统的评估诊断方法[J].东北大学学报,2004,25(7):653-656.
[13] MAR RG, MARIA GN, JOSE AM, et al. Enhancing semantic consistency in anti-fraud rule-based expert systems. Expert Systems with Applications. 2017;90(30):332-343.
[14] GHADA D, LINA NK, ELIZABETH AS. The transition from expert to Novice and Back to Expert. Clin Nurse Spet. 2019;33(3):106-109.
[15] PRATEEK A, VIKAS K, VISHU M. Fuzzy rule-based medical expert system to identify the disorders of eyes, ENT and liver. Int J Adv Intell Parad. 2015;7(3/4):352-367.
[16] XU WH, SANG BB, SHI DR, et al. Decision-theoretic rough set model of multi-source decision systems. Int J Mach Learn Cyb. 2018;9(11): 1941-1954.
[17] MARKO B, DRAGANA M, ANITA V, et al. A decision support system for Parkinson disease management: expert models for suggesting medication change. J Decis Syst. 2018,27(1):164-172.
[18] GUAN TM, ZHAO DZ, MEI Z. Design and implementation of a knowledge-based expert system shell[C]//Proceedings of 12th international symposium on computational intelligence and design. Los Alamitos: IEEE Computer Society, 2019:204-207.
[19] BRYANT JW, LAURA CB, MARK JC, et al. Beyond bones: assessing whether ultrasound-aided instruction and practice improve unassisted soft tissue palpation skills of first-Year medical students. J Ultras Med. 2019;38(8):2047-2055.
[20] RUILOPE LM, AGUADO LQ, FERNANDEZ L, et al. Application of an expert system to improve cardiovascular risk in the workplace. J Hypertens. 2018;7(36):359-369.
[21] DUYGU CE, ALI HAKAN U. Development of a knowledge-based medical expert system to infer supportive treatment suggestions for pediatric patients. ETRI J. 2019;41(4):515-527.
[22] SHINJI N, BUI HH, MAYFONG M, et al. Development of an emergency medical system model for resource-constrained settings. Trop Med Int Health. 2019;24(10):1140-1150.
[23] SAMUEL RW, IWASOKUN GB, AKINYOKUN OC, et al. Fuzzy logic-driven expert system for the diagnosis of heart failure disease. Artific Intell Res. 2015;4(1):12-21.
[24] PRADEEP S, RAMESH K, SUMITA A, et al. Expert corner-P\pediatric ophthalmology and strabismus. TNOA J Ophth Sci Res. 2019;57(1): 60-64.
[25] LEE S, CHOI O, SUH SW, et al. Determination of input variables for the development of a gait asymmetry expert system in patients with idiopathic scoliosis. Int J Precis Eng Man. 2013;14(5):811-818.
[26] CAOUETTE C, AUBIN C, COBETTO N, et al. Computer-assisted design and finite element simulation of braces for the treatment of adolescent idiopathic scoliosis using a coronal plane radiograph and surface topography. Clin Biomech. 2018;4(54):86-91.
[27] CHU EP, HUANG KK. Bridging the gap between observation and brace treatment for adolescent idiopathic scoliosis. J Fam Med Prim Care. 2017;6(2):447-449.
[28] LATEUR G, GROBOST P, GERBELOT J, et al. Efficacy of night-time brace in preventing progression of idiopathic scoliosis of less than 25°. Revue de Chirurgie Orthopedique et Traumatologique. 2017;103(2): 172-176.
[29] 张玉芳,关天民,郭侨阁,等.基于3D打印技术的个性化脊柱侧弯矫形支具数字化设计[J].中国组织工程研究,2019,23(36):5824-5829.
[30] SUN WX, ZHOU J, SUN MH, et al. Low body mass index can be predictive of bracing failure in patients with adolescent idiopathic scoliosis: a retrospective study. Eur Spine J. 2017;26(6):1665-1669.
[31] LAKHOUA N, SOLTANI A, BATTIKH T, et al. A new expert system based on fuzzy logic and image processing algorithms for early glaucoma diagnosis. Biomed Signal Proces. 2018;2(40):366-377.
[32] HAN XX, WANG ZL, YIN XJ, et al. A new health estimation model for CNC machine tool based on infinite irrelevance and belief rule base. Microelectron Reliab. 2018;5(84):187-196.
[33] DANIEL V, XUE DY, RONSKY JL, et al. Computer-aided optimal design of custom scoliosis braces considering clinical and patient evaluations. Comput Meth Prog Bio. 2012;107(3):478-489.
[34] DENG LM, HU Y, CHEUNG JPY, et al. A data-driven decision support system for scoliosis prognosis. IEEE Access. 2017;5(99):7874-7884.
[35] LUKOVIC V, CUKOVIC S, DEVEDZIC G, et al. An ontology-based module of the information system ScolioMeDIS for 3D digital diagnosis of adolescent scoliosis. Comput Meth Prog Bio. 2019;178(9):247-263. |
